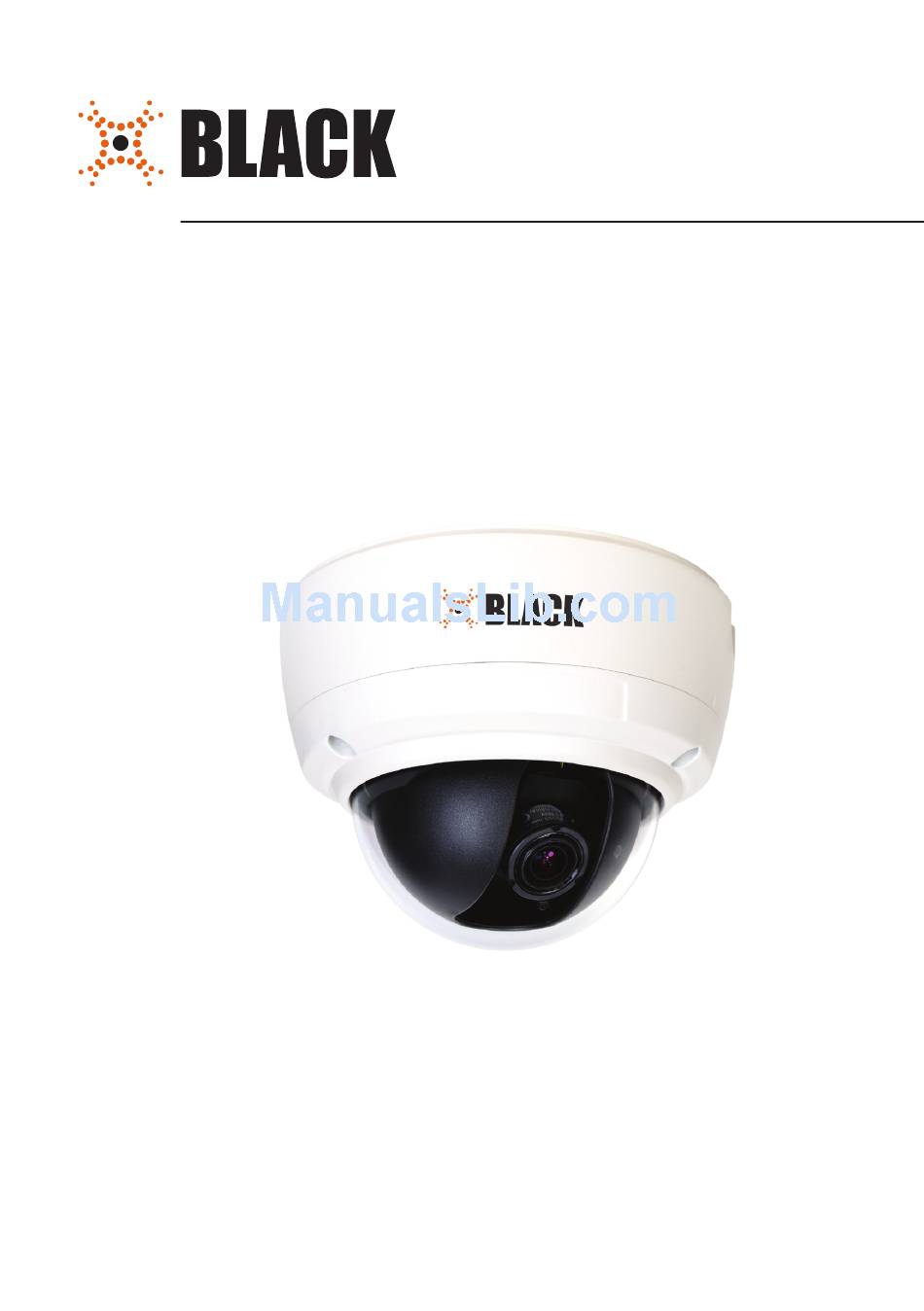

- Page 1 Indoor/Outdoor Mini-Dome IP Camera User Manual Product: BLK-IPD102 Please read this manual before using your camera, and always follow the instructions for safety and proper use. Save this manual for future reference. BLK-IPD102_CM 10/26/11...
- Page 2 Do not operate this camera in environments where the temperatures or humidity is outside the recommended range. Doing so my cause electric shock and shorten the life of the product. CAUTION LEGAL NOTICE DIGIOP® products are designed to meet safety and performance standards with the use of specific DIGIOP authorized accessories.
-
Page 3: Table Of Contents
Table of Contents SECTION 1 Features ................2 SECTION 2 Installation and Setup . -
Page 4: Features
SECTION 1: FEATURES SECTION 1 Features The DIGIOP Black BLK-IPD102 is a professional, premium-grade mini-dome camera designed for outdoor or indoor installation. It features: Fixed vandal-proof dome • Gimbal mount • Sony 1/3” Super HAD CCD sensor ® • True day/night IR •... -
Page 5: Installation And Setup
SECTION 2: INSTALLATION AND SETUP SECTION 2 Installation and Setup 2.1 What’s in the box Your dome camera includes the following: BLK-IPD102 camera • Extension cable for LAN and power • DC power adapter with power plugs for different powering sources •... - Page 6 SECTION 2: INSTALLATION AND SETUP Camera dome removal Using the base as a template, mark the location of the three mounting screw holes. Drill mounting screw holes into the mounting surface: If the mounting surface is a soft material, such as a drywall, drill and install drywall inserts for the mounting screws. —...
-
Page 7: Connections
SECTION 2: INSTALLATION AND SETUP Install a conduit fitting onto the bottom of the base. Install a junction box close enough to the camera for the extension cable LAN and power connectors to be in the box. Attach the conduit for the junction box to the conduit fitting on the bottom of the camera base. Place the base seal over the base, aligning the holes for the mounting screws. -
Page 8: Audio In/Out Connections
SECTION 2: INSTALLATION AND SETUP NOTE: When connecting leads from external devices to the terminal block, use the pin definitions shown on the circuit board as a guide. Pin definitions on the circuit board may be different from those shown below. Terminal block pin assignments The 11-pin terminal block may be detached from the camera. -
Page 9: Sensor In (Di) Connection
SECTION 2: INSTALLATION AND SETUP 2.4.2 Sensor in (DI) connection The camera provides one channel for sensor input that can be connected to either a voltage type or relay type sensor. For voltage type sensors, the camera allows a maximum input of 24 V DC, with a 1 V DC threshold (see Specifications). The configuration of the sensor input wiring is illustrated in the diagrams below. -
Page 10: Alarm Out (Do) Connection
SECTION 2: INSTALLATION AND SETUP Strip 1/4” of insulation from the sensor wires and insert them into the terminal block in the DI pin locations shown above. The pin marked “C” in the terminal block is the common (COM) pin. 2.4.3 Alarm out (DO) connection The camera supports one alarm out connection to relay type device. -
Page 11: Video Out Connection
SECTION 2: INSTALLATION AND SETUP RS-485 device wiring schematic To connect an RS-485 device wiring to the camera: Route RS-485 device wiring through the cable channel and into the camera base housing. Strip 1/4” of insulation from the wires and insert them into the terminal block. Observe the signal polarity shown in the schematic. -
Page 12: Install Ipadmin Tool
SECTION 2: INSTALLATION AND SETUP If the camera is not powered through the Ethernet (PoE), attach the power plug appropriate for your powering source to the power adapter, and attach the DC12V adapter to the power connector on the camera extension cable. DO NOT power on your camera at this time. -
Page 13: Configuring Cameras On Networks With Dhcp
(fixed, unchanging) settings, your camera must be configured with static network settings that are compatible with the network configuration. Additionally, if DHCP is not used on your network, DIGIOP Black cameras must be installed on the network and configured with new network settings one at a time to avoid addressing conflicts. - Page 14 SECTION 2: INSTALLATION AND SETUP Check the list of IP devices found by IPAdmin Tool. You can identify your camera by the MAC address. If the camera was not found, click the Refresh button every minute until your camera appears in the list. In the IPAdmin Tool device list, use the camera’s MAC Address to find the camera you are installing.
-
Page 15: Configuring Cameras On Networks Without Dhcp
SECTION 2: INSTALLATION AND SETUP If you have other compatible, network settings you want to apply to the device, enter them in the appropriate locations. Click Setup to save settings. In the Login window, enter the ID and PW (password) for your camera and click Login. The default administrator values for the ID and PW are root and pass. - Page 16 SECTION 2: INSTALLATION AND SETUP Type cmd in the entry field, then click OK to open the DOS command window. At the command prompt, enter ipconfig. The response will show the your PC’s network settings. Example: Typical use of ipconfig in Windows XP Enter the IP Address, Subnet Mask, and Default Gateway for your PC’s Ethernet adapter into Table 1.
- Page 17 SECTION 2: INSTALLATION AND SETUP Find network settings (IP addresses) that are not in use At your PC, find an IP address on your network that is not in use: Write down the EXACT IP address of your PC up to the third/last period. Using the example shown above, this expression is: 192.168.1.
- Page 18 IP addresses using the steps above until an unused address is found. Check LAN for default IP address compatibility Because all DIGIOP Black cameras and encoders are factory configured with the static IP address 192.168.0.100, check the LAN before connecting your camera to ensure that network conflicts won’t occur.
- Page 19 SECTION 2: INSTALLATION AND SETUP In the Product list, find the entry with the same MAC address as the camera you installed. If the camera is not shown, click Refresh once a minute to update the list. Right click on the entry for your camera and select IP Address. IP Setup window In the IP Setup window: Select the Static option if it is not selected.
-
Page 20: Setup The Camera Basic Configuration
SECTION 2: INSTALLATION AND SETUP In the IPAdmin Tool window, click Refresh and verify that the entry representing the camera now shows the new IP address. In the IPAdmin Tool window, click Refresh and verify that the entry for your camera now shows the new IP address. 2.7 Setup the camera Basic Configuration IIn this procedure, use the Internet Explorer (IE) browser to setup the camera administrator and user passwords, date, and time. - Page 21 SECTION 2: INSTALLATION AND SETUP Typical initial camera view If, after logging into your camera, you cannot see live video and the message: NOTE “Can not Create XMLDOMDocument Install MSXML4.0” appears, download and install the MS XML 4.0 library. This library can be found at: http://www.microsoft.com/downloads/details.aspx?familyid=3144B72B-B4F2-46DA-B4B6-C5D7485F2B42&displaylang=en In the camera window, click the SETUP link in the upper right corner of the window.
- Page 22 SECTION 2: INSTALLATION AND SETUP In the Date & Time Setting options: Select the Time Zone you prefer. Select the synchronization method, or Set Manually bullet and enter the appropriate information. Select the Sync Source and Interval you prefer. Click Apply. In the Basic Configuration menu, click Users.
- Page 23 SECTION 2: INSTALLATION AND SETUP In the User List, click root, and then click Modify and follow the prompts. Setup the administrator user with a new password and click OK. In the Users menu, click Apply, then click OK to restart the webserver (if you wish to do so at this time). Click Add to include other administrators, operators or viewers to the user list.
-
Page 24: Aim, Focus, And Image Quality Adjustment
SECTION 2: INSTALLATION AND SETUP 2.8 Aim, focus, and image quality adjustment 2.8.1 Aim The camera mount allows the camera to be rotated on three axis to set the horizon alignment, horizontal direction, and up/down position of the video frame. Horizon alignment Horizontal direction Up/down position... -
Page 25: Image Quality Adjustments
SECTION 2: INSTALLATION AND SETUP Reinstall the camera dome. 2.8.3 Image quality adjustments Adjustments to the image brightness, contrast, hue, saturation, and sharpness are performed through the web browser: From the VIEW window, click: SETUP > Video & Audio > Video-In Indoor/Outdoor Mini-Dome IP Camera... -
Page 26: Speaker/Microphone Setup
SECTION 2: INSTALLATION AND SETUP Scroll to the bottom of the screen and click the PREVIEW button. Follow the screen instructions to open the camera view in another IE window. While observing the video in the PREVIEW window, adjust the values for brightness, contrast, hue, saturation, sharpness, and/or other parameters on screen. -
Page 27: Cleaning
SECTION 2: INSTALLATION AND SETUP On the VIEW screen, check the SPK and MIC options to enable the speaker at the camera and the microphone on your computer. At your computer, listen for sounds from the microphone at the camera. If necessary, adjust the volume level in the camera. Click: SETUP >... -
Page 28: Specifications
SECTION 3: SPECIFICATIONS SECTION 3 Specifications Table 2. Specifications Camera Module Image Sensor SONY 1/3” Vertical Double Density Color CCD Effective Pixels 768(H) x 494(V) Scanning system 2:1 Interlace Sync Frequency 15.734 KHz (H) 59.94 Hz (V) Resolution 560 TV lines (Color), 600 TV lines (B/W) S/N (Y signal) 52 dB (AGC Off) Min. - Page 29 SECTION 3: SPECIFICATIONS Audio Input/output 1/1 channel Compression Format G.711 Function Digital Input/output 1/1 channel RS-485 Supported Network 10/100 Base-T Power over Ethernet Supported TCP/IP, UDP/IP, HTTP, RTSP, RTCP, RTP/UDP, RTP/TCP, SNTP, mDNS, UPnP, SMTP, SOCK, IGMP, DHCP, FTP, Protocol DDNS, SSL v2/v3, IEEE 802.1X, SSH SD Slot Supported —...
-
Page 30: Appendix A Troubleshooting
APPENDIX A: TROUBLESHOOTING APPENDIX A Troubleshooting A.1 Reboot camera The reboot process lasts about 2 minutes, during which time the camera will not respond to the IPAdmin Tool or transmit video to NOTE a web browser The camera can be rebooted in two ways: Using the IPAdmin Tool: •... -
Page 31: Checking Your Firmware
APPENDIX A: TROUBLESHOOTING Password – reset to pass — To force the camera to the factory network settings: Disconnect the power (adapter) from the camera. While pressing and holding down the reset button, power on the camera. Release the Reset button 5 seconds after applying power. Wait for the camera to reboot. -
Page 32: Appendix B Dimensions
APPENDIX B: DIMENSIONS APPENDIX B Dimensions 6.02” 5.94” 4.45” 3.94” www.digiop.com... -
Page 33: Appendix C Power Over Ethernet
APPENDIX C Power over Ethernet The BLK-IPD102 camera supports Power over Ethernet (PoE) in conformance with the IEEE 802.3af standard. IEEE 802.3af allows for two power options for Category 5 cables. The PoE module signature and control circuit provides the PoE compatibility signature and power classification required by •...
