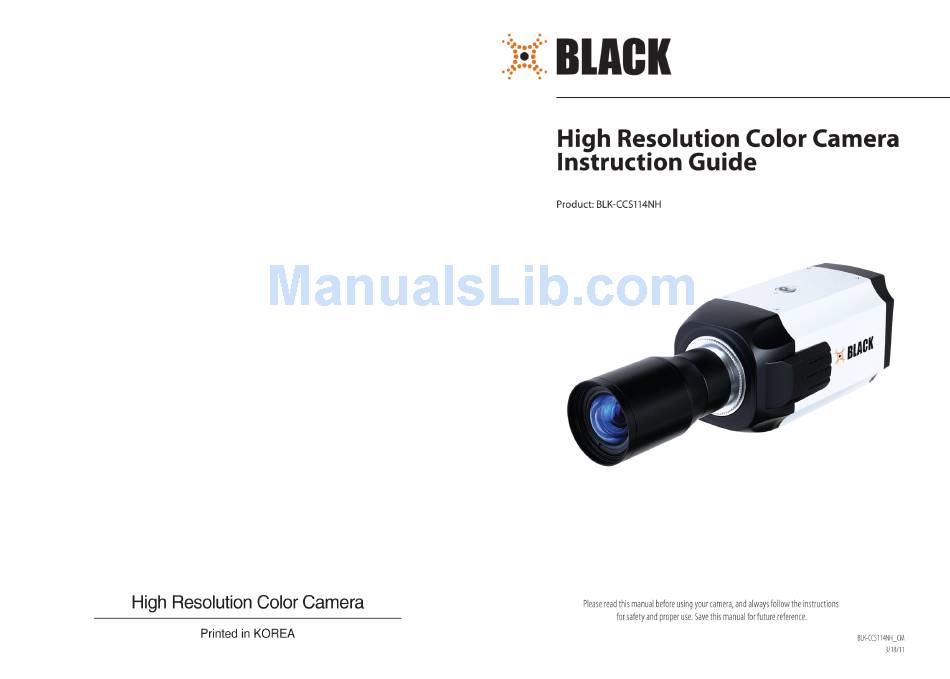

Summary of Contents for Black BLK-CCS114NH

  • Page 2 The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 3: Features

    ■ Features Warning ■ The camera requires periodic inspection. Contact an authorised technician to carry out the inspection. VIDEO/DC Drive Lens Horizontal Resolution of 550 TV Lines The video drive lens and the DC drive lens Clear image quality has been achieved by Stop using your camera when you find it malfunctioning.
  • Page 4: Table Of Contents

    ■ Contents Camera Operation Features ■ Settings Precautions ㆍ LENS ㆍ SHUTTER Components and Accessories ㆍ WHITE BALANCE Overview ㆍ BLC (Back Light Compensation) ■ Front View ㆍ AGC (Auto Gain Control) ■ Side View ㆍ ADJUST ■ Bottom View ㆍ...
  • Page 5: Precautions

    ■ Precautions Do not install the camera in Do not install or use the camera in an Do not drop the camera and protect Never keep the camera pointed extreme temperature conditions. environment where the humidity is high. it from physical shocks. directly at strong light.
  • Page 6: Components And Accessories

    ■ Components and Accessories Overview ■ Front View ① 1. Ultra High Resolution WDR Color CCD Camera 2. Auto Iris Lens Connector Plug ③ ② 3. C-Mount Adapter ① Tripod Mounting Bracket Screw Hole Used to fix the Tripod Mounting Bracket to the top of the camera. ②...
  • Page 7: Side View

    ■ Overview Side View Bottom View ⑤ ④ ④ Auto Iris Lens Connector Used to connect Auto Iris Lens plug. ⑤ Tripod Mounting Bracket Screw Hole Used to fix the camera on a bracket or tripod. The screw sizes for this hole are as follows: 1/4"-20 UNC (20 THREAD) L:4.5mm±0.2mm (ISO standard), or 0.197"...
  • Page 8: Rear View

    ■ Overview Installation Procedures ■ Rear View Lens ⑦ The lens is not supplied with this camera. Purchase a lens suitable for your environment. This camera accepts the auto iris lens and both REMOTE C-and CS-mount lens. ⑧ Note ⑥ POWER VIDEO OUT •...
  • Page 9: ㆍWhen Using C/Cs Mount Lens

    Pin 2: NC Pin 2: Damping + Focus Control Lever of camera side after combining CS-Mount lens. Pin 3: White (Video Signal) Pin 3: Drive + Pin 4: Black (Ground) Pin 4: Drive - Lens cable No. 3 Pin connector No.
  • Page 10: Connecting A Monitor

    ■ Installation Procedures • When Using a C Mount Lens Connecting a Monitor 1. Remove the protective glass cover at the front of this product and turn the Connect the Video OUT port on the rear panel of the camera to a monitor. CMount Adapter clockwise to install it.
  • Page 11: Connecting Power

    ■ Installation Procedures Camera Operation ■ Connecting Power ■ Menu Since power specifications differ depending on the model, make sure to check your model name and specifications before connecting power. SETUP menu You can connect power as shown in the following figure. LENS (selection) ㆍMANUAL ㆍDC/VIDEO For AC / DC power...
  • Page 12: Settings

    ■ Camera Operation ■ Settings SETUP Select the desired Modes can be changed LENS menu item by using the LEFT and Settings can be made using the 5 buttons located on the back of the camera. SHUTTER FIXED using the UP and RIGHT buttons.
  • Page 13 ■ Camera Operation ● DC/VIDEO : Auto Iris Lens selection SHUTTER (condition and speed control) Auto or manual control can be selected. Note 1. When the SETUP menu is on the screen, position the cursor to point to 'SHUTTER' by using the UP and DOWN buttons. When using an auto iris lens, the setting of the auto iris lens selection switch, located on the back of the camera, must be on DC or VIDEO 2.
  • Page 14: ㆍ White Balance

    ■ Camera Operation WHITE BALANCE Note The screen colours can be adjusted using the WHITE BALANCE function. ㆍUnder the following conditions the WHITE BALANCE function may not operate properly. In such cases, please select the AWB mode. 1. Position the cursor to point to 'WHITE BAL' on the SETUP menu by using the ①...
  • Page 15: ㆍ Agc (Auto Gain Control)

    ■ Camera Operation ADJUST BLC SETUP BLC AREA SETUP BLC RATIO LENS MANUAL RETURN SHUTTER AUTO WHITE BAL. BLC AREA ADJUST ALL SET RETURN EXIT FUNCTION EXIT ●Contrast : The image contrast can be adjusted using the left and BACKLIGHT ON BACKLIGHT OFF right buttons.
  • Page 16: Camera Id

    - COLOR : The color mode is selected as the default, and the camera RESET does not change automatically. - B/W : Discards the color information and displays in black and white. High Resolution Color Camera High Resolution Color Camera...
  • Page 17: Mirror

    ■ Camera Operation Note ● PRIVACY ㆍWhen the AGC is turned off, COLOR does not operate. Users can set up to 4 areas as privacy zones. 'AREA STATE' allows users to turn the privacy mode on or off within each designated area. The value of 'LEFT' cannot be greater than the value of 'RIGHT'.
  • Page 18: Language

    The camera surface is fluctuating. Check for ground loops. too hot and black stripes appear on the screen. High Resolution Color Camera High Resolution Color Camera...
  • Page 19: Specifications

    Specifications ■ ■ Troubleshooting Problems Troubleshooting ITEM NTSC AC24V / DC12V DC12V AC24V / DC12V DC12V The MOTION ㆍCheck if 'MOTION DETECTION' mode is Power Source DETECTION function is turned on. 80mA(AC24V)/130mA(DC12V) 90mA 80mA(AC24V)/130mA(DC12V) 90mA not working. ㆍCheck the setting of the MD AREA. Total Pixels 811(H) x 508(V) 795(H) x 596(V)
  • Page 20 ■ MEMO...
