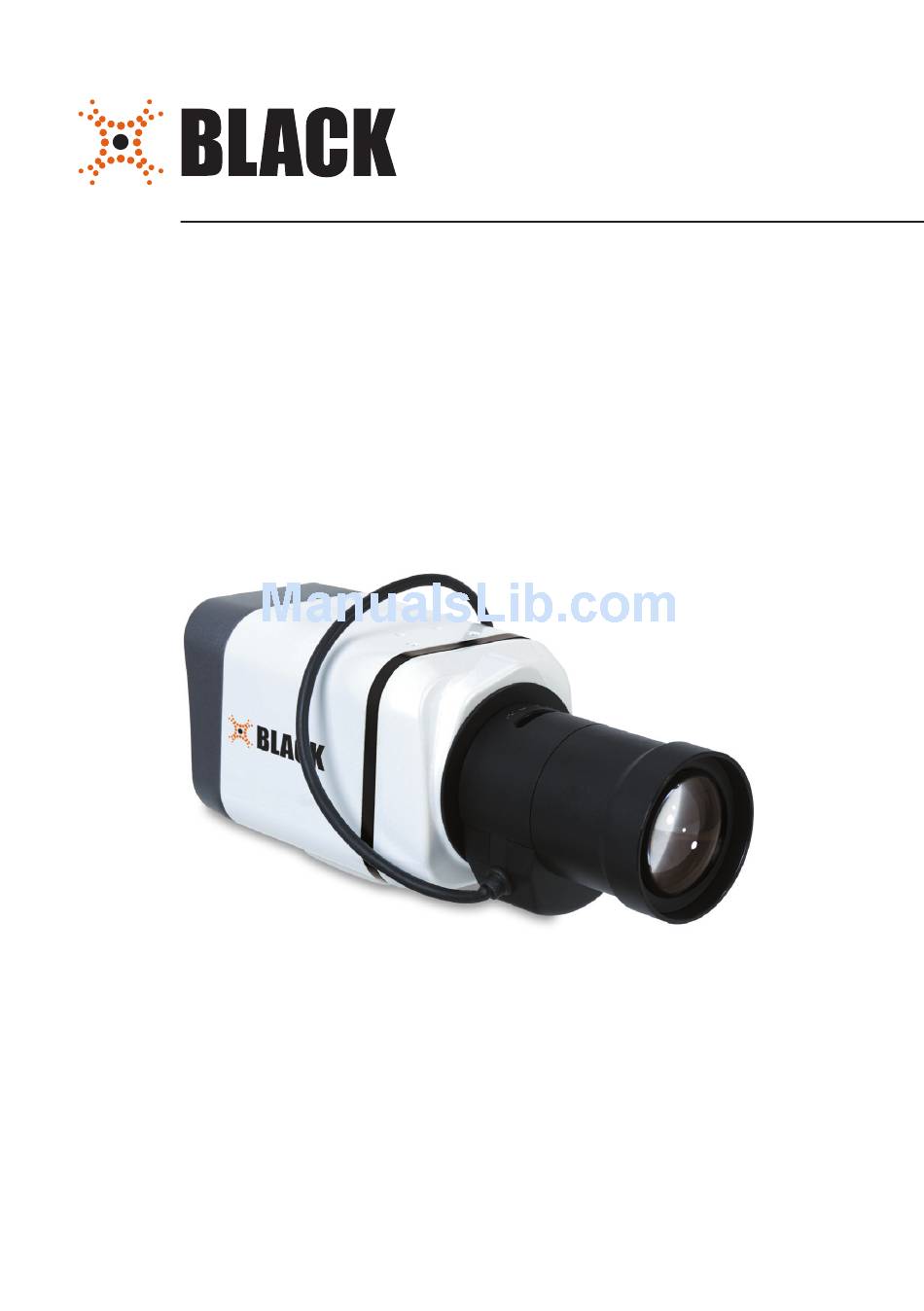

H.264 Network IP Camera User Manual Product: BLK-IPS101 Please read this manual before using your camera, and always follow the instructions for safety and proper use. Save this manual for future reference. BLK-IPS101_CM 5/27/11... - Page 2 Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. DIGIOP, Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
-
Page 3: Table Of Contents
Table of Contents SECTION 1 Features ................2 SECTION 2 Installation and Setup . -
Page 4: Features
SECTION 1: FEATURES SECTION 1 Features The DIGIOP Black BLK-IPS101 is a professional, premium-grade, CS-mount box camera designed for indoor use. Lens and mounting bracket are optional. It features: Sony 1/3” Super HAD CCD sensor ® • True Day/Night (ICR) and WDR •... - Page 5 Power adaptor connector (DC 12V) – For use with the DC jack adapter and DC12V power adapter. Micro SD card slot – SD memory card slot for external storage. DIGIOP memory card is not included. 4-pin connector for auto iris – Connection for lens auto iris control.
- Page 6 SECTION 1: FEATURES LAN connector (Ethernet) – For an RJ-45 LAN cable with 10/100 Base-T Ethernet 9-pin terminal block – For DI, DO, audio, and RS-485 communications Analog Video out – Loop out for local video monitor www.digiop.com...
-
Page 7: Installation And Setup
SECTION 2: INSTALLATION AND SETUP SECTION 2 Installation and Setup 2.1 What’s in the box Your camera includes the following: BLK-IPS101 camera • Mounting ring • Cap for protecting the CCD • DC power adapter with power plugs for different powering sources •... - Page 8 Tighten the lens set screw with the hex wrench provided. If the lens assembly has an Auto Iris feature, attach the lens cable to the 4-pin connector on the back of the camera. Pin definitions are shown in the table below. www.digiop.com...
-
Page 9: Connections
SECTION 2: INSTALLATION AND SETUP Attach the camera to the mounting bracket. Use the instructions provided with the bracket. Remove the protective cap from the end of the camera lens, if one is attached. 2.4 Connections Connections to the camera for audio in and out (microphone and speaker), D/I sensor, alarm, and RS-485 control are made through the 9-pin terminal block. -
Page 10: Sensor In (Di) Connection
24 V DC, with a 1 V DC threshold (see Specifications). The configuration of the sensor input wiring is illustrated in the following diagrams. Do not exceed the maximum input voltage or the relay switching rate. Refer to the specifications in this manual for more information. CAUTION Voltage type sensor wiring schematic www.digiop.com... -
Page 11: Alarm Out (Do) Connection
SECTION 2: INSTALLATION AND SETUP Relay type sensor wiring schematic To connect a sensor to the camera, strip 1/4” of insulation from the sensor wires and insert them into the terminal block in the DI pin locations shown above. The pin marked “C” in the terminal block is the common (COM) pin. 2.4.3 Alarm out (DO) connection The camera supports one alarm out connection to relay type device. -
Page 12: Rs-485 Device Connection
Attach the DC jack adapter cable to the DC 12V power adapter terminals on the back of the camera. Connect the red wire of the adapter cable to the + terminal, and the black (or white) wire to the - terminal. www.digiop.com... -
Page 13: Install Ipadmin Tool
SECTION 2: INSTALLATION AND SETUP DC jack adapter cable Attach the power plug appropriate for your powering source to the power adapter. Attach the DC jack Adapter to the DC power adapter provided. DO NOT apply power to the camera at this time. 2.5 Install IPAdmin Tool The IPAdmin Tool, included on the CD mini disk, is a utility that will discover cameras installed on your network and enable you to perform the initial network setup for each camera. -
Page 14: Configure The Camera Network Settings
(fixed, unchanging) settings, your camera must be configured with static network settings that are compatible with the network configuration. Additionally, if DHCP is not used on your network, DIGIOP Black cameras must be installed on the network and configured with new network settings one at a time to avoid addressing conflicts. - Page 15 SECTION 2: INSTALLATION AND SETUP Check the list of IP devices found by IPAdmin Tool. You can identify your camera by the MAC address. If the camera was not found, click the Refresh button every minute until your camera appears in the list. In the IPAdmin Tool device list, use the camera’s MAC Address to find the camera you are installing.
-
Page 16: Configuring Cameras On Networks Without Dhcp
At a PC attached to the same LAN that will be shared with your camera, determine the IP address, subnet mask, and default gateway of your PC and record it in Table 1. To find this information, do the following at the Windows desktop: Hold down the Windows key and press r to open the Run dialog box. www.digiop.com... - Page 17 SECTION 2: INSTALLATION AND SETUP Type cmd in the entry field, then click OK to open the DOS command window. At the command prompt, enter ipconfig. The response will show the your PC’s network settings. Example: Typical use of ipconfig in Windows XP Enter the IP Address, Subnet Mask, and Default Gateway for your PC’s Ethernet adapter into Table 1.
- Page 18 IP address, and that address is in use (i.e., you cannot use it for your camera). Since the ping test of the IP address we tried showed the address was in use, try another number between 1 and 254. For example, let’s ping 192.168.1.201. At the DOS prompt, enter: ping 192.168.1.201 www.digiop.com...
- Page 19 IP addresses using the steps above until an unused address is found. Check LAN for default IP address compatibility Because all DIGIOP Black cameras and encoders are factory configured with the static IP address 192.168.0.100, check the LAN before connecting your camera to ensure that network conflicts won’t occur.
- Page 20 Click SETUP. A Login window will open. In the Login window, enter the ID and PW (password) for your camera, then click Login. The default administrator ID and PW are root and pass. After entering the ID and PW, the IP Setup window closes. www.digiop.com...
-
Page 21: Setup The Camera Basic Configuration
SECTION 2: INSTALLATION AND SETUP In the IPAdmin Tool window, click Refresh and verify that the entry representing the camera now shows the new IP address. In the IPAdmin Tool window, click Refresh and verify that the entry for your camera now shows the new IP address. 2.7 Setup the camera Basic Configuration In this procedure, use Microsoft Internet Explorer (IE) browser to setup the camera administrator and user passwords, date, and time. - Page 22 In the camera window, click the SETUP link in the upper right corner of the window. Enter the User name and Password for the camera, and click OK. The default administrator values are root and pass. The Basic Configuration window will open. www.digiop.com...
- Page 23 SECTION 2: INSTALLATION AND SETUP Under the Basic Configuration menu, click Date & Time. In the Date & Time Setting options: Select the Time Zone you prefer. Select the synchronization method, or select Set Manually and enter the appropriate information. Select the Sync Source and Interval you prefer.
-
Page 24: Aim, Focus, And Image Quality Adjustments
Adjustments to the image brightness, contrast, hue, saturation, and sharpness are performed through the web browser: From the View window, click: SETUP > Video & Audio > Video-In www.digiop.com... -
Page 25: Speaker/Microphone Setup
SECTION 2: INSTALLATION AND SETUP Scroll to the bottom of the screen and click the PREVIEW button. Follow the screen instructions to open the camera view in another IE window. While observing the video in the PREVIEW window, adjust the values for brightness, contrast, hue, saturation, sharpness, and/or other parameters on screen. - Page 26 Use a microphone at your PC to send audio to the camera speakers. Verify that your microphone audio is heard at the speaker. To adjust the speaker volume go to the Bi-directional Audio Settings menu. In the Talk to frame, adjust the volume to the preferred level. Click Apply. www.digiop.com...
-
Page 27: Cleaning
SECTION 2: INSTALLATION AND SETUP 2.10 Cleaning Clean the camera housing with an approved glass cleaning solution and a lint free cloth. Dust can be removed from the unit by wiping it with a soft damp cloth. To remove stains, gently rub the surface with a soft •... -
Page 28: Specifications
H.264, MPEG-4, MJPEG selectable per stream Number of Streams Dual stream, configurable Resolution D1, CIF, QCIF Compression FPS 25/30 fps @ D1 Deinterlacing Supported (DSP) Motion Detection Supported (DSP) Supported (DSP) Burnt-in Text (Digital) Supported (DSP) Output 1 Loop Out (BNC connector) www.digiop.com... - Page 29 SECTION 3: SPECIFICATIONS Audio Input/output 1/1 channel Compression Format G.711 Function Digital Input/output 1/1 channel RS-485 Supported Network 10/100Base-T Power over Ethernet Supported TCP/IP, UDP/IP, HTTP, RTSP, RTCP, RTP/UDP, RTP/TCP, SNTP, mDNS, UPnP, SMTP, SOCK, IGMP, DHCP, FTP, Protocol DDNS, SSL v2/v3, IEEE 802.1X, SSH SD Slot Supported –...
-
Page 30: Appendix A Troubleshooting
Network settings forced to the following on networks were a DHCP server cannot be found: IP address – reset to 192.168.0.100 — Subnet mask – reset to 255.255.0.0 — Gateway – reset to 192.168.0.1 — User ID – reset to root — Password – reset to pass — www.digiop.com... -
Page 31: Checking Your Firmware
DIGIOP Support Team. Support If you cannot resolve an issue, please contact the DIGIOP Support at 1.877.942.2522 for assistance. When you contact support, please provide the server reports, log file and a brief description of the problem, if possible. -
Page 32: Appendix B Power Over Ethernet
APPENDIX B Power over Ethernet The BLK-IPS101 camera supports Power over Ethernet (PoE) in conformance with the IEEE 802.3af standard. IEEE 802.3af allows for two power options for Category 5 cables. The PoE module signature and control circuit provides the PoE compatibility signature and power classification required by the •... -
Page 33: Appendix C Dimensions
APPENDIX C: DIMENSIONS APPENDIX C Dimensions H.264 Network IP Camera User Manual...
