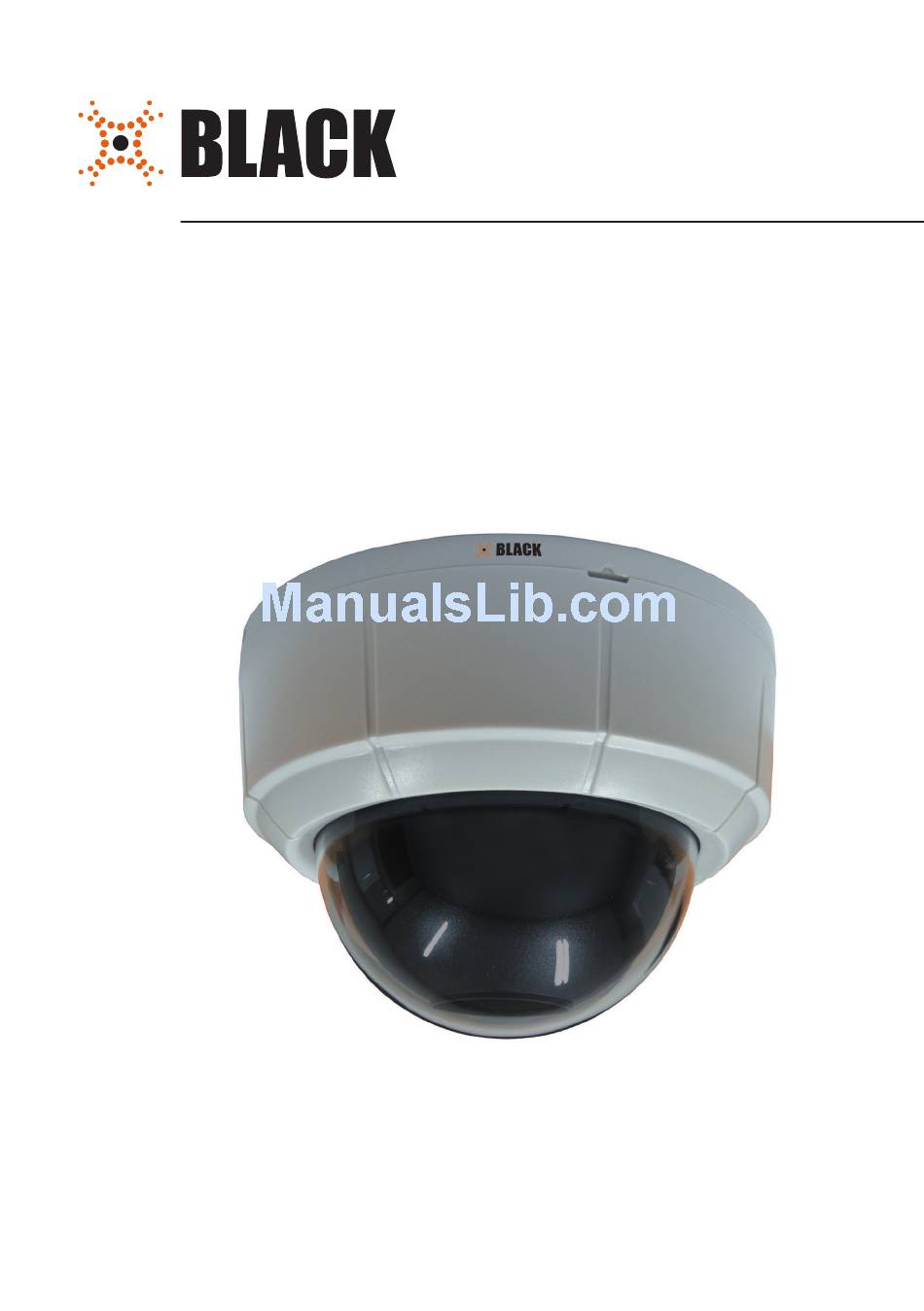

- Page 1 Indoor/Outdoor Mini-Dome IP Camera User Manual Product: BLK-IPD103 Please read this manual before using your camera, and always follow the instructions for safety and proper use. Save this manual for future reference. BLK-IPD103_CM...
- Page 2 Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. DIGIOP, Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
-
Page 3: Table Of Contents
Table of Contents SECTION 1 Features ................2 SECTION 2 Installation and Setup . -
Page 4: Features
SECTION 1: FEATURES SECTION 1 Features The DIGIOP Black BLK-IPD103 is a professional, premium-grade mini-dome IP camera designed for indoor or outdoor installation. It features: Gimbal mount • OmniVision® 1/3.6” Super CMOS CCD sensor • Dual streaming mode with different CODECs, resolution, bit rate, etc. -
Page 5: Installation And Setup
SECTION 2 Installation and Setup 2.1 What’s in the box Your dome camera includes the following: BLK-IPD103 camera • DC power adapter with power plugs for different powering sources • Hardware installation kit with a 3 screws and wall inserts •... -
Page 6: Connections
Route the drop cable the mounting surface (if necessary), then attach the camera base to the mounting surface. 2.4 Connections Connections to the camera for video out, audio in and out (microphone and speaker), power, and LAN are made at the drop cable. www.digiop.com... -
Page 7: Install Ipadmin Tool
SECTION 2: INSTALLATION AND SETUP Drop Cable Power Adapter Monitor Drop Speaker Camera connections Attach a monitor, speaker, and microphone to the appropriate camera drop cable connector as needed. Attach a LAN drop cable to the RJ45 camera drop cable connector. If the camera is powered through the LAN cable, DO NOT apply power to the camera at this time. -
Page 8: Configure The Camera Network Settings
(fixed, unchanging) settings, your camera must be configured with static network settings that are compatible with the network configuration. Additionally, if DHCP is not used on your network, DIGIOP Black cameras must be installed on the network and configured with new network settings one at a time to avoid addressing conflicts. - Page 9 SECTION 2: INSTALLATION AND SETUP Connect your camera to the LAN, then power on the camera. Open the IPAdminTool directory on your computer, then double click the file IPAdminTool.exe to start the application. When the IPAdmin Tool starts, it will discover all the IP devices it supports that exist on the network. The discovery process may take a few minutes.
-
Page 10: Configuring Cameras On Networks Without Dhcp
Configuring the network settings of your cameras includes these steps: Determine the network settings of your computer. — Check the network for compatibility with the default static network settings of your camera. — www.digiop.com... - Page 11 SECTION 2: INSTALLATION AND SETUP Find network settings (IP addresses) that are not in use and can be assigned to your camera. — Attach your camera to the network, power it on, and configuring it with new network settings. — Determine the network settings of your computer At a PC attached to the same LAN that will be shared with your camera, determine the IP address, subnet mask, and default gateway of your PC and record it in Table 1.
- Page 12 <IP address> To test this IP address, enter ping 192.168.1.200. Any reply received from the ping indicates that a device on the network is already using this IP address and you can connect to it. www.digiop.com...
- Page 13 IP addresses using the steps above until an unused address is found. Check LAN for default IP address compatibility Because all DIGIOP Black cameras and encoders are factory configured with the static IP address 192.168.0.100, check the LAN before connecting your camera to ensure that network conflicts won’t occur.
- Page 14 Select the Static option if it is not selected. This option is required if video from the camera will be recorded by a network DVR, or if you want to view video from the camera across a WAN (Internet). www.digiop.com...
-
Page 15: Setup The Camera Basic Configuration
SECTION 2: INSTALLATION AND SETUP Enter the IP address for your camera from Table 1 into the IP Address field. Enter the subnet mask for your computer from Table 1 into the Subnet Mask field. Click SETUP. A Login window will open. In the Login window, enter the ID and PW (password) for your camera, then click Login. - Page 16 In the camera window, click the SETUP link in the upper right corner of the window. Enter the User name and Password for the camera, and click OK. The default administrator values are root and pass. The Basic Configuration window will open. In the Basic Configuration menu, click Date & Time. www.digiop.com...
- Page 17 SECTION 2: INSTALLATION AND SETUP In the Date & Time Setting options: Select the Time Zone you prefer. Select the synchronization method, or Set Manually bullet and enter the appropriate information. Select the Sync Source and Interval you prefer. Click Apply. In the Basic Configuration menu, click Users.
-
Page 18: Aim, Focus, And Image Quality Adjustment
Click VIEW in the upper right corner of the window to return to the camera live view. 2.8 Aim, focus, and image quality adjustment 2.8.1 Aim The camera mount allows the camera to be rotated on three axis to set the horizon alignment, horizontal direction, and up/down position of the video frame. www.digiop.com... -
Page 19: Adjust Focus And Zoom
SECTION 2: INSTALLATION AND SETUP Horizon alignment Horizontal direction Up/down position While observing video from the camera, set the horizon alignment by rotating camera module bracket on its horizontal axis. Tighten the retention screw to hold the horizontal alignment position in place. Set the horizontal direction of the video frame by rotating camera assembly on its vertical axis. -
Page 20: Image Quality Adjustments
After adjusting the focus and zoom, it may be necessary to re-aim the camera. 2.8.3 Image quality adjustments Adjustments to the image brightness, contrast, hue, saturation, and sharpness are performed through the web browser: From the VIEW window, click: SETUP > Video & Audio > Video-In. www.digiop.com... -
Page 21: Speaker/Microphone Setup
SECTION 2: INSTALLATION AND SETUP Scroll to the bottom of the screen and click the PREVIEW button. Follow the screen instructions to open the camera view in another IE window. While observing the video in the PREVIEW window, adjust the values for brightness, contrast, hue, saturation, sharpness, and/or other parameters on screen. - Page 22 Use a microphone at your PC to send audio to the speaker at the camera. Verify that your microphone audio is heard at the speaker. To adjust the speaker volume go to the Bi-directional Audio Settings menu. In the Talk to frame, adjust the volume to an appropriate level. Click Apply. www.digiop.com...
-
Page 23: Cleaning
SECTION 2: INSTALLATION AND SETUP 2.10 Cleaning Clean the camera housing with an approved glass cleaning solution and a lint free cloth. Dust can be removed from the unit by wiping it with a soft damp cloth. To remove stains, gently rub the surface with a soft •... -
Page 24: Specifications
Compression Format G.711 Function Digital Input/output Not available RS-232/RS-485 Not available Network 10/100BaseT Power over Ethernet Supported TCP/IP, UDP/IP, HTTP, RTSP, RTCP, RTP/UDP, RTP/TCP, SNTP, mDNS, UPnP, SMTP, SOCK, IGMP, DHCP, FTP, Protocol DDNS, SSL v2/v3, IEEE 802.1X, SSH www.digiop.com... - Page 25 SECTION 3: SPECIFICATIONS Table 3. Electrical Characteristics Audio Input Linein, 1.43 Vp-p (Min 1.35 Vp-p, max 1.49 Vp-p), 39 KΩ Audio Output Lineout, 46 mW Power, 16 Ω Power source DC 12 V or PoE IEEE802.3af (class 0) Power consumption (approx.) 2.88W (DC 12V) / 4.08W (PoE) Table 4.
-
Page 26: Appendix A Troubleshooting
Network settings forced to the following on networks were a DHCP server cannot be found: IP address – reset to 192.168.0.100 — Subnet mask – reset to 255.255.0.0 — Gateway – reset to 192.168.0.1 — User ID – reset to root — Password – reset to pass — www.digiop.com... -
Page 27: Checking Your Firmware
Contact DIGIOP Support for firmware updates. A.4 Support If you cannot resolve an issue, please contact the DIGIOP Support at 1.877.972.2522 for assistance. When you contact support, please provide the server reports, log file and a brief description of the problem, if possible. -
Page 28: Appendix B Dimensions
APPENDIX B: DIMENSIONS APPENDIX B Dimensions 5.71” Top View www.digiop.com... - Page 29 APPENDIX B: DIMENSIONS Ø 3.94” 4.43” Ø 5.71” Side View 4.53” ~ Ø .15” Base view Indoor/Outdoor Mini-Dome IP Camera...
-
Page 30: Appendix C Power Over Ethernet
APPENDIX C Power over Ethernet The BLK-IPD103 camera supports Power over Ethernet (PoE) in conformance with the IEEE 802.3af standard. IEEE 802.3af allows for two power options for Category 5 cables. The PoE module signature and control circuit provides the PoE compatibility signature and power classification required by •...
