instruction manual
IR Sensors and
Receivers
C on t ro l Pa n el A c c e s s o rie s

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sensors and Receivers IR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMX Sensors and Receivers IR

Summary of Contents for AMX Sensors and Receivers IR

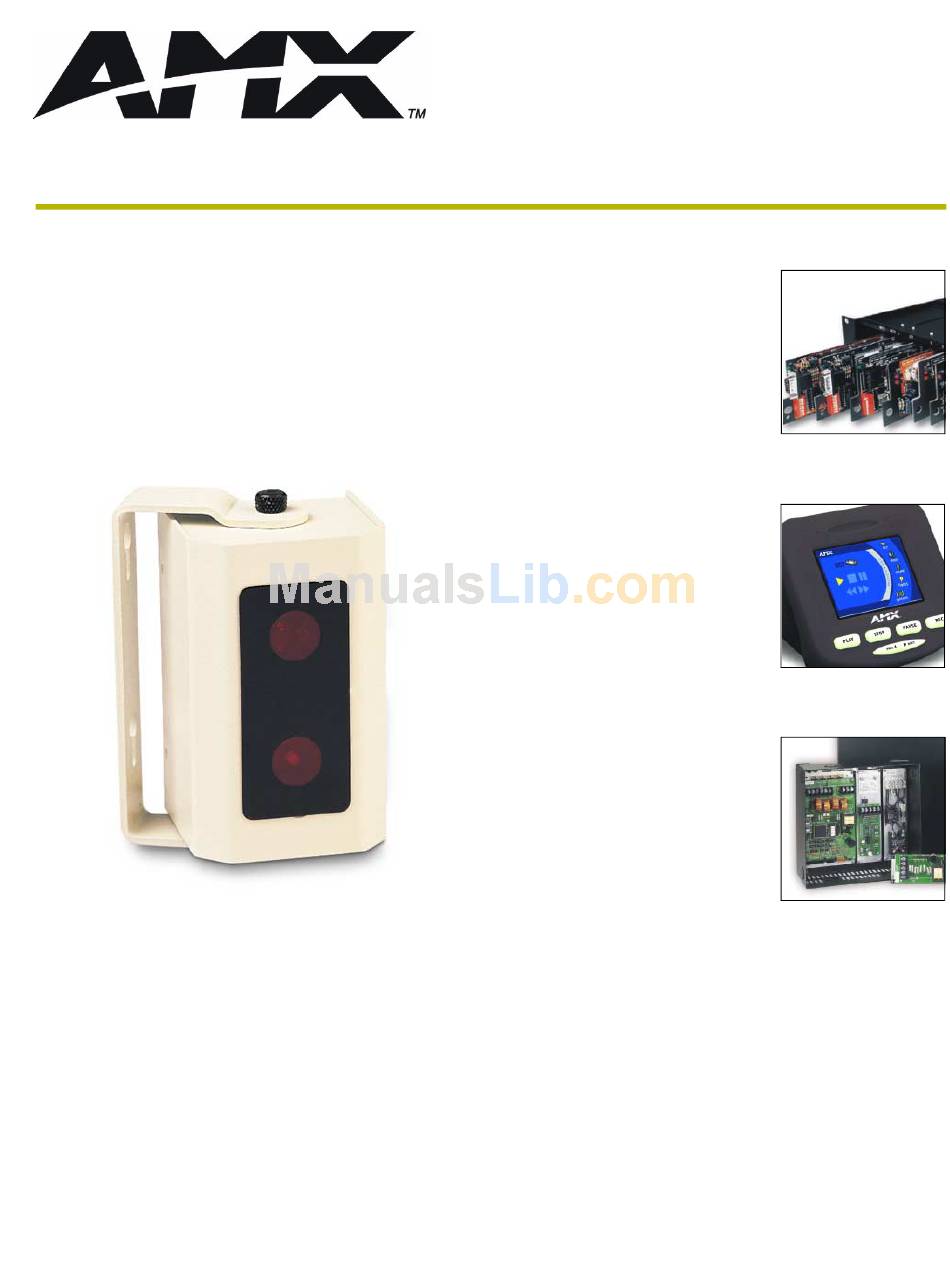

  • Page 1 instruction manual IR Sensors and Receivers C on t ro l Pa n el A c c e s s o rie s...
  • Page 2 This warranty extends only to products purchased directly from AMX Corporation or an Authorized AMX Dealer. AMX Corporation is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX Corporation is not liable for any claim made by a third party or by an AMX Dealer for a third party.

  • Page 3: Table Of Contents

    Wiring the AXD-IR+ or the AXR-IRSM+ to AXlink... 11 Using the AXlink four-pin connector with an external 12 VDC power supply... 11 Wiring the IRX-DM+ or IRX-SM+ to the AMX IR Receiver... 12 Checking IR Data status ... 12 Checking AXlink status ... 12 Mounting the UniMount Sensor or Receiver ...
  • Page 4 Table of Contents IR Sensors and Receivers...

  • Page 5: Product Information

    SM+) work with AMX IR-format 38 or 455 kHz wireless transmitters. The AXD-IR+ and AXR-IRSM+ are remote IR receivers used with AMX Axcess Central Controllers and operate via the AXlink bus to remotely control AXlink devices. The AXD-IR+ is in a UniMount wall panel that fits into most US-style single-gang enclosures.

  • Page 6: Specifications: Sensors And Receivers

    Product Information The swivel-mount units: Install on the ceiling or wall, and can be positioned horizontally or vertically Swivel for best IR reception and protection from fluorescent interference Specifications: Sensors and Receivers AXD-IR+ FIG. 2 shows the AXD-IR+ Decor IR receiver. FIG.

  • Page 7: Irx-Dm

    The following table lists the AXR-IRSM+ specifications. AXR-IRSM+ Specifications Enclosure Mounting Dimensions (HWD) Weight Power Consumption IRX-DM+ FIG. 4 shows the IRX-DM+ Decor IR sensor. FIG. 4 IRX-DM+ Decor IR sensor The following table lists the IRX-DM+ specifications. IRX-DM+ Specifications Mounting Dimension (HWD) Weight...

  • Page 8: Applications

    Weight Power Consumption Applications Use the sensors and receivers with AMX transmitters to control devices such as media equipment. Combine several sensors and receivers for large single-area coverage or as discrete units for multiple room installations. FIG. 6 illustrates an application using a sensor, the IRX-SM+ (the application could also use the IRX-DM+).
  • Page 9 Product Information FIG. 7 illustrates an application using a receiver, the AXD-IR+ (the application could also use the AXR-IRSM+). AXD-IR+ AXlink AXCESS CardFrame Controlled devices FIG. 7 Example equipment configuration using the AXD-IR+ IR Sensors and Receivers...
  • Page 10 Product Information IR Sensors and Receivers...

  • Page 11: Wiring And Installation

    Wiring and Installation Before installing the sensors and receivers, set the receive frequency on the units. On the receivers, the AXD-IR+ and AXR-IRSM+, also set the AXlink device number and IR validation level. To access the jumper pins or switches on the circuit board assembly in the swivel mount units, separate the housing from the swivel base (see FIG.

  • Page 12: Configuring The Receivers

    Wiring and Installation To receive 455 kHz, position the jumper (both jumpers on the receivers) on the left two pins, pins 1 and 2, away from the edge of the circuit boards, to receive 455 kHz. (This is the default setting.) To receive 38 kHz, position the jumper (both jumpers on the receivers) on the right two pins, pins 2 and 3, near the edge of the circuit boards, to receive 38 kHz.

  • Page 13: Setting The Ir Validation Level

    FIG. 12 DIP switch values and quick reference As an example, the DIP switch in FIG. 12 defines device number 129 (1+128=129). If you later change the device number, remove and reconnect the AXlink connector. This enters the new device number into memory. The device number takes effect only on power-up.

  • Page 14: Wiring The Ir Sensors And Receivers

    The IR sensor or receiver requires 12 VDC power to operate properly. The power is supplied by the AMX system's AXlink cable. The maximum wiring distance between the Central Controller and the receiver or sensor is determined by power consumption, supplied voltage, and the wire gauge used for the cable.

  • Page 15: Connecting The Wiring

    Connecting the Wiring The following paragraphs describe wiring connections using AXlink for data and power, using AXlink plus an external 12 VDC power supply, and wiring the IRX-DM+ or IRX-SM+ to the AMX IR receiver. Wiring the AXD-IR+ or the AXR-IRSM+ to AXlink Install the AXlink data/power bus wiring as shown in FIG.

  • Page 16: Wiring The Irx-Dm+ Or Irx-Sm+ To The Amx Ir Receiver

    Checking IR Data status Locate the red IR Data LED on the front of the unit. Point the system's AMX transmitter towards the sensor and press a button. The IR Data LED lights when the unit receives data. If the IR Data LED on the unit does not light: Verify that the transmit LED on the transmitter lights when you press a button.

  • Page 17: Mounting The Unimount Sensor Or Receiver

    3. Place the panel in the wallbox and align the screw holes with the mounting holes on the panel. 4. If you are installing the IRX-DM+, remove the housing and wire the unit to the AMX IR receiver as shown in Wiring.

  • Page 18: Mounting The Swivel-Mount Sensor Or Receiver

    Wiring and Installation Mounting the Swivel-Mount Sensor or Receiver FIG. 19 gives dimensions for the AXD-IRSM+ and IRX-SM+. FIG. 19 AXD-IRSM+ and IRX-SM+ dimensions To install the AXD-IR+ or IRX-SM+: Mount the unit according to FIG. 20 for mounting the unit flush to a flat surface without using the mounting bracket (Installation Method A), or FIG.

  • Page 19: Installation Method B

    On drywall, install using the included wall anchors. Use a 3/16-inch drill bit. On wood, install using the included #6 mounting screws. 1. If you are installing the IRX-SM+, remove the housing and wire the unit to the AMX IR receiver as shown in Wiring.
  • Page 20 Wiring and Installation a. Connect the unit to AXlink data/power bus. b. Check the AXlink LED. (LED should blink once per second.). c. Replace the housing. 3. Check that the IR receiver is on and is supplying power to the sensor. IR Sensors and Receivers...
  • Page 21 Wiring and Installation IR Sensors and Receivers...
  • Page 22 AMX reserves the right to alter specifications without notice at any time. brussels • dallas • los angeles • mexico city • philadelphia • shanghai • singapore • tampa • toronto • york 3000 research drive, richardson, TX 75082 USA • 469.624.8000 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993...

This manual is also suitable for:

Axd-ir+Axr-irsm+Irx-dm+Irx-sm+
