AMX AXR-IRSM Plus Specifications

NOTICE: This drawing is the UNLESS OTHERWISE SPECIFIED:
property of AMX Corporation.
TOLERANCE ON DECIMAL DIMENSIONS: XX = .010
All information contained herein
XXX = .005
that is not generally known
TOLERANCE ON HOLE DIAMETERS:
UNDER .250 ú = +/- .005
shall be confidential except
.250 TO .500 = +.006 -.005
to the extent the information
OVER .500 = +.008 -.005
has been previously established.
FRACTIONAL DIMENSIONS INCLUDING HOLES: +/- 1/64
This drawing may not be copied, ANGLES: +/- 1.0°
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
reproduced, or used as the basis
ALL DIMENSIONS IN INCHES.
for manufacture or sale without
DO NOT SCALE THIS DRAWING.
written permission.
REVISIONS
REV ECN DESCRIPTION
A 5328 RELEASED TO PRODUCTION
REL APPR REL DATE REV APPR
DAS 9/2/03
DRAWN
DB 9/3/03
ENGR SERV

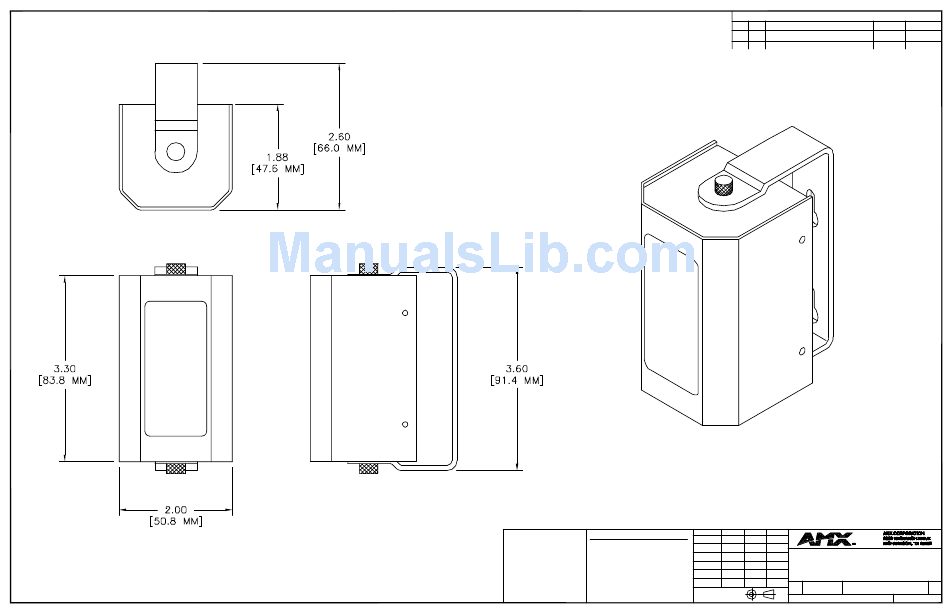

PICTORIAL,
PL 9/3/03
ENGINEER
AXR-IRSM+,
PROD ENGR KZ 9/3/03
SWIVEL-MOUNT REMOTE
BS 9/3/03 IR RECEIVER
MATL SUP
AK 9/3/03
QUALITY SIZE SCALE DWG. NO.
95-0454-02
B FULL
THIRD ANGLE
PROJECTION 95-0454-02-A
DATE APPROVED
9/3/03
REV.
A
1 OF 1
SHEET
