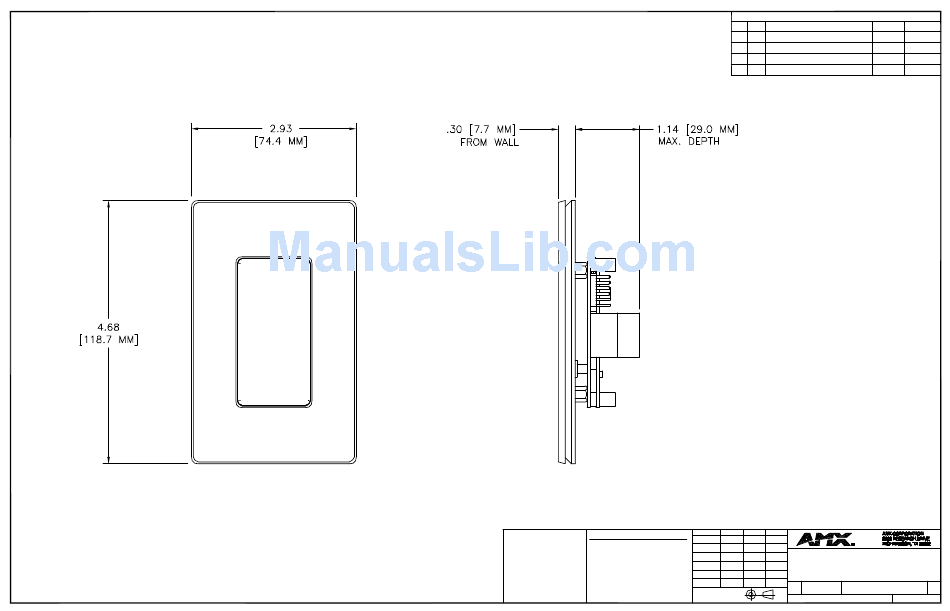

AMX IRX-DM Plus Dimensional Drawing
AMX IRX-DM Plus Dimensional Drawing

AMX IRX-DM Plus Dimensional Drawing

Wallmount remote ir sensor
Hide thumbs Also See for IRX-DM Plus:

Advertisement

Quick Links

NOTICE: This drawing is the
UNLESS OTHERWISE SPECIFIED:
property of AMX Corporation.
TOLERANCE ON DECIMAL DIMENSIONS:
XX = .010
All information contained herein
XXX = .005
that is not generally known
TOLERANCE ON HOLE DIAMETERS:
shall be confidential except
UNDER .250 ú
= +/- .005
.250 TO .500
= +.006 -.005
to the extent the information
OVER .500
= +.008 -.005
has been previously established.
FRACTIONAL DIMENSIONS INCLUDING HOLES: +/- 1/64
This drawing may not be copied,
ANGLES: +/- 1.0°
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
reproduced, or used as the basis
ALL DIMENSIONS IN INCHES.
for manufacture or sale without
DO NOT SCALE THIS DRAWING.
written permission.
REVISIONS
REV
ECN
DESCRIPTION
---
RELEASED TO PRODUCTION
A
889
NAME WAS IRX-DS+
B
C
2631 UPDATE TITLEBLOCK
D
5328 CORRECT BOARD ILLUST.
REL APPR
REL DATE
REV APPR
MEP
2/16/98
DRAWN
LW
5/6/98
ENGR SERV
DB
PICTORIAL,
RDR
4/8/98
ENGINEER
PL
IRX-DM+,
PROD ENGR
MB
5/6/98
KZ
WALLMOUNT REMOTE
BS
9/3/03
IR SENSOR
MATL SUP
BS
VM
4/4/98
AK
QUALITY
SIZE
SCALE
DWG. NO.
95-0458-01
B
FULL
THIRD ANGLE
PROJECTION
95-0458-01-D
DATE
APPROVED
3/6/98
5/13/98
7/26/01
9/3/03
REV.
D
1 OF 1
SHEET
