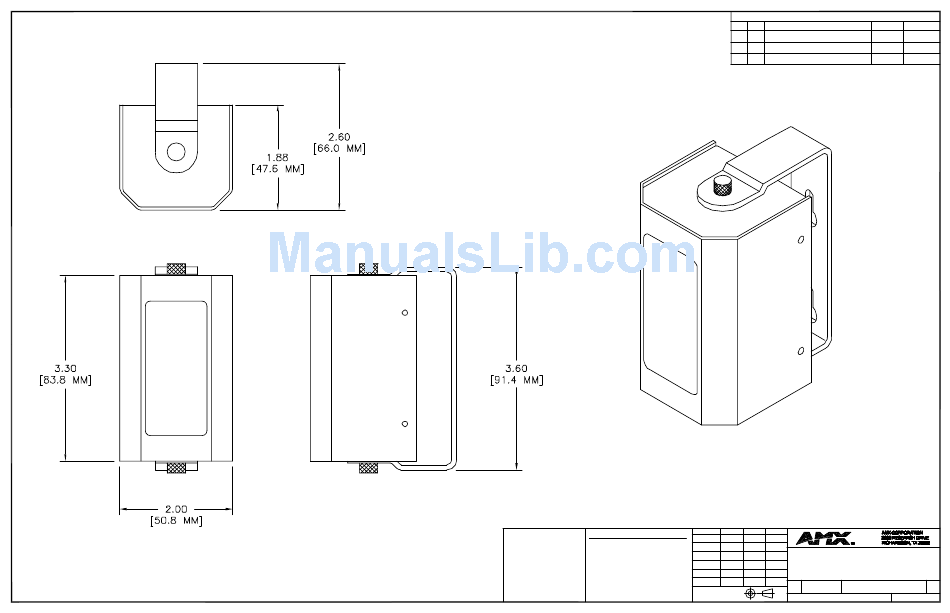

AMX IRX-SM Plus Dimensional Drawing

NOTICE: This drawing is the UNLESS OTHERWISE SPECIFIED:
property of AMX Corporation.
TOLERANCE ON DECIMAL DIMENSIONS: XX = .010
All information contained herein
XXX = .005
that is not generally known
TOLERANCE ON HOLE DIAMETERS:
shall be confidential except UNDER .250 ú = +/- .005
.250 TO .500 = +.006 -.005
to the extent the information
OVER .500 = +.008 -.005
has been previously established.
FRACTIONAL DIMENSIONS INCLUDING HOLES: +/- 1/64
This drawing may not be copied, ANGLES: +/- 1.0°
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
reproduced, or used as the basis
ALL DIMENSIONS IN INCHES.
for manufacture or sale without
DO NOT SCALE THIS DRAWING.
written permission.
REVISIONS
REV ECN DESCRIPTION
--- RELEASED TO PRODUCTION
A
2631 UPDATE TITLEBLOCK
B
C 5328 UPDATE TITLE
REL APPR REL DATE REV APPR
AM 1/26/96
DRAWN
ENGR SERV RS 2/5/96 DB
PICTORIAL,
TC 2/5/96 PL
ENGINEER
IRX-SM+,
MBB 2/5/96 KZ
PROD ENGR SWIVEL-MOUNT REMOTE
BS 9/3/03 BS IR SENSOR
MATL SUP
VM 2/5/96 AK
QUALITY SIZE SCALE DWG. NO.
95-0454-01
B
FULL
THIRD ANGLE
PROJECTION 95-0454-01-C
DATE APPROVED
1/26/96
7/26/01
9/3/03
REV.
C
1 OF 1
SHEET
