Service Guide OKIPAGE 24DX/24DXn
Chapter
0 Introduction

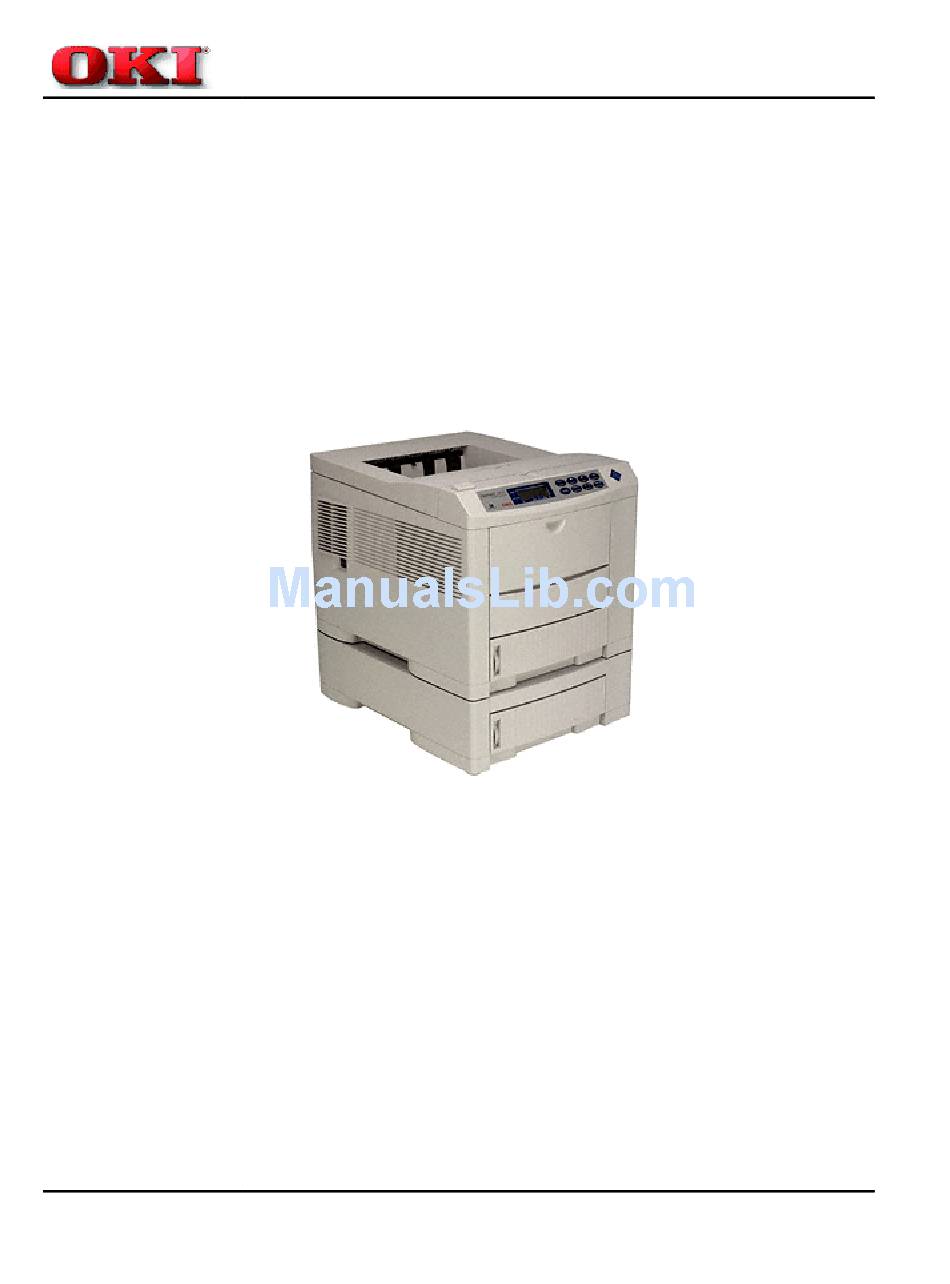

Front Cover
Oki Data
Service Guide
OKIPAGE 24DX & 24DXn
Adobe Acrobat printable reference copy
of the OKIDATA Service Training Manual.
01/26/2000
Note: This Adobe Acrobat version of the Okidata Service Training Manual was built with the pictures
rendered at 300 dpi, which is ideal for printing, but does not display well on most displays.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OKIPAGE 24DX and is the answer not in the manual?

Questions and answers

Related Manuals for Oki OKIPAGE 24DX

Summary of Contents for Oki OKIPAGE 24DX

  • Page 1 Service Guide OKIPAGE 24DX/24DXn Chapter 0 Introduction Front Cover Oki Data Service Guide OKIPAGE 24DX & 24DXn Adobe Acrobat printable reference copy of the OKIDATA Service Training Manual. 01/26/2000 Note: This Adobe Acrobat version of the Okidata Service Training Manual was built with the pictures...

  • Page 2: Table Of Contents

    Table of Contents Page Service Guide OKIPAGE 24DX/24DXn 0 Introduction Preface 1 Configuration Configuration ..1.1 System Configuration ..1.2 Printer Configuration ..1.3 Optional Configuration ..1.4 Specification ..1.5 Safety Standards ..1.5.1 Certification Label ..1.5.2 Warning Label 2 Operation Description 2.0 Operation Description 2.1 Main Control Board (BOARD-FFF)
  • Page 3 Table of Contents Page ..3.3.17 Roller Assy - Feed ..3.3.18 LED Head ..3.3.19 Paper cassette, ROLLER Assy - Feed, ROLLER Assy - Hopping ..3.3.20 Frame Assy - Separation ..3.3.21 Transfer Roller / TR Gear / TR Bearing ..3.3.22 EP lock shaft ..3.3.23 LEVER Assy - Out Sensor ..3.3.24 Toner sensor lever ..3.3.25 Paper sensor lever...
  • Page 4 ..(8) Message cannot be received through the parallel interface ..(9) Message cannot be received through the serial interface ..(10) Data cannot be received through the OKI HSP interface ..(11) Synchronous serial I/O error (ERROR 74) ..6.5.3 Image Troubleshooting ..(1) An image is light or blurred entirely ..(2) Dark background density...
  • Page 5 Table of Contents Page Parallel Interface B RS-232C Serial Interface RS-232C Serial Interface C Duplex Unit Maintenance 1. OUTLINE ..1.1 Functions ..1.2 External View and Component Names 2.0 Mechanism Description ..2.1 General Mechanism ..2.2 JAM Release Mechanism ..2.3 Removing/Installing Duplex Unit 3.0 Parts Replacement ..3.1 Precautions Concerning Parts Replacement ..3.2 Parts Layout...
  • Page 6 Table of Contents Page ..3.3.8 Roller feed ..3.3.9 Bracket sub roller ..3.3.10 Frame side (L) assy ..3.3.11 Frame side (R) assy 4.0 Troubleshooting ..4.1 Precautions Prior to the Troubleshooting ..4.2 Preparations for the Troubleshooting ..4.3 Troubleshooting Method ..4.3.1 LCD Status Message List ..4.3.2 Troubleshooting Flow 5.0 Connection Diagram ..5.1 Interconnection Diagram...

  • Page 7: Introduction

    This manual is written for use by maintenance personnel. Note, however, that the user should refer to the USER'S MANUAL for methods of handling and operating the equipment. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 8: Configuration

    Service Guide OKIPAGE 24DX/24DXn Chapter 1 Configuration Configuration System Configuration Printer Configuration Optional Configuration Specification Safety Standards Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 9 Page: 3 Service Guide OKIPAGE 24DX/24DXn Chapter 1 Configuration 1.1 System Configuration The OKIPAGE 24DX & 24DXn consists of control and engine blocks as the standard configuration (See Figure 1-1). In addition, the following options are also available.
  • Page 10 Figure 1-1...
  • Page 11 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 12 Page: 4 Service Guide OKIPAGE 24DX/24DXn Chapter 1 Configuration 1.2 Printer Configuration The printer unit consists of the following hardware components: Electro-Photographic Processor Paper Feeder Controller Operator panel Power supply unit Figure 1-2 is the configuration of the printer unit.
  • Page 13 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 15 Page: 5 Service Guide OKIPAGE 24DX/24DXn Chapter 1 Configuration 1.3 Optional Configuration The options below are available for use with OKIPAGE 24DX / OKIPAGE 24DXn. They are sold separately from the printer unit. Multi Feeder Second / Third Paper Feeder D-RAM SIMM module (72 pin (See 7.2 (1) for where to install).
  • Page 16 Flash ROM module (72 pin SIMM, (See 7.2 (1) for where to install). 4MB/8MB) Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 17: Specification

    Page: 6 Service Guide OKIPAGE 24DX/24DXn Chapter 1 Configuration 1.4 Specification Type: Desktop Outside dimensions Height: 13.0" (331 mm) (excludes protruding Width: 14.4" (366 mm) portion) Depth: 18.2" (462 mm) Weight 47 lbs. (21.3 kg) Development method Dry electrophotography Exposure method...
  • Page 18 Image drum cartridge - 30,000 (at 5% density, continuous printing); 19,000 pages (3 page/job) (Simplex printing*) * Simplex printing without Power Save. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 19: Safety Standards

    Service Guide OKIPAGE 24DX/24DXn Chapter 1 Configuration 1.5 Safety Standards 1.5.1 Certification Label 1.5.2 Warning Label Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 20 1.5.1 Certification Label The safety certification label is affixed to th eprinter in the position below. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 21 The warning label is affixed to the portion which may cause an injury to human body. Follow the instructions on warning labels during maintenance. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 22: Operation Description

    Chapter 2 Operation Description 2.0 Operation Description OKIPAGE 24DX & 24DXn consists of a main control board, power supply unit (120V/230V), power supply unit (high voltage) and operator panel and an electro-photographic process mechanism. The control board receives data through a host I/F, decodes and edits the data, and stores the edited data in a memory.
  • Page 24 Figure 2-1 OKIPAGE 24DX block diagram Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 25: Main Control Board (Board-Fff)

    Page: 11 Service Guide OKIPAGE 24DX/24DXn Chapter 2 Operation Description 2.1 Main Control Board (BOARD-FFF) The main control board consists of a one-chip CPU, LSI, program/font ROM's, DRAM's, EEPROM, host interface circuit, and a mechanism driving circuit. (1) One-chip CPU The one-chip CPU is a custom CPU (32-bit internal bus, 32-bit external bus, 120-MHz clock) that incorporates an RISC CPU and its peripheral devices, and has the following functions.
  • Page 26 Centronics bidirectional parallel interface RS232C interface OKI HSP interface (Option) The single effective interface or the automatic interface select mode can be selected using the menu. If the busy state of the printer continues for a long time period, the buffer near-full control releases the busy status at constant intervals even if the host side is busy so not to cause the interface time-out at the host side.
  • Page 27 (For the electrical/ physical characteristics of the interface, see APPENDIX B) (c) OKI HSP interface (Option) This interface (slot) is an OKI unique universal interface that provides the platform to connect option boards (including those supplied by third party venders) such as the LAN connection expansion board and SCSI expansion board.
  • Page 28 72 pins SIMM (32 bits buss width) - Access time: 90ns - Capacity: 4 or 8 MB Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 29: Power Supply Unit

    Page: 12 Service Guide OKIPAGE 24DX/24DXn Chapter 2 Operation Description 2.2 Power Supply Unit The power supply unit consists of an AC filter circuit, a low voltage power supply circuit, a high voltage power supply circuit, heater drive circuit, and photosensors.
  • Page 30 Sensor Function Sensing state Inlet sensor Detects the leading part of the paper and ON: Paper exists gives the supervision timing for switching OFF: No paper exists from hopping operation to feeding operation. Supervises the paper running state and the paper size according to the paper reach time and running time.
  • Page 31 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 32: Electro-Photographic Process

    2.3.1 Electro-photographic process mechanism 2.3.2 Electro-photographic process 2.3.3 Process operation descriptions 2.3.4 Revision of LED Head Illumination Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 33 Page: 14 Service Guide OKIPAGE 24DX/24DXn Chapter 2 Operation Description 2.3.1 Electro-photographic process mechanism This mechanism prints image data from the control board on the paper by electro-photographic process. The Figure 2-4 shows the layout of the electro-photographic process mechanism.
  • Page 34 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 35 Page: 15 Service Guide OKIPAGE 24DX/24DXn Chapter 2 Operation Description 2.3.2 Electro-Photographic process The electro-photographic processing is outlined below. Figure 2-5 shows the electro-photographic printing process. 1 Charging The surface of the image drum is uniformly charged with negative charges by applying a negative voltage to the charge roller.
  • Page 37 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 38 Page: 16 Service Guide OKIPAGE 24DX/24DXn Chapter 2 Operation Description 2.3.3 Process operation descriptions (1) Hopping Hoppings from the first tray and the front feeder are effected by a single hopping motor in the mechanism shown below. Turning the Hopping motor in direction a (CW) drives the 1st Hopping Roller. Turning the Hopping motor in direction b (CCW) drives the Front Hopping Roller.
  • Page 39 (a) Hopping from the 1st Tray 1 Hopping Rotating the Hopping Motor in direction a (CW) drives the 1st Hopping Roller and the Sub Roller then pick up a sheet of paper in the 1st tray. The Main Motor is always driven in direction c (CCW) on printing. After the paper is fed approx.
  • Page 40 Roller idles freely by escaping the Planet Gear. 5 Printing starts after the paper turns off the Write Sensor. (b) Hopping from the Front Feeder 1 Hopping The Front Feeder Plate is normally locked at the lower position by the Release Lever activating the Micro Switch. The top of the FF Cam which is attached to the end of the Front Hopping Shaft is normally located in the upper position (0 to 30 degree : home position).
  • Page 41 5 Printing starts after the paper turns off the Write Sensor.
  • Page 42 (2) Feeding After finishing hopping, the pulse motor dedicated for driving the registration roller rotates to drive the registration roller. The registration roller advances the paper until it comes out of the registration roller. When the leading edge of the paper causes the paper sensor to turn on, the printing is started synchronously. Although Gear D is always rotating due to an all-time rotation of the main motor in direction c, the registration roller...
  • Page 43 would not rotate because the clutch (registration) is turned off. After completion of hopping, turn on the clutch (registration) to drive the registration roller. The registration roller will drive the paper until the paper has passed. (3) Charging Charging is effected by applying a DC minus voltage to the charge roller that is in contact with the image drum surface.
  • Page 44 1 As the toner supply roller rotates while rubbing on the developing roller, a friction charge is generated between the developing roller and the toner, allowing the toner to be attracted to the developing roller. (The developing roller surface is charged positive and the toner, negative.) 2 The toner attracted to the developing roller is scraped off by the doctor blade, forming a thin coat of toner on the developing roller surface.
  • Page 45 (7) Fusing After the end of the transfer, the unfused toner image is fused on the paper under heat and pressure as it passes between the heater roller and the back-up roller. The heater roller with a Teflon coating incorporates a 750W heater (Halogen lamp), which heats the heat roller.
  • Page 46 (8) Cleaning After the end of the transfer, residual toner on the image drum is attracted to the cleaning roller temporarily by static electricity to clean the image drum surface. (9) Cleaning of rollers The charge roller, transfer roller and cleaning roller are cleaned in the following cases: In warming up at power-on time In warming up after the cover is opened and closed When the number of accumulated sheets is 10 or more and the printout operation ends...
  • Page 47 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 48 The block diagram of the LED correcting head is shown below. (1) Both sides wire-bonding head In OKIPAGE 24DX/24DXn, the correction control of LED head is executed directly by the CPU. The procedure is as follows (i) LED head is set to the correction control read mode and all correction data stored in EEPROM within the correction control LSI are read by CPU, and stored temporarily in the memory.
  • Page 49 (i) Read of correction data (ii) Transfer of correction data to head driver correction data (2) One side wire-bonding head...
  • Page 50 (i) LED head is set to the correction control read mode and all correction data stored in EEPROM within the correction control LSI are read by CPU, and stored temporarily in the memory. (ii) Next, LED head is set to the correction control direct mode and the correction data stored temporarily in the memory is transferred directly to the LED driver.
  • Page 51 (ii) Transfer of correction data to head driver correction data The LED driver corrects the LED illumination by controlling the LED current. The LED illumination can be set in 16 steps, with 7 steps in the direction of illumination increase in relation to the standard value, and 8 steps in the direction of decrease.
  • Page 52 The printing operation timing chart is shown below.
  • Page 53 Then the printing data stored in shift registers are latched by the high level pulse of LOAD. The latched printing data turns the LEDs on by STRB1-N through STRB4-N and actuates printing. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 54 Page: 18 Service Guide OKIPAGE 24DX/24DXn Chapter 2 Operation Description 2.4 Paper Jam Detection The paper jam detection function supervises the paper state at power-on time and during printing. In the event that the following state occurs, this function interrupts the printing process. If any of the following errors is present, recovery printing will be performed by removing the jammed paper (namely by opening the upper cover, removing the jammed paper and closing the upper cover).
  • Page 55 Remove the paper. Error 83 Informs that an I/F time-out occurs between the printer and Duplex. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 56: Cover Open

    At the same time, the CVOPN signal is sent to the control board to notify it of the off state of the microswitch, and the Main board performs the cover open processing. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 57: Toner Low Detection

    Page: 20 Service Guide OKIPAGE 24DX/24DXn Chapter 2 Operation Description 2.6 Toner Low Detection Composition The device consists of the stirring gear which rotates at a constant rate, the stirring bar and the magnet on the stirring bar. The stirring bar rotates through the link on the protrusion in the stirring gear.
  • Page 58 Alarm is activated. The toner sensor is not monitored while the drum motor is in halt. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 59: Stacker-Full Detection

    The sensor (interlocked with the lever) at the paper outlet to the stacker detects a stacker-full state (about 250 sheets) and stops printing of the ensuing pages. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 60: Page Size Detection

    State of Microswitches Paper Size Letter Executive Legal 14 Legal 13 A6 (Not available) Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 61: Parts Replacement Parts Replacements

    Reverse the procedure for the installation. 3.1 Precautions for Parts Replacement 3.2 Parts Layout 3.3. Replacing Parts Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 62: Precautions For Parts Replacement

    Page: 24 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.1 Precautions for Parts Replacement (1) Be starting parts replacement, remove the AC cable and interface cable. (a) Remove the Ac cable in the following procedure: i) Turn off ("o") the power switch of the printer.
  • Page 63 [Maintenance Tools] Table 3-1 lists the maintenance tools necessary for parts replacement. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 64: Parts Layout

    3.2 Parts Layout This section explains the layout of main parts. Figure 3-1 Figure 3-2 Figure 3-3 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 65 Page: 26 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement Figure 3-1...
  • Page 66 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 67 Page: 27 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement Figure 3-2...
  • Page 69 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 70 Page: 28 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement Figure 3-3...
  • Page 72 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 73 Page: 29 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement Figure 3-4...
  • Page 75 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 76: How To Change Parts

    Page: 30 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3 How to Change Parts This section explains how to change parts and assemblies appearing in the disassembly diagram below. 3.3.1 Faceup Stacker Assy 3.3.2 Contact Assy 3.3.3 DC Fan Motor 3.3.4 OP Panel Assy...
  • Page 77 3.3.31 Removing / Installing Duplex Unit 3.3.32 Board-LEX 3.3.33 Connector (IMSA-9714N-14A) 3.3.34 Photo Sensor 3.3.35 SOLENOID Assy 3.3.36 Motor Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 78: Face-Up Stacker Assy

    Page: 31 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.1 Face-up Stacker Assy (1) Turn off the AC Power Switch and unplug the AC Power Cord from the outlet. (2) Disconnect the Interface Cable (1). (3) Open the face-up stacker assy...
  • Page 79 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 80: Contact Assy

    Page: 32 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.2 Contact Assy (1) Open the stacker assy and unscrew 2 screws (2) to remove the cover assy-side (L) (2) Unscrew 2 screws (4) and remove the plate (contact) (5) and contact Assy...
  • Page 81 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 82: Dc Fan Motor

    (2) Remove the DC fan motor by pulling out the connector of DC fan motor Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 83: Op Panel Assy

    Page: 34 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.4 OP Panel Assy (1) Disconnect the Interface cable (1). (2) Open the stacker assy , unscrew 2 screws (3) and remove the cover assy-side (R) (3) Remove 2 screws (5) and flexible cable...
  • Page 85 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 86: Board - Fff

    Page: 35 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.5 Board - FFF (1) Remove the operator panel assy and cover assy-side (R). [See 3.3.4] (2) Unscrew 2 screws (1) and remove the cover assy-corner (R) (3) Unscrew 16 screws (3) and remove plate-shield...
  • Page 87 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 88: Stacker Assy, Damper Arm, Cover Rear

    Page: 36 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.6 Stacker Assy, Damper Arm, Cover Rear (1) Remove the face-up stacker assy. [See 3.3.1] (2) Remove the cover assy-side (L). [See 3.3.2 (1)] (3) Remove the OP panel assy. [See 3.3.4] (4) Remove the Board-FFF.
  • Page 89 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 90: Sensor Stacker Full

    Page: 37 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.7 Sensor Stacker Full (1) Turn the AC power switch off. Unplug the AC power cord from the outlet. (2) Remove the Stacker assy. [See 3.3.6] (3) Remove four screws (1). Remove stacker mount 2 by releasing the tabs at position (2A) .
  • Page 91 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 92: Cable Cover (Guide Film)

    Use care when replacing cable cover. Do not pitch, crimp, or cut cables or protective sheet. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 93: Damper

    (1) Remove the damper arm. [See 3.3.6] (2) Unscrew 2 screws (1) and remove the two dampers Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 94: Feeder Unit - Front

    Page: 40 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.10 Feeder Unit - Front (1) Open the manual feed assy and release both right and left parts by pulling out the engagements on the lower part. (2) Stand the manual feed assy on end and unhook the engagements with both right and left manual feed hopper stays.
  • Page 95 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner...
  • Page 96 Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 97: Roller Assy - Regist

    Page: 41 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.11 Roller Assy - Regist (1) Remove the feeder unit-front. [See 3.3.10] (4), (2) Remove an E-ring (3), gear assy-clutch and four screws (1) in this order, and lift out the roller...
  • Page 98 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 99: Motor - Main

    Page: 42 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.12 Motor - Main (1) Remove the stacker assy. [See 3.3.6] (2) Remove the feeder unit-front. [See 3.3.10] (At this point, the manual feed assy does not have to be removed.) (3) Remove the DC fan motor.
  • Page 101 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 102: Guide Assy - Eject

    Page: 43 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.13 Guide Assy - Eject (1) Remove the lever back up release. [See 3.3.12(8)] (But the roller transfer/feeder unit front/plate-FG do not have to be removed) (2) Loosen 2 screws (1), unlock both side latches and remove the cover rear .
  • Page 103 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 104: Heat Assy

    Page: 44 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.14 Heat Assy (1) Remove the cover assy-side (L). [See 3.3.2 (1)] (2) Unplug the connectors (1), (2). (3) Unscrew 4 screws (3) and remove the heat assy in the direction of the arrow by lifting the right side first.
  • Page 105 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 106: Roller Feed (C)

    Page: 45 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.15 Roller feed (C) (1) Remove the guide assy-eject. (See 3.3.13) (But roller transfer/feeder unit-front/plate-FG(F) do not have to be removed) (2) Remove the gear roller (C) and bushing , bend (a) part of the plate-FG (BK) (3). Take off the carrier bearing and remove the roller feed (c) in the direction of the arrow.
  • Page 107 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 108: Roller Assy - Bk

    Page: 46 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.16 Roller Assy - BK (1) Remove the heat Assy. [See 3.3.14] (2) Remove the lever back up release. [See 3.3.12 (8)] (3) Unlock the engagement with the plate-FG (BK) (1) and lift out the roller heat assy...
  • Page 109 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 110: Roller Assy - Feed

    Chapter 3 Parts Replacement 3.3.17 Roller Assy - Feed (1) Remove the feeder unit -front. [See 3.3.10] (2) Remove the roller assy-feed by unlocking a latch. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner...
  • Page 111 Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 112 (4) Pull out the head spring from the post. Note: Don't remove two LED cable from the PC connector (2). Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 113 3.3.19 Paper cassette, ROLLER Assy - Feed, ROLLER Assy - Hopping (1) Pull out the case assy-cassette from the printer. (2) Remove the ROLLER Assy-Feed and remove the ROLLER Assy-Hopping Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner...
  • Page 114 Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 115 Page: 50 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.20 Frame Assy - Separation (1) Turn the AC power switch off. Unplug the AC power cord from the outlet. (2) Pull out the case Assy-Cassette from the printer. [See 3.3.19(1)] (3) Release two locks and remove frame assy-separation .
  • Page 116 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 117 Page: 51 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.21 Transfer Roller / TR Gear / TR Bearing (1) Open the stacker cover . (2) Unlock the lock by lifting the TR gear to remove the TR gear and roller transfer .
  • Page 119 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 120 (5) Drop EP lock shaft down and turn in the direction of arrows (B) and remove it. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 121 Page: 53 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.23 LEVER Assy - Out Sensor (1) Turn the AC power switch off. Unplug the AC power cord from the outlet. (2) Remove the frame main [See 3.3.12(7)] (3) Press the clamp part of LEVER Assy- Out Sensor .
  • Page 123 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 124 Page: 54 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.24 Toner sensor lever (1) Turn the AC power switch off. Unplug the AC power cord from the outlet. (2) Remove the frame main [See 3.3.12(7)] (3) Squeeze the clamp part of toner sensor lever...
  • Page 125 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 126 Page: 55 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.25 Paper sensor lever (1) Turn the AC power switch off. Unplug the AC power cord from the outlet. (2) Remove the frame main [See 3.3.12(7)] (3) Squeeze the clamp part of the paper sensor lever...
  • Page 127 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 128 (2) Remove the frame main [See 3.3.12(7)] (3) Squeeze the clamp part of two inlet sensor levers . Remove the inlet sensor levers by pushing them downward. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner...
  • Page 129 Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 130 Page: 57 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.27 Power supply unit (1) Turn the AC power switch off. Unplug the AC power cord from the outlet. (2) Remove the frame main [See 3.3.12(7)] (3) Unscrew 2 screws (1) and remove the BRACKET-AC...
  • Page 132 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 133 Page: 58 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.28 Lever-Paper end & Lever-Paper near end (1) Turn the AC power switch off. Unplug the AC power cord from the outlet. (2) Remove the frame main [See 3.3.12(7)] (3) Remove screw (1) and then remove the PLATE-Base...
  • Page 134 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 135 Page: 59 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.29 Guide Assy - Cassette (L) (1) Turn the AC power switch off. Unplug the AC power cord from the outlet. (2) Remove Frame Main [See 3.3.12(7)] (3) Remove PLATE-Base and FRAME Assy Hopping [See 3.3.28 (5)]...
  • Page 136 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 137 Page: 60 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.30 Guide Assy - Cassette (R) (1) Turn the AC power switch off. Unplug the AC power cord from the outlet. (2) Remove Frame Main [See 3.3.12(7)] (3) Remove PLATE-Base and FRAME Assy Hopping [See 3.3.28 (5)]...
  • Page 139 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 140 Page: 61 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.31 Removing/Installing Duplex Unit Removing Duplex Unit (1) Power Off and remove the Paper-Cassette from 1st tray. (2) Remove the LEVER-Release (Dup) from the boss of the Hopping Frame. (3) Rotate the LEVER-Lock (Dup) in the direction of the arrow to release the Lock.
  • Page 141 Installing Duplex Unit (1) Hold the LEVER-Lock (Dup) in horizontal lock position. Then insert the Duplex Unit along the groove, up to accord both rear faces between printer and Duplex Unit. Note: Printer and Duplex Unit will connect automatically with built-in connector. (2) Lock the Duplex Unit to the printer by turning the LEVER-Lock (Dup) to the next locking position as below.
  • Page 142 (3) From front side of printer, snap fit LEVER-Release (Dup) into the boss in Hopping Frame. (4) After installing Duplex Unit, put back the Paper Cassette into 1st Tray. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 143 Page: 62 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.32 Board-LEX (1) Remove two LEVER-Lock (DUP) (1) by rotating them in the arrow direction. (2) Unscrews five screws (2) to remove the bracket (3). (3) Unlatch all the nails and unplug all the connectors (4) to remove the Board-LEX (5).
  • Page 144 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 145 Page: 63 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.33 Connector (IMSA-9714N-14A) (1) Remove two LEVER-Release (DUP) (1). (2) Take away two SPRING-Support (2) to remove FRAME-MAIN (DUP) (3). (Remove the FRAME-MAIN (DUP) by lifting in up from A side)
  • Page 146 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 147 Page: 64 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.34 Photo Sensor (1) Remove the Frame-Main (DUP) (see section 3.3.2). (2) Release the lock to remove two SPRING-Lock (frame) (1) and two LEVER-Lock Assy (2). (3) Pull out four SHAFT-Pinch (3) and remove four ROLLER-Pinch (4) and eight SPRING-Pinch (u) (5).
  • Page 148 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 149 Page: 65 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.35 SOLENOID Assy (1) Remove the Frame-Main (DUP) (See section 3.3.2). (2) Release the lock to remove Two LEVER Sensor (F/R) (1) and two SPRING-Sensor (F/R) (2). (3) Unplug the Connection Code-Wire (3) and remove Photo Sensor (4).
  • Page 151 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 152 Page: 66 Service Guide OKIPAGE 24DX/24DXn Chapter 3 Parts Replacement 3.3.36 Motor (1) Remove the Frame-Main (DUP) (See section 3.3.2). (2) Unscrew two screws (1) to remove PLATE-Earth (F/R) (2). (3) Unscrew three screws (3) to remove PLATE-Earth (F/R-2) (4).
  • Page 153 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 154 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 155: Engine Maintenance Mode

    Page: 68 Service Guide OKIPAGE 24DX/24DXn Chapter 4 Adjustment 4.1 Maintenance Modes and Functions User maintenance mode To enter the user maintenance mode, turn on the POWER switch while pressing the MENU key. [Function] There are 13 functions as follows.
  • Page 156 Selection of Multi-purpose feeder download table Setting of duplex feed length Fuser count indication Fuser count reset Engine reset Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 157 Page: 69 Service Guide OKIPAGE 24DX/24DXn Chapter 4 Adjustment 4.1.1 User maintenance mode To enter the user maintenance mode, turn the power supply ON while pressing the Menu key. This mode uses the menu for function selection. The user maintenance mode provides the following functions: (1) Menu reset All settings for Menu level-1 are reset to the factory default values.
  • Page 158 (9) Duplex adjust The function which performs a correction in Y direction towards the sheet supplied from the tray in double-sided printing. (10) Select paper source command parameter (Second tray) The function which sets the parameter selecting the second tray by paper source command (ESC & N # H) on PCL.
  • Page 161 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 162 Page: 70 Service Guide OKIPAGE 24DX/24DXn Chapter 4 Adjustment 4.1.2 System maintenance mode The system maintenance mode is set when the power is turned ON while pressing the Recover key. This mode adopts the menu for function selection. The system maintenance mode is provided with the following functions: (1) Page count display The total number of pages counted at the engine is displayed on the LCD.
  • Page 163 Reset the HSP ERROR counter. (9) SIDM enable/disable If it's selected disable, cannot select SIDM emulations by Menu. System maintenance mode menu system...
  • Page 165 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 166 Page: 71 Service Guide OKIPAGE 24DX/24DXn Chapter 4 Adjustment 4.1.3 Engine maintenance mode The engine maintenance mode is activated when the power is turned ON while pressing the Form Feed key and Enter key. This mode adopts the menu for function selection.
  • Page 167 (12) Setting of High Capacity Third Paper Feeder paper feed length This function sets the paper feed length of the High capacity Third paper feeder. (13) Selection of High Capacity Third paper feeder download table This function selects the download table for the High capacity third paper feeder. (14) Setting of Multi Feeder paper feed length This function sets the paper feed length of the Multi Feeder.
  • Page 170 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 171 Page: 72 Service Guide OKIPAGE 24DX/24DXn Chapter 4 Adjustment 4.1.4 EEPROM initialization The corresponding area of the EEPROM is initialized for each event as shown Table 4-1 and Table 4-2.
  • Page 172 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 173: Adjustment When Replacing A Part

    4.2.1 Setting LED Head Drive Time 4.2.2 Destination Setting 4.2.3 Setting of ED had drive time Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 174: Setting Led Head Drive Time

    (1) The fuser counter can be reset in the engine maintenance mode. (2) Resetting method Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 175: Destination Setting

    Destination Keys to be depressed MENU, This function shall not be open for users. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 176: Setting Of Led Head Drive Time

    4.2.3 Setting of LED head drive time As the OKIPAGE 24DX Series automatically judges head type and head drive time, there is no need for changing any setting in replacing LED head. But individual setting can be changed by ENGINE Maintenance menu as before.
  • Page 177 b. Setting Example : When setting head type to TYPE3WB( both-sided wire-bonding head) and head drive time to No. 14.
  • Page 178 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 179: Cleaning

    Separation Frame Assy 200,000 Maintenance Kit Note: Maintenance Kit shall be replenished by users calling to serviceman.] Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 180: Cleaning The Led Lens Array

    Do not touch the image drum unit, LED lens array or LED head connector block. 5.2.1 Cleaning the LED Lens Array Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 181 Note: The LED lens array must be cleaned with an LED head cleaner. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 182: Cleaning The Plastic Film

    Page: 80 Service Guide OKIPAGE 24DX/24DXn Chapter 5 Periodic Maintenance 5.2.2 Cleaning the Plastic Film (1) Open the stacker assy and remove I/D unit. (2) After cleaning LED head, wipe off the paper powder by LED LENS CLEANER and remove the paper powder.
  • Page 183 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 184 Gather as much information on the problem from the customer as possible. Perform inspections in conditions close to those in which the problem had occurred. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 185: Check Points Before Correcting Image Problems

    Is the paper normal? See paper specifications section. Has the image drum cartridge been loaded properly? Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 186: Notes When Correcting Image Problems

    Do not expose the image drum to light for longer than 5 minutes at room temperature. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 187: Preparation Before Troubleshooting

    The failure status of this printer is displayed on the liquid crystal display (LCD) in the operator panel. Take proper corrective action as directed by messages that are displayed on the LCD. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 188: Troubleshooting Flowchart

    If troubles should develop in this printer, troubleshoot in the following procedure flow: 6.5.1 LCD status message/trouble list 6.5.2 LCD message troubleshooting 6.5.3 Image troubleshooting Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 189: Status Monitor Message List

    Page: 86 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures 6.5.1 Status Monitor Message List Table 6-1 lists the statuses and troubles to be displayed on the status monitor in the message format. Category LCD status message Trouble or status...
  • Page 190 Indicates during data receiving or outputting Indicates that non-yet-printed In the off-line mode, the data is data is remained in the buffer. In printed by pressing the FORM a state of waiting for following FEED button. data. Indicates that the printer is printing.
  • Page 191 Informs that toner sensor Check the operation of the toner detects an error. But when the sensor lever. Replace the Power total drum count were > 30 Supply Unit (High Voltage) pages, this error would be Replace the main board. Note: indicated, when the total drum When replacing the main board, count were = <...
  • Page 192 Prints current menu setting. Normal operation. Ready Light on: execution by command. Ready Flash: execution by switch. Requests that a sheet indicates Set requested paper to front in the second line message is tray, and press FORM FEED inserted by hans. button.
  • Page 193 Indicates that the capacity of Press the RECOVER key on the memory is Overflowed due to operator panel to release the the following reasons. The error display. Install an operation is continued by expansion optional RAM or pressing Recover switch. reduce the amount of print data.
  • Page 194 Paper of improper size was fed Check the paper in the tray or from the tray. check to see if more than one sheet of copy were fed tttttt: MANUAL, TRAY1, TRAY2, simultaneously. Open the cover, FRONT, FEEDER then close it to perform recovery printing and the error display is released.
  • Page 195 When the cover is closed, recovery printing is performed and the error display is released. If the error occurs frequently, see Section 6.5.2. Informs that OKI HSP I/F card is Warning under reset. It can be automatically restored by stopping the reset.
  • Page 196 A fault occurred in the printer. see Section 6.5.2. Turn the power off, then on to release the error display. If the display cannot be released by this procedure, call a service person. Code see Section 6.5.2. (nn) An error was detected by program hash - Replace the program ROM.
  • Page 197 I/F timeout occurred between the printer and the Duplex Unit. Printing sequence error in the Duplex unit. A watchdog timer timeout occurred. - Turn the power off, then on. - Replace the Main board (*BOARD-FFF). Note: When replacing the Main Board, install the EEPROM mounted on the replaced Main Board.
  • Page 198 Reserved Instruction Exception see above Co-processor Unusable Exception see above Arithmetic Overflow Exception see above Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 199: Lcd Message Troubleshooting

    When replacing the Main board, install the EEPROM from the old Main board, onto the new Main board. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 200: The Printer Does Not Work Normally After Being Turned

    Page: 88 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (1) The printer does not work normally after being turned on.
  • Page 204 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 205: Paper Jams

    2-5 Duplex INPUT JAM 2-6 Duplex FEED JAM1 2-7 Duplex FEED JAM2 2-8 Duplex FEED JAM3 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 206 Page: 90 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (2)-1 Paper input jam (1st tray)
  • Page 208 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 209 Page: 91 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (2)-2 Paper input jam (front feeder) Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 210 Page: 92 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (2)-3 Paper feed jam...
  • Page 212 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 213 Page: 93 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (2)-4 Paper exit jam Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 214 Page: 94 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (2)-5 Duplex INPUT JAM...
  • Page 216 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 217 Page: 95 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (2)-6 Duplex FEED JAM1 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 218 Page: 96 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (2)-7 Duplex FEED JAM2 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 219 Page: 97 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (2)-8 Duplex FEED JAM3 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 220: Paper Size Error

    Page: 98 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (3) Paper size error Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner...
  • Page 221 Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 222: Fuser Unit Error (Error 71), (Error 72), (Error

    Page: 99 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (4) Fuser unit error (ERROR 71), (ERROR 72), (ERROR 73)
  • Page 223 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 224: I/F Time-Out Between Printer And Optional Tray (Error

    Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (5) I/F time-out between printer and optional tray (ERROR 81) Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 225: I/F Time-Out Between Printer And Duplex Unit (Error

    Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (6) I/F time-out between printer and Duplex Unit (ERROR 83) Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 226: I/F Time-Out Occurs Between The Printer And The

    Chapter 6 Troubleshooting Procedures (7) I/F time-out occurs between the printer and the operator panel (ERROR 80) Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 227: Message Cannot Be Received Through The Parallel

    Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (8) Message cannot be received through the parallel interface Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 228 Page: 104 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (9) Message cannot be received through the serial interface...
  • Page 230 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 231 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (10) Data cannot be received through the OKI HSP interface Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 232 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (11) Synchronous serial I/O error (ERROR 74) Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 233 Page: 107 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures 6.5.3 Image Troubleshooting Procedures for troubleshooting for the cases of abnormal image printouts are explained below. Figure 6-3 below shows typical abnormal images. Problem Flowchart number Images are light or blurred entirely (Figure 6-4, A )
  • Page 234 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 235: An Image Is Light Or Blurred Entirely

    Page: 108 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (1) An image is light or blurred entirely...
  • Page 236 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 237: Dark Background Density

    Page: 109 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (2) Dark background density Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 238: Black Paper Is Output

    Page: 110 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (3) Black paper is output Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 239: Black Belts Or Stripes In The Vertical Direction

    Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (4) Black belts or stripes in the vertical direction Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 240: Cyclic Error

    FORM FEED and ENTER keys, and reset the fuser counter. (Refer to See 4.1.) Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 241: Print Voids

    Page: 113 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (6) Print voids Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner...
  • Page 242 Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 243: Poor Fusing

    Page: 114 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (7) Poor fusing Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 244: White Belts Or Streaks In The Vertical Direction

    Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (8) White belts or streaks in the vertical direction Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 245: Snowy Print Of High Density Pattern

    Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (9) Snowy print of high density pattern Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 246: Blotchy Faded Print

    Page: 117 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures (10) Blotchy faded print Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 247 Page: 118 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures Contents - Figure 6-5 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 248 Page: 119 Service Guide OKIPAGE 24DX/24DXn Chapter 6 Troubleshooting Procedures Contents - Figure 6-6 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 249: Wiring Diagram 7.1 Interconnect Signal Diagram

    Page: 120 Service Guide OKIPAGE 24DX/24DXn Chapter 7 Wiring Diagram 7.1 Interconnect Signal Diagram...
  • Page 251 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 252: Pcb Layout

    7.2.3 Power supply board (High voltage) 7.24 LEX-PCB 7.2.5 Flash ROM module (BOARD-FSL or FSL-2) Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 253: Main Control Board (Hby Pcb)

    Page: 122 Service Guide OKIPAGE 24DX/24DXn Chapter 7 Wiring Diagram 7.2.1 Main Control Board (HBY PCB)
  • Page 255 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 256: Power Supply Board (120V/230V)

    Page: 123 Service Guide OKIPAGE 24DX/24DXn Chapter 7 Wiring Diagram 7.2.2 Power Supply Board (120V/230V) Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 257 Page: 124 Service Guide OKIPAGE 24DX/24DXn Chapter 7 Wiring Diagram 7.2.3 Power supply board (High voltage) Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 258 Page: 125 Service Guide OKIPAGE 24DX/24DXn Chapter 7 Wiring Diagram 7.2.4 LEX-PCB Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 259 Service Guide OKIPAGE 24DX/24DXn Chapter 7 Wiring Diagram 7.2.5 Flash ROM module (BOARD-FSL or BOARD-FSL-2) Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 260 Page: 127 Service Guide OKIPAGE 24DX/24DXn Chapter 7 Wiring Diagram 7.3 Resistance Check Unit Circuit Diagram Illustration Resistance Motor - Main Between pins 1 and 2: 3.1 Ohms Between pins 3 and 4: 3.1 Ohms Fusing Unit Between pins 1 and 2: 6.7 Ohms...
  • Page 261 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 262 Page: 128 Service Guide OKIPAGE 24DX/24DXn Chapter 7 Wiring Diagram 7.4 Program Font/ROM Location (1) In case of EP ROM or OTP ROM (2) In case of MASK ROM...
  • Page 263 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 264: Parts List Figure 8-1 Printer Unit

    Page: 129 Service Guide OKIPAGE 24DX/24DXn Chapter 8 Parts List Figure 8-1 Printer Unit...
  • Page 266 Earth Plate BK (R) 40946903 Board - FFF 40295701 Connection Cord Wire (Power Supply) 40931301 Duplex Unit Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 267: Figure 8-2 Frame - Main Unit

    Page: 130 Service Guide OKIPAGE 24DX/24DXn Chapter 8 Parts List Figure 8-2 Frame - Main Unit...
  • Page 268 Part # Name Remarks 40596901 Frame Assy - Main For Maintenance 50928306 Spring 51229401 Damper 40315801 Lever - Separator 51608501 TR Bearing 50928602 TR Spring R 40299701 Guide Assy - Discharge 40032901 Sensor - In 40033001 Spring-In Sensor 50807901 Write Sensor Lever 50807801 Toner Sensor Lever (Adhesive) 40583801...
  • Page 269 Feeder Unit - Front 40443301 LED - Head 55506001 ZCAT 1325-0530A R Core 51609401 Bearing Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 270: Figure 8-3 Base Unit

    Page: 131 Service Guide OKIPAGE 24DX/24DXn Chapter 8 Parts List Figure 8-3 Base Unit...
  • Page 272 Part # Name Remarks 40377601 Guide assy - Cassette (L) 40597101 Guide - Cassette (L) For Maintenance 51500301 Pull Block 40349102 Lever - Link (Caulking) 40349701 Roller - Link 50516801 Rink Support 40928101 Spring - Sheet 50607201 Cassette Stopper 50928801 Pressure Coil Spring 40445601 Earth Plate L...
  • Page 273 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 274: Figure 8-4 Duplex Unit

    Page: 132 Service Guide OKIPAGE 24DX/24DXn Chapter 8 Parts List Figure 8-4 Duplex Unit...
  • Page 276 Board - LEX 40942601 Program ROM (IC1) 40318201 Cover - Bottom (DUP) 40382701 Earth (MTR) Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 277: Parallel Interface

    Page: 133 Service Guide OKIPAGE 24DX/24DXn Chapter A Centronics Parallel Interface Parallel Interface (1) Connector Printer side: 36 receptacle Type: 57RE-40360-830B-D29 (made by DDK) or equivalent Cable side: 36-pin plug Type: 57-30360 (made by DDK) or equivalent (2) Cable Cable length: 6 feet (1.8 m) max.
  • Page 278 (4) Signal level LOW : 0 V to +0.8 V HIGH: +2.4 V to 5.0 V (5) Interface circuit a) Receiving circuit (b) Sending circuit (6) Timing charts compatible mode a) Data receiving timing...
  • Page 279 b) On-line --> off-line switching timing by ON-LINE SW c) Off-line ---> on-line switching by ON-LINE SW (d) INPUT PRIME timing (when set to the effective INPUT PRIME signal)
  • Page 280 Nibble Mode Conforms to IEEE 1284 spec. ECP Mode Conforms to IEEE 1284 spec. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 281 Page: 134 Service Guide OKIPAGE 24DX/24DXn Chapter B RS-232C Serial Interface RS-232C Serial Interface (1) Connector Printer side: 25 receptacle Type: 17LE-13250-27 (D4CC) (made by DDK) or equivalent Cable side: 25-pin plug Type: 17JE-23250-02 (D8C) (made by DDK) (2) Cable Cable length: 6 feet (1.8 m) max.
  • Page 282 Note: The above signal level is for the case where 3KOhms x 15pF is being connected to the terminal. (6) Communication protocol a) READY/BUSY protocol b) X-ON/X-OFF protocol Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 283: C Duplex Unit Maintenance 1. Outline

    Chapter C Duplex Unit Maintenance 1. OUTLINE 1.1 Functions 1.2 External View and Component Names Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 284: Functions

    Special Size: Paper Width: 210 to 216mm ; Paper length: 279 to 356mm [Weight] 16 lbs ~ 24 lbs (64 ~ 81 g/m Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 285: External View And Component Names

    Service Guide OKIPAGE 24DX/24DXn Chapter C Duplex Unit Maintenance 1.2 External View and Component Names Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 286: Mechanism Description

    Chapter C Duplex Unit Maintenance 2.0 Mechanism Description 2.1 General Mechanism 2.2 JAM Release Mechanism 2.3 Removing/Installing Duplex Unit Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 287: General Mechanism

    Page: 139 Service Guide OKIPAGE 24DX/24DXn Chapter C Duplex Unit Maintenance 2.1 General Mechanism When the Duplex Unit receives an instruction for both-sided printing from the unit, the separator will be opened by the action of a solenoid within Duplex and the route will be shifted to the one into the Duplex after one-sided printing of papers, which are fed from the tray, are completed.
  • Page 288 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 289: Jam Release Mechanism

    This enables a jam to be released. Structurally, the LEVER-Release can be pushed up by back edge of cassette and the sheet route automatically close when the cassette is returned. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 290: Removing/Installing Duplex Unit

    Page: 141 Service Guide OKIPAGE 24DX/24DXn Chapter C Duplex Unit Maintenance 2.3 Removing/Installing Duplex Unit Removing Duplex Unit (1) Power Off and remove the Paper-Cassette from 1st tray. (2) Remove the Lever-Release from the boss of the Hopping Frame. (3) Rotate the LEVER-Lock (Dup) in the direction of the arrow to release the Lock.
  • Page 291 Installing Duplex Unit (1) Hold the LEVER-Lock (Dup) in horizontal lock position. Then insert the Duplex Unit along the groove, up to accord both rear faces between printer and Duplex Unit. Printer and Duplex Unit will connect automatically with built-in connector. (2) Lock the Duplex Unit to the printer by turning the LEVER-Lock (Dup) to the next locking position as below.
  • Page 292 (3) From front side of printer, snap fit LEVER-Release (Dup) into the boss in Hopping Frame. (4) After installing Duplex Unit, put back the Paper Cassette into 1st Tray. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 293: Parts Replacement

    3.1 Precautions Concerning Parts Replacement 3.2 Parts Layout 3.3 Parts Replacement Methods Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 294: Precautions Concerning Parts Replacement

    Page: 143 Service Guide OKIPAGE 24DX/24DXn Chapter C Duplex Unit Maintenance 3.1 Precautions Concerning Parts Replacement (1) Parts replacements must be carried out, by first turning the printer power switch off "O" and removing the Duplex Unit from the printer.
  • Page 295 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 296: Parts Layout

    Page: 144 Service Guide OKIPAGE 24DX/24DXn Chapter C Duplex Unit Maintenance 3.2 Parts Layout This section describes the layout of the main components.
  • Page 298 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 299: Parts Replacement Methods

    This section describes the parts replacement methods for the components listed in the disassembly order diagram below. 3.3.1 Board-LEX 3.3.2 Connector (IMSA-9714N-14A) 3.3.3 Photo Sensor 3.3.4 SOLENOID Assy 3.3.5 Motor Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 300: Board-Lex

    Page: 146 Service Guide OKIPAGE 24DX/24DXn Chapter C Duplex Unit Maintenance 3.3.1 Board-LEX (1) Remove two LEVER-Lock (DUP) (1) by rotating them in the arrow direction. (2) Unscrews five screws (2) to remove the bracket (3). (3) Unlatch all the nails and unplug all the connectors (4) to remove the Board-LEX (5).
  • Page 301 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 302: Connector (Imsa-9714N-14A)

    Page: 147 Service Guide OKIPAGE 24DX/24DXn Chapter C Duplex Unit Maintenance 3.3.2 Connector (IMSA-9714N-14A) (1) Remove two LEVER-Release (DUP) (1). (2) Take away two SPRING-Support (2) to remove FRAME-MAIN (DUP) (3). (Remove the FRAME-MAIN (DUP) by lifting in up from (A) side)
  • Page 303 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 304: Photo Sensor

    Page: 148 Service Guide OKIPAGE 24DX/24DXn Chapter C Duplex Unit Maintenance 3.3.3 Photo Sensor (1) Remove the Frame-Main (DUP) (see section 3.3.2). (2) Release the lock to remove two SPRING-Lock (frame) (1) and two LEVER-Lock Assy (2). (3) Pull out four SHAFT-Pinch (3) and remove four ROLLER-Pinch (4) and eight SPRING-Pinch (u) (5).
  • Page 305 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 306: Solenoid Assy

    Page: 149 Service Guide OKIPAGE 24DX/24DXn Chapter C Duplex Unit Maintenance 3.3.4 SOLENOID Assy (1) Remove the Frame-Main (DUP) (See section 3.3.2). (2) Release the lock to remove Two LEVER Sensor (F/R) (1) and two SPRING-Sensor (F/R) (2). (3) Unplug the Connection Code-Wire (3) and remove Photo Sensor (4).
  • Page 307 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner...
  • Page 308 Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 309: Motor

    Page: 150 Service Guide OKIPAGE 24DX/24DXn Chapter C Duplex Unit Maintenance 3.3.5 Motor (1) Remove the Frame-Main (DUP) (See section 3.3.2). (2) Unscrew two screws (1) to remove PLATE-Earth (F/R) (2). (3) Unscrew three screws (3) to remove PLATE-Earth (F/R-2) (4).
  • Page 310 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 311: Troubleshooting

    4.0 Troubleshooting 4.1 Precautions Prior to the Troubleshooting 4.2 Preparations for the Troubleshooting 4.3 Troubleshooting Method Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 312: Precautions Prior To The Troubleshooting

    (3) Go through the checking in the conditions similar to that in which the problem occurred. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 313: Preparations For The Troubleshooting

    The status of the problem is displayed on the LCD (Liquid Crystal Display) on the Operator panel. Go through the appropriate troubleshooting procedures according to the messages displayed on the LCD. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 314: Troubleshooting Method

    When a problem occurs, go through the troubleshooting according to the following procedure. 4.3.1 LCD Status Message List 4.3.2 Troubleshooting Flow Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 315: Lcd Status Message List

    Duplex. Replace the square-shaped connector if necessary. - Replace LEX-PCB. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 316: Troubleshooting Flow

    Page: 156 Service Guide OKIPAGE 24DX/24DXn Chapter C Duplex Unit Maintenance 4.3.2 Troubleshooting Flow (JAM error) Duplex INPUT JAM...
  • Page 317 Duplex FEED JAM1...
  • Page 318 Duplex FEED JAM2 Duplex FEED JAM3...
  • Page 319 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 320: Connection Diagram

    Service Guide OKIPAGE 24DX/24DXn Chapter C Duplex Unit Maintenance 5.0 Connection Diagram 5.1 Interconnection Diagram 5.2 PCB Layout Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 321: Interconnection Diagram

    Page: 158 Service Guide OKIPAGE 24DX/24DXn Chapter C Duplex Unit Maintenance 5.1 Interconnection Diagram...
  • Page 323 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 324: Pcb Layout

    Page: 159 Service Guide OKIPAGE 24DX/24DXn Chapter C Duplex Unit Maintenance 5.2 PCB Layout PCB-LEX Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 325: Parts List

    Page: 160 Service Guide OKIPAGE 24DX/24DXn Chapter C Duplex Unit Maintenance 6.0 Parts List...
  • Page 327 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 328 Page: 161 Service Guide OKIPAGE 24DX/24DXn Chapter C Duplex Unit Maintenance Table 6-1 Duplex Unit No. Part No. Name Recommended Qty Remarks 1000 40658401 COVER - Upper (DUP) (Affix) 40339401 ROLLER - Pinch 40382201 SHAFT - Pinch 40393201 SPRING - Pinch (U)
  • Page 329 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 330: Outline

    Chapter D Second / Third Paper Feeder Maint (option) 1.0 Outline 1.1 Functions 1.2 Appearance and Parts Name Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 331: Functions

    Special Size: Paper Width: 148 to 216mm; Paper length: 210 to 356mm [Weight] 60 ~ 105 g/m Paper loading capacity: 75 g/m paper 530 sheets Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 332: Appearance And Parts Name

    Service Guide OKIPAGE 24DX/24DXn Chapter D Second / Third Paper Feeder Maint (option) 1.2 Appearance and Parts Name Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 333: Description Of Operation

    Chapter D Second / Third Paper Feeder Maint (option) 2.0 Description of operation 2.1 Driving Mechanism 2.2 Hopper Mechanism Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 334: Driving Mechanism

    Page: 166 Service Guide OKIPAGE 24DX/24DXn Chapter D Second / Third Paper Feeder Maint (option) 2.1 Driving Mechanism The high-capacity second/ third paper feeder only a top paper which is set in the cassette by a signal from the printer.
  • Page 336 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 337: Hopper Mechanism

    Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 339: Parts Replacement

    3.1 Precautions Concerning Parts Replacement 3.2 Parts Layout 3.3 Parts Replacement Methods Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 340: Precautions Concerning Parts Replacement

    Page: 169 Service Guide OKIPAGE 24DX/24DXn Chapter D Second / Third Paper Feeder Maint (option) 3.1 Precautions Concerning Parts Replacement (1) Parts replacements must be carried out, by first turning the printer power switch off "O" and removing the High Capacity Second / Third Paper Feeder from the printer.
  • Page 341 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 342: Parts Layout

    Page: 170 Service Guide OKIPAGE 24DX/24DXn Chapter D Second / Third Paper Feeder Maint (option) 3.2 Parts Layout This section describes the layout of the main components.
  • Page 344 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 345: Parts Replacement Methods

    Roller feed (3.3.8) Bracket sub roller (3.3.9) Frame side L (3.3.10) Frame side R (3.3.11) Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 346: Roller Assy Hopping, Roller Assy Feed

    (2) Disengage latchs to remove the Roller assy hopping (2). (3) Disengage latchs to remove the Roller assy feed (3). Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 347: Cover Front Assy

    Page: 173 Service Guide OKIPAGE 24DX/24DXn Chapter D Second / Third Paper Feeder Maint (option) 3.3.2 Cover front assy (1) Unscrew two screws (1) to remove the Cover front assy (2).
  • Page 348 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 349: Board-Bbb

    Page: 174 Service Guide OKIPAGE 24DX/24DXn Chapter D Second / Third Paper Feeder Maint (option) 3.3.3 Board-BBB (1) Unscrew a screw (1) to remove the PCB cover bracket (2). (2) Take away all connectors (3) and three screws (4) to remove the Board-BBB (5).
  • Page 350 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 351: Lever Paper End, Lever Paper Near End

    Page: 175 Service Guide OKIPAGE 24DX/24DXn Chapter D Second / Third Paper Feeder Maint (option) 3.3.4 Lever paper end, Lever paper near end (1) Unscrew five screws (1) to remove roller cover bracket (2) and PLATE-Earth (L) (3). (2) Disengage latches to remove the Lever paper end (4) and Lever paper near end (5).
  • Page 352 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 353: Motor

    Page: 176 Service Guide OKIPAGE 24DX/24DXn Chapter D Second / Third Paper Feeder Maint (option) 3.3.5 Motor (1) Remove the Cover front assy (See section 3.3.2). (2) Remove the PCB cover bracket (See section 3.3.3). (3) Remove the roller cover bracket (See section 3.3.4).
  • Page 354 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner...
  • Page 355 Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 356: Connector (Imsa-9714N-14B), Connector

    Page: 177 Service Guide OKIPAGE 24DX/24DXn Chapter D Second / Third Paper Feeder Maint (option) 3.3.6 Connector (IMSA-9714N-14B), Connector (IMSA-9714N-14A) (1) Remove the Motor (See section 3.3.5). (2) Unscrew two screws (1) to remove Connector (IMSA-9714N-14B) (2) and Plate-Earth (FR) (3).
  • Page 357 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 359 (5) Unscrew a screw (7) to remove the Plate Earth shaft (8). (6) Unscrew a screw (9) to remove the Tray switch assy (10). Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 360: Roller Feed

    (5) Disengage latches to remove the Pulley feed 2. (At this time, the Gear feed 3 and Bush 4 can be removed simultaneously.) (6) Remove the Roller feed 5. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 361: Bracket Sub Roller

    Page: 180 Service Guide OKIPAGE 24DX/24DXn Chapter D Second / Third Paper Feeder Maint (option) 3.3.9 Bracket sub roller (1) Remove the Roller assy hopping and Roller assy feed. (See section 3.3.1). (2) Remove the Roller feed (See section 3.3.8) (3) Unscrew a screw (1) to remove the Bracket joint (2) , Spring joint (3) and Gear joint (4).
  • Page 362 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 363: Frame Side (L) Assy

    Page: 181 Service Guide OKIPAGE 24DX/24DXn Chapter D Second / Third Paper Feeder Maint (option) 3.3.10 Frame side (L) assy (1) Remove the Frame side (L) assy (See section 3.3.5). (2) Remove the Plate Earth (BL) (1). (3) Take away the Spring (2) to remove the Cassette stopper (3).
  • Page 364 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 365: Frame Side (R) Assy

    Page: 182 Service Guide OKIPAGE 24DX/24DXn Chapter D Second / Third Paper Feeder Maint (option) 3.3.11 Frame side (R) assy (1) Remove the Frame side (R) assy (See section 3.3.5). (2) Remove the Plate Earth (BR) (1). (3) Take away the Spring (2) to remove the Cassette stopper (3).
  • Page 366 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 367: Troubleshooting

    4.0 Troubleshooting 4.1 Precautions Prior to the Troubleshooting 4.2 Preparations for the Troubleshooting 4.3 Troubleshooting Method Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 368: Precautions Prior To The Troubleshooting

    (3) Go through the checking in the conditions similar to that in which the problem occurred. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 369: Preparations For The Troubleshooting

    The status of the problem is displayed on the LCD (Liquid Crystal Display) on the Operator panel. Go through the appropriate troubleshooting procedures according to the messages displayed on the LCD. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 370: Troubleshooting Method

    4.3 Troubleshooting Method When a problem occurs, go through the troubleshooting according to the following procedure. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 371: Lcd Status Message List

    Paper Feeder. square-shaped connector if necessary. - Replace Board - BBB. * : 2 or 3 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 372: Troubleshooting Flow

    Page: 188 Service Guide OKIPAGE 24DX/24DXn Chapter D Second / Third Paper Feeder Maint (option) 4.3.2 Troubleshooting Flow ( JAM error ) Paper Input Jam...
  • Page 373 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 374: Connection Diagram

    Chapter D Second / Third Paper Feeder Maint (option) 5.0 Connection Diagram 5.1 Interconnection Diagram 5.2 PCB Layout Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 375: Interconnection Diagram

    Page: 190 Service Guide OKIPAGE 24DX/24DXn Chapter D Second / Third Paper Feeder Maint (option) 5.1 Interconnection Diagram...
  • Page 377 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 378: Pcb Layout

    Page: 191 Service Guide OKIPAGE 24DX/24DXn Chapter D Second / Third Paper Feeder Maint (option) 5.2 PCB Layout...
  • Page 379 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 380: Parts List

    Page: 192 Service Guide OKIPAGE 24DX/24DXn Chapter D Second / Third Paper Feeder Maint (option) 6.0 Parts List...
  • Page 382 No. Part No. Name Recommended Qty Remarks 1000 40346701 Frame side (L) assy 40488701 Guide cassette L # For Maintenance 51500301 Pull block 40349102 Lever link (caulking) 50516801 Link support 40607201 Spring - Sheet 50607201 Cassette stopper 50928801 Spring 50806102 Rubber foot 51024701 Guide rail plate L...
  • Page 383 Plate - Earth (R) 40583601 Core Assy - 2nd Tray To Printer or 2nd Tray Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 384: Functions

    Refer to the USER'S MANUAL for operating instructions. 1.1 Functions 1.2 External View and Component Names Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
  • Page 385 64 - 90 g/m * approximately 50 sheets of envelopes can be set at a time. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 386: External View And Component Names

    Service Guide OKIPAGE 24DX/24DXn Chapter E Multi Feeder Maint. (option) 1.2 External View and Component Names Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 387: Mechanism Description

    Chapter E Multi Feeder Maint. (option) 2.0 Mechanism Description 2.1 General Mechanism 2.2 Hopper Mechanism Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 388: General Mechanism

    During this process, a one-way bearing is engaged at pulley I so that the rotation of pulley I is not transmitted to roller A, preventing any feeding of papers by roller A. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 389: Hopper Mechanism

    The hopper automatically feeds the printer with the paper being set, single sheet at a time. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 390: Parts Replacement

    3.1 Precautions Concerning Parts Replacement 3.2 Parts Layout 3.3 Parts Replacement Methods Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 391: Precautions Concerning Parts Replacement

    Page: 200 Service Guide OKIPAGE 24DX/24DXn Chapter E Multi Feeder Maint. (option) 3.1 Precautions Concerning Parts Replacement (1) Parts replacements must be carried out, by first turning the printer power switch off "O" and removing the Multi Feeder from the printer.
  • Page 392 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 393: Parts Layout

    Page: 201 Service Guide OKIPAGE 24DX/24DXn Chapter E Multi Feeder Maint. (option) 3.2 Parts Layout This section describes the layout of the main components.
  • Page 395 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 396: Parts Replacement Methods

    Planet gear (3.3.5) Roller B (3.3.6) Roller A (3.3.7) Mini pitch belt & Feed roller (3.3.8) Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 397: Separator

    Page: 203 Service Guide OKIPAGE 24DX/24DXn Chapter E Multi Feeder Maint. (option) 3.3.1 Separator (1) Turn the printer power off and remove the Multi Feeder. (2) Disengage the link and hopper cover. (3) Remove two screws (1), disengage two locks of the upper cover (2) using a flat-head screwdriver, and remove the upper cover (2).
  • Page 398 (roller) installed. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 399: Aole-Pcb

    (4) Remove the connector (4). Caution: Be careful to set the sensor plate properly when mounting AOLE-PCB. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 400: Square-Shaped Connector

    Page: 205 Service Guide OKIPAGE 24DX/24DXn Chapter E Multi Feeder Maint. (option) 3.3.3 Square-shaped connector (1) Remove the upper cover and remove the cover frame (5) (see 3.3.1 (1) to (4)). (2) Remove the AOLE-PCB (see 3.3.2). (3) Remove the screw (1) and remove the square-shaped connector (2).
  • Page 401 2. The square connector (2) should be hooked on the connector spring (4) and move smoothly. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 402: Hopping Motor

    (2) Remove the AOLE-PCB. (see 3.3.2). (3) Remove two screws (1), then remove the hopping motor (2). Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 403: Planet Gear

    (3) Remove two screws (1), then remove the motor bracket assy (2) and the planet gear (3). Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 404: Roller B

    Page: 208 Service Guide OKIPAGE 24DX/24DXn Chapter E Multi Feeder Maint. (option) 3.3.6 Roller B (1) Remove the upper cover (see 3.3.1 (1) to (3)). (2) Disengage the plate and frame (on both sides). (3) Remove the separator assy (see 3.3.1 (1) to (3)).
  • Page 405 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 406: Roller A

    Page: 209 Service Guide OKIPAGE 24DX/24DXn Chapter E Multi Feeder Maint. (option) 3.3.7 Roller A (1) Remove the motor bracket assy (see 3.3.5). (2) Remove two gears (1) and then another gear (2). (3) Disengage the plate (3) and the frame (4).
  • Page 407 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 408: Mini Pitch Belt & Feed Roller

    Page: 210 Service Guide OKIPAGE 24DX/24DXn Chapter E Multi Feeder Maint. (option) 3.3.8 Mini pitch belt & Feed roller (1) Remove the roller A (see 3.3.7). (2) Remove the bearing (1) and remove the feed roller assy (2). (3) Remove two bearings (3) and remove the plate (4).
  • Page 409 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 410: Troubleshooting

    Chapter E Multi Feeder Maint. (option) 4.0 Troubleshooting Precautions Prior to the Troubleshooting Preparations for the Troubleshooting Troubleshooting Method Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 411: Precautions Prior To The Troubleshooting

    (3) Go through the checking in the conditions similar to that in which the problem occurred. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 412: Preparations For The Troubleshooting

    The status of the problem is displayed on the LCD (Liquid Crystal Display) on the operator panel. Go through the appropriate troubleshooting procedures according to the messages displayed on the LCD. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 413: Troubleshooting Method

    When a problem occurs, go through the troubleshooting according to the following procedure. 4.3.1 LCD Status Message List 4.3.2 Troubleshooting Flow Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 414: Lcd Status Message List

    AOLE-PCB and square-shaped printer and the Multi-Feeder. connector. Replace the square-shaped connector if necessary. - Replace AOLE-PCB. Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 415: Troubleshooting Flow

    Page: 216 Service Guide OKIPAGE 24DX/24DXn Chapter E Multi Feeder Maint. (option) 4.3.2 Troubleshooting Flow ( JAM error ) Paper Input Jam...
  • Page 417 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 418: Connection Diagram

    Chapter E Multi Feeder Maint. (option) 5.0 Connection Diagram 5.1 Interconnection Diagram 5.2 PCB Layout Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 419: Interconnection Diagram

    Page: 218 Service Guide OKIPAGE 24DX/24DXn Chapter E Multi Feeder Maint. (option) 5.1 Interconnection Diagram Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 420: Pcb Layout

    Page: 219 Service Guide OKIPAGE 24DX/24DXn Chapter E Multi Feeder Maint. (option) 5.2 PCB Layout AOLE-PCB...
  • Page 421 Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

  • Page 422: Parts List

    Page: 220 Service Guide OKIPAGE 24DX/24DXn Chapter E Multi Feeder Maint. (option) 6.0 Parts List...
  • Page 424 Roller - B 55077601 AOLE-PCB 56731641 Connector (IMSA-9714N-14B) 56730804 Nylon connector cord 51239301 Stirrer roller gear Copyright 1998, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
