DIP Switch Settings
The 4-position DIP Switch on the front panel is used to set the mode of
operation for the AC1 (remote operation) pushbutton (FIG. 3).

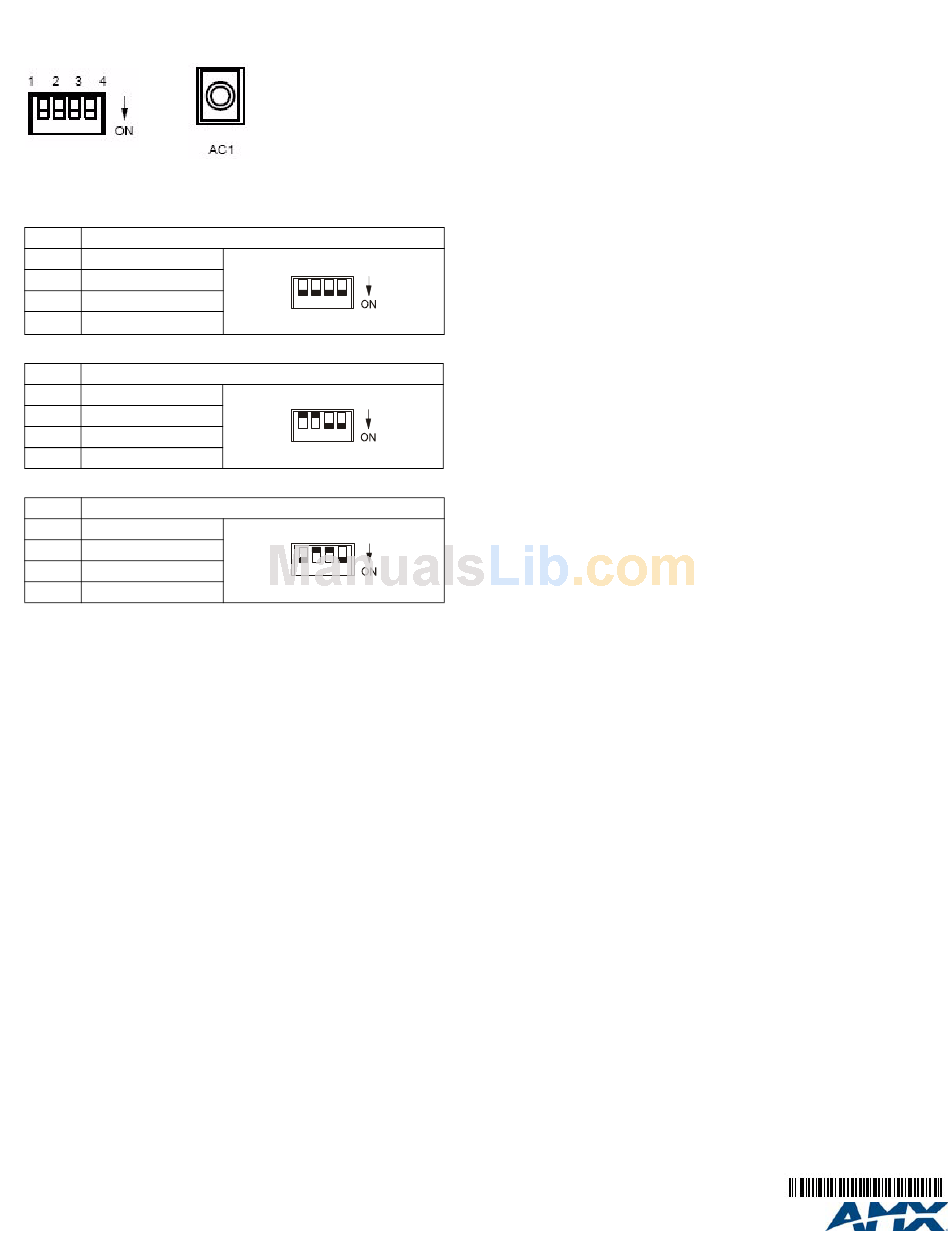

FIG. 3
DIP Switch and AC1 Remote Operation Pushbutton
The settings are shown below:
AC1 Momentary (Default)
Switch
Setting (Down = On)
1
ON
2
ON
3
ON
4
ON
AC1 Latching
Switch
Setting (Down = On)
1
OFF
2
OFF
3
ON
4
ON
Discrete ON/OFF
Switch
Setting (Down = On)
1
ON
2
OFF
3
OFF
4
ON
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com
1 2 3 4
1 2 3 4
1 2 3 4
For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).
©2009 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX.
AMX reserves the right to alter specifications without notice at any time.
12/09
93-0670-01
REV: B
