How To Update The New Firmware Into The Tango55/56 Modems - FALCOM TANGO55 User Manual

TANGO55/i & TANGO56/i User's Manual

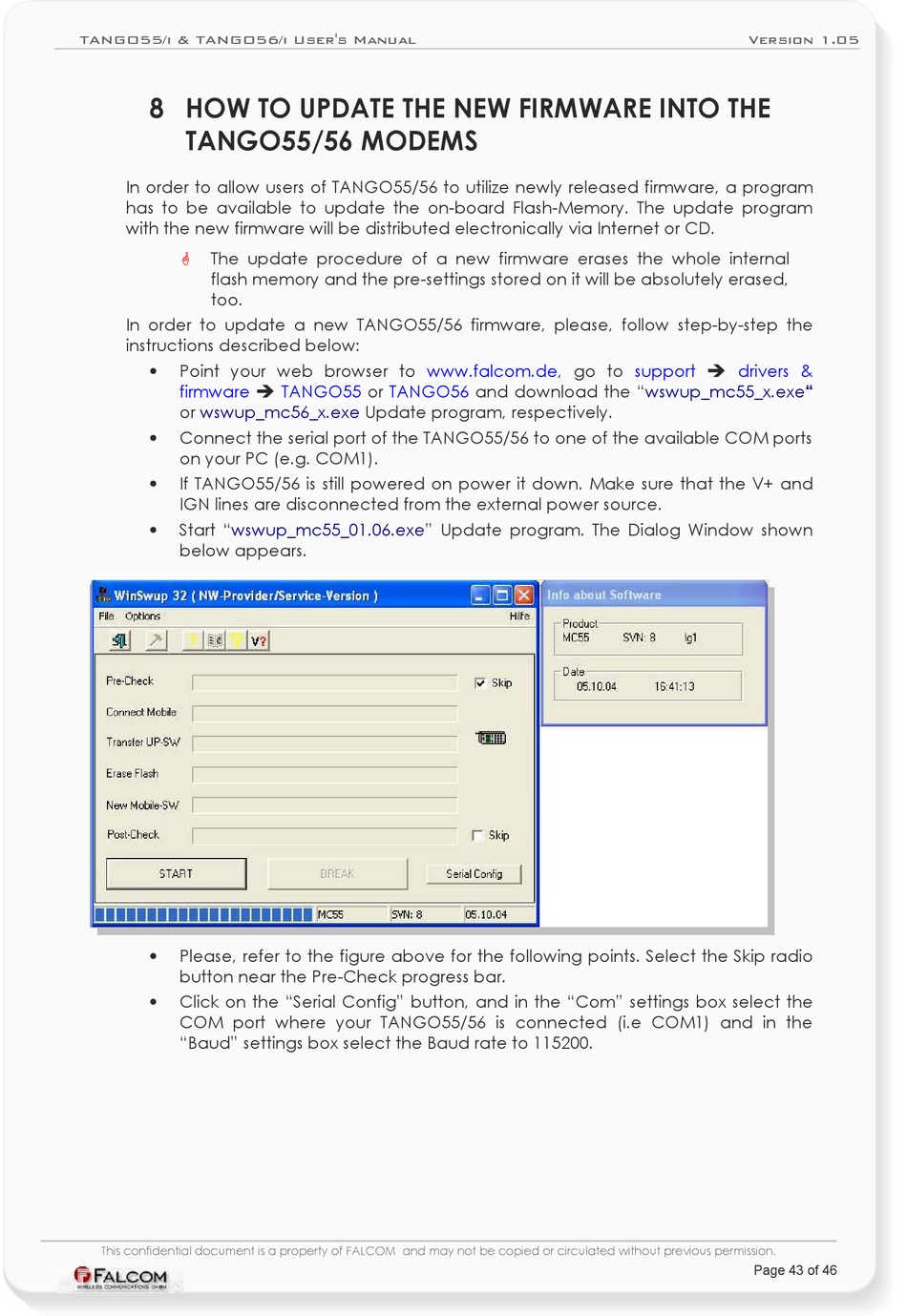

8 HOW TO UPDATE THE NEW FIRMWARE INTO THE
TANGO55/56 MODEMS
In order to allow users of TANGO55/56 to utilize newly released firmware, a program
has to be available to update the on-board Flash-Memory. The update program
with the new firmware will be distributed electronically via Internet or CD.
The update procedure of a new firmware erases the whole internal

flash memory and the pre-settings stored on it will be absolutely erased,
too.
In order to update a new TANGO55/56 firmware, please, follow step-by-step the
instructions described below:
•
Point your web browser to www.falcom.de, go to
firmware
or wswup_mc56_x.exe
• Connect the serial port of the TANGO55/56 to one of the available COM ports
on your PC (e.g. COM1).
•
If TANGO55/56 is still powered on power it down. Make sure that the V+ and
IGN lines are disconnected from the external power source.
•
Start "wswup_mc55_01.06.exe" Update program. The Dialog Window shown
below appears.
•
Please, refer to the figure above for the following points. Select the Skip radio
button near the Pre-Check progress bar.
•
Click on the "Serial Config" button, and in the "Com" settings box select the
COM port where your TANGO55/56 is connected (i.e COM1) and in the
"Baud" settings box select the Baud rate to 115200.
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
 TANGO55 or TANGO56
Update program, respectively.
support
and download the "wswup_mc55_x.exe"
Version 1.05
 drivers &
Page 43 of 46
