4 HARDWARE INTERFACES

4.1 Interfaces on the TANGO55/i & TANGO56/i
Interface A
Interface B
Interface C
Interface D
Interface E
Interface F
Table 8: Interface specifications of the modems

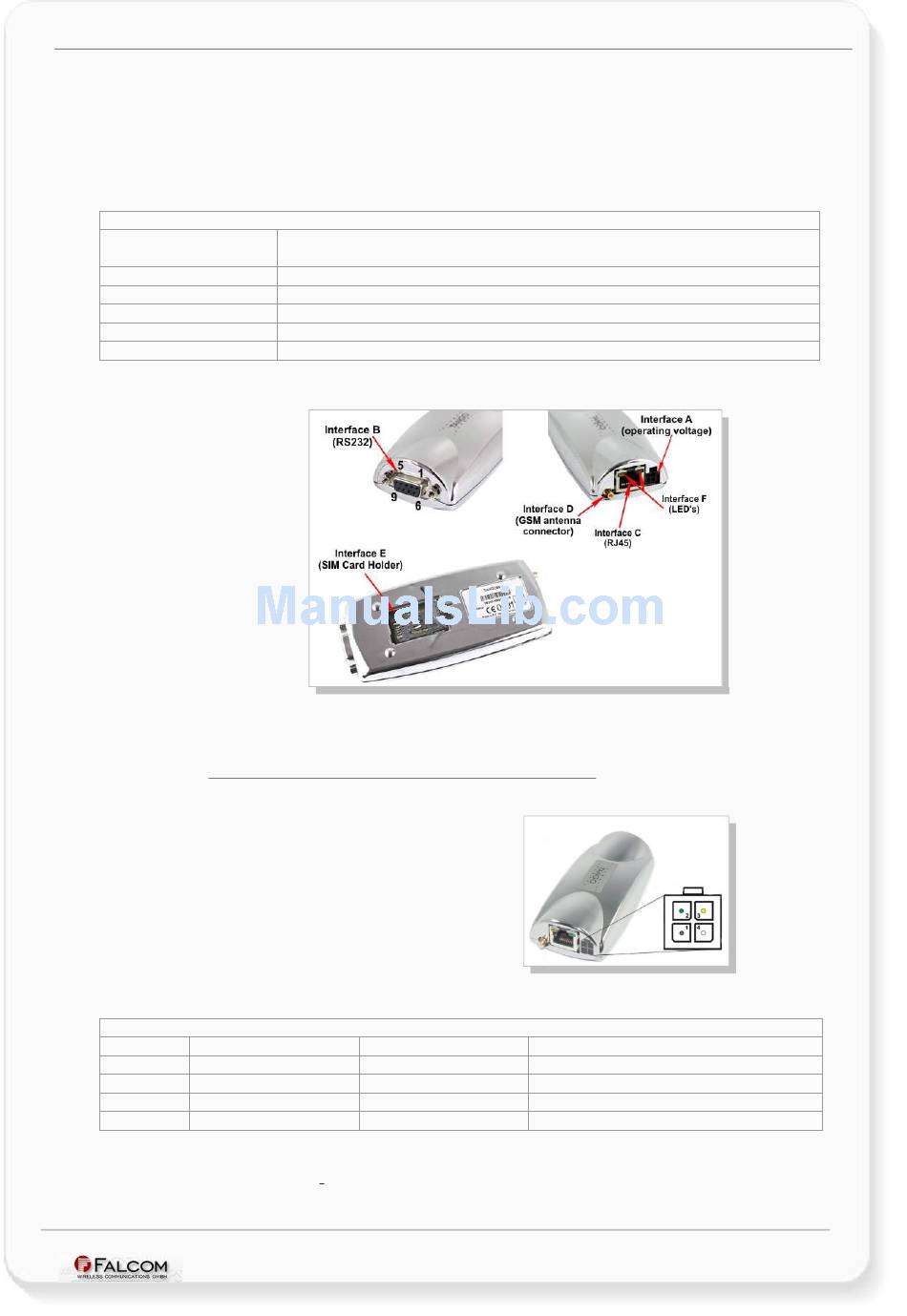

Figure 1: view of modem interfaces.

4.1.1 Interface A (4-pin connector, power supply)

Figure 2: Pin out of 4-pin power supply connector (interface A)
Pin number
1
2
3
4 POWER (+Vin)
Table 9: Description of modem power connector
A cable, included in the package shall be used for power supply connection.
For more details see Appendix chapters
