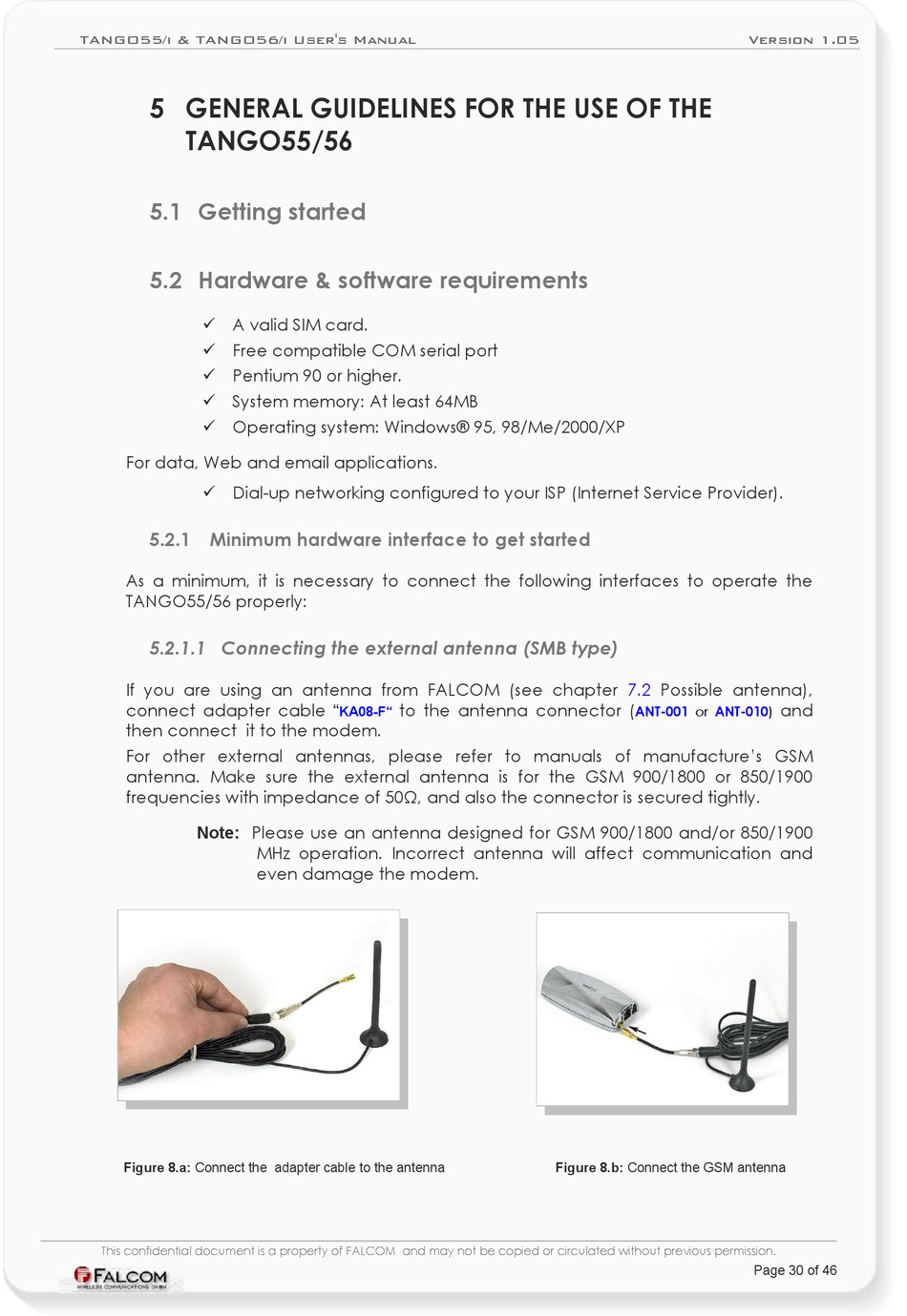

TANGO55/i & TANGO56/i User's Manual
5 GENERAL GUIDELINES FOR THE USE OF THE
TANGO55/56

5.1 Getting started

5.2 Hardware & software requirements
 A valid SIM card.
 Free compatible COM serial port
 Pentium 90 or higher.
 System memory: At least 64MB
 Operating system: Windows® 95, 98/Me/2000/XP
For data, Web and email applications.
 Dial-up networking configured to your ISP (Internet Service Provider).

5.2.1 Minimum hardware interface to get started

As a minimum, it is necessary to connect the following interfaces to operate the
TANGO55/56 properly:

5.2.1.1 Connecting the external antenna (SMB type)

If you are using an antenna from FALCOM (see chapter
connect adapter cable "
then connect it to the modem.
For other external antennas, please refer to manuals of manufacture's GSM
antenna. Make sure the external antenna is for the GSM 900/1800 or 850/1900
frequencies with impedance of 50Ω, and also the connector is secured tightly.
Note: Please use an antenna designed for GSM 900/1800 and/or 850/1900
Figure 8.a: Connect the adapter cable to the antenna
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
to the antenna connector (
KA08-F"
MHz operation. Incorrect antenna will affect communication and
even damage the modem.
7.2
Possible antenna),
ANT-001
or ANT-010)
Figure 8.b: Connect the GSM antenna
Version 1.05
and
Page 30 of 46
