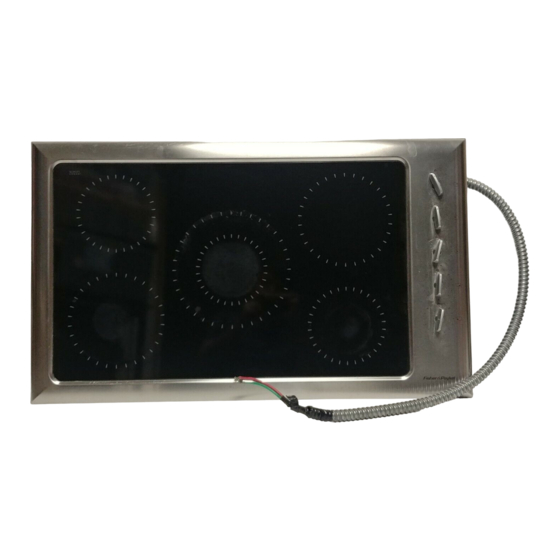

Fisher & Paykel CE901/M Installation Information

Fisher & Paykel CE901/M Installation Information

Titan ce901 series
Hide thumbs Also See for CE901/M:

Advertisement

INSTALLATION INFORMATION FOR TITAN (CE901 SERIES) CERAMIC COOKTOPS/HOBS
IMPORTANT INFORMATION
Please make this information available to the person
responsible for installing this cooktop as it could reduce
your installation costs.
CAUTION: In order to avoid a hazard, these appliances
must be installed according to these instructions. The
appliance is to be only installed by an authorized person.
Read these instructions completely before installing or
using this product.
BEFORE YOU START
Do
Ensure the countertop is square and level and ensure no
structural members interfere with space requirements.
Do
Ensure a suitable disconnection switch is incorporated in the
permanent wiring, mounted and positioned to comply with
the Local Wiring Rules and Regulations.
Do
Use easy to clean finishes for the wall surfaces surrounding
the cooktop/hob to aid removal of any cooking fume staining
resulting from the use of the cooktop/hob.
Do
Consult local building authorities and by-laws if in doubt
regarding installation.
Do
Ensure that the power cable is not accessible via
cupboard doors after installation.
Do
Ensure that there is adequate clearance between the cutout
and the rear and/or side walls.
NEW ZEALAND, AUSTRALIA
UNITED KINGDOM (UK) & IRELAND (IE)
CLAMPING DOWN COOKTOP/HOB
Place the cooktop/hob into the cutout and tighten with the supplied
clamps. These will cope with bench thickness 20-50mm.
CURRENT
INFORMATION
Current Installation Instructions, Product dimensions and specifications
are available on the Fisher & Paykel web site.
www.fisherpaykel.com
Part Number 599088A
Date of Issue September 2002
