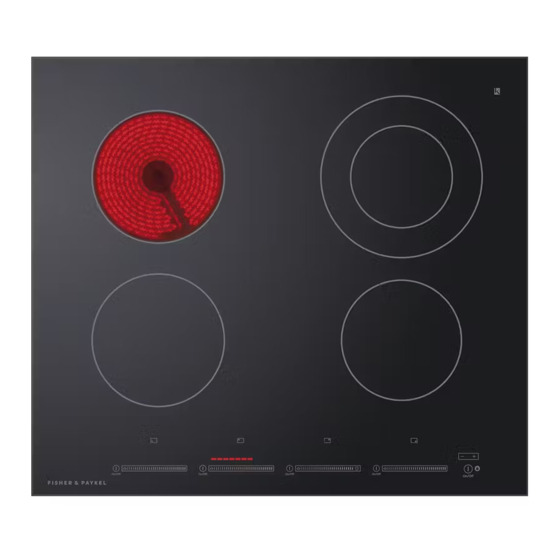

- Page 1 CERAMIC COOKTOP CE244DTB1, CE304DTB1 & CE365DTB1 Models INSTALLATION GUIDE US CA 592141A 05.20...
- Page 2 SAFETY AND WARNINGS READ AND SAVE THIS GUIDE WARNING! Electric Shock Hazard General Use Read these instructions carefully before installing this product. Failure to follow this advice may result in Save these instructions for the local electrical inspector’s use. electric shock or death. Installation must comply with your local building and local electricity regulations.
-
Page 3: Installation Considerations
INSTALLATION CONSIDERATIONS PARTS SUPPLIED Before you install the appliance, please ensure the following: The countertop is made of a heat resistant material. The power supply cable is not accessible through cupboard doors or drawers. There is adequate flow of cool air from the cabinetry to the base of the cooktop. You may ventilate from adjacent cupboards, but ensure that the available air supply will not be restricted. -
Page 4: Product Dimensions
PRODUCT DIMENSIONS — 24" MODEL FRONT PROFILE CE244DTB1 PRODUCT DIMENSIONS INCHES A Overall height of the cooktop 4 1/2 B Overall width of cooktop 23 5/8 C Overall depth of cooktop 20 7/8 D Height of cooktop surface 3/16 E Height of chassis 4 5/16 (incl. -
Page 5: Flush Installation
CUTOUT DIMENSIONS — 24" MODEL PROUD INSTALLATION FLUSH INSTALLATION PLAN PLAN FRONT FRONT CE244DTB1 CE244DTB1 CUTOUT DIMENSIONS FLUSH MOUNTING CUTOUT DIMENSIONS INCHES INCHES A Width of cutout 21 7/8 A Overall width of routered recess 23 13/16 B Depth of cutout... -
Page 6: Clearance Dimensions
Such material shall be considered combustible even though flame- proofed, fire-retardant treated or surface-painted, or plastered. CE244DTB1 CLEARANCE DIMENSIONS INCHES A Minimum clearance from ceramic surface to overhead cabinet... - Page 7 ELECTRICAL DIMENSIONS — 24" MODEL CE244DTB1 ELECTRICAL DIMENSIONS INCHES A Distance to center of conduit junction from right side of chassis 9 3/16 BOTTOM B Distance to center of conduit junction from rear of chassis 1 7/8 C Max height of conduit junction from bottom of chassis 1 1/4...
- Page 8 PRODUCT DIMENSIONS — 30" MODEL FRONT PROFILE CE304DTB1 PRODUCT DIMENSIONS INCHES A Overall height of the cooktop 4 1/2 B Overall width of cooktop 29 1/2 C Overall depth of cooktop 20 7/8 D Height of the cooktop surface 3/16 E Height of chassis 4 5/16 (incl.
- Page 9 CUTOUT DIMENSIONS — 30" MODEL PROUD INSTALLATION FLUSH INSTALLATION PLAN PLAN FRONT FRONT CE304DTB1 CE304DTB1 CUTOUT DIMENSIONS FLUSH MOUNTING CUTOUT DIMENSIONS INCHES INCHES A Width of cutout 27 9/16 A Overall width of routered recess 29 3/4 B Depth of cutout 19 1/2 B Width of cutout 27 9/16...
- Page 10 CLEARANCE DIMENSIONS — 30" MODEL Combustible surface Any materials of a building structure or decorative structure made of wood, compressed paper, plant fibres, vinyl/plastic or other materials that are capable of transferring heat or being ignited and burned. Such material shall be considered combustible even though flame- proofed, fire-retardant treated or surface-painted, or plastered.
- Page 11 ELECTRICAL DIMENSIONS — 30" MODEL CE304DTB1 ELECTRICAL DIMENSIONS INCHES A Distance to center of conduit junction from right side of chassis BOTTOM B Distance to center of conduit junction from rear of chassis 1 7/8 C Max height of conduit junction from bottom of chassis 1 1/4 FRONT...
- Page 12 PRODUCT DIMENSIONS — 36" MODELS FRONT PROFILE CE365DTB1 PRODUCT DIMENSIONS INCHES A Overall height of the cooktop 4 1/2 B Overall width of cooktop 35 7/6 C Overall depth of cooktop 20 7/8 D Height of cooktop surface 3/16 E Height of chassis 4 5/16 (incl.
- Page 13 CUTOUT DIMENSIONS — 36" MODEL PROUD INSTALLATION FLUSH INSTALLATION PLAN PLAN FRONT FRONT CE365DTB1 CE365DTB1 CUTOUT DIMENSIONS FLUSH MOUNTING CUTOUT DIMENSIONS INCHES INCHES A Width of cutout 33 7/16 A Overall width of routered recess 35 5/8 B Depth of cutout 19 1/2 B Width of cutout 33 7/16...
- Page 14 CLEARANCE DIMENSIONS — 36" MODEL Combustible surface Any materials of a building structure or decorative structure made of wood, compressed paper, plant fibres, vinyl/plastic or other materials that are capable of transferring heat or being ignited and burned. Such material shall be considered combustible even though flame- proofed, fire-retardant treated or surface-painted, or plastered.
- Page 15 ELECTRICAL DIMENSIONS — 36" MODEL CE365DTB1 ELECTRICAL DIMENSIONS INCHES A Distance to center of conduit junction from right side of chassis 9 5/8 BOTTOM B Distance to center of conduit junction from rear of chassis 1 7/8 C Max height of conduit junction from bottom of chassis 1 1/4 FRONT...
-
Page 16: Venting Clearances
VENTING CLEARANCES DRAWER OR OTHER OBSTRUCTION OVEN WITH COOLING FAN Alternatively Alternatively 2x 2" (50mm) holes in side 2x 2" (50mm) holes in side Drawer or other obstruction Oven with cooling fan wall to allow adequate cool air wall to allow adequate cool air Some ovens require installation in a sealed box. - Page 17 PROUD INSTALLATION Gently lower the cooktop into the cutout. Press gently on the Turn the cooktop upside down edges of the glass to ensure the on a protective cover. sealing material adheres to the counter top. Apply adhesive foam seal around Locate the side brackets* to the the ceramic overhang, 3/16”...
- Page 18 FLUSH INSTALLATION Tighten all screws to secure the Router the countertop to the cooktop to the countertop. specified depth of 3/16” (5mm). Ensure cooktop is level. Attach an adhesive tape along the edges of the routered recess. Adhesive tape Mask off the area to be siliconed ensuring both the cooktop and Gently lower the cooktop into countertop are protected.
-
Page 19: Electrical Connection
Red wires White wire Black wires Green & Yellow wires CSA or UL - listed conduit connector MODELS MAX. CURRENT DRAW MAX. LOAD VOLTAGE 4650W 208V CE244DTB1 6200W 240V 4800W 208V CE304DTB1 6400W 240V 7060W 208V CE365DTB1 9400W 240V... -
Page 20: Installer Checklist
INSTALLER CHECKLIST Read all installation guidance in this document to see if the unit has been correctly installed. Ensure that installation has been completed correctly before use. TO BE COMPLETED BY THE INSTALLER Ensure that: … … Is the cooktop earthed? Check that all the cooking zones function correctly. - Page 22 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2020. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
