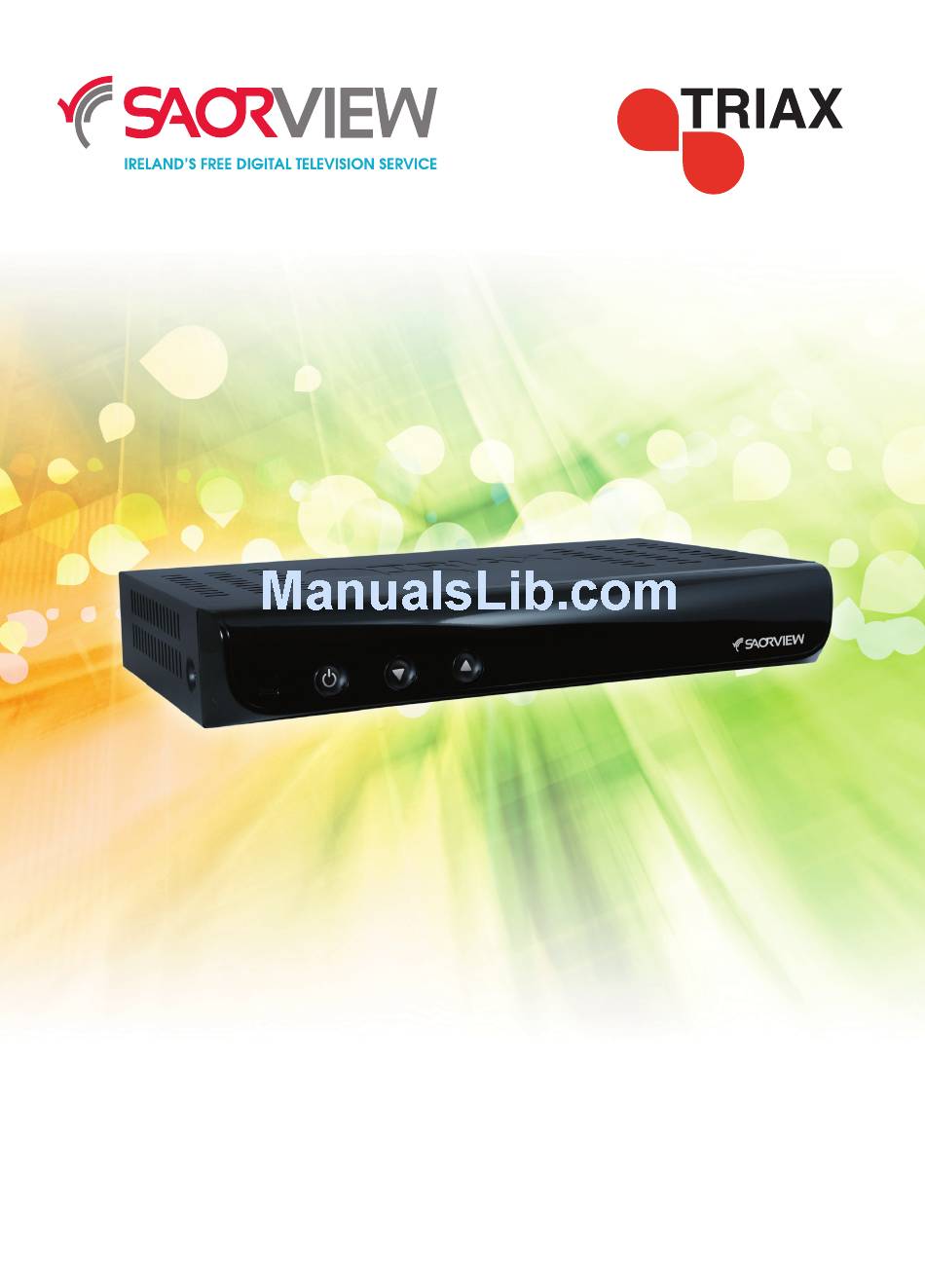

- Page 1 TR 112 Saorview HD TV Receiver Part no. 305107 Operating Manual SAORVIEW offers the best Irish television – free for everyone.
-
Page 2: Table Of Contents
The examples used throughout this manual are based on the TR112 Digital Terrestrial Receiver model. Dear Triax customer Thank you for purchasing the TRIAX TR112 (Saorview HD TV Receiver). To ensure safety and many years of trouble-free operation, please read the Important Safety Precautions carefully before using this product. -
Page 3: Introduction
Introduction Important Safety Precautions • Cleaning - Unplug the AC power adapter from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. • Use a soft damp cloth to gently wipe the product when it is dirty. To protect the product, do not use a chemical cloth to clean it. -
Page 4: Remote Control Unit
Introduction Remote Control Unit Displays digital text STANDBY Switch between standby and on TV / RADIO Select between TV and radio channels NUMBER PAD Select the channel number directly by entering its number. Set the page in digital text mode MENU “MENU”... -
Page 5: Receiver (Front View)
Introduction Receiver (Front View) STANDBY BUTTON CHANNEL DOWN CHANNEL UP Receiver (Rear View) DVB-T Antenna In DVB-T Loopthrough SPDIF Optical Output HDMI Output TV (SCART) DC Power Socket... -
Page 6: Supplied Accessories
Introduction Supplied Accessories Remote Control Unit (x1) HDMI Cable (x1) Power Adaptor (x1) TR112 Operating Manual AAA Batteries (x2) -
Page 7: Preparation
Preparation Inserting the batteries Before using the Receiver for the first time, insert the two supplied “AAA” size zinc-carbon batteries. When the batteries become depleted and the remote control unit fails to operate, replace the batteries with new “AAA” size batteries. Open the battery cover. -
Page 8: Quick Guide
Quick Guide Initial installation overview Follow the steps below one by one when using the Receiver for the first time Run the Preparation Watch TV Initial Settings Connect the antenna Turn on the standy button Congratulations! cable to the RF IN on the Receiver (Page 10) You can now watch TV terminal (Page 9) -
Page 9: Before Turning On The Power
Quick Guide Before turning on the power Connect the antenna (IEC 169-2) coaxial plug to RF IN. Use CAI Benchmarked 75 ohm coaxial cable such as Triax TX100 Connect the HDMI™ cable Connect the power adaptor and switch socket on Initial auto installation When the Receiver is powered on for the first time, the First Time Installation screen appears. -
Page 10: Watching Tv
Watching TV The user can select the OSD Language, Country, Getting Started Time Zone, Active Antenna and LCN from this menu. Press “Start Search” to search channels as Connect the Aerial to RF In and connect the shown below: External Power Supply to the DC Input. Connect the HDMI or SCART output to the TV. -
Page 11: Basic Functions
Basic Functions Quick Channel Audio Language Key and L/R Channel Key Press “ENTER” to display the Quick Channel Press the “AUDIO” key to switch the audio Programme List. Press “LEFT/RIGHT” to select language of the current programme and switch the channel categories. Press “UP/DOWN” to between select the desired programme. -
Page 12: Electronic Programme Guide (Epg)
Electronic Programme Guide Entering the EPG You can press the “EPG” key on the remote control to enter into the EPG page. As shown below: Press the “YELLOW” & “BLUE” key to switch between days in Tab 3 Press “UP/DOWN” key to move upward and downwards to switch between the different programmes in Tab 5 Press “LEFT/RIGHT”... -
Page 13: Digital Text
Subtitles Default subtitle setting is off. To switch on subtitles, press the “SUB” key on the remote control to enter the subtitle menu of the current programme, as shown in the picture below: Press “EXIT” to leave the EPG Digital Text Some channels are broadcast with digital Press the “UP/DOWN”... - Page 14 When a recording has been initialised, the LED on the front panel will flash slowly between red and blue. This shows the current programme is being recorded. Pressing “i” displays the information on the current recording. If there is insufficient memory space while recording, the system will show a prompt message, stop recording and resume normal playback mode.
-
Page 15: Installation
Installation (2) Pressing the “PAUSE” key will start the time Installation shift mode. The “Time Shift” icon will be shown on the screen this operation is available: There are two kinds of Installation modes these are outlined below: (a) In normal playback mode, when time shift is set to Auto or Pause within the PVR Config Menu. -
Page 16: Manual Search
After selecting the “Auto Search” page, the To carry out a manual search, you need to receiver will scan all frequencies one by one for configure the relevant parameters including: the selected country. (1) Frequency (kHz): The default frequency During scanning, you can press the “EXIT” key to depends on the selected country, you can input stop the scanning process and exit. -
Page 17: Channel Management
The channel organiser menu includes: Delete Channel Management Channel, Skip Channel, Lock Channel and Channel Rename. Channel management features include channel Press the “UP/DOWN” key to choose the deleting, marking, moving, locking, renaming and channel, then press the 4-colour keys on the grouping. -
Page 18: Favourites List
When the Favourite Lists have been set up, To Set or Cancel Lock Program, the system they are accessed by pressing the ‘FAV’ key on will prompt you to input your password (default the Remote Control. Once a Favourite List is “0000”). -
Page 19: Preference Settings
Preference Settings The receiver can be configured according to the (3) Press the ENTER key to confirm the selected user preferences, by pressing MAIN MENU > language, the setting is then activated and the PREFERENCE. OSD language changes to the chosen language. This is shown below: Preferred Subtitle (1) You can set the subtitle language to your... -
Page 20: Preferred Audio
Preferred Audio PVR Config You can enter the PVR Configuration page (1) Sets the preferred audio to “English, (as shown in the picture below) via “Menu > French, German, Italian, Spanish, Portuguese, Preference > PVR Config”, this menu contains Danish,Czech, Dutch, Finnish, Swedish, Greek, six options as follows: Russian, Welsh, or Gaelic”. - Page 21 (3) Preferred Storage: Sets the USB as storage. (4) Timeshift: Any of options, AUTO/OFF/ PAUSE, can be selected to set the status of the current timeshift, if AUTO is selected, the timeshift operation will perform automatically in the background, the user can change channel but this discards the previous timeshift buffer and restarts a new one;...
-
Page 22: System Settings Menu
System Settings Menu In the Timer Edit menu, the system can support System Settings Menu up to 10 events. Date:Specifies the timer date Programme Name: The following options can be accessed in the Specifies the channel for which the timer is set “System Settings Menu”. -
Page 23: Child Lock
Pressing the ENTER key will return the system to the previous menu. As shown overleaf in the picture. Press EXIT’ to resume normal viewing. Child Lock The Child Lock Menu allows selected channels to be locked, as shown below: (1) Press the 0 - 9 numerical keys on the remote control to input the Old Password, the system default password is “0 0 0 0”. -
Page 24: Active Antenna
If the Time Mode is set to Auto then, Time Zone Version and DST shall be active for editing. If the Mode is Manual these options shall be disabled. Displays the Receiver Information. If the Time Mode is set to Manual then, Date This is shown below. -
Page 25: Av Settings
AV Settings To enter this menu, press ‘MAIN MENU > AV’, Brightness & Saturation then press ‘ENTER’. The AV setup menu is shown in the picture below To adjust the Brightness and Saturation settings, follow the same process as for the Contrast setting above. -
Page 26: Video Output
Video Output HDMI Colour Space HDMI Colour Space changes the HDMI Output This allows the user to change the video output Mode. You can adjust the settings to suit the mode. You can adjust the settings to suit the receiving equipment. receiving equipment. -
Page 27: Multimedia
Multi Media Multimedia - Filter Selection Mode Icons The Triax TR 112 has a USB Interface. This can be used to connect external equipment such as Memory Devices, Media Players and can also be Filter selection mode is “Movie” used for system software upgrades. This product supports MP3, JPEG and MPEG. -
Page 28: Movie Playback
Key Stroke Action Movie Playback Highlights the previous Item in file list. If it passes the first KEY_UP item, the last item will be highlighted. Highlights the next Item in the file list. If it passes the last KEY_DOWN item, the first item will be highlighted. -
Page 29: Go To Menu
Key Stroke Action Go To Menu KEY_SLOW Slow Replay. KEY_RECALL The same as KEY_STOP The keys in this menu are shown below. Activates the MUTE function - KEY_MUTE Audio goes off. KEY_VOLUME Adjusts the volume Displays information on the KEY_i current movie. -
Page 30: Music
Key Stroke Action Music Highlights the previous Item in the file list. If it passes the first KEY_UP item, it highlights the last item This menu allows the user to select and play a in the file list. track from a list of music stored in the storage device. -
Page 31: Photo File Browser
Key Stroke Action Fast reverses the music. The FR icon is shown and the KEY_FR speed, (1x 2x, 4x, 8x, 16x) shall be displayed. Enter the number directly. If the input number is larger than the KEY_NUM number of file list, an incorrect message will be shown. -
Page 32: Photo Playback
When an image is displayed in full screen then Photo Playback the following keys are active: Key Stroke Action The Photo Playback Menu shown below shows the menu available while photographs are being Rotates the image 0 degrees. KEY_UP shown. The images below shows the playback menu for displaying a single photograph and Rotates the image 180 setting up a slide show. -
Page 33: Photo Thumbnail
Key Stroke Action Photo Thumbnail Highlights the previous item KEY_UP in the same column. If the This menu displays the thumbnail view for the top KEY_UP of the column is reached, it highlights the photographs stored in the selected folder. The bottom item in the column. -
Page 34: Recorder Manager
Key Stroke Action Recorder Manager Highlights the previous item in KEY_UP the file list. If the first item is reached, it highlights the last The picture below shows the Recorder Manager item in the file list. menu. All recorded programms will appear in this Highlights the next item in menu. -
Page 35: Rename
Rename The picture below shows the Rename Menu In this menu the user can change the program’s name to their own preference. Key Stroke Action Highlights the previous item in the same column. If the first KEY_UP item is reached, it highlights the last item in the same column. -
Page 36: Disk Manager
Disk Manager Key Stroke Action Disk Manager Browser Highlights the previous item in the file list. If the first item is KEY_UP The Disk Manager Menu is like the file browser reached, it highlights the last item in file list. menu, the keys work as in the same way but the function of the four colour keys are different. -
Page 37: E-Book Browser
Key Stroke Action E-Book Browser Move to previous page, if it is already the first page, it will KEY_PAGEUP The e-book menu is like the file browser menu, not move. the keys work as in the file browser menu. The Move to next page, if it is four coloured keys have no function. -
Page 38: Software Upgrade
Software Upgrade The receiver software can be upgraded. The software upgrade menu can be accessed through Menu > Settings > Upgrade. This is shown below: Select the upgrade file and press the “enter” key to start the upgrade. Enter the upgrade page to show information and prompt the user on the upgrade process: USB Upgrade... -
Page 39: Triax Tr112 Specification
Triax TR112 Specification Tuner / Demodulator Standard DVB-T Input Frequency* VHF/UHF Band Channel Bandwidth* 7 MHz/8 MHz Switchable Power for Active Antenna 5V@30mA with overload Protection through Coaxial Cable COFDM System 2K, 8K Carrier, Hierarchical Supported Demodulation Type QPSK, 16QAM, 64QAM, 256QAM Guard Interval 1/32, 1/16, 1/8, 1/4 Active Symbol Duration 1/2, 2/3, 3/4, 5/6, 7/8... - Page 40 Rear Panel RF Input Connector* IEC type, Female (for PAL), 75 Ohm Loop Through Output Connector IEC type, Male, 75 Ohm Stereo (left & right) Audio Single SCART for TV CVBS, R/G/B video output For TV SCART: w/ OSD and Volume adjustable Digital Video &...
-
Page 41: Pin Code Reminder
PIN CODE Reminder NOTE You need to insert the PIN code here and refer it to the pages in the manual where this is covered. IMPORTANT Removal of a lost PIN code could be subject to a service charge. -
Page 42: Appendix
Appendix Trademarks The Saorview word and logos are trademarks of RTÉ and are used under licence. This product is capable of receiving and decoding Dolby Digital Plus. Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. -
Page 43: Troubleshooting
Appendix Troubleshooting The following conditions in the table below do not always indicate a problem. Please perform the checks described below before calling for service. If the problem cannot be corrected by the use of this manual, remove the mains plug from the power socket and contact the Helpline on 00 44 1443 778910 to obtain service or advice (Normal operator charges apply). -
Page 44: End Of Life Disposal
Appendix End of life disposal A. Information on Disposal for Users (private households) In the European Union Attention: If you want to dispose of this equipment, please recycle. Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and Attention: recycling of used electrical and electronic equipment. -
Page 45: Terms Of Guarantee
Terms of Guarantee This product is supplied with a 12 month manufacturers guarantee from date of original purchase. In the unlikely event of an issue occurring within this period, please contact your point of sale. Proof of purchase will need to be supplied. This guarantee only applies to defects due to faulty workmanship or materials. -
Page 46: Declaration Of Conformity
Company Address: Abergorki Industrial Estate, Treorchy, Rhondda-Cynon-Taff CF42 6DL, UK Triax TR 112, Part Number 305107. Object of the Declaration: The object of the declaration described above is in conformity with the requirements of the following documents: Low voltage directive 2006/95/EC... - Page 48 Issue 2...
