Accu-Chek Mobile Quick Start Manual

C
©2011 Roche Diagnostics
ACCU-CHEK, ACCU-CHEK MOBILE and FASTCLIX
are trademarks of Roche.
Roche Diagnostics GmbH
M
Sandhofer Strasse 116
68305 Mannheim, Germany
www.accu-chek.com

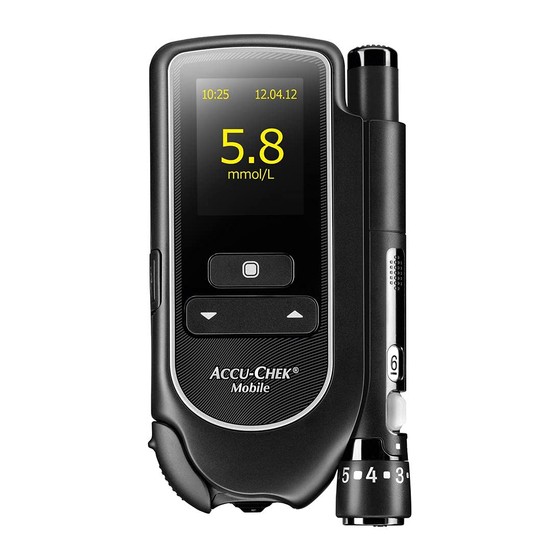

Overview: Test cassette, meter and finger pricker
Power and
Enter button
Test cassette
with 50 tests
Down/Up
buttons
Tip cover
Lancet drum
Test area at the tip of the cassette
with 6 lancets
1. Starting to use the Accu-Chek Mobile system
kim_manual_0240
1.
A
Open the tip cover completely as far
A
as it will go. Only then will you be able
to open the cassette compartment and
insert the test cassette.
5.
kim_manual_0180
E
Press the button E for about
2 seconds until the meter turns on.
W
If you have set the wrong language by mistake, you may not be able to read the menus any more. You can nevertheless change the language. The instructions can be found in Chapter 5.2 of the
User's Manual under the section Correcting a wrongly set language.
Release button
(priming and pricking)
Window showing
number of available
lancets
Lever for loading a new
lancet
Rotatable cap for setting
the penetration depth
kim_manual_0280
2.
B
Push the slide button upwards. This
B
opens the cassette compartment cover.
6.
F
Use the buttons to select the
language .
F
Accu-Chek
BLOOD GLUCOSE MONITORING SYSTEM
START HERE
Quick Start Guide
Slide button to
release finger
pricker
Slide button
to open
the cassette
compartment
cover
Cassette
compartment
cover
3.
C
Remove a new test cassette from
C
the packaging. Insert the test cassette
into the meter. Close the cassette com-
partment cover and the tip cover.
7.
G
Press the button to set the de-
sired language .
G
Mobile
®
W
This Quick Start Guide is not a sub-
stitute for the full User's Manual
supplied with your Accu-Chek Mobile
system. Please be sure to observe
the safety information in the User's
Manual.
The Accu-Chek Mobile meter
and attached finger pricker
are intended for patient self-
monitoring by an individual
person only. These items do not
incorporate any features to guard
against spread of infection and
must not be used on more than one
person. They are also not suitable
for professional use in healthcare
facilities and institutions.
4.
D
Pull the protective strip of the battery
backwards out of the meter to acti-
D
vate the batteries. Remove the protec-
tive film from the display.
8.
H
Press the button to confirm the
selected language .
H
