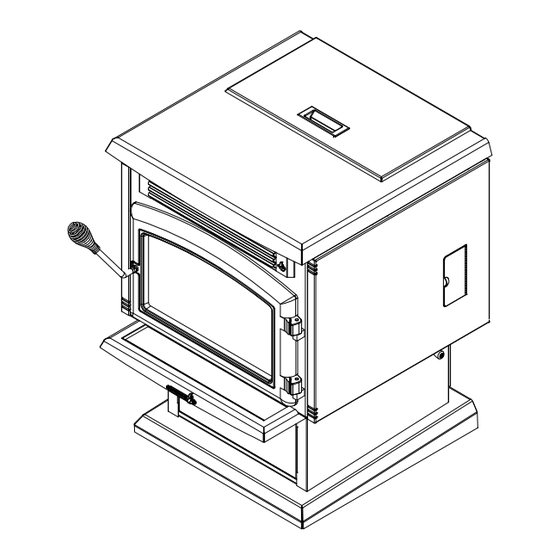

Enerzone BIO-45 MF Owner's Manual

Pellet stove
Hide thumbs
Table of Contents

Advertisement

Quick Links

•
Warning: If your appliance is not properly installed a house fire may result. For your safety, follow
the installation directions. Contact local building or fire officials about restrictions and installation
inspection requirements in your area.
•
PLEASE read this entire manual before installation and use of this pellet fuel-burning room heater.
Failure to follow these instructions could result in property damage, bodily injury, or even death.
•
Save these instructions.
•
Some surfaces become hot at higher feeding rates. To prevent potential burns, avoid contact with
those areas.
•
This heating unit must serve as a supplementary heat source. An alternative heat source should
be available in the home if needed. The manufacturer cannot be responsible for additional heating
costs associated with the use of an alternative heat source.
•
It is highly recommended that the user buys this product from a retailer who can provide
installation and maintenance advices.
PROFESSIONAL INSTALLATION IS HIGHLY RECOMMENDED
250, de Copenhague, Saint-Augustin-de-Desmaures (Quebec), Canada G3A 2H3
This manual is available for free download on the manufacturer's web site. It is a copyrighted
document. Re-sale is strictly prohibited. The manufacturer may update this manual from time to
time and cannot be responsible for problems, injuries, or damages arising out of the use of
information contained in any manual obtained from unauthorized sources.
Printed in Canada
MODEL BIO-45 MF
OWNER'S MANUAL
Manufactured by:
STOVE BUILDER INTERNATIONAL INC.
Tel: (418) 878-3040
Fax: (418) 878-3001
45166A
04-12-2013

Advertisement

Table of Contents
loading

Related Manuals for Enerzone BIO-45 MF

Summary of Contents for Enerzone BIO-45 MF

  • Page 1 MODEL BIO-45 MF OWNER’S MANUAL • Warning: If your appliance is not properly installed a house fire may result. For your safety, follow the installation directions. Contact local building or fire officials about restrictions and installation inspection requirements in your area.

  • Page 2: Introduction

    INTRODUCTION Thank you for purchasing the BIO-45 MF pellet stove. You are now prepared to burn wood in the most efficient, convenient way possible. To achieve the safest, most efficient and most enjoyable performance from your stove, you must do three things: 1) Install it properly; 2) Operate it correctly;...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS • • Do not operate your stove if you Keep foreign objects out of the smell smoke coming from it. Turn it off, hopper. monitor it, and call your dealer. • • Never use gasoline, gasoline- Do not throw this manual away. type lantern fuel, kerosene, charcoal lighter This manual has important operating and fluid, or similar liquids to start or “freshen...

  • Page 4: Table Of Contents

    To receive full warranty coverage, you will need to show evidence of the date you purchased your stove. Keep your sales invoice. We also recommend that you register your warranty online at http://enerzone-intl.com/warranty-registration.aspx Registering your warranty online will help us track rapidly the information we need on your stove.

  • Page 5: Specifications

    FIGURE 3 Corner installation Floor protection The BIO-45 MF has been tested and listed for installation in residential and mobile home.(refer figure 1 & 2) FLOOR PROTECTION: In the USA, the unit must be installed on a non- CLEARANCES TO...

  • Page 6: Combustion Air Supply

    Rear view VENTING The BIO-45 MF is certified for use with a vent certified to UL-103 or ULC S629M and a chimney type vent certified to UL-641 or ULC-S- 609-M89 and ULC/ORD C441-M90, with 3” or 4” inner diameter. In...

  • Page 7: Freestanding Installations

    INSTALLATION Equivalent Vent Length (EVL) The longer the run of pipe in your installation, the greather the restriction there is in the system. Therefore, larger diameter pipe should be used. • Use 4” pipe if you have more than 15 feet of Equivalent Vent Length (EVL). •...
  • Page 8 INSTALLATION Canada: Letter Min. clearances Description 12’’ (30 cm) Clearances above grade level or any adjacent surface that might support snow, ice, or debris 39’’ (100 cm) Clearance to window or door that may be opened 39’’ (100 cm) Clearance to corner or adjacent wall Not to be installed above a meter/regulator assembly within 39"...
  • Page 9 INSTALLATION HORIZONTALLY THROUGH WALL (refer to Figure 7, 8, or 10) NOTE: Follow Vent chimney manufacturer’s instructions. Position stove, adhering to clearances shown in Figures 1 & 2. 90 DEGREE ELBOW Locate position of hole in wall; directly behind stove exhaust vent (refer to figure 4).
  • Page 10 INSTALLATION VERTICALLY INTO EXISTING CHIMNEY SYSTEM As an alternative, 3” or 4” Vent can be run inside existing chimney to termination(Figure 11). This is the preferred method. Follow guidelines for equivalent vent length. FOLLOW CHIMNEY OR VENT MANUFACTURER'S INSTRUCTIONS WALL STRAP FOR BASEMENT INSTALLATION A 4"...
  • Page 11 INSTALLATION VERTICAL ROOF VENT VERTICALLY INTO EXISTING MASONRY FIREPLACE 6" NOTE: Follow Vent chimney manufacturer’s instructions. 3" FOLLOW CHIMNEY OR Have the masonry chimney inspected by a qualified VENT MANUFACTURER'S TOP PLATE INSTRUCTIONS chimney sweep or installer to determine its structural condition.

  • Page 12: Log Set Installation

    INSTALLATION OPTIONAL LOG SET INSTALLATION To install the optional log set, you first need to remove the four screws indicated on figure 14a. Keep the screws. Locate the two fixation brackets figure 14b that came with your owner’s manual. Fix the two brackets using the same screws you have removed.

  • Page 13: Filters Installation And Cleaning

    INSTALLATION FILTERS INSTALLATION AND CLEANING The two filters for your convection blowers are supplied with the owner’s manual. Although the filters are not mandatory, they are useful to prevent dust from being dispersed into the room where the stove is located. If you install the filters, please make sure that they are cleaned on a regular basis as per our recommended maintenance schedule.

  • Page 14: Operation

    If fire doesn’t start in 30 minutes, refer to troubleshooting section. UNIT CONTROLS (See Figure 15) The blowers and automatic fuel supply are controlled from a panel on the right-hand side of the BIO-45 MF. The control panel functions are as follows.

  • Page 15: Opening Door

    OPERATION MODE SWITCH • When the mode switch is pressed, the stove will automatically ignite. If the manual mode is selected, the heat level must be selected manually to adjust the stove’s heat output to the desired level. If the thermostat mode is selected, the stove will automatically modulate between the lowest heat level and the heat level selected to keep the room temperature at the thermostat’s setting.

  • Page 16: If Stove Runs Out Of Pellets

    OPERATING. DO NOT OVERFILL HOPPER. SHUTDOWN PROCEDURE Turning your Enerzone stove off is a matter of pressing the “MODE” control panel switch, until the “OFF” led goes on. The blowers will continue to operate until internal firebox temperatures have fallen to a preset level.

  • Page 17: Optional Thermostat

    Location of the thermostat is very important to obtain the best comfort and efficiency from you BIO-45 MF. The thermostat should be mounted 50 inch from the floor on a wall located 15 to 20 feet from the stove.
  • Page 18 THERMOSTAT INSTALLATION (continued) • N.B.: It is possible to change the setting of your unit such that if the thermostat does not call for heat after 45 minutes, the unit will remain at the lowest heat setting (#1) but will not shut down (this is the PILOT ON mode).

  • Page 19: (Please Read This) Operating Safety Precautions

    DO NOT STORE OR USE FLAMMABLE LIQUIDS, ESPECIALLY GASOLINE, IN THE VICINITY OF YOUR ENERZONE STOVE. NEVER USE A GAS OR PROPANE TORCH, GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER FLUID OR SIMILAR FLUIDS TO START OR “FRESHEN UP” A FIRE IN THIS HEATER.

  • Page 20: Maintenance

    ASH DISPOSAL The BIO-45 MF has an ash bin located below the firebox. To FIGURE 18 remove ashes: Baffle removal Make sure fire is out and the firebox is cool.

  • Page 21: Vacuum Use

    Your vacuum or shop vac may have a special filter or bag available to eliminate this leakage. CLEANING Heat Exchange Tubes – Your BIO-45 MF stove is designed with a built-in heat exchanger tube cleaner. This should be used weekly to remove accumulated ash on the tubes.

  • Page 22: Chimney Cleaning

    While wearing leather gloves (or any other gloves suitable for handling broken glass), carefully remove any loose pieces of glass from the doorframe. Dispose of all broken glass properly. Return the damaged door to your Enerzone Dealer for repair or replacement. Neither the appliance owner nor any other unauthorized person(s) should replace the door glass.

  • Page 23: Troubleshooting Guide

    TROUBLESHOOTING GUIDE When your stove acts up, the first reaction is to call for help. This guide may save time and money by enabling you to solve simple problems yourself. Problems can be caused by to only five factors: 1) poor fuel; 2) poor operation or maintenance; 3) poor installation; 4) component failure;...
  • Page 24 TROUBLESHOOTING GUIDE STOVE SHUTS OFF AND DISPLAYS WARNING CODE Possible Causes: Possible Remedies: (Unplug stove first when possible) The hopper is out of pellets. Refill the hopper. The air damper is open too much for the low feed setting. If the stove is on the low setting, you may need to close the damper all the way.
  • Page 25 TROUBLESHOOTING GUIDE STOVE FEEDS PELLETS, BUT WILL NOT IGNITE AND APPEARS ON THE CONTROL BOARD Possible Causes: Possible Remedies: Air damper open too far for ignition. Adjust the air supply to the minimum setting for startup. In some situations, it may be necessary to have the damper completely closed for ignition to take place.
  • Page 26 TROUBLESHOOTING GUIDE STOVE STOPS FEEDING PELLETS AND APPEARS ON THE CONTROL BOARD Possible Causes: Possible Remedies: One of the two L-250 automatic high temperature switches has been The L-250 automatic high temperature switches are located on the top and tripped. bottom of the auger housing They send a signal to the control board if the auger housing overheats.
  • Page 27 TROUBLESHOOTING GUIDE • GLASS “SOOT’S” UP AT A VERY FAST RATE • FLAME IS LAZY, DARK, AND HAS BLACK TIPS • AFTER STOVE HAS BEEN ON FOR A WHILE, THE BURNPOT OVERFILLS Possible Causes: Possible Remedies: Stove or vent pipe is dirty, which restricts airflow through the Follow all cleaning procedure in the maintenance section of the burn pot.
  • Page 28 SMOKE SMELL OR SOOT BUILD-UP Because it is a wood-burning device, your BIO-45 MF may emit a faint wood-burning odor. If this increases beyond normal, or if you notice an unusual soot build-up on walls or furniture, check your exhaust system carefully for leaks. All joints should be properly sealed. Also clean...

  • Page 29: Electrical Diagram

    ELECTRICAL DIAGRAM THERMOSTAT HOPPER LID TERMINALS SWITCH N.O. N.O. CONTROL BOARD THERMISTOR L2(LINE COMMON) L1(LINE HOT) L1(LINE NO CONNECTED) FRAME GROUND L-250 RESET N.C. AIR FLOW PRESSURE SWITCH N.O. AUGER IGNITER MOTOR L-250 COMBUSTION/EXHAUST N.C. BLOWER F-160 N.O. CONVECTION BLOWER FIGURE 26 HIGH TEMPERATURE SWITCH L-250...

  • Page 30: Replacement Parts List

    REPLACEMENT PARTS Contact an Authorized Enerzone Dealer to obtain any of these parts. Never use substitute materials. Use of non-approved parts can result in poor performance and safety hazards. ITEM PART # Airflow Pressure Switch 44029 Air Switch Hose 49004...

  • Page 31: Appendix A

    APPENDIX A HORIZONTAL AND VERTICAL VENT CHART Possible Vertical If you plot your venting vent length (feet) system configuration on this chart, your wall or roof termination should be within the grid. Possible Horizontal vent length (feet) Let’s imagine an installation consisting of a horizontal vent coming out at the back of the stove on a total distance of 8 feet.

  • Page 32: Appendix B

    APPENDIX B Fabriquant de poêle international inc. INSTALLATION DIAGRAM Stove Builder International Inc. 1700, rue Léon-Harmel, Québec (Québec) G1N 4R9 DRAW YOUR INSTALLATION Phone : (418) 527-3060 Fax : (418) 527-4311 1 SQUARE = 1 F00T E-mail : tech@sbi-international.com Web site : www.drolet.ca int.

  • Page 33: Warranty

    Paint (peeling), gaskets, insulation, ceramic logs, masonry-like panels, and 1 year ceramic fibre blankets. *Pictures required Shall your unit or a components be defective, contact immediately your ENERZONE dealer. Prior to your call make sure you have the following information necessary to your warranty claim treatment: • •...
