System Overview

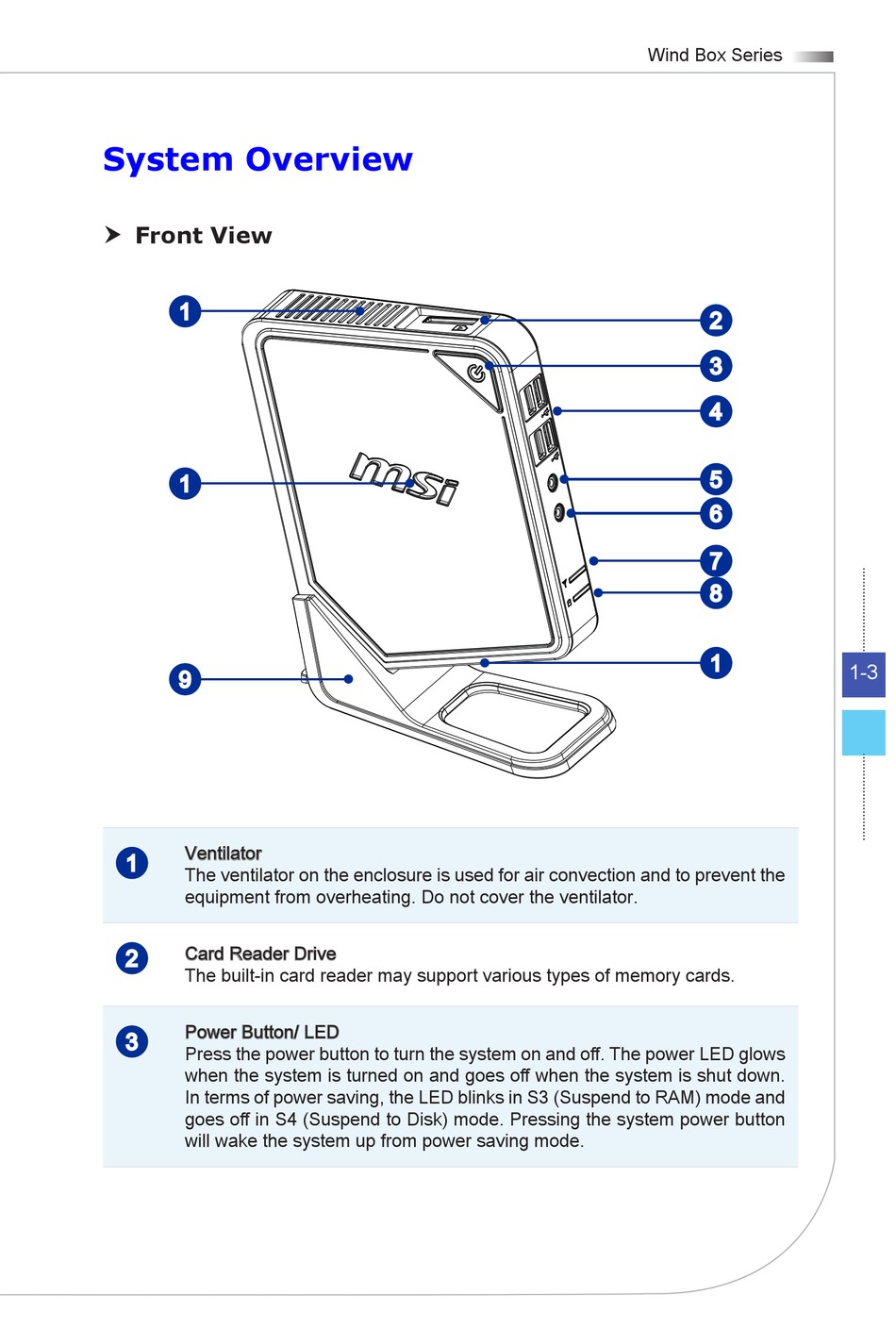

 Front View
1
1
9
Ventilator
1
The ventilator on the enclosure is used for air convection and to prevent the
equipment from overheating. Do not cover the ventilator.
Card Reader Drive
2
The built-in card reader may support various types of memory cards.
Power Button/ LED
3
Press the power button to turn the system on and off. The power LED glows
when the system is turned on and goes off when the system is shut down.
In terms of power saving, the LED blinks in S3 (Suspend to RAM) mode and
goes off in S4 (Suspend to Disk) mode. Pressing the system power button
will wake the system up from power saving mode.
