H2/4 LIGHT GREEN/BLACK (-) auxiliary output
This wire sends a negative pulse every time the remote start is activated or the doors are unlocked. This can be
used to pulse the disarm wire of the vehicle's factory anti-theft device. Use a relay to send a (-) or (+) pulse to
the disarm wire as shown in the following diagrams.

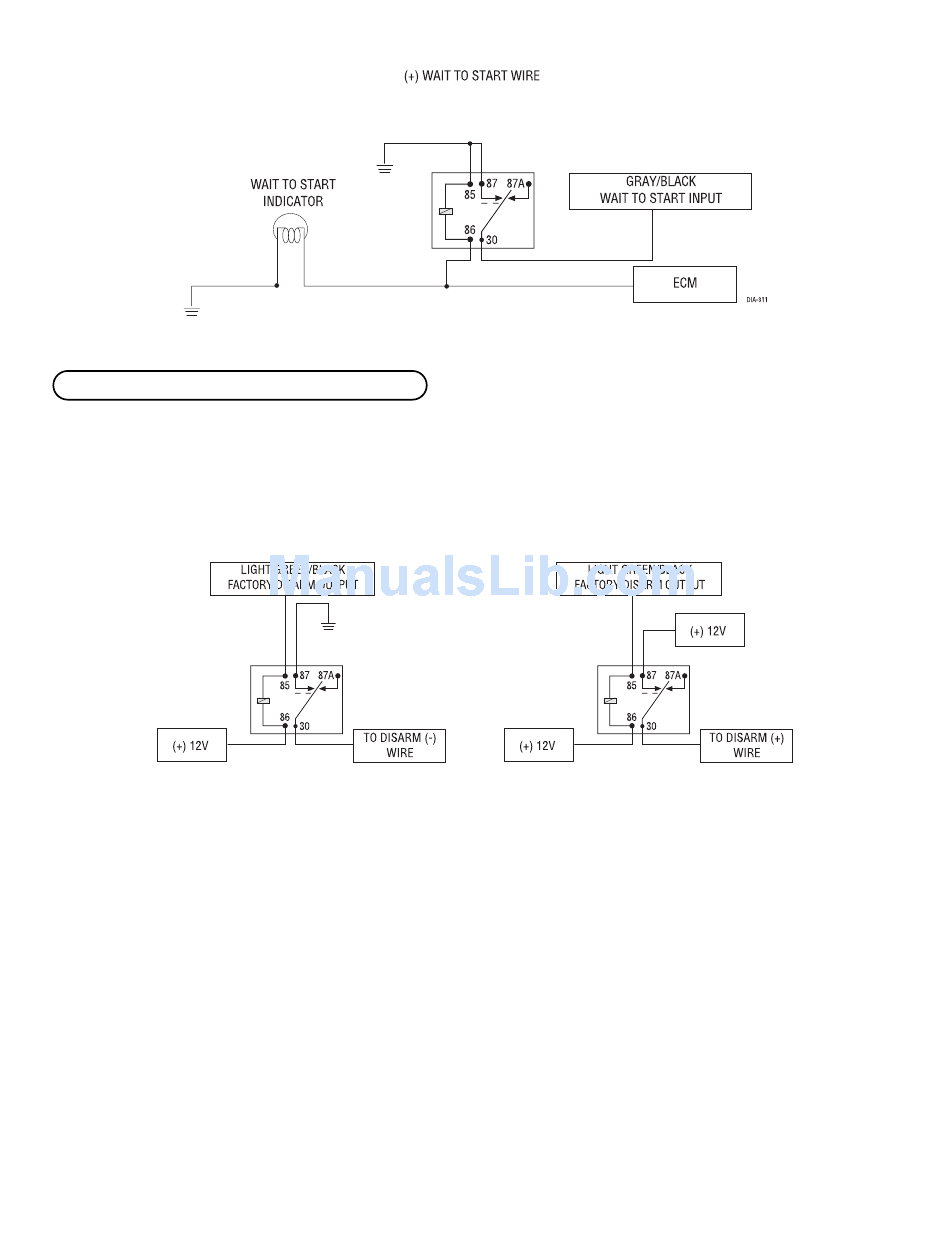

Relay for Negative (-) Disarm Wire
Relay for Positive (+) Disarm Wire
