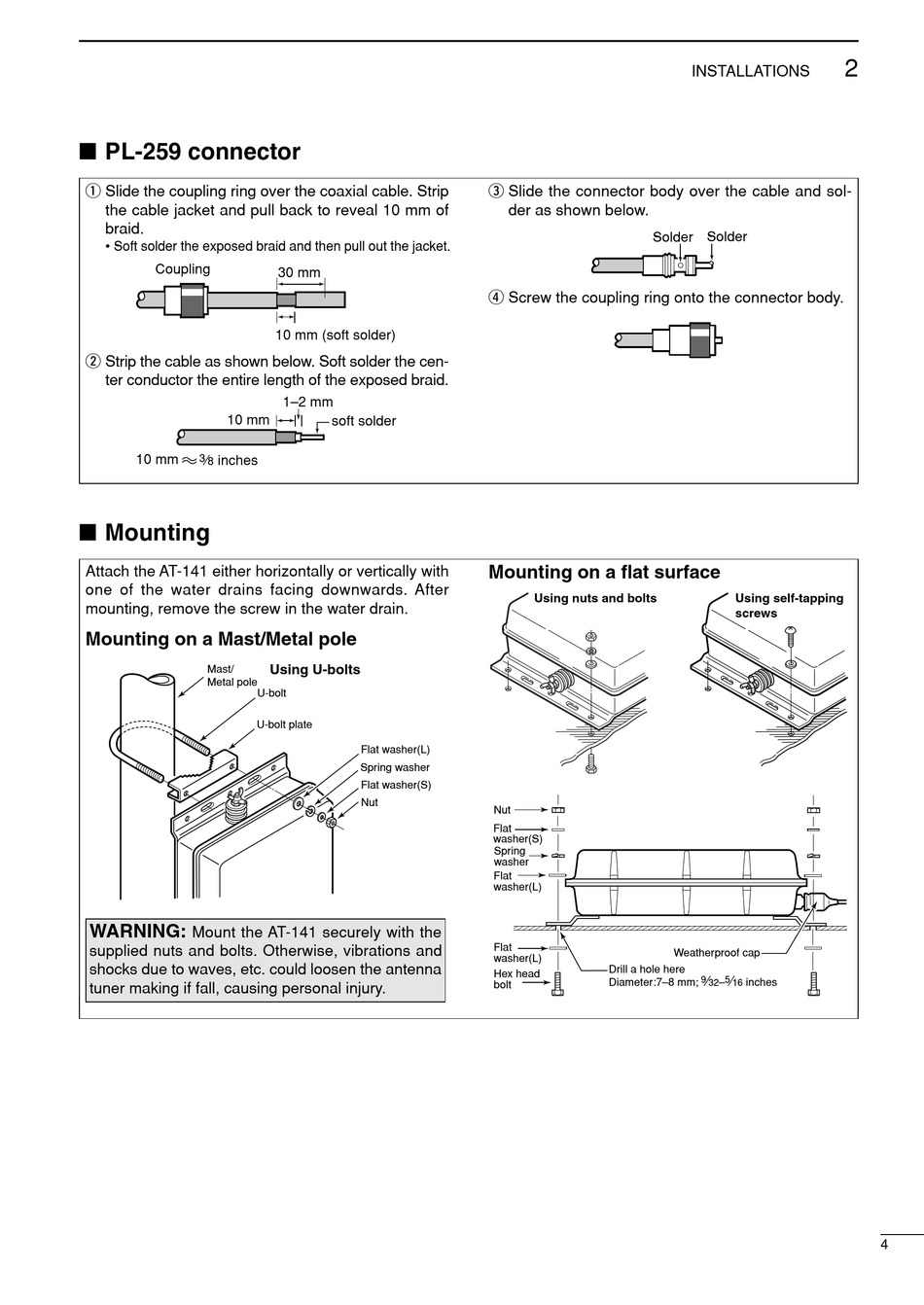

I PL-259 connector

q Slide the coupling ring over the coaxial cable. Strip
the cable jacket and pull back to reveal 10 mm of
braid.
• Soft solder the exposed braid and then pull out the jacket.
Coupling
w Strip the cable as shown below. Soft solder the cen-
ter conductor the entire length of the exposed braid.
10 mm
10 mm 3
⁄ inches
8

I Mounting

Attach the AT-141 either horizontally or vertically with
one of the water drains facing downwards. After
mounting, remove the screw in the water drain.
Mounting on a Mast/Metal pole
Mast/
Metal pole
WARNING:
Mount the AT-141 securely with the
supplied nuts and bolts. Otherwise, vibrations and
shocks due to waves, etc. could loosen the antenna
tuner making if fall, causing personal injury.
30 mm
10 mm (soft solder)
1–2 mm
soft solder
Using U-bolts
U-bolt
U-bolt plate
Flat washer(L)
Spring washer
Flat washer(S)
Nut
e Slide the connector body over the cable and sol-
der as shown below.
Solder Solder
r Screw the coupling ring onto the connector body.
Mounting on a flat surface
Using nuts and bolts
Nut
Flat
washer(S)
Spring
washer
Flat
washer(L)
Flat
washer(L)
Drill a hole here
Hex head
Diameter:7–8 mm;
bolt
2
INSTALLATIONS
Using self-tapping
screws
Weatherproof cap
9 ⁄ 5 ⁄
– inches
32 16
4
