I N S T A L L A T I O N G U I D E
for the

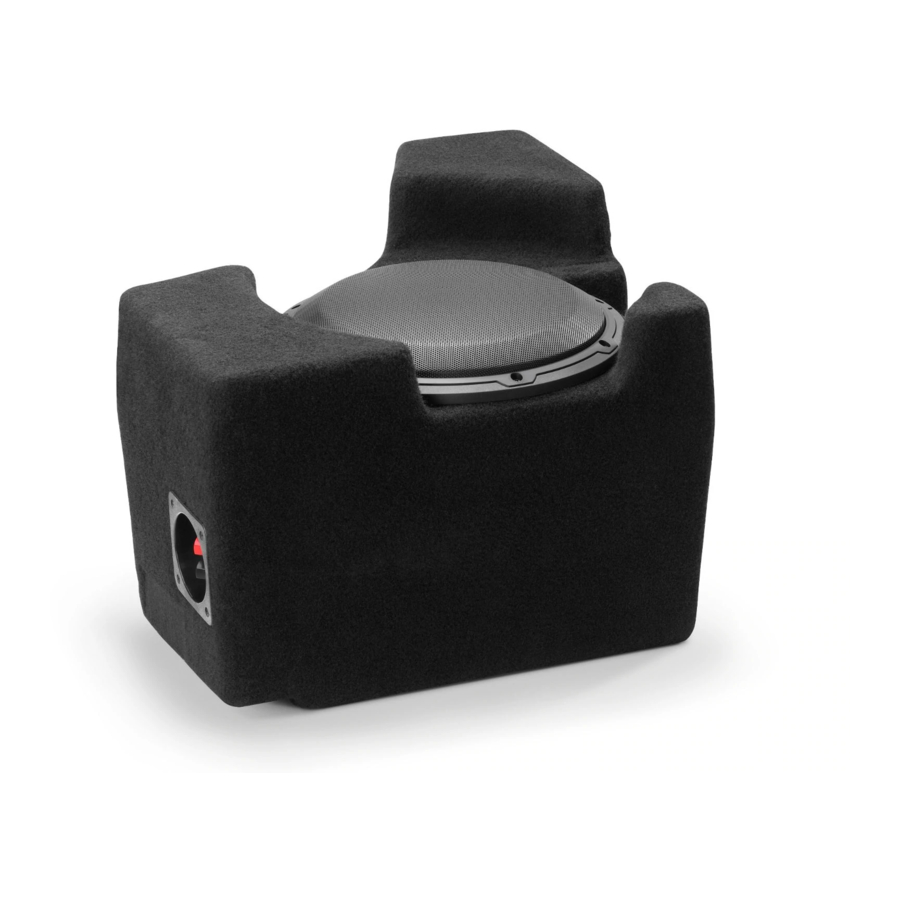

SB-B-X5E70/10W3v3
SKU# 94517
2007 -Up BMW X5
Thank you for choosing a JL Audio Stealthbox for your automotive sound system. With proper installation, your new
®
vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
installation professionals employed by your dealer have the necessary tools and experience to disassemble and
reassemble your vehicle properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is
installed or approved by your authorized JL Audio dealer. If you prefer to perform your own installation, please read
this installation guide completely
before beginning the process.
installed by your authorized JL Audio dealer. The
®
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-B-X5E70/10W3v3 INSTR_SKU# 011324
INSTALLATION
D I F F I C U L T Y :
2
ESTIMATED TIME:
1 HOUR
S T E P 1
Empty out the cargo area so that you have a clean area to
work in.
S T E P 2
Remove the three screws on the battery cover, and remove
the cover. Remove the screws holding in the storage tray,
and remove the tray.
S T E P 3
The tools can be relocated to the foam tray inside the spare
tire.
Continued on Next Page
