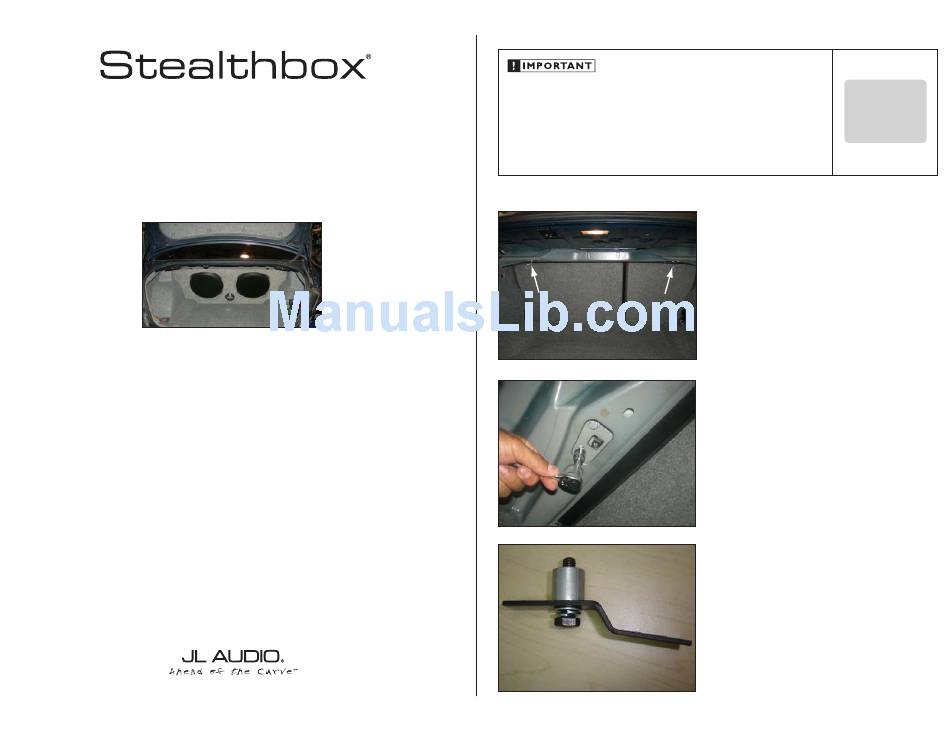

JL Audio Stealthbox SB-B-3SER/CPE/SDN(E90\92) Installation Manual

I N S T A L L A T I O N G U I D E
for the
SB-B-3SER/CPE/SDN(E90\92)
SKU#94281
2006-Up Sedan
2007-Up Coupe
Thank you for choosing a JL Audio Stealthbox for your automotive sound system. With proper installation, your new
®
vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
installation professionals employed by your dealer have the necessary tools and experience to disassemble and
reassemble your vehicle properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is
installed or approved by your authorized JL Audio dealer. If you prefer to perform your own installation, please read
this installation guide completely
before beginning the process.
installed by your authorized JL Audio dealer. The
®
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-B-3SER/CPE/SDN INSTR_SKU# 011256
INSTALLATION
D I F F I C U L T Y :
1
OUT
OF
ESTIMATED TIME:
30 MIN
S T E P 1
Remove anything stored in the trunk so that you are working
in a clean environment.
Unpack the Stealthbox® and test for proper operation
before continuing!
The wiring for the Stealthbox® should go from the seam
between the seatback and the floor to the amplifier location.
Along the bottom of the rear deck from the trunk, there are
two recessed areas (as indicated by arrows at left) with two
bolts going up into the deck in each recess.
S T E P 2
The outer-most bolt in each recess must be removed.
S T E P 3
Using each of the black oxide 3/8"-16 x 1 1/2" bolts assemble
a split lock washer, flat washer, bracket, 1" spacer, through the
hole in the bracket (the slot will mount the Stealthbox® to
the bracket).
Continued on Next Page
5
