I N S T A L L A T I O N G U I D E
for the

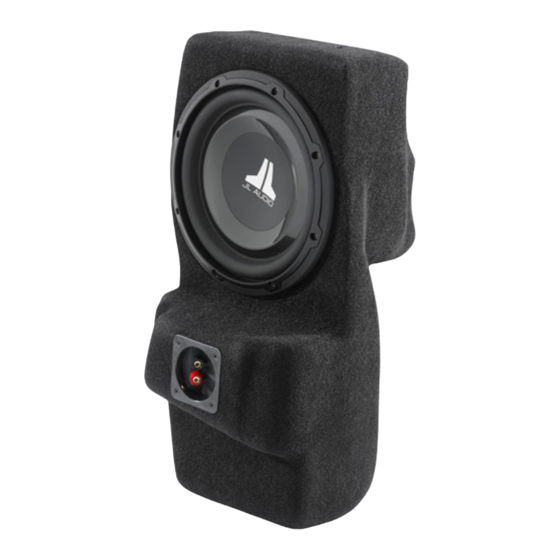

SB-B-X5/10W1v3
SKU# 94280
2000 - 2006 BMW X5
Thank you for choosing a JL Audio Stealthbox for your automotive sound system. With proper installation, your new
®
vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
installation professionals employed by your dealer have the necessary tools and experience to disassemble and
reassemble your vehicle properly. Also, keep in mind that your warranty coverage extends to 1 year if your system is
installed or approved by your authorized JL Audio dealer. If you prefer to perform your own installation, please read
this installation guide completely
before beginning the process.
installed by your authorized JL Audio dealer. The
®
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-B-X5/10W1v3_INSTR_SKU#011221
INSTALLATION
D I F F I C U L T Y :
1
OUT
OF
S T E P 1
Remove the flooring and the passenger side storage/woofer
cover from the vehicle.
S T E P 2
With a 10mm socket, remove the pair of nuts that are
pictured.
Remove this plastic flooring panel.
S T E P 3
If equipped with the factory woofer system.
Disconnect the factory woofer system.
With a 10mm socket, remove the pair of nuts that secure the
factory woofer enclosure's footing to the floor.
Continued on Next Page
