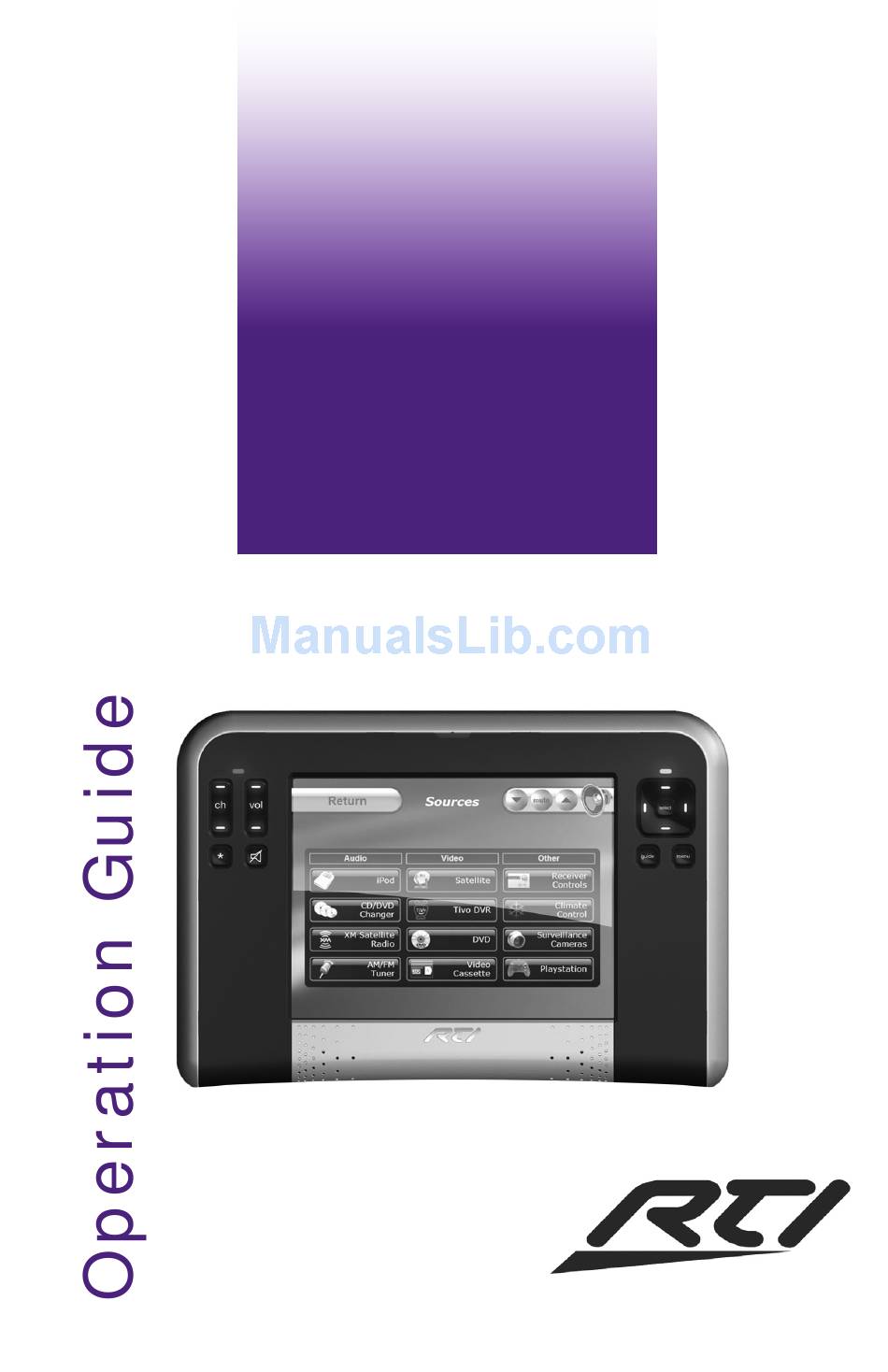

  • Page 1 It’s Under Control It’s Under Control ® ® 2.4GHz Universal System Controller 70-20069-25 V .0...
  • Page 2 2.4GHz Universal System Controller Copyright © 2009 Remote Technologies Incorporated All rights reserved.

  • Page 3: Federal Communications Commission Notice

    Contains FCC id: mmUrTi1300 Contains FCC id: S2Y-Wlan-11B-G Contains iC (Canada): 3166a-rTi1300 117 612 914 deClaraTiOn OF COnFOrmiTY (dOC) The Declaration of Conformity for this product can be found on the RTI website at: www.rticorp.com/declaration...

  • Page 4: Battery Disposal

    2.4GHz Universal System Controller BaTTerY diSPOSal For environmental reasons, your T Universal System Controller uses “environmentally sound” Lithium-ion rechargeable batteries. These batteries do not contain any poisonous heavy metals that can damage the environment. Li-ion In the interest of recycling, please do not dispose of these batteries in the household waste at the end of their useful life.

  • Page 5: Limited Warranty

    It’s Under Control ® limiTed WarranTY Remote Technologies Incorporated warrants its products for a period of one () year (90 days only for included battery packs) from the date of purchase from Remote Technologies Incorporated or an authorized Remote Technologies Incorporated distributor. This warranty may be enforced by the original purchaser and subsequent owners during the warranty period, so long as the original dated sales receipt or other proof of warranty coverage is presented when warranty service is...

  • Page 6: Disclaimer

    Microsoft Corporation in the United States and other countries. ZigBee is a registered trademark of the ZigBee Alliance. T, Integration Designer, and the RTI logo are registered trademarks of Remote Technologies Incorporated. Other brands and their products are trademarks or registered trademarks of...

  • Page 7: Table Of Contents

    It’s Under Control ® TaBle OF COnTenTS Federal Communications Commission notice ....3 Battery disposal ............4 Safety Suggestions ............. 4 limited Warranty ............5 disclaimer ..............6 Contents ..............7 Chapter 1 - Welcome ..........9 Compatibility ............9 Software Requirements ..........
  • Page 8 2.4GHz Universal System Controller...

  • Page 9: Chapter 1 - Welcome

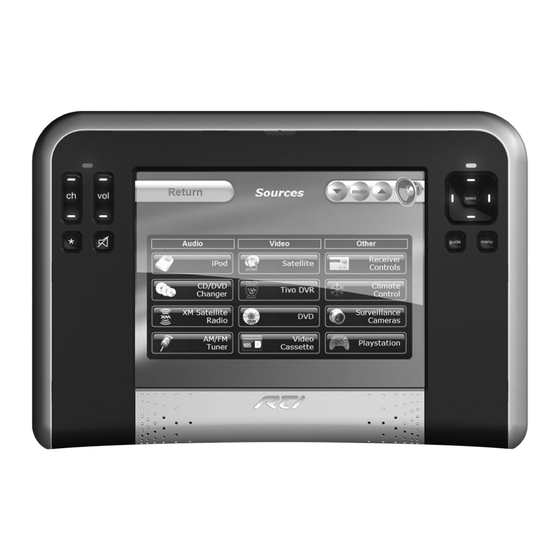

    Thank you for purchasing the T4 (2.4GHz) Universal System Controller. The T4 is RTI’s flagship wireless controller - the culmination of many years of engineering and design experience. Sleek and sophisticated, the T is the perfect compliment to today’s flat panel televisions and high-end home theaters.

  • Page 10: Unpacking And Inspection

    2.4GHz Universal System Controller CHaPTer 1 | WelCOme UnPaCKinG and inSPeCTiOn After unpacking your new T Universal System Controller, save all of the packing materials in case you ever have to ship the unit. Thoroughly inspect the T and packing materials for signs of damage. Report any damage to the carrier immediately.

  • Page 11: Chapter 2 - Introduction

    Do not subject the T to smoke, dust, or vibrations. The display may be damaged from excessive shock or vibration. Only use the power supply that is specified for the T4. Using the wrong type of power supply may result in damage.

  • Page 12: Battery And Docking Station

    2.4GHz Universal System Controller CHaPTer 2 | inTrOdUCTiOn CleaninG Occasional cleaning may be required, depending on use. It is recommended that you create a “Clean” button somewhere on the Home page of the T. This button should link to a page that does not contain commands or macros that could be inadvertently executed while cleaning the unit.

  • Page 13: Remote Reference

    It’s Under Control ® CHaPTer 2 | inTrOdUCTiOn remOTe reFerenCe FrOnT VieW Ambient Light Low Battery Touchpanel LCD Wireless Network Sensor Indicator Display Link Indicator Programmable Hard Buttons Speakers Infrared Output rear VieW Window Battery Compartment Battery Charge Power Switch Programming Contacts Port...

  • Page 14: Docking Station Reference

    2.4GHz Universal System Controller dOCKinG STaTiOn reFerenCe Charge Contacts Charge LED BOTTOm Power Jack Wire Guides...

  • Page 15: Chapter 3 - Operation

    It’s Under Control ® CHaPTer 3 | OPeraTiOn GeTTinG STarTed The T is turned-on by simply sliding the power switch (located in the battery compartment) into the ‘ON’ position. If the unit shows no activity, the battery may need to be re-charged. After power is applied, the T will take approximately ten seconds to load the operating system, the application software, and the user program.
  • Page 16 2.4GHz Universal System Controller CHaPTer 3 | OPeraTiOn THe TOUCHSCreen diSPlaY The T touchscreen display is organized into a series of pages. Normally each page contains objects (buttons, text, graphics, etc.) that are related in some way. For instance, they may all display information necessary for controlling a particular CD player.
  • Page 17 It’s Under Control ® CHaPTer 3 | OPeraTiOn THe COnTrOl Panel PaGe The Control Panel page can be displayed by pressing and holding the touchscreen while sliding the power switch from the ‘OFF’ position to the ‘ON’ position. Continue to hold the touchscreen until the Control Panel appears.
  • Page 18 2.4GHz Universal System Controller CHaPTer 3 | OPeraTiOn BaCKliGHT leVel This button displays a window that allows you to adjust the backlight brightness and enable/disable the Ambient Light Sensor. If the light sensor is disabled, there is only one backlight level to adjust. Press the left arrow or right arrow buttons to adjust.
  • Page 19 It’s Under Control ® CHaPTer 3 | OPeraTiOn If the light sensor is enabled, there are two backlight levels to adjust. Press the left arrow or right arrow buttons to adjust. Press the OK button when finished. With the light sensor enabled, the backlight brightness will automatically change between the two levels, depending upon the ambient lighting conditions.
  • Page 20 2.4GHz Universal System Controller CHaPTer 3 | OPeraTiOn Time OUT This button displays a window that allows you to adjust the amount of time the unit stays awake after the last button press. The time is variable from  second to 20 seconds (the default is 0 seconds). Press the arrows to the left or right of the Time Out setting to adjust the time.
  • Page 21 It’s Under Control ® CHaPTer 3 | OPeraTiOn SeT ClOCK This button displays a window that allows you to adjust the settings for the built-in real time clock and calendar. You may never need to adjust these settings manually since the T will automatically sync with a PC or an internet NTP server when connected.
  • Page 22 2.4GHz Universal System Controller CHaPTer 3 | OPeraTiOn SOUnd This button displays a window that allows you to adjust the volume of the audible speakers. The speaker sound provides feedback that a button was pressed. Press the arrows to the left or right to adjust the volume. Press the OK button when finished.
  • Page 23 It’s Under Control ® CHaPTer 3 | OPeraTiOn CaliBraTe TOUCHSCreen This button runs a routine that allows you to calibrate the touchscreen. Since it normally should not be necessary to calibrate the touchscreen, this routine is included as a precaution only. Warning: Do not attempt to calibrate the touchscreen with your fingertip.
  • Page 24 2.4GHz Universal System Controller CHaPTer 3 | OPeraTiOn TilT SWiTCH This button displays a window that allows you to adjust the settings for the built-in tilt sensor. The tilt switch is a motion detector that turns the remote on when activated. On means the tilt switch is active and will wake-up the T when it is moved.
  • Page 25 It’s Under Control ® CHaPTer 3 | OPeraTiOn BaTTerY This button displays a window that allows you to adjust the relative amount of time that the low battery icon appears on the display. This setting will determine how much time you have between the appearance of the low battery warning and the battery becoming completely depleted.
  • Page 26 2.4GHz Universal System Controller CHaPTer 3 | OPeraTiOn neTWOrK inFOrmaTiOn This button displays a window that allows you to view the Ethernet network information. This is mainly for troubleshooting purposes. Press the OK button when finished. Note: The “Mode” field will show “Static” or “DHCP” for the IP addressing mode if the network adapter is active.
  • Page 27 It’s Under Control ® CHaPTer 3 | OPeraTiOn THe WeB BrOWSer The T includes Internet Explorer for web browsing on the internet. ® Although most website content is compatible with the T, please note that plug-ins such as JAVA and Flash , streaming video, and persistent cookies ®...
  • Page 28 2.4GHz Universal System Controller...

  • Page 29: Chapter 4 - Programming

    USB port is required. The ® required USB cable is included with the RTI IR-PRO dealer kit. In addition to using the USB port, the T can also be programmed using wireless Ethernet via a LAN connection to its 02. card. This allows you to update multiple T units from one location, either at the site or remotely.
  • Page 30 2.4GHz Universal System Controller...

  • Page 31: Chapter 5 - Specifications

    It’s Under Control ® CHaPTer 5 | SPeCiFiCaTiOnS Power 7.2VDC 000 mAh Lithium-Polymer Battery Pack Power Power Management Automatic On/Off (tilt switch) Infrared Control 0 feet (9. meters) @ 60 degrees Range Infrared Frequency 5 kHz - 60 khz Transmission Range Radio Frequency Up to 00 feet (0.5 meters) Control Range...
  • Page 32 2.4GHz Universal System Controller...

  • Page 33: Chapter 6 - Troubleshooting

    Verify that your PC is running Windows XP or higher. ® Verify that the T4 USB driver was installed the first time the T4 was connected to your PC. Verify that the T is present in the Device Manager within the Windows Control Panel.
  • Page 34 2.4GHz Universal System Controller...

  • Page 35: Chapter 7 - Service And Support

    Fax (952) 25- info@rticorp.com rTi TeCHniCal SUPPOrT At RTI, customer service and satisfaction is an utmost priority. If you are encountering any problems or have a question about your RTI product, please contact RTI Technical Support for assistance. RTI provides technical support by telephone, fax or e-mail. For the highest quality service, please have the following information ready, or provide it in your fax or e-mail.
  • Page 36 SerViCe and SUPPOrT Shipment of T4 for Service RTI will pay all labor and material expenses for all repairs covered by this product’s warranty. If necessary repairs are not covered by warranty, or if a unit is examined which is not in need of repair, you may be charged for the repairs or examination.

  • Page 37: Index

    Remote Reference, Back .......... Limited Warranty/Disclaimer ..........5 Operation ................ 5 Product Contents .............. 0 Safety Suggestions .............  Service and Support ............5 Contact RTI ..............5 Shipment for Service ............. 6 Technical Support ............5 Specifications .............. Troubleshooting .................
  • Page 38 2.4GHz Universal System Controller nOTeS...
  • Page 39 It’s Under Control ®...
  • Page 40 2.4GHz Universal System Controller It’s Under Control ® remote Technologies incorporated 5775 12th avenue east, Suite 180 Shakopee, mn 55379 Tel: 952-253-3100 Fax: 952-523-3131 www.rticorp.com © 2009 Remote Technologies Inc. All rights reserved. Printed in Taiwan.
