RTI MRP-64 Installation And Operation Manual

Multi-room control processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
It's Under Control
®
It's Under Control
®
MRP-64
Multi-Room Control Processor
70-20039-22 V.0


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MRP-64 and is the answer not in the manual?

Questions and answers

Related Manuals for RTI MRP-64

Summary of Contents for RTI MRP-64

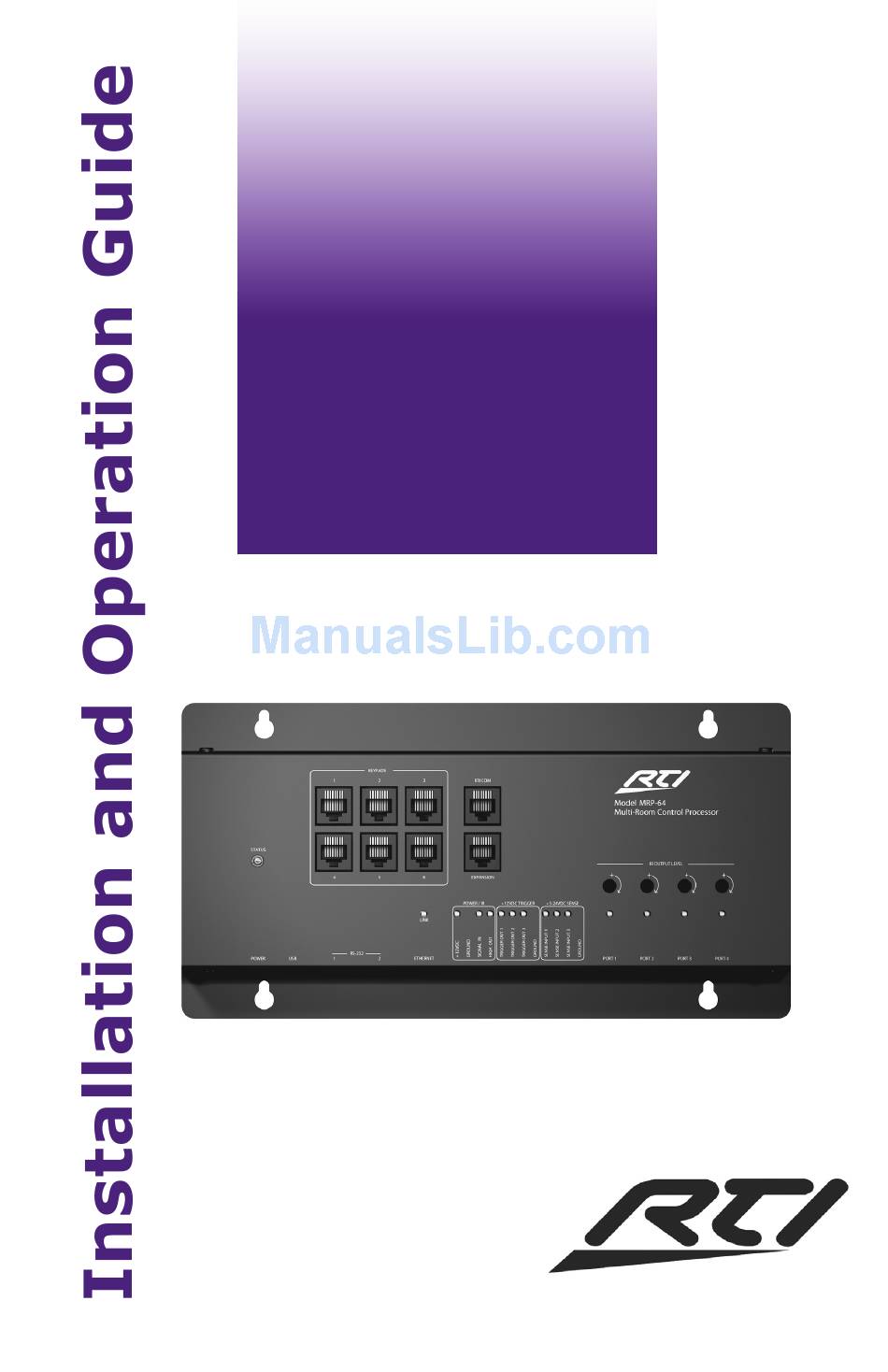

  • Page 1 It’s Under Control ® It’s Under Control ® MRP-64 Multi-Room Control Processor 70-20039-22 V.0...
  • Page 2 MRP-64 Multi-Room Control Processor Copyright © 2009 Remote Technologies Incorporated All rights reserved.

  • Page 3: Federal Communications Commission Notice

    This device may not cause harmful interference. This device must accept any interference received including interference that may cause undesired operation. 117 612 914 deClaRatIOn OF COnFORMItY (dOC) The Declaration of Conformity for this product can be found on the RTI website at: www.rticorp.com/declaration...

  • Page 4: Safety Suggestions

    MRP-64 Multi-Room Control Processor saFetY suGGestIOns Read Instructions. Read all safety and operating instructions before operating the unit. Retain Instructions. Keep the safety and operating instructions for future reference. Heed Warnings. Adhere to all warnings on the unit and in the operating instructions.

  • Page 5: Limited Warranty

    It’s Under Control ® lIMIted WaRRantY Remote Technologies Incorporated warrants its products for a period of one () year from the date of purchase from Remote Technologies Incorporated or an authorized Remote Technologies Incorporated distributor. This warranty may be enforced by the original purchaser and subsequent owners during the warranty period, so long as the original dated sales receipt or other proof of warranty coverage is presented when warranty service is required.

  • Page 6: Disclaimer

    Microsoft Corporation in the United States and other countries. ZigBee is a registered trademark of the ZigBee Alliance. MRP-6, Integration Designer, and the RTI logo are registered trademarks of Remote Technologies Incorporated. Other brands and their products are trademarks or registered trademarks of...

  • Page 7: Table Of Contents

    It’s Under Control ® table OF COntents Federal Communications Commission notice ....3 safety suggestions ............4 limited Warranty ............5 disclaimer ..............6 Contents ..............7 Chapter 1 - Welcome ........... 9 Chapter 2 - Features ........... 11 Chapter 3 - Installation and Operation ....... 13 Chapter 4 - Specifications ...........
  • Page 8 MRP-64 Multi-Room Control Processor...

  • Page 9: Chapter 1 - Welcome

    Do not subject the MRP-6 to smoke, dust, or vibrations. Only use the power supply that is specified for the MRP-64. Using the wrong type of power supply may result in damage.
  • Page 10 Thoroughly inspect the MRP-6 and packing materials for signs of damage. Report any damage to the carrier immediately. Report any equipment malfunctions to RTI or an authorized RTI distributor.

  • Page 11: Chapter 2 - Features

    Two RS-232 ports for bi-directional communication. Compatible with RTI ZM-2 Transceiver Modules utilizing Zigbee ® wireless communication. Compatible with RTI RM-33 RF Antenna Module for one-way communication. Preprogrammed RS-232 drivers for many popular multi-zone receivers. Three programmable 2VDC trigger outputs.
  • Page 12 MRP-64 Multi-Room Control Processor CHaPteR 2 | FeatuRes Keypad Inputs (6) IR Output Adjustment Controls Status Light RTI COM Port Expansion Port Power Ethernet DC Sense Supply Inputs (3) RS-232 IR Emitter Ports () DC Trigger Outputs (3) Ethernet Link...

  • Page 13: Chapter 3 - Installation And Operation

    +2VDC, SIGNAL IN, OR HIGH OUT terminals. teRMInal: sIGnal In Input connection for system trigger codes. This should be connected to an RTI RF receiver or industry standard IR repeater system. teRMInal: HIGH Out High current (200mA) IR output connection. This can be used to power up to 0 infrared mini-emitters, an IR blaster, or extending IR control over a long distance (000 ft.
  • Page 14 000 feet away from the MRP-6 using #22 AWG (minimum) wire. nOte: The IR output ports on the MRP-6 are NOT compatible with RTI communication and sensing modules such as the CM-232, VPS- and SPS-.
  • Page 15 This RJ-5 port allows connection to a 0/00 Base-T Ethernet network (LAN) and can be used to download system files to the MRP-64. The Ethernet Link indicator will be lit red when the MRP-6 is connected to a LAN.
  • Page 16 MRP-64 Multi-Room Control Processor CHaPteR 3 | InstallatIOn and OPeRatIOn usb PORt This is a host port for programming updates. Rs-232 PORts The MRP-6 is capable of two-way communication via two dedicated RS-232 ports. Use industry standard cat5 cable with RJ-5 termination (56B) and two RJ-5 >...
  • Page 17 MRP-6 USB port from your PC for normal operation. The software allows you to create actions (e.g. commands and macros) that are associated with button presses on one or more RTI remote controls. The software transparently creates all of the system trigger codes, and generates the correct download for every device in the system.
  • Page 18 MRP-64 Multi-Room Control Processor CHaPteR 3 | InstallatIOn and OPeRatIOn COnneCtIOn OPtIOns RTI CB- RTI Keypad RTI Keypad Zigbee ® Module (ZM-2) IR Controlled Devices 2VDC Triggered Devices Voltage Status IR Receiver RS-232 Controlled Multi-Zone Receiver RM-33 Receiver...

  • Page 19: Chapter 4 - Specifications

    Two, Bi-directional RJ5 Connections Ethernet Port 0/00Base-T, RJ5 Connection USB Ports  Programming Expansion Port RS-5 / IR / Pwr, RJ5 Connection RTI Com Port Two-way Zigbee Communication Port, RJ5 ® Connection Keypad Ports Six, RS-5 / IR/ Pwr Mounting...
  • Page 20 MRP-64 Multi-Room Control Processor...

  • Page 21: Chapter 5 - Troubleshooting

    Also verify that an IR emitter adapter cable is being used between the MRP-6 and the IR emitter plug. MRP-64 usb PROGRaMMInG PORt dOes nOt WORK Verify that your PC is using Windows XP or higher. The Integration ®...
  • Page 22 MRP-64 Multi-Room Control Processor...

  • Page 23: Chapter 6 - Service And Support

    Fax (952) 253-33 info@rticorp.com RtI teCHnICal suPPORt At RTI, customer service and satisfaction is an utmost priority. If you are encountering any problems or have a question about your RTI product, please contact RTI Technical Support for assistance. RTI provides technical support by telephone, fax or e-mail. For the highest quality service, please have the following information ready, or provide it in your fax or e-mail.
  • Page 24 MRP-64 for service RTI will pay all labor and material expenses for all repairs covered by this product’s warranty. If necessary repairs are not covered by warranty, or if a unit is examined which is not in need of repair, you may be charged for the repairs or examination.

  • Page 25: Index

    Mounting/Power ............3 Programming ..............7 Limited Warranty/Disclaimer ..........5 Product Contents .............. 0 Safety Suggestions .............  Service and Support ............23 Contact RTI ..............23 Shipment for Service ............. 2 Technical Support ............23 Specifications ..............9 Troubleshooting ..............2...
  • Page 26 MRP-64 Multi-Room Control Processor...
  • Page 27 It’s Under Control ® nOtes...
  • Page 28 MRP-64 Multi-Room Control Processor It’s Under Control ® Remote technologies Incorporated 5775 12th avenue east, suite 180 shakopee, Mn 55379 tel: 952-253-3100 Fax: 952-523-3131 www.rticorp.com © 2009 Remote Technologies Inc. All rights reserved. Printed in Taiwan.
