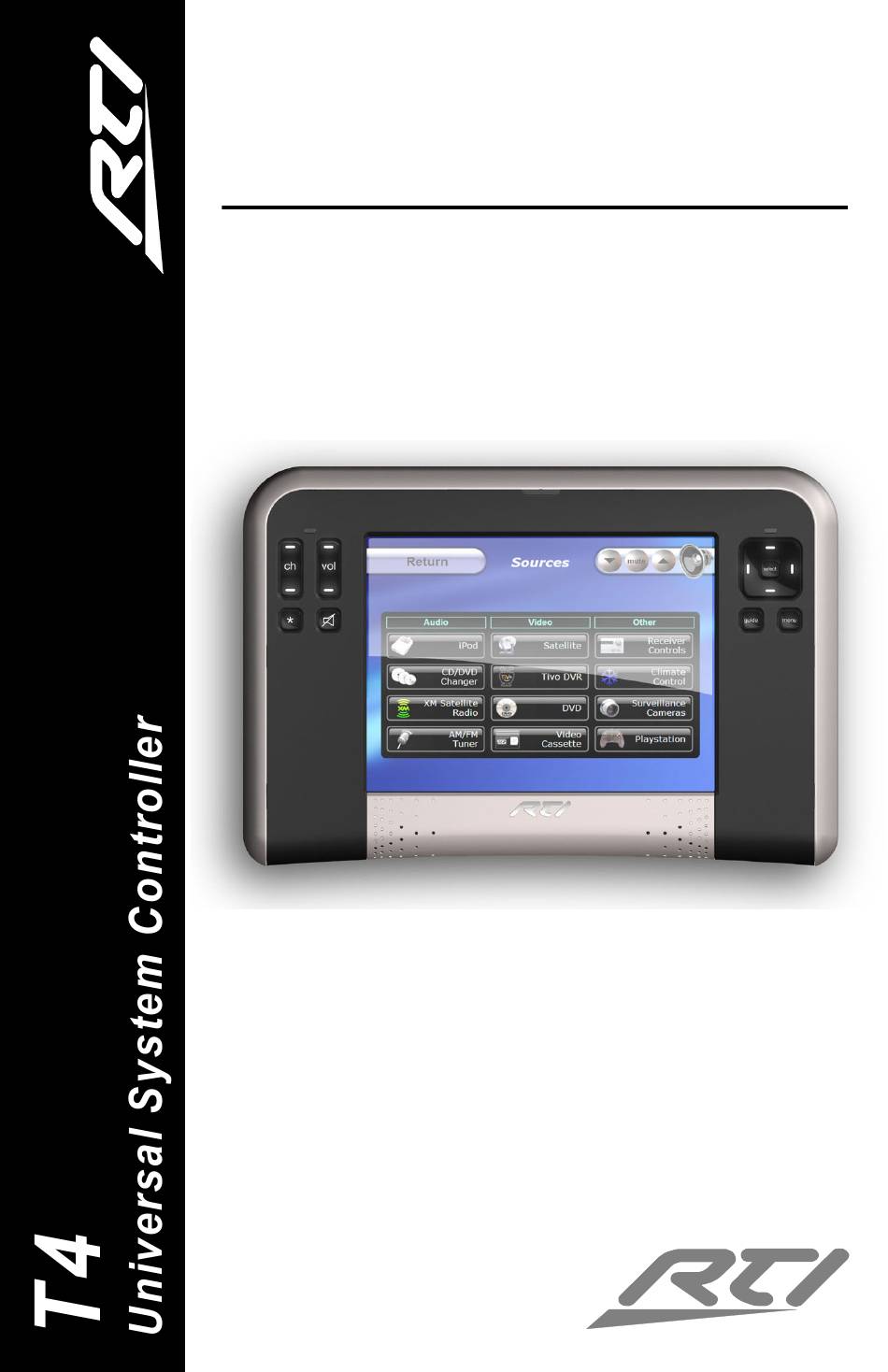

- Page 1 Installation & Operation Guide v1.0...
- Page 2 FEDERAL COMMUNICATIONS COMMISSION NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,...
-
Page 3: Battery Disposal
T4 Universal System Controller BATTERY DISPOSAL For environmental reasons, your T4 universal system controller uses “environmentally sound” Lithium-ion rechargeable batteries. These batteries do not contain any poisonous heavy metals that can damage the environment. Li-polymer In the interest of recycling, please do not dispose of these ba tteries in the household waste at the end of their useful life. -
Page 4: Limited Warranty
Servicing. Do not attempt any service beyond that described in the operating guide. Refer all other service needs to qualified service personnel. Damage Requiring Service. The unit should be serviced by qualified service personnel when: • The power supply cord or the plug has been damaged. •... -
Page 5: Disclaimer
Microsoft and Windows are registered trademarks of Microsoft Corporation. Other brands and their products are trademarks or registered trademarks of their respective holders. T4, It’s Under Control, TheaterTouch , and the RTI logo are trademarks of Remote Technologies Incorporated. -
Page 6: Table Of Contents
Contents Federal Communications Commission Notice-----------------------i Battery Disposal ----------------------------------------------------------- ii Safety Suggestions -------------------------------------------------------- ii Limited Warranty -------------------------------------------------------- iii Disclaimer------------------------------------------------------------------ iv Contents------------------------------------------------------------------------ v Chapter 1. Welcome --------------------------------------------------------- 1 Compatibility Note-------------------------------------------------------- 2 Unpacking and Inspection ---------------------------------------------- 2 Product Contents---------------------------------------------------------- 2 Software Requirements -------------------------------------------------- 2 Chapter 2. - Page 7 Battery------------------------------------------------------------------- 18 Network Information------------------------------------------------ 19 The Web Browser-------------------------------------------------------- 20 Chapter 4. Programming------------------------------------------------- 21 Programming The T4 --------------------------------------------------- 21 Chapter 5. Troubleshooting--------------------------------------------- 23 Display is Dim, Blank or Unreadable ------------------------------- 23 USB Communication Problems -------------------------------------- 23 IR Code Problems ------------------------------------------------------- 24 Chapter 6.
-
Page 8: Chapter 1. Welcome
IR routing, local macro execution, power sensing, and RS-232 control. The T4 can be used as a stand-alone device or as part of an expandable central control system. When used with the available... -
Page 9: Compatibility Note
This covers virtually all of the remotes that exist to date. UNPACKING AND INSPECT ION After unpacking your new T4 universal system controller, save all of the packing materials in case you ever have to ship the unit. Thoroughly inspect the T4 and packing materials for signs of damage. -
Page 10: Chapter 2. Introduction
Chapter 2. Introduction FEATURES The T4 provides superior quality and reliability as well as these specific features: Ergonomic design permits effortless operation. § Full color TFT LCD to display custom buttons, text, § graphics, and animations. Integrated 802.11 WiFi. §... -
Page 11: Important Notes
Do not use sharp objects on the touchscreen. It is designed to § operate with a touch of your finger. Do not let the T4 get wet. It should not be handled with wet § hands or placed in an area where it could get wet. -
Page 12: Cleaning
Occasional cleaning may be required, depending on use. It is recommended that you create a “Clean” button somewhere on the Home page of the T4. This button should link to a page that does not contain commands or macros that could be inadvertently executed while cleaning the unit. - Page 13 T4 Universal System Controller docking station, the T4 will remain in sleep mode for 1 – 2 months before shutting down. At that point the battery must be recharged. If the T4 battery capacity is reduced to approximately 25 percent, the low battery LED located on the front bezel of the T4 will illuminate red.
-
Page 14: Getting Started
During normal use the T4 turns-on instantly from its power down mode. After powering down, the T4 is turned-on by touching any area of the display or any keypad button. If the tilt sensor is enabled, picking up the unit will also turn it on. -
Page 15: Remote Reference

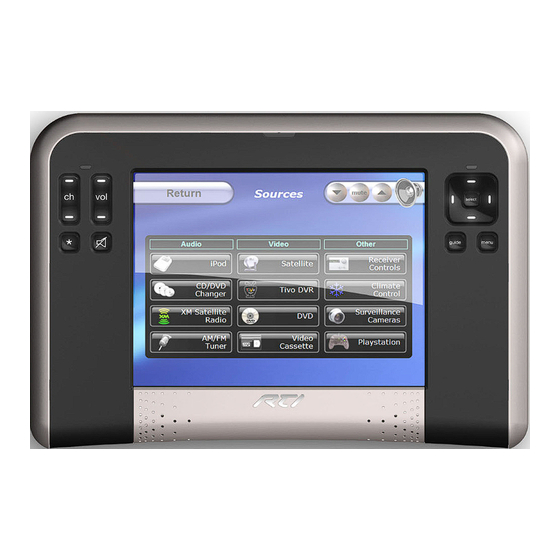

T4 Universal System Controller REMOTE REFERENCE Ambient Light Touchpanel LCD Low Battery Sensor Wireless Network Display Indicator Link Indicator Programmable Hard Buttons Front View Interchangeable Front Bezel Stereo Speakers Infrared Output Interchangeable Window Rear Bezel Battery Compartment Expansion Power Switch... -
Page 16: Chapter 3. Operation
Chapter 3. Operation THE TOUCHSCREEN DISPLAY The T4 touchscreen display is organized into a series of pages. Normally each page contains objects (buttons, text, graphics, etc.) that are related in some way. For instance, they may all display information necessary for controlling a particular CD player. -
Page 17: The Control Panel Page
T4 Universal System Controller THE CONTROL PANEL PAGE The Control Panel page can be displayed by pressing and holding the touchscreen while sliding the power switch from the ‘OFF’ position to the ‘ON’ position. Continue to hold the touchscreen until the Control Panel appears. -
Page 18: Backlight Level
If the light sensor is disabled, there is only one backlight level to adjust. Press the left arrow or right arrow buttons to adjust. Press button when finished. With the light sensor disabled, the backlight brightness will always stay at the same level whenever the T4 is turned-on. - Page 19 Note: Non-zero values for the backlight level in Idle mode can be entered, but will be ignored unless the T4 is on the docking station. Also, the maximum idle mode backlight setting is 30% while on the docking station.
-
Page 20: Time Out
Operation TIME OUT This button displays a window that allows you to adjust the amount of time the unit stays awake after the last button press. The time is variable from 1 second to 120 seconds (the default is 10 seconds). -
Page 21: Set Clock
This button displays a window that allows you to adjust the settings for the built-in real time clock and calendar. You may never need to adjust these settings manually since the T4 will automatically sync with a PC or an internet NTP server when connected. -
Page 22: Sound
Operation SOUND This button displays a window that allows you to adjust the volume of the audible speakers. The speaker sound provides feedback that a button was pressed. Press the arrows to the left or right to adjust the volume. Press the button when finished. -
Page 23: Calibrate Touchscreen
Press the Calibrate button to continue. Follow the directions on the display to complete the calibration process. You can cancel the calibration by pressing the ‘exit’ keypad button on the T4. -
Page 24: Tilt Switch
Operation TILT SWITCH This button displays a window that allows you to adjust the settings for the built-in tilt sensor. The tilt switch is a motion detector that turns the remote on when activated. On means the tilt switch is active and will wake-up the T3 when it is moved. -
Page 25: Battery
T4 Universal System Controller BATTERY This button displays a window that allows you to adjust the relative amount of time that the low battery icon appears on the display. This setting will determine how much time you have between the appearance of the low battery warning and the battery becoming completely depleted. -
Page 26: Network Information
Operation NETWORK INFORMATION This button displays a window that allows you to view the Ethernet network information. This is mainly for troubleshooting purposes. Press the button when finished. § The "Mode" field will show “Static” or “DHCP” Note: for the IP addressing mode if the network adapter is active. -
Page 27: The Web Browser
- press ON, then press OK, then choose the "Network Information" control panel again. § Since the T4 can be programmed with the settings for more than one network, the SSID field shows which wireless network is currently... -
Page 28: Chapter 4. Programming
The required USB cable is included with the RTI IR-PRO dealer kit. In addition to using the USB port, the T4 can also be programmed wirelessly via a LAN connection to its 802.11 card. This allows you to update multiple T4 units from one location, either at the site or remotely. - Page 29 T4 Universal System Controller...
-
Page 30: Chapter 5. Troubleshooting
Verify that your PC is running Windows 98SE or higher. ® Verify that the T4 USB driver was installed the first time the T4 was connected to your PC. Verify that the T4 is present in the Device Manager within the Windows Control Panel. -
Page 31: Ir Code Problems
T4 Universal System Controller IR CODE PROBLEMS If you are using an IR repeater system, ma ke sure it is working correctly with the original OEM remote. If not, you will need to troubleshoot the IR repeater system. If you are still having problems, try adjusting the IR code “Minimum... -
Page 32: Chapter 6. Service And Support
RTI TECHNICAL SUPPORT At RTI, customer service and satisfaction is an utmost priority. If you are encountering any problems or have a question about your RTI product, please contact RTI Technical Support for assistance. RTI provides technical support by telephone, fax or e-mail. For the highest quality service, please have the following information ready, or provide it in your fax or e-mail. - Page 33 For Technical Support or assistance with your RTI product, contact RTI at: (952) 253-3137 support@rticorp.com www.rticorp.com/support For questions regarding Service or Repair of your RTI product, contact RTI at: (952) 253-3136 service@rticorp.com www.rticorp.com/service Please do not return products to RTI without return authorization.
-
Page 34: Specifications
Specifications 7.2 VDC, 4000 mAh Power Li-polymer Battery Pack Automatic On/Off Power Management (tilt switch) 30 Feet (9.1m) @ 60 Infrared Control Range Degrees 15kHz – 460kHz Infrared Frequency Range Up to 100 Feet (30.5m) Radio Frequency Control Range (with optional receivers) - 433MHz (control) Radio Fr equency Carrier - 2.4 GHz (802.11) - Page 35 T4 Universal System Controller 3½ hours min. continuous Nominal Run Time on Full Charge (5 - 7 days average use) 30 Days Standby Time on Full Charge 4-5 Hours Battery Charge Time 32MByte Flash Total System Memory (non-volatile) Total number of devices...
