RTI CX10 Quick Reference Manual

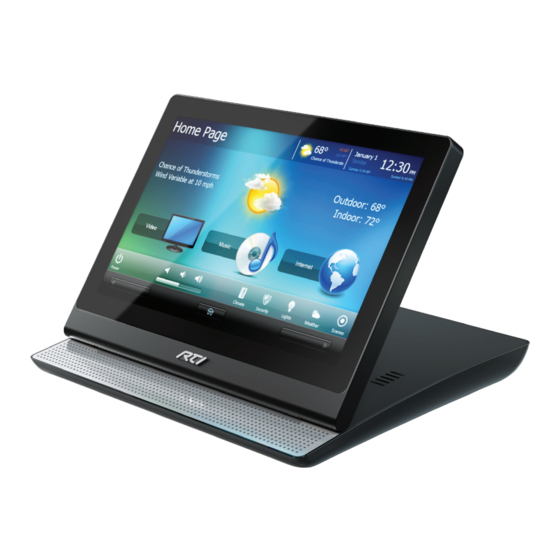

From the executive boardroom to the gourmet kitchen, the versatile CX10 touchpanel delivers simple, intuitive control of
the environment and entertainment. The sleek unit can be set on a countertop or inverted and mounted under a cabinet,
providing custom control on its 10-inch, high-resolution LCD touchscreen. The CX10 is also a high-quality HD video display
with its integrated HDBaseT input and stereo speakers. Additional user-friendly features include video intercom support and
a built-in composite input for viewing video from security cameras and other devices. The CX10's large display features a
tilt range from 10 degrees to 90 degrees for the best viewing angle possible in countertop and under-cabinet installations.
The touchpanel is programmable to the finest detail via RTI's Integration Designer
create the ultimate custom user interface. The result is an elegant and sophisticated control solution that allows users to
effortlessly engage with their surroundings.
The CX10 provides superior quality and reliability as well as these features:
• A 10.1" widescreen LCD with 1280x800 (WXGA) resolution and integrated capacitive touchscreen.
• Displays HD video via the integrated HDBaseT video input.
• Analog audio input and stereo speakers.
• Integrated 10/100 Base-T and 802.11 Wireless Ethernet.
• Built-in high output IR for direct control of devices through an IR connecting block.
• Powered using power supply or PoE+ (Power over Ethernet Plus).
• Proximity and ambient light sensors automatically wake the unit up and adjust the brightness upon being approached.
• Video intercom capability available via the built-in camera, microphone, and speakers.
• USB and Ethernet (hard-wired or wireless) software program updates.
• Adjustable tilt display (from 10°-90°) and CX10 can be inverted and mounted under a cabinet.
CX10
Countertop/Under Cabinet Controller
Quick Reference Guide
CX10 Inverted
CX10 - Tilted 90°
CX10 - Tilted 10°
software, allowing integrators to easily
®
