Summary of Contents for RTI M2

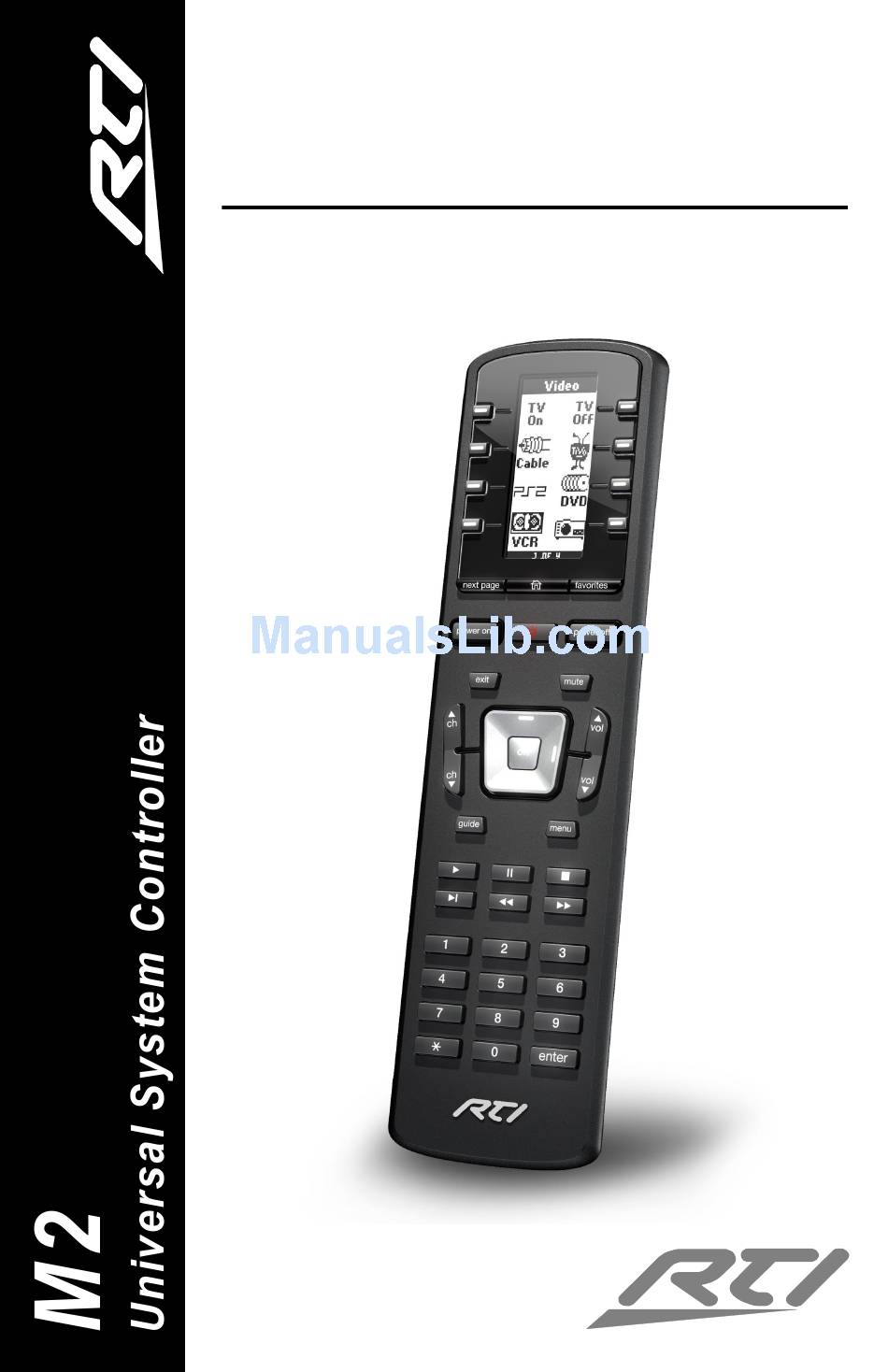

  • Page 1 Operation Guide v1.0...
  • Page 2 FEDERAL COMMUNICATIONS COMMISSION NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,...
  • Page 3: Safety Suggestions

    M2 Universal System Controller BATTERY DISPOSAL This product is shipped with non-rechargeable alkaline batteries. These batteries are generally considered not to be environmentally hazardous. In most cases they can be disposed of in normal household trash, but you should always verify and follow your local regulations.
  • Page 4: Limited Warranty

    LIMITED WARRANTY Remote Technologies Incorporated warrants its products for a period of one (1) year (does not apply to included batteries) from the date of purchase from Remote Technologies Incorporated or an authorized Remote Technologies Incorporated distributor. This warranty may be enforced by the original purchaser and subsequent owners during the warranty period, so long as the original dated sales receipt or other proof of warranty coverage is presented when warranty service is required.
  • Page 5 Microsoft and Windows are registered trademarks of Microsoft Corporation. Other brands and their products are trademarks or registered trademarks of their respective holders. M2, It’s Under Control, TheaterTouch, and the RTI logo are trademarks of Remote Technologies Incorporated.
  • Page 6: Table Of Contents

    Contents Federal Communications Commission Notice ---------------------- i Battery Disposal ----------------------------------------------------------- ii Safety Suggestions -------------------------------------------------------- ii Limited Warranty -------------------------------------------------------- iii Disclaimer-------------------------------------------------------------------iv Contents------------------------------------------------------------------------ v Chapter 1. Welcome ----------------------------------------------------------1 Compatibility Note---------------------------------------------------------1 Unpacking and Inspection -----------------------------------------------2 Product Contents -----------------------------------------------------------2 Software Requirements ---------------------------------------------------2 Chapter 2. Introduction -----------------------------------------------------3 Features-----------------------------------------------------------------------3 Important Notes ------------------------------------------------------------4 Cleaning ----------------------------------------------------------------------4...
  • Page 7 M2 Universal System Controller Clear All ----------------------------------------------------------------- 14 Low Battery Indicator --------------------------------------------------- 15 Programming The M2--------------------------------------------------- 15 Chapter 4. Troubleshooting---------------------------------------------- 17 Display is Dim, Blank or Unreadable-------------------------------- 17 USB Communication Problems --------------------------------------- 17 IR Code Problems -------------------------------------------------------- 17 Chapter 5. Service and Support----------------------------------------- 19...
  • Page 8: Chapter 1. Welcome

    Chapter 1. Welcome Thank you for purchasing the M2 universal system controller. The M2 combines the power and flexibility of a graphic LCD display with an ergonomic design that permits effortless one-handed operation. This design overcomes the need for a compromise between form and function.
  • Page 9: Unpacking And Inspection

    After unpacking your new M2 universal system controller, save all of the packing materials in case you ever have to ship the unit. Thoroughly inspect the M2 and packing materials for signs of damage. Report any damage to the carrier immediately. Report...
  • Page 10: Chapter 2. Introduction

    Chapter 2. Introduction FEATURES The M2 provides superior quality and reliability as well as these specific features: Replaces all of the remote controls in a home. The M2 can § reproduce all of the commands of almost any other infrared remote control.
  • Page 11: Important Notes

    If the temperature is too cold, the display appears dark and may respond slowly. Do not let the M2 get wet. It should not be handled with wet § hands or placed in an area where it could get wet.
  • Page 12: Getting Started

    Make sure they are oriented properly. A polarity diagram is molded into the bottom of the battery compartment. The M2 is turned-on by touching any keypad button. If the tilt sensor is enabled, picking up the unit will also turn it on.
  • Page 13: Remote Reference

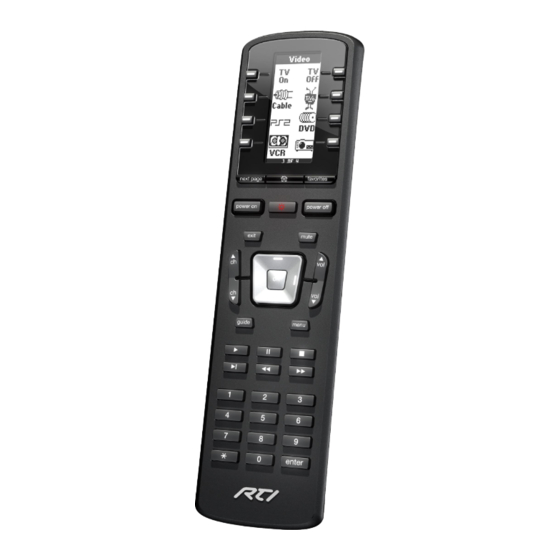

    M2 Universal System Controller REMOTE REFERENCE IR Transmission Window Front LCD Display Display “Soft” Buttons Home Page Button Page Navigation Buttons Backlight Button Keypad Buttons...
  • Page 14 Introduction Back Audio Beeper Battery Compartment Programming Port...
  • Page 15 M2 Universal System Controller...
  • Page 16: Chapter 3. Operation

    Chapter 3. Operation THE LCD DISPLAY The M2 display is organized as a series of pages and frames. A page consists of one to nine frames, and only one frame is displayed on the screen at a time. Normally each frame on a page contains objects (text, graphics, etc.) that are related in some way.
  • Page 17: The Control Panel Page

    M2 Universal System Controller THE CONTROL PANEL PAGE The Control Panel page can be displayed by pressing and holding the backlight button continuously for 3 seconds. You can also access the Control Panel page by assigning a “Control Panel” page link to a button using the TheaterTouch Designer software.
  • Page 18: Adjust Contrast

    Operation ADJUST CONTRAST This selection displays a window that allows you to adjust the LCD contrast. Press the Left Arrow or Right Arrow soft buttons to adjust. Press either of the soft buttons to close. BEEPER This selection displays a window that allows you to turn the audible beep on or off.
  • Page 19: Tilt Switch

    The tilt switch is a motion detector that turns the remote on when activated. On means the tilt switch is active and will wake up the M2 when it is moved. Off means the tilt switch is inactive.
  • Page 20 Operation Now enter a new four-digit passcode. You will be prompted to enter the new four-digit passcode again for confirmation. When new code is entered successfully, the “Code Changed” window will pop up to let you know you have changed the passcode.
  • Page 21: Clear All

    CLEAR ALL This selection displays a window that will allow you to erase the current user program in the M2. You will be prompted to enter the current passcode. If the proper code is entered, the entire user program in the M2 will be erased.
  • Page 22: Low Battery Indicator

    Operation LOW BATTERY INDICATOR If the M2 battery capacity is reduced to approximately 25 percent, a low battery icon will appear in the lower left side of the display: Low Battery Icon At this point the M2 batteries should be replaced to maintain optimum performance.
  • Page 23 M2 Universal System Controller Note: The M2 will not operate normally while connected to a PC’s USB port. Make sure you disconnect it from the PC to navigate pages or transmit commands. In addition, the M2 will not be able to sync with a PC’s USB port while it is...
  • Page 24: Chapter 4. Troubleshooting

    Make sure you are using the programming cable that was supplied by RTI and that both ends are connected securely. Make sure the PC detects the presence of the M2. If it doesn’t, unplug the USB cable, wait for about ten seconds, and plug it in again.
  • Page 25 M2 Universal System Controller If you are still having problems, try adjusting the IR code “Minimum Repeats” value TheaterTouch Designer programming software. If the IR code is executed inside a macro that contains multiple IR codes, try inserting a small time delay before the problem code. If...
  • Page 26: Chapter 5. Service And Support

    RTI TECHNICAL SUPPORT At RTI, customer service and satisfaction is an utmost priority. If you are encountering any problems or have a question about your RTI product, please contact RTI Technical Support for assistance. RTI provides technical support by telephone, fax or e-mail. For the highest quality service, please have the following information ready, or provide it in your fax or e-mail.
  • Page 27 For Technical Support or assistance with your RTI product, contact RTI at: (952) 253-3137 support@rticorp.com www.rticorp.com/support For questions regarding Service or Repair of your RTI product, contact RTI at: (952) 253-3136 service@rticorp.com www.rticorp.com/service Please do not return products to RTI without return authorization.
  • Page 28: Specifications

    Specifications 4 AAA alkaline batteries Power Automatic On/Off Power Management (tilt switch) 30 Feet (9.1m) @ 60 Infrared Control Range Degrees 15kHz – 460kHz Infrared Frequency Range Up to 100 Feet (30.5m) Radio Frequency Control Range (with optional receivers) 433MHz Radio Frequency Carrier +32°F to +122°F Operating Temperature...
  • Page 29 M2 Universal System Controller Unlimited steps in a Macro Capability single macro Total number of macros limited only by memory Macros allowed on every button USB programming port Communications Length: 9.1 in. (251mm) Dimensions Width: 2.4 in. (64mm) Height: 1.1 in. (28mm)
  • Page 30 ® It’s Under Control R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d 7651 Anagram Drive...
