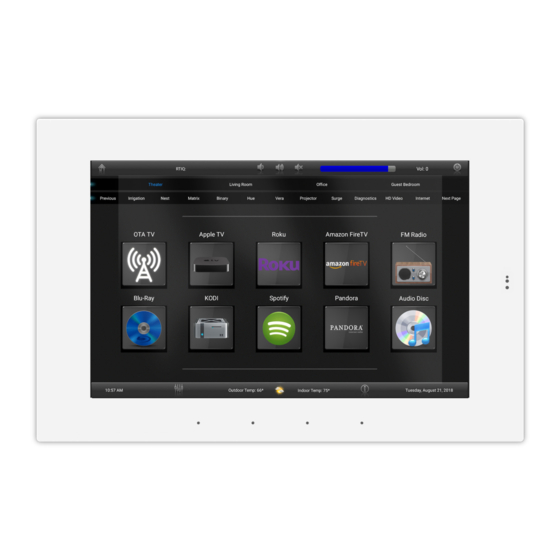

KA8 Touchpanel
The KA8 touchpanel provides simple, intuitive control of the entertainment, environment and security systems
in residential or commercial facilities. It features a fully customizable 8" widescreen LCD display with 1280x800
WXGA resolution and integrated capacitive touchscreen.
accessory stand is available for table top installations. The ambient light and proximity sensors automatically
adjust the screen brightness and LED backlight according to the environmental light level. Built-in gigabit Ethernet
with PoE enables powerful two-way control via the RTI control system, video from IP security cameras, and remote
programming updates.
The KA8 provides superior quality and reliability as well as these features:
•
8" widescreen LCD with 1280x800 WXGA resolution and integrated capacitive touchscreen for fast touch response.
•
Fully customizable display for simple, intuitive control.
•
Innovative design allows wall mount or table top installation using stand accessory (sold separately).
•
Ambient light and proximity sensor adjusts the screen brightness and LED backlights automatically according to
the environment light level.
•
Powered by PoE (Power over Ethernet) or a power supply (sold separately).
•
Gigabit Ethernet with PoE enables two-way control via the RTI control system, video from IP security cameras, and
remote programming updates.
KA8
8" Touchpanel Controller
Reference Guide
The sleek touchpanel is easily wall mounted or an
Advertisement
Related Manuals for RTI KA8
Summary of Contents for RTI KA8
- Page 1 The ambient light and proximity sensors automatically adjust the screen brightness and LED backlight according to the environmental light level. Built-in gigabit Ethernet with PoE enables powerful two-way control via the RTI control system, video from IP security cameras, and remote programming updates.
- Page 2 POWERING THE KA8 The KA8 is designed to be powered over an Ethernet connection with PoE or by connecting a 24v power supply (not included), but not both. If both the PoE and a 24v power supply are connected, the KA8 will draw power from the 24v source.
- Page 3 Loosen the captive screws of the unit to the level indicated by the lines in the diagram. Screws should not be removed from the unit. Align the mounting frame hooks with the KA8 mounting slots and gently pull the KA8 unit down the mounting bracket. Make sure the mounting hooks are properly engaged.
- Page 4 RTI will provide warranty coverage extension of six a particular installation. (6) months from the date code of the product. Note: RTI warranty is limited to the If this equipment does cause harmful interference to radio or television reception, which...
