Oticon Medical Ponto Pro Power User Manual

Bone anchored hearing system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Ponto - The bone anchored hearing system from Oticon Medical
User Manual
Ponto Pro Power

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ponto Pro Power and is the answer not in the manual?

Questions and answers

Related Manuals for Oticon Medical Ponto Pro Power

Summary of Contents for Oticon Medical Ponto Pro Power

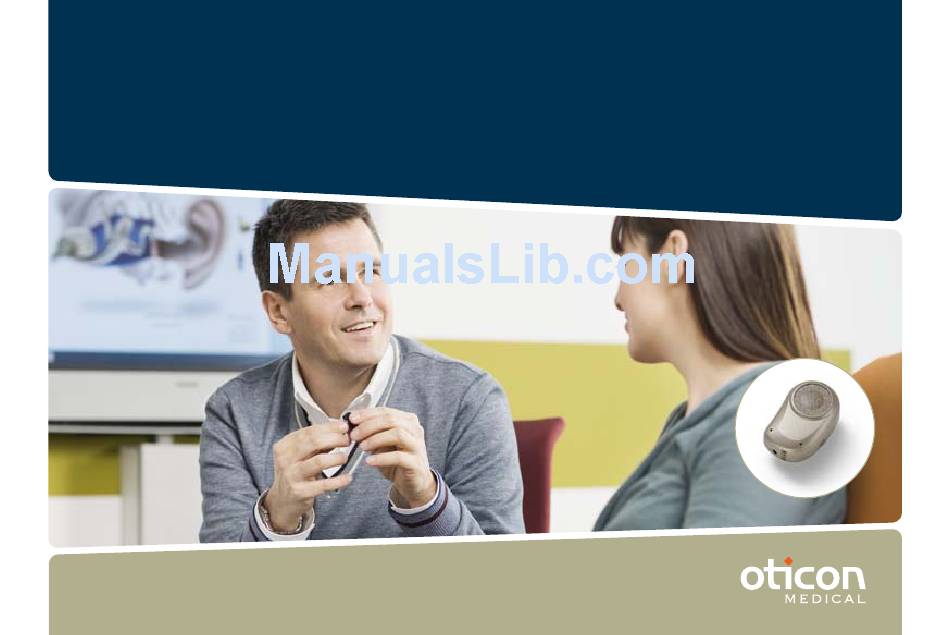

  • Page 1 Ponto - The bone anchored hearing system from Oticon Medical User Manual Ponto Pro Power...
  • Page 2 We would like to take this opportunity to congratulate you on selecting a Ponto sound processor. Ponto Pro Power is designed so that it can be optimized for each individual person. This will help you to get the best possible benefit from your sound processor.

  • Page 3: Table Of Contents

    Contents Direct bone conduction Skin hygiene Instrument view DAI (Direct Audio Input) Managing the battery DAI accessories Turning it ON and OFF or stand-by Other accessories Connection Common problems and Disconnection their possible solutions Correct position Service and repair Volume control Manufacturer’s warranty Programs Important information...

  • Page 4: Direct Bone Conduction

    Direct bone conduction Your Ponto is designed to help you gain improved hearing through direct bone conduc- tion. The sound processor converts sound into vibrations that are transmitted via the abutment and implant through the skull bone to the inner ear. In this way Ponto works independently of the function of the ear canal, ear drum and middle ear.
  • Page 5 Abutment Sound processor Implant...

  • Page 6: Instrument View

    8. Hole for safety line 9. Labeling Right or left version: Ponto Pro Power is available in a left and a right hand version. Each sound processor is marked with an L (left) or R (right) on the battery door for easy...
  • Page 7 WaRNINg The sound processor contains small parts that may be a choking hazard for small children. Batteries can also be harmful if swallowed. Always keep batteries out of reach of small children or people of diminished mental capacity. If a battery is accidentally swallowed, seek medical attention at the nearest emergency department!

  • Page 8: Managing The Battery

    Managing the battery Battery insertion Open the battery door and insert the battery with the plus-sign facing downwards on the sound processor. Only high quality zinc-air batteries, type 675, are recommended. The battery lifetime is usually between 80-160 hours. Note: It is very important to insert the battery correctly to avoid damaging the battery compartment.
  • Page 9 Low battery indicator Ponto has a low battery warning system. When it is time to change the battery you will hear two consecutive beeps. When the battery is completely worn out this will be indicated by four consecutive beeps. Battery removal After opening the battery door the battery can be removed.

  • Page 10: Turning It On And Off Or Stand-By

    Turning it ON and OFF or stand-by Ponto is turned ON by closing the battery door. After a start up jingle there is a few seconds’ delay before the sound processor is turned on. This will protect you from uncomfortable noise while connecting the sound processor. Ponto is turned OFF by opening the battery door.
  • Page 11 Note: The stand-by feature is optional and may sometimes be disabled during the fitting procedure. Talk to your hearing center if you have questions. sTaND-By  ...

  • Page 12: Connection

    Connection To safely and comfortably connect the sound processor, tilt it slightly and carefully push it onto the abutment. Note: It is important to keep your hair out of the way when the sound processor is connected to the abutment.

  • Page 13: Disconnection

    Disconnection The sound processor is safely and comfortably disconnected by carefully tilting it away from the abutment.

  • Page 14: Correct Position

    Correct position To get optimum performance from the directional microphone system, the sound processor should be positioned vertically with the microphones at the bottom and the volume control facing backwards. Note: It is very important that the sound processor does not touch anything, e.g. the ear, skin or a hat.
  • Page 15 Microphones...

  • Page 16: Volume Control

    When passing the default start up volume 2 beeps are presented. Ponto Pro Power sound processor can learn the way you adjust the volume control. After a while it will automatically adjust the amplification the way you have used the volume control in different situations.

  • Page 18: Programs

    Programs With the push button you can put Ponto in stand-by mode or change listening program if your Ponto is set up with more than one program. Note: The number of programs is optional and can be adjusted during the fitting procedure.

  • Page 19: Sound Processor Maintenance

    sound processor maintenance A dry cloth or baby wipe may be used to clean the outside of the sound processor. Special attention should be given to the coupling to remove any dirt or entangled hair. Note: No water or liquids should be used when cleaning your sound processor, it is not waterproof! If the sound processor accidentally gets wet, open the battery door and let the sound processor dry.

  • Page 20: Skin Hygiene

    skin hygiene Daily cleaning In order to reduce the risk of skin infections around the abutment, it is important to maintain a good daily cleaning routine. Before the skin has fully healed, antibacterial soap and non-alcohol baby wipes may be used to clean the area around the abutment. When healing has progressed, you should start using the soft cleaning brush supplied with the sound processor.
  • Page 21 If you have persistent problems with soreness surrounding the abutment, contact your clinic! For children, parents or caregivers are responsible for maintaining good hygiene around the abutment. Note: It is of great importance to clean both the inside and outside of the abutment. This is important to prevent debris build-up.

  • Page 22: Dai (Direct Audio Input)

    DaI (Direct audio Input) The DAI connector allows for the connection of external equipment to your Ponto. A telecoil or FM receiver may be connected directly to the sound processor. By using an audio adapter it is also possible to connect Hi-Fi external equipment like MP3-players, radio or TV equipment.
  • Page 23 Red dot External equipment must be connected so that the pin with a red dot is facing the red dot on the DAI connector.

  • Page 24: Dai Accessories

    DaI accessories audio adapter The audio adapter, that protects you from power surges, allows you to connect your Ponto to any audio unit that has a headphone outlet (3.5 mm connector). This gives direct input to external Hi-fi equipment such as: stereos, MP3-players and television sets. Getting started: 1.
  • Page 25 WaRNINg An audio adapter with an isolation transformer, that fulfills medical safety isolation (i.e., according to IEC 60601-1), must always be used when connecting to any equipment having a power supply or battery with a voltage higher than 12 V. Direct connection of any equipment with an electrical supply of higher than 12 V is poten- tially dangerous and may prove fatal.
  • Page 26 Telecoil unit The telecoil is an accessory designed to improve sound quality and speech understanding within rooms that have a telecoil loop installed. Loop facilities are available in many public buildings such as theatres, cinemas, lecture halls, schools and similar locations. The telecoil can also be used with a FM neckloop receiver or at home with special tele- loops connected to telephones, stereo and television sets.
  • Page 27 Getting started: 1. Connect the telecoil to the DAI connector on your Ponto before connecting the sound processor to the abutment. Make sure the red dot on the telecoil contact is aligned with the red dot on the sound processor. 2.

  • Page 28: Other Accessories

    Other accessories safety line The safety line is designed to help you avoid dropping your Ponto during for example physical activity or in other situations where there is a great risk that the sound processor may fall off. To avoid dropping your Ponto in such situations, the safety line should be attached to the sound processor and the clip to your clothing.
  • Page 30 Test rod The test rod allows you to listen to the sound processor without connecting it to an abutment. Connect your Ponto to the test rod and press it against the head to listen to the sound processor. This is useful for demonstrating and testing your Ponto for your friends and family.
  • Page 31 abutment cover The abutment cover can be connected to the abutment when the sound processor is not used. This prevents dirt from getting into the abutment and also conceals the abutment. Push button stickers These stickers provide you with the opportunity to adapt the looks of your Ponto. How to apply and remove the sticker: 1.

  • Page 32: Common Problems And Their Possible Solutions

    Common problems and their possible solutions symptom Possible causes No sound Worn-out battery Sound processor is in stand-by (mute) Intermittent Dirt in the coupling or sound inlet or reduced sound Moisture Worn-out battery Whistling noise Sound processor touches something If none of the above solutions solves the problem, please contact your hearing center for assistance.
  • Page 33 solutions Change battery pg. 8-9 Press push button pg. 10-11 Clean the sound processor pg. 19 Open the battery drawer and let the sound processor dry out in its case pg. 19 Change battery pg. 8-9 Check so that the sound processor is correctly connected and does not touch anything pg.

  • Page 34: Service And Repair

    service and repair If your Ponto does not function properly, contact your hearing center or ear clinic to get it checked: Contact person at hearing center – name and contact information: Contact person at ear clinic – name and contact information:...

  • Page 35: Manufacturer's Warranty

    Please consult him/her for further information. If you have any comments or suggestions related to the Oticon Medical bone anchored hearing system, please use the e-mail address on the back of the manual to contact us!

  • Page 36: Important Information

    Important information • It is important to follow the skin hygiene guidelines, please contact your clinic if you have questions or concerns. • Always keep your sound processor in its box when it is not being worn so that it is protected from dust and dirt.
  • Page 37 • Remove the sound processor or use the safety line when taking part in activities where there is a risk that the sound processor may fall off. • Always cover your sound processor when applying hair products. • To avoid setting off metal detectors when travelling, your sound processor can be removed before passing through the security controls.
  • Page 39 Warnings • The sound processor, batteries, parts and accessories are not toys and should be kept out of reach of children and anyone who might swallow these items or otherwise cause injury to themselves. The sound processor contains small parts that may be a choking hazard for small children.
  • Page 40 Battery use • Always use batteries recommended by your hearing care professional. Batteries of low quality may leak and cause bodily harm. • Batteries can be harmful if swallowed. Always keep batteries out of reach of small children or people of diminished mental capacity. If a battery is accidentally swallowed, seek medical attention at the nearest emergency department!
  • Page 41 safety requirements regarding Direct audio Input (DaI) • An audio adapter with an isolation transformer, that fulfills medical safety isolation (i.e., according to IEC 60601-1), shall always be used when connecting to any equip- ment having a power supply or battery with a voltage higher than 12 V. Direct connec- tion of any equipment with an electrical supply of higher than 12 V is potentially dangerous and may prove fatal.
  • Page 43 For usa only: Federal law restricts this device to sale by or on the order of a medical practitioner. A prospective user of a bone anchored sound processor should always have a medical evaluation by a licensed physician to ensure that all medically treatable conditions that may affect hearing are identified and treated before a sound processor is pur- chased.
  • Page 44 Manufacturer: Regional Office: Oticon Medical aB Ekonomivägen 2 Oticon Medical, LLC SE-436 33 Askim 19 Schoolhouse Road Sweden Somerset, NJ 08873, USA Phone: +46 31 748 61 00 Phone: 1-888-277-8014 info@oticonmedical.com info@oticonmedicalusa.com Local Offices: united Kingdom Canada south africa Oticon Medical...
