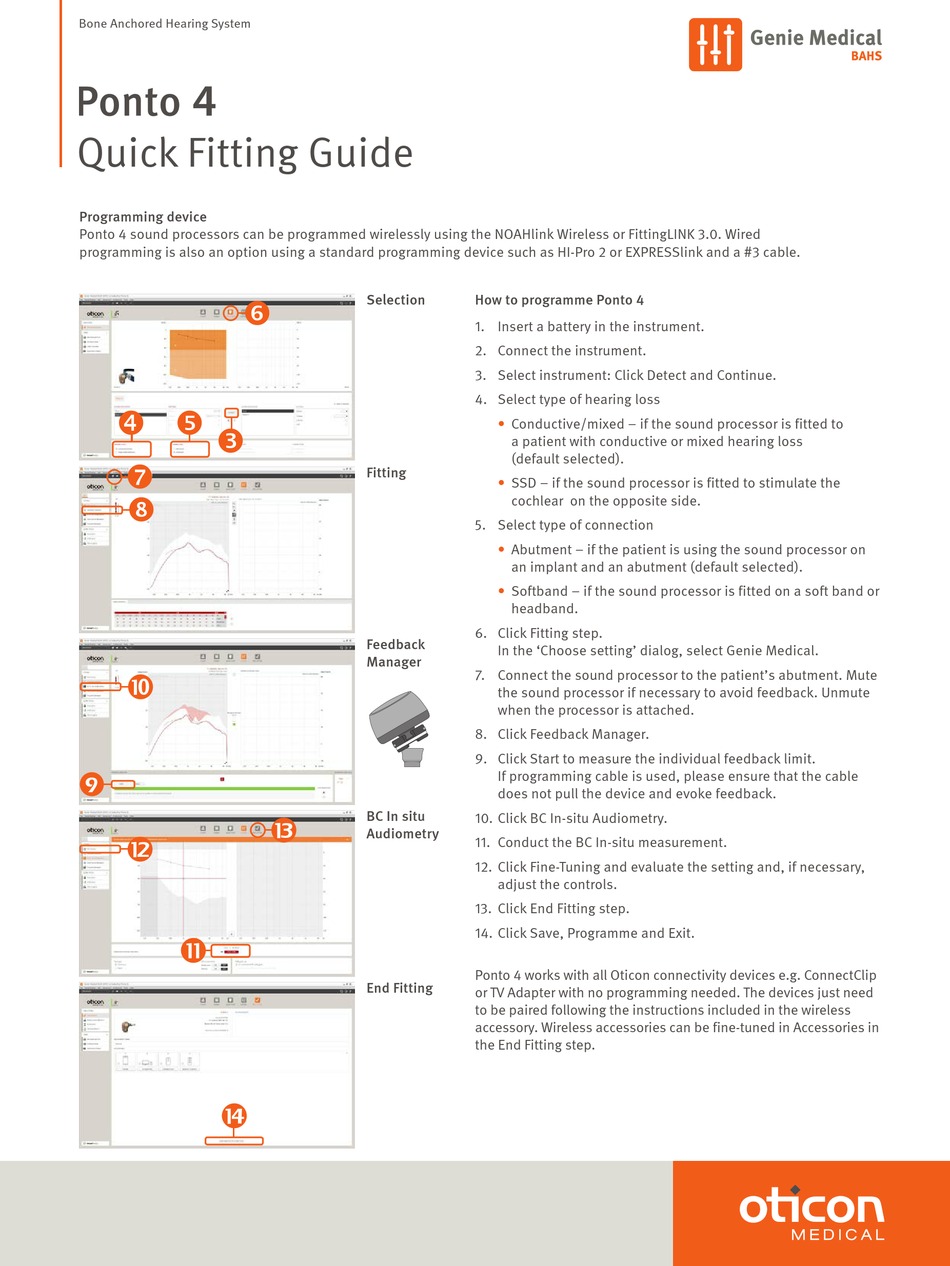

Oticon Medical Ponto 4 Quick Fitting Manual

Bone Anchored Hearing System
Quick Fitting Guide

Programming device

Ponto 4 sound processors can be programmed wirelessly using the NOAHlink Wireless or FittingLINK 3.0. Wired
programming is also an option using a standard programming device such as HI-Pro 2 or EXPRESSlink and a #3 cable.

 



0
9
2
4

Selection

Fitting

Feedback
Manager
BC In situ
3
Audiometry

End Fitting

How to programme Ponto 4

1. Insert a battery in the instrument.
2. Connect the instrument.
3. Select instrument: Click Detect and Continue.
4. Select type of hearing loss
• Conductive/mixed – if the sound processor is fitted to
a patient with conductive or mixed hearing loss
(default selected).
• SSD – if the sound processor is fitted to stimulate the
cochlear on the opposite side.
5. Select type of connection
• Abutment – if the patient is using the sound processor on
an implant and an abutment (default selected).
• Softband – if the sound processor is fitted on a soft band or
headband.
6. Click Fitting step.
In the 'Choose setting' dialog, select Genie Medical.
7. Connect the sound processor to the patient's abutment. Mute
the sound processor if necessary to avoid feedback. Unmute
when the processor is attached.
8. Click Feedback Manager.
9. Click Start to measure the individual feedback limit.
If programming cable is used, please ensure that the cable
does not pull the device and evoke feedback.
10. Click BC In-situ Audiometry.
11. Conduct the BC In-situ measurement.
12. Click Fine-Tuning and evaluate the setting and, if necessary,
adjust the controls.
13. Click End Fitting step.
14. Click Save, Programme and Exit.
Ponto 4 works with all Oticon connectivity devices e.g. ConnectClip
or TV Adapter with no programming needed. The devices just need
to be paired following the instructions included in the wireless
accessory. Wireless accessories can be fine-tuned in Accessories in
the End Fitting step.
