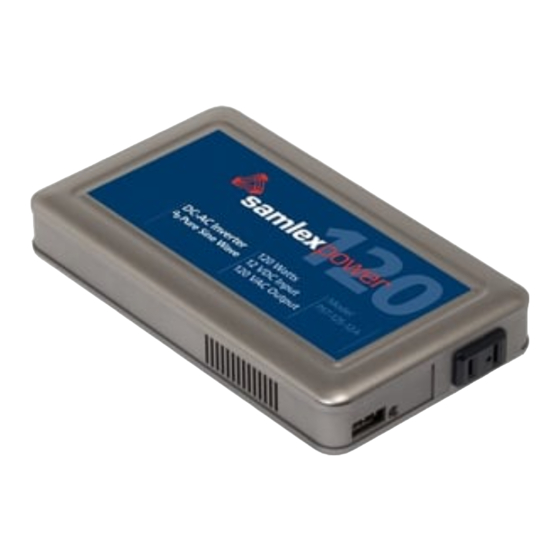

Samlexpower PST-12S-12A Owner's Manual

120 watt dc-ac inverter pure sine wave
Hide thumbs Also See for PST-12S-12A:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
120 Watt
DC-aC Inverter
Pure Sine Wave
PSt-12S-12a
Owner's
Please read
this manual
Manual
before
using your
inverter

Advertisement

Table of Contents
loading

Related Manuals for Samlexpower PST-12S-12A

Summary of Contents for Samlexpower PST-12S-12A

  • Page 1 Owner's 120 Watt Please read this manual Manual DC-aC Inverter before using your Pure Sine Wave inverter PSt-12S-12a...

  • Page 2: General Safety

    INTRODUCTION Thank you for choosing to purchase our inverters. Our power inverter series are designed to be your best companion at home, in the office, when travelling, outdoor camping, at sea, etc. This power inverter has a rated output of 120 Watts. The inverter series can be used to operate laptops, portable electronics, most small TVs, VCRs, sound systems and small handy tools, and other portable sensitive electronic products.
  • Page 3 DESCRIPTIONS 1. USB Charger (5V / 500mA) 2. LED Status Indicator 3. AC Outlet Fig. 1 - Front view 4. Cooling Slots 5. DC Fuse 6. DC Input Connector Fig. 2 - Rear view...
  • Page 4 DESCRIPTIONS 7. Cooling Slots Fig. 3 - Plan, elevations & dimensions Cooling Slots Fig. 4 - Installation clearances for installation...

  • Page 5: Operational Guidelines

    OPERATIONAL GUIDELINES Connect the DC Input Wire to the DC Input Connector. Plug in the cigarette lighter plug of the DC Input Wire into the cigarette lighter socket. When the LED Status Indicator light is green, the inverter’s AC Outlet and USB port will have voltage outputs.

  • Page 6: Technical Specifications

    TECHNICAL SPECIFICATIONS PSt-12S-12a Parameter Output Power: 120W Continuous: Output Voltage: 120V+/-3% Output Frequency: 60Hz +/-1% Output Wave Form: Pure Sine Wave Total Harmonic Distortion: < 3% Input Voltage Range: 10V~16.5V Maximum efficiency: No Load Current : <0.5 A Input current, maximum:...

  • Page 7: Disclaimer Of Liability

    WARRANTY The PST-12S-12A Inverter supplied by Samlex America, Inc. (the “Warrantor“) is warranted to be free from defects in workmanship and materials under normal use and service. This warranty is in effect for 2 years from the date of purchase by the user (the “Purchaser“).
  • Page 8 110-17 Fawcett Rd T: 604 525 3836 e-mail: samlex@samlexamerica.com Coquitlam, B.C. F: 604 525 5221 website: www.samlexamerica.com Canada V3K 6V2 034-2009-096_PSt-12S-12a_feb-2010...
