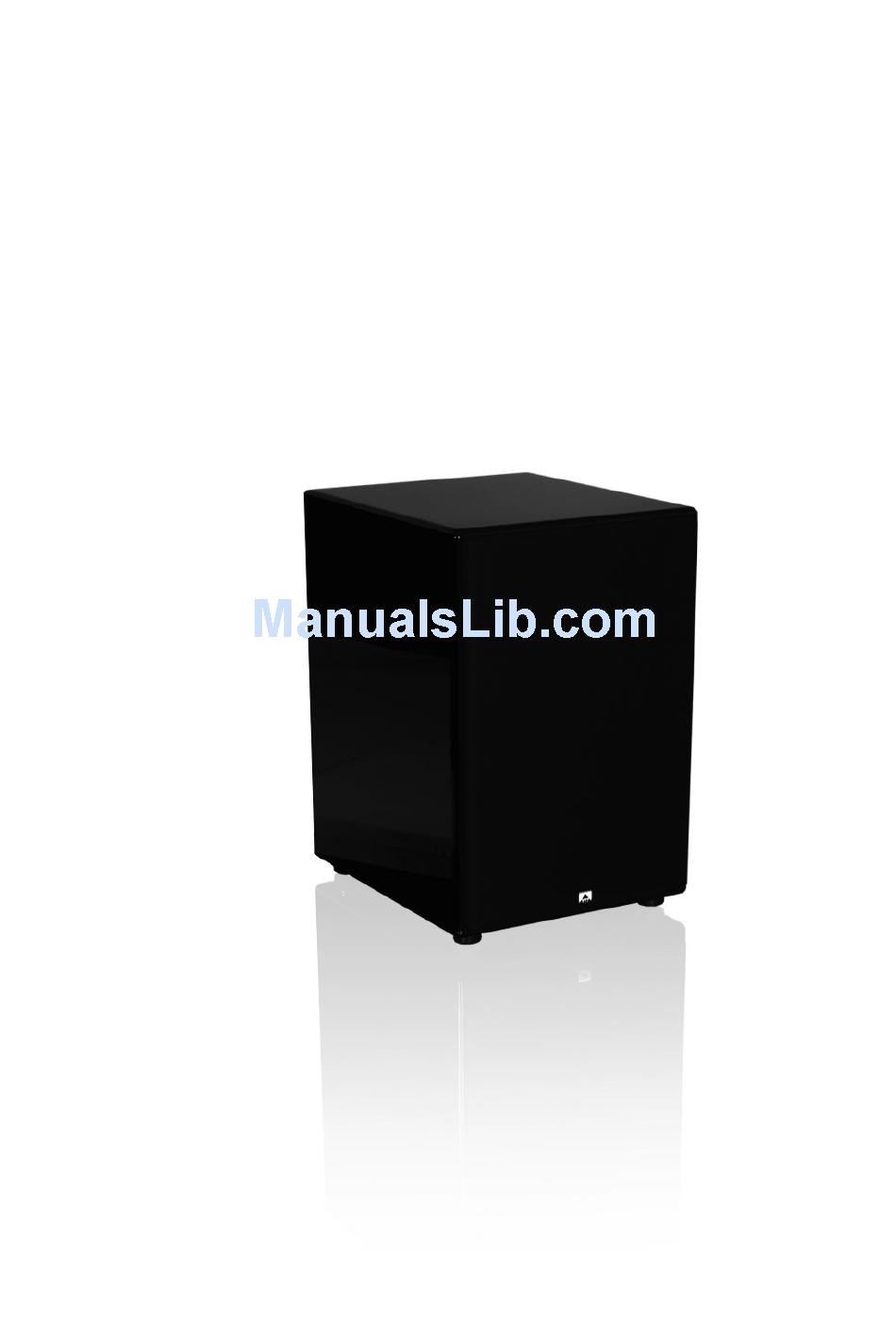

- Page 1 XTZ 99 W12 DSP Active subwoofer with integrated DSP (Digital Sound Processor) User manual © 2007 XTZ AB , www.xtz.se 1 / 26...
-
Page 2: Table Of Contents
Table of contents Page: Contents About XTZ Technical presentation Preparations Practice of sound / Installation and placement tips Mounting Functional reference Quick reference Functions/ Area of usage/ Sound adjustment Technical explanations Technical specifications Service & Support 2 / 26... -
Page 3: Contents
Contents Contents Congratulations of your purchase of the XTZ DSP Powered Subwoofer! When combined with surround audio/video electronics, you will experience sound of motion pictures or music records much deeply and naturally. Now when you watch your favourite movie or listen to your reference music CDs, you... -
Page 4: About Xtz
About XTZ Philosophy Our reference and starting point is to recreate a natural sound, taking into account that acoustics always is a matter of taste. With advanced DSP technology we can reach this goal without compromises. It gives us full freedom... -
Page 5: Technical Presentation
With the DSP technology we can create a good balanced sound in every room. Amplifier We have equipped the XTZ W12 DSP with a very powerful amplifier with 400 Watts and a big cooling flange for effective cooling. For professional use (studio, PA etc.), it is equipped with a balanced... - Page 6 The built-in DSP module works is equipped with 24-bit/96-kHz AD/DA converters and the best software on the market today allowing you perfect adaptation subwoofer room characteristic and adjustment of the sound character, always keeping best possible quality of sound. To provide the highest sound quality the DSP runs advanced low-noise filter algorithms with 32-bit calculation precision.
-
Page 7: Preparations
PC-Remote is a software, allowing you to control 99 W12 DSP from a PC. You can sit in listening position and do all settings. The program is included in price, but you need to download the software from www.xtz.se 7 / 26... -
Page 8: Practice Of Sound / Installation And Placement Tips
Practice of sound / Installation and placement tips This chapter contains common information on loudspeaker placement and installation. This is general rules, so there are exceptions of some rules In which room do No matter how good the equipment is, in the wrong listening environment it will inevitably sound bad. - Page 9 Cables Try to keep them as short as possible. By its electrical parameters, a long conductor will have a bigger influence on the sound than a short one. It may also work as an antenna and thus receive various signals that may become a constant noise in an active subwoofer.
-
Page 10: Mounting
Mounting Mounting 99 W12 DSP give you much freedom to place the subwoofer anywhere. Example: With the function “DELAY” the subwoofer can be placed near the listening position with shorter distance to the listener than the front system, and delay the sound to the subwoofer so you get no phase and time problem between the front system and the subwoofer. -
Page 11: Functional Reference
Functional reference Rearpanel 1. Input gain meter 2. Standby indicators 3. LCD display 4. Function button 5. Value buttons 6. IR port 7. Contrast adjustments for LCD Display 8. Volume knob 9. Balanced input 10. Ground choices 11. Low level input 12. - Page 12 RCA inputs. Connector for PC. For the PC-remote software. 12 RS 232 PC The program is in price included but you need to download it from www.xtz.se connector 13 Input selector INPUT SELECTOR Select input between: XLR ,RCA or High-level...
-
Page 13: Quick Reference
Quick reference If you want to use the product quickly, follow these instructions. Connection Connect to input: XLR, RCA or Speaker input. Select your local mains voltage with the power switch. Connect the power switch and turn the main switch on. INPUT SELECTOR Choose one of: XLR, RCA or Speaker input. -
Page 14: Functions/ Area Of Usage/ Sound Adjustment
You can sit in listening position and do all PC-remote program. settings. The program is in price included but you need to download it from www.xtz.se The manual for PC-remote can you also download from www.xtz.se Select function With the "FUNCTION"-buttons, you select which... - Page 15 "FUNCTION" and adjust the level with the buttons "VALUE". How to use function 2 - 11 via PC-remote. Software downloaded from www.xtz.se Function 12 SUBSONIC FILTER - Frequency One step = 1 Hz Low-cut filters to cut the lowest frequencies. Adjustable from 10-40Hz.
- Page 16 How to use function The subsonic filter cuts unwanted frequencies in the deepest bass range. An example of unwanted 12 and 13 sound is "rumble" from a turntable or wind noise from a microphone. The reason to cut these unwanted frequencies: - To decrease the noise level in the listening room.
- Page 17 Function 16 OUTPUT / Polarity Select polarity. Select: Negative or Positive Here you can select the polarity. You can select either: Negative or Positive. Function 17 OUTPUT / Phase 1st Ord. One step = 1 degree Phase. The phase adjusts from 0 - 180 degrees. Incorrect phase alignment between the main loudspeakers and subwoofer causes a drop in the frequency response of the whole system at the...
- Page 18 How to use function Incorrect frequency, polarity and phase alignment between the main loudspeakers and subwoofer 14, 15, 16 and 17 causes a gap in the frequency response of the whole system at the crossover frequency. The graph to the right shows the effect of phase difference to the frequency response.
- Page 19 How to use function With the function OUTPUT /Delay you can store a time delay. Therefore you can perfectly adapt 99 W12 DSP to your main speaker to avoid time and phase problem. 1. Measure the distance between main speaker and listening position.
- Page 20 Function 21 PEQ 1 - Q Factor One step = 0.1 Q-factor - See: Technical explanations. Q-Factor. Select Q-factor. You can select Q-factor between 0.5 - 50 How to use Function The parametrical equalizer is a precision tool to achieve perfect sound balance. The parametrical 19-33 equalizer allows controlling over the centre frequency,...
- Page 21 How to use Function In ON mode the amplifier is on constantly. In Auto-off mode the amplifier switched to standby after the chosen time. Choose between 1 to 30 minutes. Function 36 REAL-TIME CLOCK Adjust the clock. How to use Function Adjust the clock with "Function"...
- Page 22 Mechanical factors, there exists no "standard" setting on XTZ 99 W12. adjustment of the for a neutral representation. This makes it possible to alter the sonic boundary frequency characteristics of the woofer.
-
Page 23: Technical Explanations
Technical explanations Slope The slope is commonly used to describe the steepness degree of the filter. A higher slope value indicates a steeper filter. Boundary Cut off frequency (fc) is the frequency either above which or below which the power output of a circuit, frequency/Cut off such as a line, amplifier, or filter, is reduced to ½... - Page 24 Room modes Room modes come from reflections in the room. Sound directly from the speakers and sound reflections forms a pattern in the room. Same frequency in phase gives you room modes If the frequency is in opposite phase, they will put out each other and you get a dip.
-
Page 25: Technical Specifications
PC-Remote is software allowing you to control 99 W12 DSP from a PC. You can sit in listening position and do all settings. The program is included in the price but you need to download the newest software from www.xtz.se 25 / 26... -
Page 26: Service & Support
Please contact our “free-of-charge” support if you need installation advice, or if any problems occur during the installation. Contact us by e-mail support@xtz.se and include your phone number if you require help, and we will ring you back. 26 / 26...
