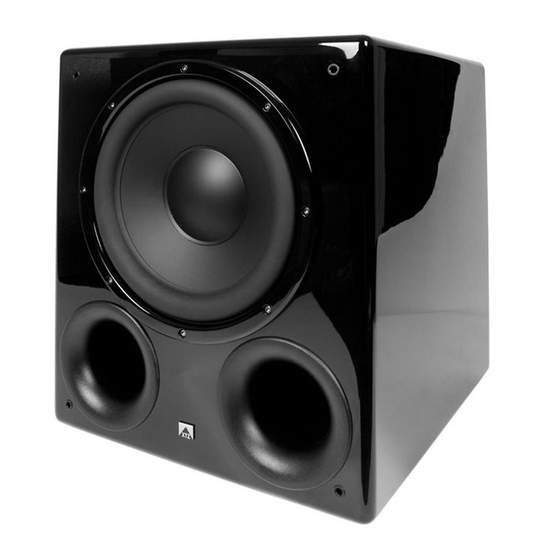

- Page 1 XTZ 99 W12.18 P Passive High End subwoofer User manual © 2009 XTZ AB , www.xtz.se Page: 1 / 10...
-
Page 2: Table Of Contents
Table of contents Page: Contents About XTZ Technical presentation Preparations Practice of sound / Installation and placement tips Mounting Area of usage Technical specifications Service & Support Page: 2 / 10... -
Page 3: Contents
XTZ 99 W12.18P is a passive subwoofer, which means that an amplifier is needed for power the woofer. Read the manual before using the product and use all possibilities carefully. -
Page 4: Technical Presentation
Technical presentation Amplifier The W12.18P is a passive woofer, so an extern amplifier is a need. 100-400 Watt is appropriate power. The woofer/ driver We have chosen a 12 inch woofer from (in this field famous) Danish/American company Tymphany. The woofer is a Peerless XXLS 12 (Xpanded Extra Long Stroke). -
Page 5: Practice Of Sound / Installation And Placement Tips
Practice of sound / Installation and placement tips This chapter contains common information on loudspeaker placement and installation. This is general rules, so there are exceptions of some rules No matter how good the equipment is, in the wrong In which room do listening environment it will inevitably sound bad. - Page 6 Cables Try to keep them as short as possible. By its electrical parameters, a long conductor will have a bigger influence on the sound than a short one. It may also work as an antenna and thus receive various signals that may become a constant noise in an active subwoofer.
-
Page 7: Mounting
This subwoofer is intended for XTZ products, but can of course be used with other speakers. Spikes 99 W12.18P have feet of rubber to absorb vibrations. -
Page 8: Area Of Usage
Mechanical factors, there exists no "standard" setting on XTZ 99 W12.18P adjustment of the for a neutral representation. This makes it possible to alter the sonic boundary frequency characteristics of the woofer. -
Page 9: Technical Specifications
Technical specifications Construction type Passive subwoofer, Bass reflex gate or may be set as closed box. Room-tuning. Dimensions 460 x 394 x 460 mm (HxWxD) Feet not included Weight 27,5 kg Magnetic shielded Power handling 350 W Short term - IEC 268-5 driver 175 W Long term -... -
Page 10: Service & Support
Please contact our “free-of-charge” support if you need installation advice, or if any problems occur during the installation. Contact us by e-mail support@xtz.se and include your phone number if you require help, and we will ring you back. Page: 10 / 10...
