Page 1: User Manual
XTZ 99 W10.16 Active subwoofer User manual © 2009 XTZ AB , www.xtz.se... -
Page 2: Table Of Contents
Table of contents Page: Contents About XTZ Technical presentation Practice of sound / Installation and placement tips Mounting Function reference Sound settings Technical specifications Service & Support... -
Page 3: Contents

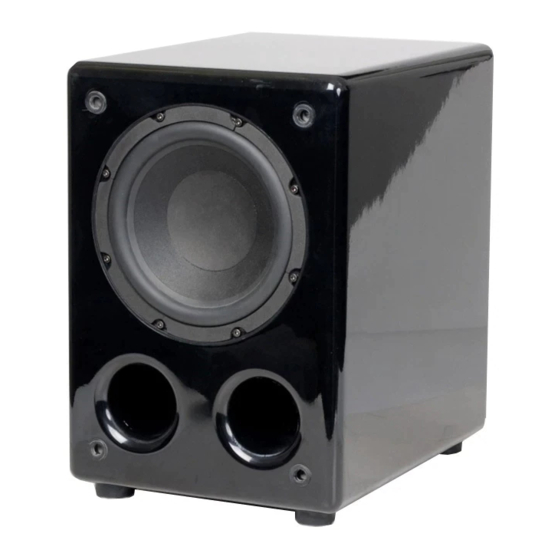

The 99 W10.16 subwoofer combines a 300- watt continuous power amplifier, heavy-duty 10" woofer. 99 W10.16 is a product with many options, so read the manual carefully before using it. About XTZ Philosophy... -
Page 4: Technical Presentation
Technical presentation Amplifier The XTZ 99 W10.16 is equipped with a powerful 300 watt amplifier with a large heat sink for effective cooling. For professional use (studio, PA etc), it is equipped with a balanced input. The terminal connectors are gold plated and very solid. -
Page 5: Practice Of Sound / Installation And Placement Tips
Practice of sound / Installation and placement tips This chapter contains common information on loudspeaker placement and installation. This is general rules, so there are exceptions of some rules In which room do No matter how good the equipment is, in the wrong listening environment it will inevitably sound bad. - Page 6 Cables Try to keep cables and wires as short as possible. Due to its electrical features, a long conductor will have a bigger influence on the sound than a short one. Make sure that all connections are clean and not oxidized.
-
Page 7: Mounting
Mounting Mounting The XTZ 99 W10.16 is best placed standing on the floor. However it is fully possible to lay it down without affecting the sound. Driver and bass reflex gates should not be faced towards floor or wall; they need to "breathe" freely. -
Page 8: Functional Reference
Functional reference Rear panel 1. Input Volume 2. Frequency Crossover 3. Phase 4. Auto On/Always on 5. EQ 1 6. EQ 2 7. High Pass/Subsonic 8. XLR/Balanced Input 9. RCA/Low level Input 10. Standby/On indicator 11. High Level input 12. Fuse 13. -
Page 9: Main Switch
15. Main sw itch Be gentle on the volume knob, please 1 Input Volume Controls volume level of subwoofer remember that certain sound signals may contain a lot of energy. Frequency crossover 2 Frequency The filter slope is 18 dB/octave. You can hereby change the character of the woofer, depending on what you prefer (more or less Variable control ranging from 40Hz to 250Hz... - Page 10 altering the poles of the cables (setting + to - and - lines is 18 degrees to +) 4 Auto on Auto on or Always on Auto on starts the sub, when signal comes from amplifier. Always on keeps the subwoofer on all the time.
-
Page 11: Sound Settings
Mechanical factors, there exists no "standard" setting of XTZ 99 W10.16. adjustment of the for a neutral representation. This makes it possible to alter the sonic boundary frequency characteristics of the woofer. -
Page 12: Technical Specifications
Technical specifications Active subwoofer, Bass reflex gate or may be set as Construction type closed box. Room-tuning. Dimensions 422 x 300 x 380 mm (HxWxD) (Feet, +15 mm) Amplifier on rear panel +45 mm Weight 27 kg 300 W RMS in 4 ohm Power amplifier 400 W RMS in 2 ohm 800 W Short term IEC 268-5... -
Page 13: Service & Support
If you open the product there is a risk of electrical shock. Safety The 99 W10.16 subwoofer has been designed in accordance with international safety standards. However , to ensure safe operation and maintain the unit in safe operating condition ,the following warnings and cautions must be observed •...
