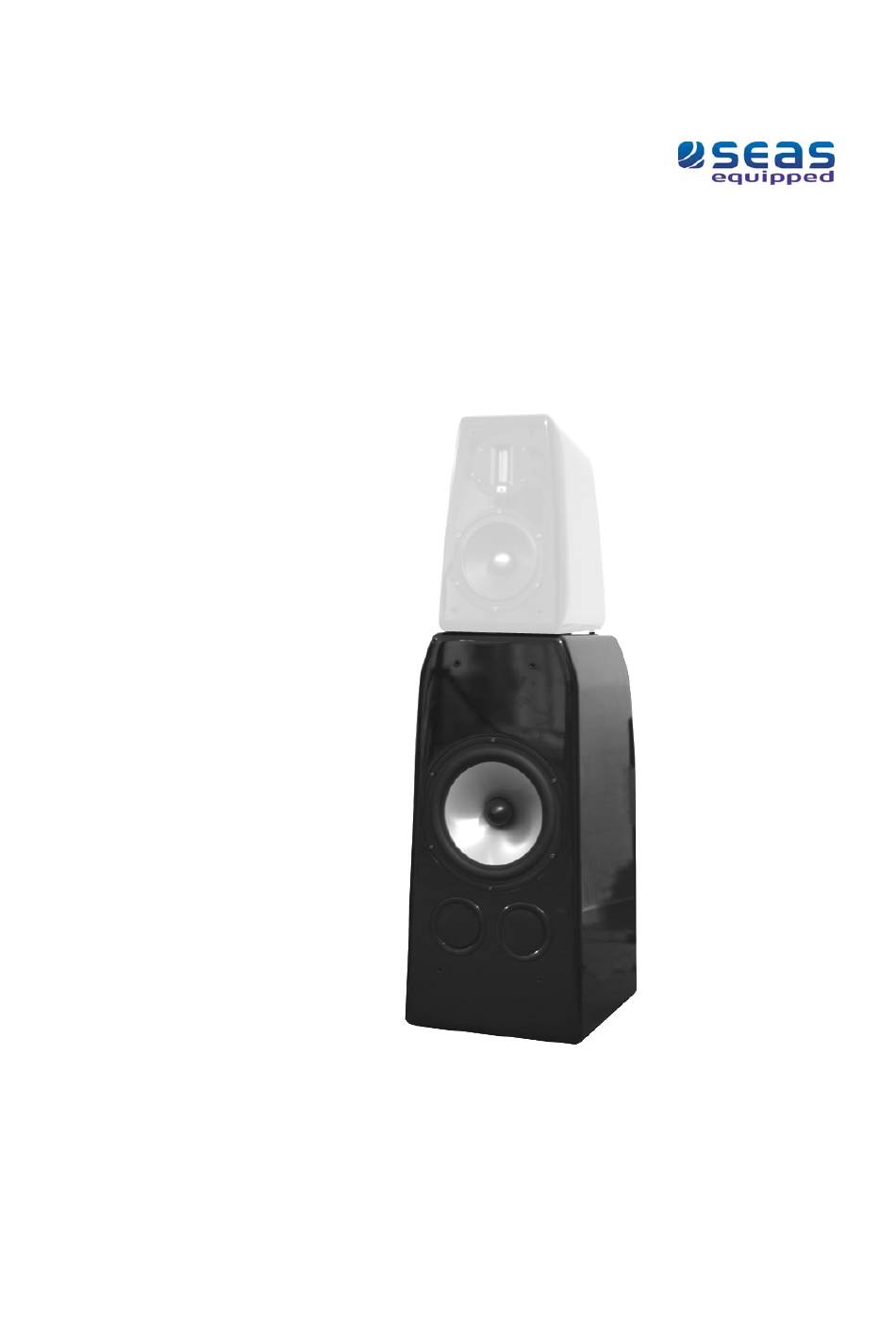

- Page 1 XTZ99 W10.17P Passive subwoofer User manual © 2007 XTZ AB , www.xtz.se Sida: 1 / 10...
-
Page 2: Table Of Contents
Table of contents Page: Contents About XTZ Technical presentation Preparations Practice of sound / Installation and placement tips Mounting Area of usage Technical specifications Service & Support Sida: 2 / 10... -
Page 3: Contents
XTZ 99 W10.17P is a passive subwoofer, which means that an amplifier is needed for power the woofer. Read the manual before using the product and use all possibilities carefully. -
Page 4: Technical Presentation
Technical presentation Amplifier The W10.17P is a passive woofer, so an extern amplifier is a need. 100-400 Watt is appropriate power. The woofer/ driver We have chosen a 10 inch woofer, from (in this field famous ) the Norwegian company Seas, with an extremely stiff and stable injection moulded metal basket to keep the critical components in perfect alignment. -
Page 5: Practice Of Sound / Installation And Placement Tips
Practice of sound / Installation and placement tips This chapter contains common information on loudspeaker placement and installation. This is general rules, so there are exceptions of some rules In which room do No matter how good the equipment is, in the wrong listening environment it will inevitably sound bad. - Page 6 Cables Try to keep them as short as possible. By its electrical parameters, a long conductor will have a bigger influence on the sound than a short one. It may also work as an antenna and thus receive various signals that may become a constant noise in an active subwoofer.
-
Page 7: Mounting
This subwoofer is intended for XTZ 99.26, but can of course be used with other speakers. Together they will be a competent 2.2 system. Spikes 99 W10.17P have feet of rubber to absorb... -
Page 8: Area Of Usage
Mechanical factors, there exists no "standard" setting on XTZ 99 W10.17P adjustment of the for a neutral representation. This makes it possible to alter the sonic boundary frequency characteristics of the woofer. -
Page 9: Technical Specifications
Technical specifications Construction type Passive subwoofer, Bass reflex gate or may be set as closed box. Room-tuning. Dimensions 700 x 330 x 405 mm (HxBxD) Weight 25,5 kg Magnetic shielded Power handling 300 W Short term - IEC 268-5 driver 125 W Long term - IEC 268-5 Impedance driver... -
Page 10: Service & Support
Please contact our “free-of-charge” support if you Support need installation advice, or if any problems occur during the installation. Contact us by e-mail support@xtz.se and include your phone number if you require help, and we will ring you back. Sida: 10 / 10...
