This Operator's Manual is an integral part of the safe operation of this machine and must
be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety
and Operation Instructions contained in this manual before operating the equipment. C01-
Cover
®
RHINO
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: parts@servis-rhino.com
OPERATOR'S MANUAL
©2010 Alamo Group Inc.
TWISTER
SERIES

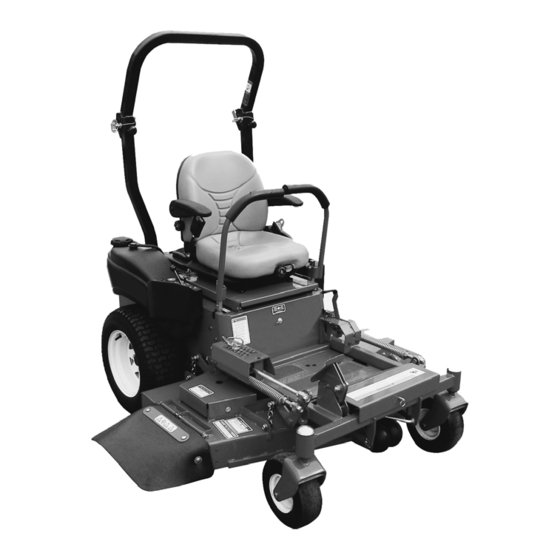

Zero Turn Riding Mower
Part No. 50068791
$0.00

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Twister Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RHINO Twister Series

Summary of Contents for RHINO Twister Series

  • Page 1 READ, UNDERSTAND, and FOLLOW the Safety and Operation Instructions contained in this manual before operating the equipment. C01- Cover ® RHINO 1020 S. Sangamon Ave. Gibson City, IL 60936 800-446-5158 Email: parts@servis-rhino.com ©2010 Alamo Group Inc. $0.00...
  • Page 2 If your manual should become lost or destroyed, Rhino will be glad to provide you with a new copy. Order from Rhino, 1020 S. Sangaman Ave., Gibson City Il 60936. Most of our manuals can also be downloaded from our website at www.servis-rhino.com.

  • Page 3: Table Of Contents

    It is the Retail Customer’s responsibility to deliver the product to the authorized Rhino Dealer, from whom he purchased it, for service or replacement of defective parts which are covered by warranty.
  • Page 4 3. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 4. If parts not made or supplied by Rhino have been used in connection with the unit, if, in the sole judgement of Rhino such use affects its performance, stability or reliability.

  • Page 5: Warranty

    14. Steering checked and adjusted, if necessary. 15. Check tire pressure. 16. Warranty information has been registered on line with Rhino. 17. Operators manual has been delivered to owner and he has been instructed on the safe and proper use of the cutter.

  • Page 6: Safety Alert Symbols

    Safety Alert Symbol This Safety Alert Symbol means: “ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” This symbol is used to call attention to safety precautions that should be followed by the operator to avoid accidents. When you see this symbol, carefully read the message that follows and heed its advice.
  • Page 7 IMPORTANT SAFETY PRECAUTIONS This symbol is used to call attention to safe- ty precautions that should be followed by the operator to avoid accidents. When you see this symbol, carefully read the message that follows and heed its advice. Failure to comply with safety precautions could result in serious bodily injury.
  • Page 8 SAFETY CONTINUED KNOW HOW TO STOP QUICKLY. Know the location and operation of every control, especially how to brake and how to disengage the mower blades. DO NOT MOVE THE CONTROL LEVERS from forward position to reverse position rapidly. The speed and/or direction of travel is affected instantly by movement of the Control Levers.
  • Page 9 TOWING Use for towing only if equipped with a Rhino hitch kit. Do not attach towed equipment except at the hitch point. Never allow children or others in or on towed equipment. On slopes, the weight of the towed equipment may cause loss of traction and loss of control.
  • Page 10 IMPORTANT FEDERAL LAWS AND REGULATIONS* CONCERNING EMPLOYERS, EMPLOYEES AND OPERATIONS. *(This section is intended to explain in broad terms the concept and effect of the following federal laws and regulations. It is not intended as a legal interpretation of the laws and should not be considered as such). U.S.
  • Page 12 Contents Acknowledgment ......2 Foreword ........2 Safety Alerts.

  • Page 13: Safety Alerts

    Safety Alerts Symbol Signal Words This Safety Alert Symbol means: “ATTENTION! Signal words are distinctive words that will typically be STAY ALERT! YOUR SAFETY IS INVOLVED!” found on safety signs on the mower and other worksite equipment. These words may also be found in this The Safety Alert Symbol identifi es important safety manual and the manufacturer’s manuals.

  • Page 14: The Industrial/Agricultural Mower

    The Industrial/Agricultural Mower Industrial/Agricultural Mower Types Mowers are used for pasture clipping, crop residue shredding, heavy brush cutting, waterways, right-of- Flail ways, roadside or highway mowing. Also, these mowers are used for cutting grass and other growth in public areas such as parks and cemeteries. Boom Rotary Sickle Bar...

  • Page 15: Follow A Safety Program

    Follow A Safety Program Protect Yourself Wear personal protective clothing and Personal Protective Equipment (PPE) issued to you or called for by job conditions. You must ALWAYS wear safety glasses with side shields. You may also need: — Hard hat —...
  • Page 16 Follow A Safety Program Avoid Injury From Raised Equipment Avoid Injury From High Pressure Fluid Avoid possible crushing injury from falling mower or Avoid fl uid injection injury due to high pressure fl uid leaks. other raised equipment. High Pressure Fluid Can Inject into the Body Avoid Crushing –...
  • Page 17 Follow A Safety Program Be Alert! For Safe Operation Know where to get assistance. Know how to use a fi rst You must be a qualifi ed and authorized operator for aid kit and fi re extinguisher/fi re suppression system. proper operation of your machine.
  • Page 18 Follow A Safety Program Some Rules You Must Work By (continued) Keep — Only qualifi ed and authorized individuals may operate Children this equipment. Away from — Never allow children to play on, ride on or operate Equipment the equipment. Children are not qualifi ed to operate this equipment.

  • Page 19: Prepare For Safe Operation

    Prepare For Safe Operation Check The Mower And Tractor Equipment Before beginning your work day inspect the machine Walk-Around and have all systems in good operational condition. Inspection WARNING! Prevent possible crushing injury from falling equipment. Hydraulic system or part failure could cause unsupported equipment to fall.
  • Page 20 Prepare For Safe Operation Know The Work Area Correct unsafe conditions. Do not operate in problem areas where debris and obstacles cannot be removed Before you operate the mower thoroughly inspect or marked. the work area. Walk around the area and inspect the Analyze mowing area to determine: surfaces you will travel on when using the mower.
  • Page 21 Prepare For Safe Operation Tractor And Mower Controls Safety Test — Raise and lower mower to check for driveline bottoming out or engagement problems. Start the tractor following the specifi c procedures in the — Check the equipment for excessive vibration and manufacturer’s operator’s manual.
  • Page 22 Prepare For Safe Operation Hitching Mower To Tractor Read and Three-point hitch-mounted mowers: Understand Manuals Before — Refer to mower and tractor manufacturers’ manuals. Operating — Place tractor’s hydraulic power lift (rockshaft) selector lever in down position to avoid unexpected movement.

  • Page 23: Start Safely

    Start Safely Make The Right Start Mow only in daylight or good artifi cial light conditions. Rotating Blades – Avoid serious injury or death from mower-thrown Keep Away objects or blade contact: — Keep chain shields, fl exible or solid defl ector shields or discharge chutes in place and in good repair.
  • Page 24 Operate Safely Mower-Thrown Objects (continued) Disc Mowers — When using a disc mower it is Do Not Mow important to know the area to be mowed. If the operator in Reverse has mowed the fi eld before and is familiar with all obstacles that may be present, it is suffi cient to watch ahead of the mower path for any additional objects that may have entered the fi eld.
  • Page 25 Operate Safely Under Mount Mower Safety Practices When mowing with an under mount mower: Never Stand — Keep removable discharge chute in place and over on Mower – Keep Away discharge opening. — Never stand on a mower housing when the tractor engine is operating.
  • Page 26 Operate Safely Wing And Side Mount Mowers Safety Practices 300 ft (92 m) Raised wing positions reduce shielding protection and Keep Bystanders increases the thrown object and blade contact hazard Away from risks. Mowing Area Avoid possible serious injury or death by thrown objects or blade contact from raising and lowering wings during mowing operations: —...
  • Page 27 Operate Safely Uneven Terrain Mowing Safety Practices (continued) Maintain — Use extreme care to maintain control over the Control, Use Low equipment when operating in these conditions. Speeds — Increase tractor stability by adding wheel weights, ballast and increasing wheel spacing to maximum. Refer to operator’s manual for recommendations.

  • Page 28: Park Safely

    Park Safely Parking Safety Practices — Use designated or out-of-traffi c areas. — Use fi rm level ground locations. Parking Brake — Set parking brake. — Lower raised equipment to ground. Shut down the mower and tractor using proper equipment shut down practice before dismounting tractor.

  • Page 29: Perform Maintenance Safely

    Shut Down Safely Dismounting Properly — Never dismount from moving equipment. Wait for — Never jump from any machines. Moving Parts to Stop — Dismount carefully. — Check for slippery steps. — Keep feet and hands away from controls. — Use handholds and steps during dismount. —...
  • Page 30 Perform Maintenance Safely Prepare Yourself Wear personal protective clothing and Personal Protective Equipment (PPE) issued to you or called for by job conditions. You must ALWAYS wear safety glasses with side shields. You may also need: — Hard hat — Safety shoes —...
  • Page 31 Perform Maintenance Safely Prepare The Machine — Securely support, block up, or lock up mower wings with approved locking devices before working near or Stored energy sources (electrical, mechanical, hydraulic, underneath a wing mower. pneumatic, chemical, thermal, etc.) must be controlled —...
  • Page 32 Perform Maintenance Safely Perform Maintenance Safely Use Proper Ventilation Make sure the hoists or jacks you use are in good repair. Never use jacks with cracked, bent, or twisted parts. If it is necessary to run an engine in an enclosed area, Never use frayed, twisted or pinched cables.
  • Page 33 Perform Maintenance Safely Hydraulic System Hazards When venting or fi lling the hydraulic system, loosen the fi ller cap slowly and remove it gradually. The hydraulic system is under pressure whenever the Never reset any relief valve in the hydraulic system to a engine is operating and may hold pressure even after the pressure higher than recommended by the manufacturer.
  • Page 34 Perform Maintenance Safely Avoid Explosion — Observe the polarity of the batteries and connections. — Make the fi nal cable connection to the engine or the WARNING! Avoid possible serious injury from furthest ground point away from the battery. Never explosion.
  • Page 35 Perform Maintenance Safely Tire And Wheel Maintenance (continued) Never cut or weld on a wheel with an infl ated tire mounted on it. This could cause explosive WARNING! The types of wheels and tires usually decompression. found on this equipment require special care when Check that the tire size and wheel are correctly matched.

  • Page 36: Final Word To The User

    Perform Maintenance Safely Mower Blade Maintenance (continued) — Avoid bending blades. Help prevent mower blades from bending or cracking by avoiding contact with — How are mower blades made? solid objects. Mower blades are intended to cut Mower blades are made of high strength alloy spring grass, shrubs, woody vegetation, and small trees and steel.

  • Page 38: Reconocimiento

    Contenido Reconocimiento ....... 2 Introducción ........2 Alertas de seguridad .

  • Page 39: Alertas De Seguridad

    Alertas de seguridad Símbolo Palabras indicativas Este símbolo de alerta de seguridad signifi ca: Las palabras indicativas son palabras distintivas que “¡ATENCIÓN! ¡MANTÉNGASE ALERTA! ¡SU típicamente se encontrarán en letreros de seguridad SEGURIDAD ESTÁ EN RIESGO!” de la cortadora de césped y otros equipos del sitio de trabajo.

  • Page 40: Cortadora De Césped Industrial/Para Agricultura

    Cortadora de césped industrial/para agricultura Tipos de cortadora de césped industrial/para agricultura Las cortadoras de césped se usan para recortar pasturas, Triturador desmenuzar residuos de cultivos, cortar arbustos, realizar desbroce pesado, cortar la hierba en vías de agua, derechos de paso, costados de caminos o autopistas. Además, estas cortadoras se usan para cortar la hierba y otras plantas en zonas públicas como parques y cementerios.

  • Page 41: Cumplimiento Del Programa De Seguridad

    Cumplimiento del programa de seguridad Protéjase a sí mismo Use la ropa de protección personal y los equipos de protección personal (PPE) que se le proporcionen o que requieran las condiciones del trabajo. SIEMPRE debe usar gafas de seguridad con escudos laterales. Puede necesitar también: —...
  • Page 42 Cumplimiento del programa de seguridad Evite las lesiones provocadas por equipos elevados Si un fl uido se inyecta en la piel, debe ser extraído dentro de pocas horas por personal médico Evite posibles lesiones de aplastamiento por caídas de la familiarizado con este tipo de lesión.
  • Page 43 Cumplimiento del programa de seguridad ¡Manténgase alerta! Para una operación segura Sepa dónde obtener asistencia. Sepa cómo usar un Usted debe ser un operador cualifi cado y autorizado equipo de primeros auxilios y un extintor de incendios/ para operar la máquina correctamente. Debe comprender sistema de supresión de fuego.
  • Page 44 Cumplimiento del programa de seguridad Algunas reglas que debe cumplir al trabajar (continuación) Mantenga — Únicamente personas cualifi cadas y autorizadas a los niños alejados pueden manejar estos equipos. de los equipos — Nunca permita que los niños jueguen en los equipos, viajen en ellos o los hagan funcionar.

  • Page 45: Preparación Para Una Operación Segura

    Preparación para una operación segura Revise los equipos de la cortadora de césped y el marcadas; incluya los pernos y sujetadores de las hojas. Nunca enderece o suelde en las hojas. tractor — Asegúrese de que el escudo para objetos que son Antes de comenzar la jornada de trabajo, inspeccione la arrojados se encuentre correctamente instalado y en buen máquina y asegúrese de que todos los sistemas estén en...
  • Page 46 Preparación para una operación segura Familiarícese con la zona de trabajo Corrija las condiciones no seguras. No opere en áreas con problemas donde no se puedan retirar o marcar los Antes de hacer funcionar la cortadora de césped, residuos y los obstáculos. inspeccione cuidadosamente la zona de trabajo.
  • Page 47 Preparación para una operación segura Prueba de seguridad de los controles del tractor y de la cortadora de césped Use el ROPS Arranque el tractor siguiendo los procedimientos y el cinturón de seguridad específi cos del manual del operador del fabricante. Estos procedimientos normalmente incluyen: —...
  • Page 48 Preparación para una operación segura Enganche de la cortadora de césped al tractor Lea y asegúrese Cortadoras montadas en enganche de tres puntos: de comprender los — Consulte los manuales de los fabricantes de la manuales antes de comenzar la cortadora y del tractor.

  • Page 49: Arranque Con Seguridad

    Arranque con seguridad Cómo realizar un arranque correcto Corte la hierba únicamente con luz diurna o en condiciones de buena luz artifi cial. Hojas giratorias – Manténgase Evite lesiones graves o muerte producidas por objetos arrojados por la cortadora o por el contacto con las hojas: —...
  • Page 50 Operación con seguridad Objetos arrojados por la cortadora de césped Apague la TDF, espere que las hojas dejen de girar, eleve la cortadora y, después, retroceda. (continuación) Corte desplazándose en sentido de avance. Cortadoras de disco — Cuando se usa una cortadora de disco, es importante conocer la zona donde se va a cortar.
  • Page 51 Operación con seguridad Prácticas de seguridad para la cortadora de césped de montaje inferior Nunca se pare sobre la cortadora Cuando se traslada con una cortadora de césped de de césped – montaje inferior: Manténgase alejado — Mantenga la rampa de descarga extraíble en su lugar y por encima de la abertura de descarga.
  • Page 52 Operación con seguridad Prácticas de seguridad para cortadoras de 300 ft césped con laterales y montaje lateral (92 m) Mantenga a las personas ajenas Las posiciones elevadas de los laterales reducen la alejadas de la zona protección de los escudos y aumentan los riesgos de de corte objetos arrojados y contacto con las hojas.
  • Page 53 Operación con seguridad Prácticas de seguridad para trabajos de corte en terrenos desparejos (continuación) Mantenga — Use extremo cuidado para mantener el control de los el control, equipos cuando trabaja en estas condiciones. desplácese — Aumente la estabilidad del tractor agregando pesos o lastre en las ruedas y aumentando al máximo la separación entre las ruedas.

  • Page 54: Estacionamiento Seguro

    Estacionamiento seguro Prácticas de seguridad para el estacionamiento — Use las zonas designadas o alejadas del tránsito. Aplique el freno de — Use lugares con suelo fi rme y nivelado. estacionamiento — Aplique el freno de estacionamiento. — Descienda el equipo de la cortadora de césped hasta el suelo.

  • Page 55: Realización De Mantenimiento Con Seguridad

    Apagado con seguridad Descenso correcto — Nunca descienda de equipos en movimiento. Espere hasta que las — Nunca baje de una máquina saltando. piezas móviles se detengan — Descienda con cuidado. — Verifi que que no haya peldaños resbaladizos. — Mantenga los pies y las manos lejos de los controles. —...
  • Page 56 Realización de mantenimiento con seguridad Preparación personal Use la ropa de protección personal y los equipos de protección personal (PPE) que se le proporcionen o que requieran las condiciones del trabajo. SIEMPRE debe usar gafas de seguridad con escudos laterales. Puede necesitar también: —...
  • Page 57 Realización de mantenimiento con seguridad Preparación de la máquina Deben controlarse o reducirse las fuentes de energía Prepare los sistemas de la almacenada (eléctricas, mecánicas, hidráulicas, máquina para neumáticas, químicas, térmicas, etc.) al mínimo realizarles servicios practicable antes de realizar cualquier procedimiento de mantenimiento, reparación o servicio.
  • Page 58 Realización de mantenimiento con seguridad Use ventilación adecuada Si es necesario hacer funcionar un motor en una zona Retire la llave y cerrada, elimine del área las emanaciones de escape lea el manual de con una extensión del caño de escape. Si no tiene esa mantenimiento extensión, asegúrese de abrir las puertas y dejar entrar aire del exterior.

  • Page 59: Safety Precautions

    Realización de mantenimiento con seguridad Riesgos del sistema hidráulico Cuando ventila o llena el sistema hidráulico, afl oje la tapa de llenado con lentitud y retírela gradualmente. El sistema hidráulico se encuentra bajo presión siempre Nunca restablezca una válvula de alivio del sistema que el motor está...
  • Page 60 Realización de mantenimiento con seguridad Evite explosiones — Asegúrese de que las máquinas no se estén tocando. — Observe la polaridad de las baterías y conexiones. ¡ADVERTENCIA! Evite posibles lesiones graves por — Realice la conexión fi nal de cable al motor o al punto explosiones.
  • Page 61 Realización de mantenimiento con seguridad Mantenimiento de neumáticos y ruedas (continuación) Evite la explosión ¡ADVERTENCIA! Los tipos de ruedas y neumáticos de los neumáticos que generalmente se encuentran en estos equipos requieren cuidados especiales al realizar servicios para evitar lesiones graves o la muerte. No infl e los neumáticos por encima de la presión No infl e neumáticos con gases infl amables o con sistemas recomendada.

  • Page 62: Federal Laws And Regulations

    Realización de mantenimiento con seguridad Mantenimiento de las hojas de la cortadora — Evite doblar las hojas. Contribuya a prevenir que las hojas de la cortadora se doblen o rajen evitando el (continuación) contacto con objetos sólidos. Las hojas de la cortadora —...

  • Page 63: Introduction And Description

    The tractor unit consists of either We are pleased to have you as a Rhino customer. a 20 hp Kohler twin, 25 hp Kohler twin engine. Your Rhino Zero Turn Riding Mower has been care-...

  • Page 64: Specifications

    Ignition Key -Starts and stops engine. OPERATOR INTERLOCK SYSTEM Engine Throttle - Controls engine speed. Your Rhino Zero Turn Riding Mower is equipped with an Operator Interlock System that is designed to Two Steering/Speed Control Levers - In front of help prevent possible serious injuries.

  • Page 65: Operation

    SECTION II OPERATION GENERAL SAFETY 7. Check battery fluid level. Only qualified people familiar with this operator’s 8. Inspect V-belts manual should operate this machine. Operator should wear hard hat, safety glasses, and safety 9. Check tire pressure (Use low pressure gauge): shoes.

  • Page 66: Operation

    OPERATION WARNING 1. OPEN FUEL TANK SELECTOR VALVE left or AVOID SERIOUS INJURY OR DEATH: right tank. DO NOT MOVE STEERING LEVERS FROM FORWARD TO REVERSE OR REVERSE TO 2. MOVE CONTROL LEVERS TO neutral “OUT” FORWARD POSITION RAPIDLY. A SUDDEN position by pushing each one straight sideways.
  • Page 67 ANTI-SCALP ROLLER 1. Stop engine and move the control levers to the neutral position and engage the parking brake. 2. Disengage the blades. 3. The Anti-Scalp deck rollers are adjustable up and down to provide improved deck flotation and scalping WARNING protection at various cutting heights.

  • Page 68: Mowing Recommendations

    MOWING RECOMMENDATIONS WARNING 1. Keep mower blades sharp. AVOID SERIOUS INJURIES TO OTHERS: ALWAYS REMOVE THE KEY FROM THE IGNI- 2. Make sure deck and discharge chute are clean. TION SWITCH WHENEVER THE MOWER IS UNATTENDED TO PREVENT CHILDREN OR UNAUTHORIZED PERSONS FROM STARTING THE ENGINE.

  • Page 69: Maintenance

    1.9 U.S qt. w/o oil filter Kawasaki change 2.2 U.S qt. with oil filter change Change hydrostatic oil filter (See your Rhino Dealer) Important: Substitution of an improper filter will cause every 500 hours hydrostatic failure which will not be covered under warranty ____________________ (50 hrs break-in)

  • Page 70: Engine

    4. TIRES: 1. ENGINE: Correct tire pressure is essential for efficient For complete maintenance and operating infor- operation of the mower. Check tire air pres- mation for your engine, please refer to your sure periodically. Inflate front and rear tires to 15 psi. engine operating and maintenance instructions (Rear tires may be inflated to 12 psi if additional ride furnished by the engine manufacturer and...

  • Page 71: Motion Control Adjustment

    MOTION CONTROL LEVER ADJUSTMENT 6. Re-tighten the nuts at the end of the hex turnbuckles and repeat the procedure for the opposite side of the unit. 1. There are three lever height positions available. Place the levers in the position that provides the 7.

  • Page 72: Leveling The Deck

    DECK BELT REPLACEMENT place the level on the straight edge. (NOTE: Use only genuine Rhino replace- 6. Lay a .12” spacer beneath the front level. this will ment parts) automatically set the rear of the deck higher than the front.

  • Page 73: Start Up Maintenance

    HYDROSTATIC FLUID every 500 hours thereafter. The fluid and filter should be changed and the system cleaned if the fluid Rhino recommends the use of 20W50 motor oil in becomes contaminated with foreign matter (water, the hydrostatic reservoir. dirt, etc.) .Refer to illustration on page 20.

  • Page 74: Parking Brake Cable Replacement

    PARKING BRAKE CABLE REPLACEMENT / INSTALLATION OUTSIDE BRAKE ARMS 1. The outside brake arms are to remain in the position as received from the factory. (Horizontal and rearward) 2. Install brake cables finger tight and position the brake handle in the “vertical” position. 3.

  • Page 75: Troubleshooting

    TROUBLESHOOTING CHECK LIST 1. ENGINE IDLES POORLY: Carburetor maladjustment_________________________________________________readjust carburetor Improper spark plug gap _______________________________________________check and re-gap plug 2. ENGINE BACKFIRES: Carburetor maladjustment_________________________________________________readjust carburetor 3. ENGINE RUNS BUT POWER UNIT WON’T MOVE FORWARD Drive belt loose or broken________________________________________________re-tension or replace Pump shift arm disconnected _____________________________________________________reconnect Hydrostatic reservoir oil low _________________________________________________________add oil Pump bypass valve open________________________________________________put in closed position...

  • Page 76: Assembly

    SECTION IV ASSEMBLY MOUNTING THE REAR TIRES Position the rear tire rims over the axle hubs and fas- ten with the 1/2” lug nuts. Torque to 59 ft. lbs. NOTE: Control Lever When mounting bar tires the wheel spacer plates must mount between the wheels and the hubs.
  • Page 78 To Main 50068732 HARNESS ADAPTER Harness KAWASAKI ENGINES 50068133 Oil Pressure Lead for Kawasaki Engines 50068129 HARNESS ADAPTER KOKLER ENGINES To Main Harness To Engine Harness Solenoid...

  • Page 79: Safety Decals

    To promote safe operation, Rhino supplies safety decals on all products manufactured. Because damage can occur to safety decals either through shipment, use or reconditioning, Rhino will, upon request, provide safety decals for any of our products in the field at no charge. Contact your authorized Rhino dealer for more informa- tion.
  • Page 80 50029501 SERIOUS INJURY OR DEATH MAY RESULT FROM MACHINE ROLLOVER ¥ Failure to follow these instructions could result 50043280 in serious injury or death. ¥ Do not operate machine on steep slopes or near drop offs. ¥ Avoid sharp and/or quick turns. ¥...

  • Page 81: Torque Specifications

    TORQUE SPECIFICATIONS Proper toque for American fasteners used on Rhino equipment. Recommended Torque in Foot Pounds (Newton Meters).* AMERICAN BOLT DIAMETER WRENCH (IN.) “B” AND Bolt Head Markings SIZE (IN.) “A” THREAD SIZE GRADE 2 GRADE 5 GRADE 8 7/16...

  • Page 82: Optional Equipment List

    TWISTER SERIES ZERO TURN RIDING MOWERS Optional Equipment: Right Hand Gage Wheel (Available for 52” deck only) Canopy Kit Light Kit Rear Hitch Kit Mulching Kit 44” Mulching Kit 52”...

  • Page 83: Slope Angle Guide

    SLOPE ANGLE GUIDE ALIGN THIS EDGE WITH A VERTICAL SURFACE (TREE. BUILDING, FENCE POST. POLE, ETC.)
  • Page 85 TO THE OWNER/OPERATOR/DEALER To keep your implement running efficiently and safely, read your manual thoroughly and follow these directions and the Safety Messages in this Manual. The Table of Contents clearly identifies each section where you can easily find the information you need. The OCCUPATIONAL SAFETY AND HEALTH ACT (1928.51 Subpart C) makes these minimum safety...
  • Page 86 TWISTER SERIES ZERO TURN RIDING MOWER TWISTER SERIES - SOM - 11/12 P/N 50068791 Printed U.S.A...
