RHINO TURBO120 TURBO120 Operator's Manual

RHINO TURBO120 TURBO120 Operator's Manual

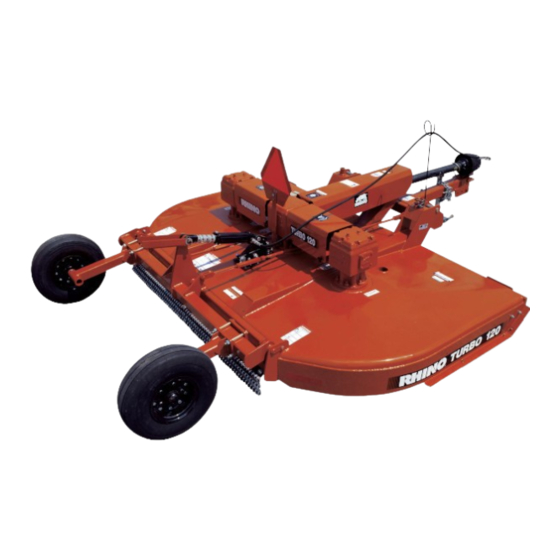

Rotary mower
Table of Contents
  • Español

    • Introducción
    • Reconocimiento
    • Alertas de Seguridad
    • Palabras para el Usuario/Operador
    • Cortadora de Césped Industrial/Para Agricultura
    • Cumplimiento del Programa de Seguridad
    • Preparación para una Operación Segura
    • Arranque con Seguridad
    • Operación con Seguridad
    • Apagado con Seguridad
    • Estacionamiento Seguro
    • Realización de Mantenimiento con Seguridad
    • Palabras Fi Nales para el Usuario
    • Introduction Section

      • Equipment Specifications
      • Key Operation Points
      • Operating Noise Level/Sound Pressure
      • Warranty Information
      • Rhino Limited Warranty
    • Assembly Section

      • Dealer Setup Instructions
      • A-Frame Assembly-Lift Type
      • Tail Wheel Assembly - Lift Type
      • Tongue
      • Axle Assembly
      • Axle Arms
      • Control Rods
      • Driveline Clamp Cone Yoke
      • Hydraulic or Manual Lift
      • Wheels
      • FRONT and REAR DEFLECTORS (Standard Equip.) CHAINGUARDS (Optional Equip. at Extra Cost)
      • FRONT and REAR DEFLECTORS (Standard Equip.) CHAINGUARDS (Optional Equip. at Extra Cost)
      • Driveline Attachment
      • SHIELD ASSEMBLY - Side Drives - Lift and Pull
      • SHIELD ASSEMBLY - Main Input - Lift and Pull
      • CHECK CHAINS (Extra Equipment) LIFT MODELS
      • Jackshaft Bearing Support Assembly
    • Operation Section

      • Operation Instructions
      • Operator Requirements
      • Tractor Requirements
      • ROPS and Seat Belt
      • Tractor Safety Devices
      • Tractor Horsepower
      • Point Hitch-Lift Type and Semi-Mount Type Mowers
      • Drawbar-Pull Type Mower
      • Front End Weight
      • Power Take off (PTO)
      • Tire Spacing
      • Getting on and off the Tractor
      • Boarding the Tractor
      • Dismounting the Tractor
      • Starting the Tractor
      • Connecting the Mower to the Tractor
      • Connecting the Mower Lift Type and Semi-Mount Type
      • Point Quick Hitch
      • Connecting Mower - Lift Type (Quick Hitch)
      • Connecting the Mower-Pull Type
      • Safety Tow Chain
      • Setting the Mower
      • Setting Mower Height- Lift Type
      • Setting Mowing Height-Pull Type and Semi-Mount Type Mowers
      • Setting Deck Pitch
      • Driveline Attachment
      • Driveline Length Check
      • Constant Velocity (CV) Driveline
      • Pre-Operation Inspection and Service
      • Tractor Pre-Operation Inspection/Service
      • Mower Pre-Operation Inspection/Service
      • Cutting Component Inspection
      • Blade Bolt Inspection
      • Driving the Tractor and Implement
      • Brake and Differential Lock Setting
      • Starting the Tractor
      • Raising the Mower
      • Driving the Tractor and Mower
      • Crossing Ditches and Steep Inclines
      • Operating the Tractor and Implement
      • Foreign Debris Hazards
      • Bystanders/Passersby Precautions
      • Engaging the Power Take off (PTO)
      • PTO RPM and Ground Speed
      • Operating the Mower
      • Right of Way (Highway) Mowing
      • Shutting down the Implement
      • Disconnecting the Mower from the Tractor
      • Mower Storage
      • Transporting the Tractor and Implement
      • Transporting on Public Roadways
      • Hauling the Tractor and Implement
      • Trouble Shooting Guide
    • Maintenance Section

      • Hazards with Maintenance of Implement
      • Lubrication
      • Gearbox
      • Tail Wheel Assembly
      • Drivelines
      • Main & Jackshaft Driveline Shields
      • Main CV Driveline Safety Shield
      • Driveline Taper Cone Yoke Removal Instructions
      • Blade Servicing
      • Blade Removal
      • Blade Bolt Inspection
      • Blade Carrier Removal
      • Blade Carrier Inspection
      • Blade Timing and Rotation
      • Blade Timing Procedure
      • Slip Clutch
      • Seasonal Clutch Maintenance
      • Storage
      • Proper Torque for Fasteners

Advertisement

Quick Links

Published 01/11
This Operator's Manual is an integral part of the safe operation of this machine and must
be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety
and Operation Instructions contained in this manual before operating the equipment. C01-
Cover
®
