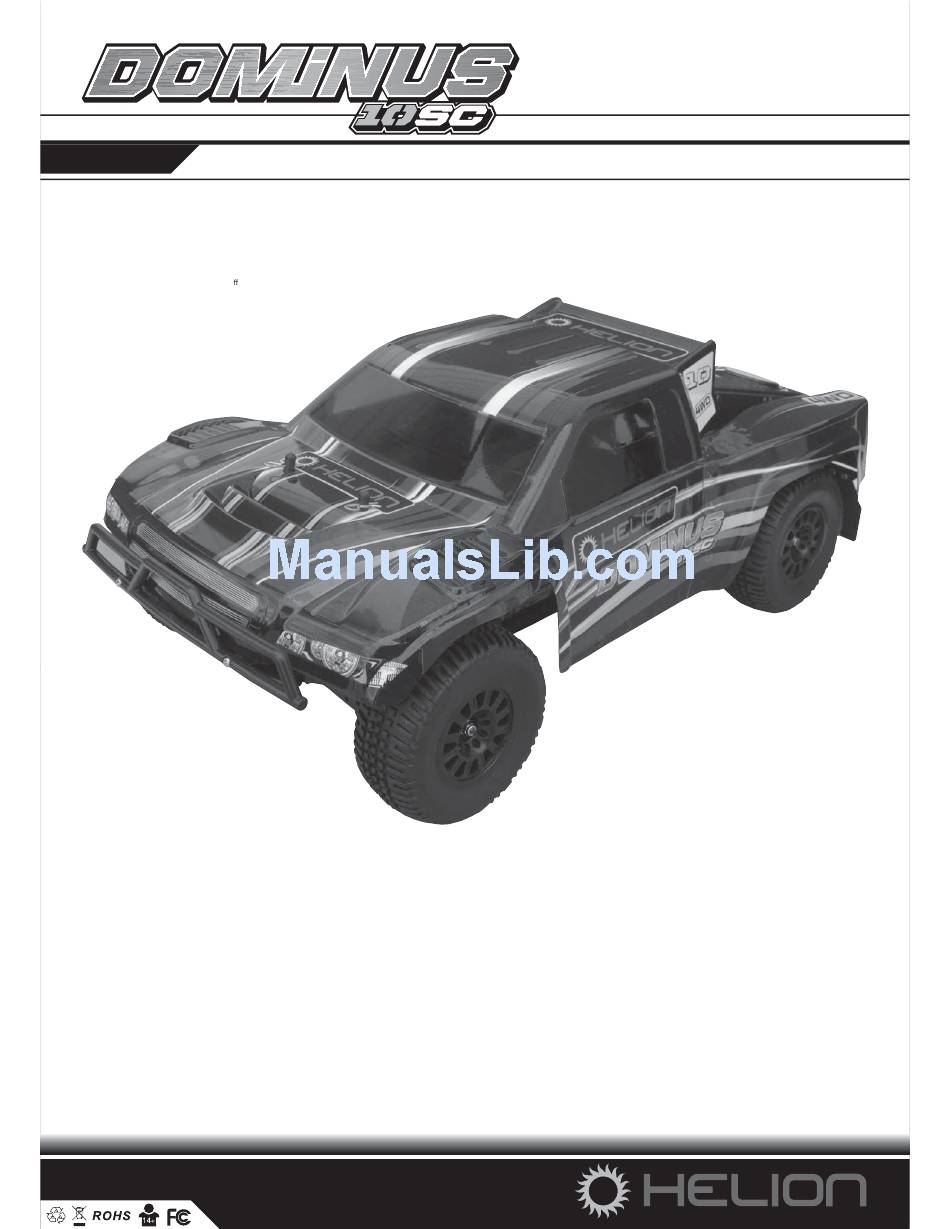

Helion HLNA0053 Owner's Manual

HLNA0053
OWNER’'S MANUAL AND EXPLODED VIEWS
LENGTH 540mm (21.26in)
WIDTH 290mm (11.42in)
HEIGHT 215mm (8.46in)
WHEELBASE 327mm (12.87in)
WHEEL DIAMETER 76mm (2.99in) x 55.5mm (2.18in)
TIRE DIAMETER F/R: 112mm (4.41in) x 47mm (1.85in)
WHEEL OFFSET 12mm Hex, 26mm O set, works with 24mm (TRX)
WEIGHT* 2545g (5.61lb)
BATTERY 1,800mAh NiMH 7-CELL, 8.4V
MOTOR BRUSHED 550 SIZE 21T
RADIO HRS-3 2.4GHz 3-CHANNEL
CHARGER AC WALL TRICKLE
*APPROXIMATE OUT-OF-THE-BOX WEIGHT
Entire contents ©2011 Helion RC
Before using your product, review all documentation and inspect the products carefully. If for some reason you
decide it is not what you wanted, then do not continue with unpacking, setup or operation of your product. Your
local HobbyTown USA® dealer cannot accept a product for return or exchange after partaking in the afore
mentioned actions
Read, understand and follow all instructions and accompanying material carefully before operating or assem-
bling your vehicle to prevent serious damage to your vehicle. Failure to complete these tasks properly or inten-
tional aversion to the content will be considered abuse and/or neglect
Product specifi cations are subject to change without notice. Due to ongoing development, the actual product
may vary from images shown
This product contains chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm
This product is not a toy! (14+) Recommended for ages 14 and up. Adult supervision required for ages under 18
years old. Contains small parts, keep out of reach of children 3 years of age and younger
1/10th SCALE 4x4 SHORT
COURSE ELECTRIC TRUCK
