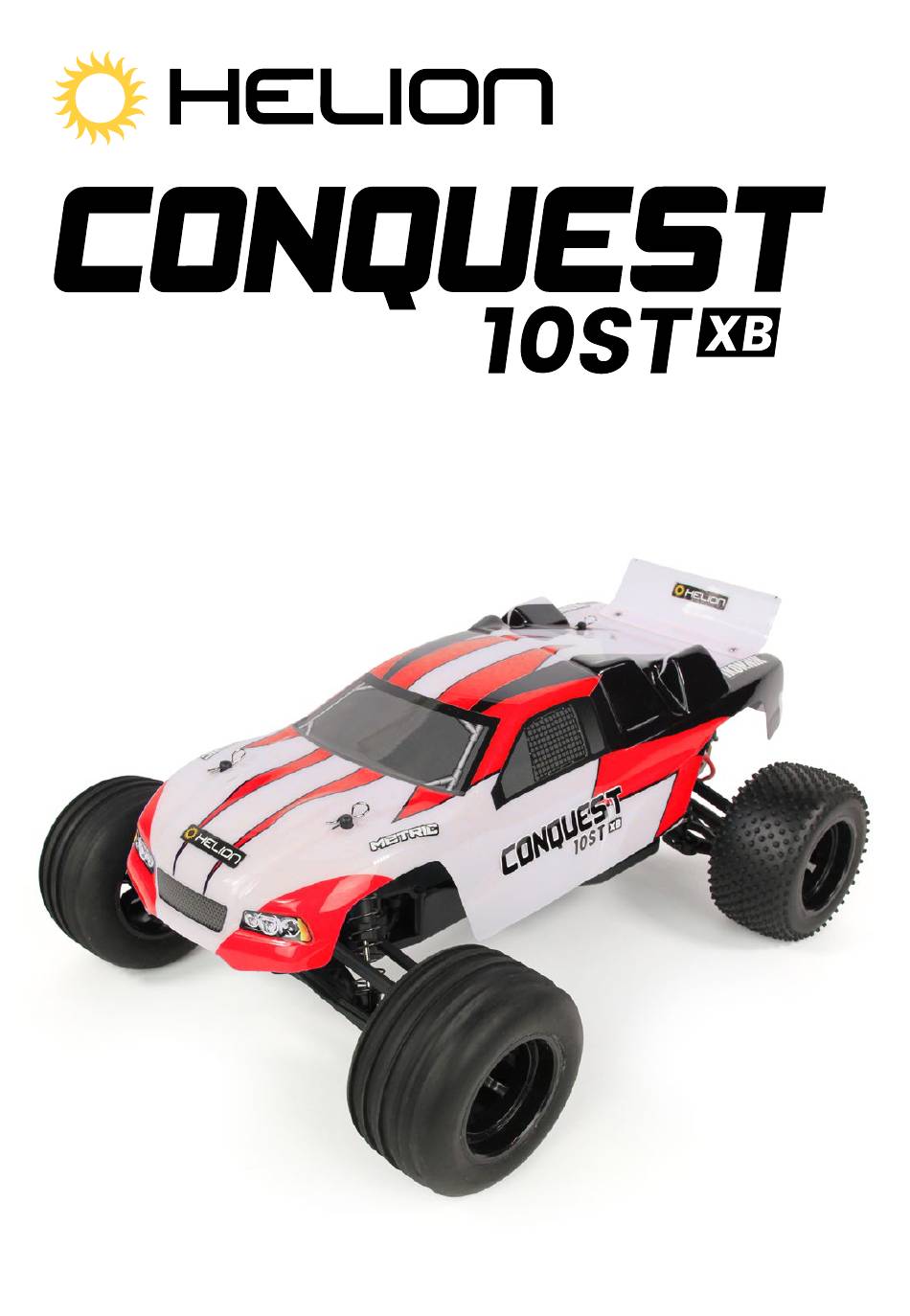

- Page 1 Owner’s Manual & Technical Information HLNA0762 Conquest 10ST XB (US) HLNA0772 Conquest 10ST XB (UK-EU) HLNA0782 Conquest 10ST XB (AU)
- Page 2 Legal Entire contents ©2016 Helion RC Before using your product, review all documentation and inspect the product carefully. If for some reason you decide it is not what you wanted, then do not continue with unpacking, setup or operation of your product. Your local hobby dealer cannot accept a product for return or exchange after partaking in actions that produce wear and tear.
-
Page 3: Table Of Contents
Features ..................6 Getting Started ................7 IKONNIK ET3 Radio Sysytem ..........12 Helion 40A ESC ................12 Helion Brushed System Troubleshooting ........ 16 Adjusting and Tuning Your Vehicle .......... 17 General Care & Maintenance ..........18 Storage and Disposal .............. 21 Troubleshooting Problems ............22 Troubleshooting Tables ............23... -
Page 4: Notice
Therefore this product is not intended for use or maintenance by children without direct adult supervision. Helion RC and your hobby dealer shall not be liable for any loss or damages, whether direct, indirect, special, incidental, or consequential, arising from the use, misuse, or abuse of this product or any product required to operate or maintain it. -
Page 5: Package Contents
Package Contents • 1 x Conquest 10ST XB • 1 x IKONNIK ET3 Krypton 2.4GHz 3-channel transmitter • 1 x Rechargeable Helion 6-cell 7.2V 2000mAh NiMH battery • 1 x Mains charger Items Needed to Complete and Enjoy • 4 x AA alkaline batteries for the transmitter... -
Page 6: Introduction
Helion 2000mAh 7.2V rechargeable NiMH battery offers sensible run times. It’s what you might call a ‘total’ solution, not least because it’s supported by a high performance 550 brushed motor, Helion 40 amp ESC and IKONNIK’s ET-3 radio, with rock-solid Krypton 2.4GHz protocol. That’s quite a package and at a price you can’t afford to ignore. -
Page 7: Getting Started
Getting Started Below are some steps to help get you going right away and most applicable to those who have used RC products before. If you are new to the hobby or it has been a while since you’ve worked with the latest technology, please read through the manual to acquaint yourself with the latest procedures, Warnings, Cautions and Tips. - Page 8 Quick Start Guide 1. Remove the components from the box and ensure the contents are correct: ▪ 1 x Conquest 2WD Stadium Truck ▪ 1 x 2000mAh 6-cell NiMH battery pack ▪ 1 x IKONNIK ET3 2.4GHz 3-channel transmitter ▪ 1 x 6-cell wall charger ▪...
- Page 9 6. Remove the battery cover from the underside of the ET3 transmitter and insert four AA alkaline cells. Take care to ensure that the correct polarity is observed. 7. Ensure the radio switch is in the OFF position, then connect the battery to the ESC.
- Page 10 10. Slide your finger under te dust cover, locate the switch and turn ON your Conquest. In the unlikely event that the car does not operate, see the PAIRING / BINDING instructions on page 11. 11. Check the operation of the throttle and steering. Pulling the throttle trigger back will drive the car forward, pushing the trigger forward once will apply the brakes while pushing the trigger forward twice will drive the car in reverse.
- Page 11 2. Place your Conquest and ET3 transmitter in close proximity but not less than 12” (300mm) apart. 300mm 3. Press and hold the PAIR / BIND button on the receiver then switch the receiver on. The receiver’s LED will flash to indicate that it is in PAIR / BIND mode. 4.
-
Page 12: Ikonnik Et3 Radio Sysytem
282g (0.62lb) without batteries Helion 40A Brushed System Overview We’ve included some great features in your Helion Brushed ESC to help keep your system running in top shape while keeping your battery upgrade path open since it is compatible with LiPo batteries. - Page 13 Throttle Range Calibration Unlike other systems that require manual setup, your Helion Brushed ESC features automatic calibration. However, for this feature to function properly you need to ensure the throttle channel of the transmitter (CH.2) is set to N (normal).
- Page 14 D/R, ATV, ATL or EPA. If this is not carried out the ESC may not work properly. Understanding the LED Status Light and Alert Tones Your Helion 40A ESC is programmed to communicate with you to let you know its status.
- Page 15 Programming your ESC Your Helion 40A brushed ESC is a programmable unit whose direction and battery type can be adjusted by altering the position of the jumper plugs. The plugs are best repositioned using tweezers in conjunction with the following diagram.
-
Page 16: Helion Brushed System Troubleshooting
Signal Loss Protection If the throttle signal is lost for 0.1 seconds the ESC will cut the output power and the car will stop. Helion Brushed ESC Troubleshooting Trouble Possible Reason Solution After power on, motor can’t work, no The ESC doesn’t get its working Check the battery wires connection sound is emitted, and LED is off. -
Page 17: Adjusting And Tuning Your Vehicle
Adjusting and Tuning Your Vehicle The Conquest 10ST XB has been engineered with some available tuning options listed here for reference. The default configuration has been chosen to provide what we feel is the most enjoyable experience for most operating conditions. -
Page 18: General Care & Maintenance
General Care • Always use clean, dry cloth or soft bristle brush to clean your equipment. • Never use chemical cleansers to avoid damage to the sensitive electronics and plastics. Maintenance We want you to enjoy your product to its fullest potential. For this to happen it is important to keep your product clean and properly maintained. - Page 19 • Never fold the end of the antenna over the tube, this will reduce the range and damage the antenna. • Ensure the antenna is not being pinched by the set screw that holds the antenna tube in place. Gears Periodically remove the gear cover to clearly inspect the gears and ensure there is no debris in the gear compartment.
- Page 20 WARNING: NEVER OPERATE YOUR VEHICLE WITH THE SPUR GEAR COVER REMOVED. SEVERE INJURY, DAMAGE TO ELECTRICAL COMPONENTS, AND EXCESSIVE WEAR AND TEAR ON DRIVETRAIN MAY RESULT. Shocks Periodically inspect the shocks for smooth motion, leaking oil and dirt residue build up around the shaft or caps. Do not allow dirt to build up around the shock shaft and bottom of the shock.
-
Page 21: Storage And Disposal
Tires and Wheels Inspect the tires to ensure they have adequate tread and they are properly glued to the wheels. The tires on your vehicle come pre-glued from the factory; however after running your vehicle it is possible for the glue to come loose in some areas. -
Page 22: Troubleshooting Problems
Disposal Your product is considered electronic waste and should never be discarded in standard garbage containers. Please visit your local hobby dealer (and some home improvement centers) and use the FREE battery disposal center for proper disposal/recycling. Consult your local city hall for information on recycling other electronic waste. -
Page 23: Troubleshooting Tables
• Healthy gears are crucial to a properly functioning vehicle. If you hear your vehicle making very loud noises, you should immediately stop and check the gears for foreign debris. Even a small pebble can get lodged into the teeth of the pinion gear, which would practically destroy the spur gear in a very short period of time. - Page 24 Problem / Possible Cause Possible Solution Symptom Battery voltage too low Charge battery Vehicle will not turn on Battery not connected Re/connect battery Damaged battery Replace battery Battery voltage too low Charge or change batteries Transmitter will not turn on Battery/ies installed improperly Correct installation Check receiver antenna for damage.
-
Page 25: Exploded Views
Exploded Views Di . Gear Assembly HLNA0981 HLNA0983 HLNA1022 HLNA0984 RDNA5119 HLNA0990 HLNA0984 HLNA0983 RDNA5119 HLNA0981 HLNA1022 HLNA0990 HLNA0988... - Page 26 Front End Installation HLNA1005 HLNA1028 HLNA1005 HLNA1041 HLNA1008 HLNA1043 HLNA1005 HLNA1008 HLNA1043 HLNA1005 HLNA1014 HLNA1007 HLNA1043 HLNA0986 HLNA0995 HLNA0992 HLNA1011 HLNA0985 HLNA1043 HLNA0974 HLNA1045 HLNA1043 HLNA1043 HLNA1044 HLNA1010 HLNA0980 HLNA0980 HLNA1045 RDNA5115 HLNA0992 HLNA1011 HLNA1010 HLNA0980 RDNA5115 HLNA1045 HLNA0992 HLNA0974...
- Page 27 Front End Installation HLNA1062 HLNA1063 HLNA0986 HLNA1026 HLNA1008 HLNA1070 HLNA1054 HLNA1008 HLNA1054 HLNA1015 Steering Sway Arm Assembly HLNA1042 HLNA1043 HLNA0992 HLNA0992 HLNA1031 HLNA0516 HLNA1031 HLNA1016 HLNA0516 HLNA1042 HLNA1043 HLNA1045 HLNA1031 HLNA1016...
- Page 28 Front End Installation HLNA0992 HLNA0992 HLNA1004 HLNA1013 HLNA1056 HLNA1016 HLNA0991 HLNA1016 Servo Installation HLNA0976 HLNA0991 HLNA0992 HLNA1043 HLNA1018 HLNA0992...
- Page 29 Di . Gear/ Motor Assembly HLNA1071 RDNA5115 HLNA1032 HLNA1020 HLNA1033 HLNA1071 RDNA5115 HLNA1037 HLNA1019 HLNA0985 RDNA5115 HLNA0991 HLNA1019 HLNA1035 HLNA1024 RDNA0052 HLNA1076 HLNA1034 HLNA1036 HLNA1076 HLNA0975 HLNA1053 HLNA0973 HLNA1076 HLNA1021 HLNA0994...
- Page 30 Rear End Installation HLNA1006 HLNA1041 HLNA1006 HLNA1027 HLNA1006 HLNA1055 HLNA1062 HLNA1062 HLNA1006 HLNA1043 HLNA1068 HLNA1027 HLNA1055 HLNA1063 HLNA1017 HLNA1017 HLNA0970 HLNA0987 HLNA1043 HLNA0986 HLNA0985 HLNA0986...
- Page 31 Rear End Installation HLNA0980 RDNA5115 HLNA1012 HLNA1039 HLNA0974 RDNA5115 HLNA1043 HLNA1040 Shock Absorber HLNA1055 HLNA1061 HLNA1061 HLNA1070 Note: Friction shock shown - oil filled shocks supplied with the vehicle.
- Page 32 HLNA1022 HLNA RDNA5119 Chassis Exploded View HLNA0988 HLNA0983 HLNA1071 HLNA1062 HLNA0971 HLNA1062 HLNA1043 HLNA1063 HLNA1019 RDNA5115 HLNA0993 HLNA1032 HLNA1023 HLNA0971 HLNA1033 HLNA1043 HLNA1061 HLNA1009 HLNA1071 RDNA5115 HLNA1020 HLNA1057 HLNA1017 HLNA1019 HLNA1006 RDNA5115 HLNA1004 HLNA1037 HLNA0985 HLNA0991 HLNA1027 HLNA1053 HLNA0991 HLNA0973 HLNA0970 HLNA1041 HLNA1034...
- Page 33 HLNA1062 HLNA0971 HLNA1022 RDNA5119 HLNA0981 HLNA0983 HLNA0981 A0984 HLNA0990 HLNA1062 HLNA1063 HLNA0990 HLNA0982 HLNA0971 HLNA0981 HLNA0984 HLNA0981 HLNA0992 HLNA1008 HLNA1031 HLNA1042 HLNA1008 HLNA1016 HLNA1043 HLNA1043 HLNA0992 HLNA0992 HLNA0986 HLNA1042 HLNA0986 HLNA1005 HLNA1045 HLNA1031 HLNA1031 HLNA1043 HLNA1041 RDNA5115 HLNA0995 HLNA0992 HLNA1013 HLNA1056 HLNA1043 HLNA1016...
-
Page 34: Spare Parts List
Spare Parts List HLNA0970 .....Rear Chassis Plate, B, ST, MT HLNA0971 .....R-Clip, B, ST, MT HLNA0972 .....Nuts(M4) HLNA0973 .....M3*8 Column Head Hex Screw HLNA0974....Wheel Hex HLNA0975 .....Nuts(M3) HLNA0976 .....Radio Tray Mount HLNA0978 .....Back Shock HLNA0979 .....Shock Ball Head C HLNA0980 .....Pin 2*10 HLNA0981 .....Diff Planetary Gear HLNA0982 .....Diff Shaft HLNA0983 .....Differential Outdrive... - Page 35 HLNA1013 .....Front Bulk Head Brace HLNA1014 .....Front Shock Mount HLNA1015 .....Front Upper Link 58.5mm HLNA1016 .....Steering Link 55mm HLNA1017 .....Rear Upper Link 73mm HLNA1018 .....Servo Link 30.5mm HLNA1019 .....Gear Box HLNA1020 .....Motor Guard, B, ST HLNA1021 .....Main Gear Cover HLNA1022 .....Differential Case(48P) HLNA1023 .....Gear (34T-48P) HLNA1024 .....Gear (81T-48P) HLNA1025 .....Wing Mount, B...
- Page 36 HLNA1061 .....Rear Shock Absorber HLNA1062 .....Body Post, ST, MT HLNA1063 .....Post Mount, ST, MT HLNA1064 .....Wheel, ST HLNA1065 .....Front Tire, ST HLNA1066 .....Rear Tire, ST HLNA1067 .....Front Wheel Complete, ST HLNA1068 .....Rear Wheel Complete, ST HLNA1070 .....Cap Head Hex. Mechnical Screw 3*14 HLNA1071 ....Cap Head Hex.
-
Page 37: Warranties
This warranty does not cover breakage due to abuse, improper break- in, improper setup, or improper operation. We at Helion RC have made every effort in component design, material selection and assembly to make our products as durable as possible. Helion products are covered under warranty only against manufacturer’s defect in materials,... - Page 38 Model Engines Warranty Information HELION RC 60 DAY WARRANTY Model Engines (Aust.) Pty. Ltd. warrants this product to be free from defects in materials or workmanship for 60 days from the date of purchase and will repair, replace or refund the purchase should the product prove to be defective.
- Page 39 The place of purchase (retailer where you bought the product) will then contact Model Engines (Aust.) Pty. Ltd. for a Return Authority number and will return the item for warranty assessment to Model Engines (Aust.) Pty. Ltd.. Items delivered to Model Engines (Aust.) Pty. Ltd. for warranty assessment without a Return Authority number will be returned to sender.
-
Page 40: Declaration Of Conformity
European directives. This product’s design fulfils the protective aims of the European Community relating to the safe operation of this equipment. For a copy of the Declaration of Conformity, please visit: www.helion-rc.com/support Disposal Electrical equipment marked with the crossed out wheelie bin symbol must not be disposed of in household waste, but must be taken to a specialist disposal or recycling system. - Page 41 Helion-RC.com...
