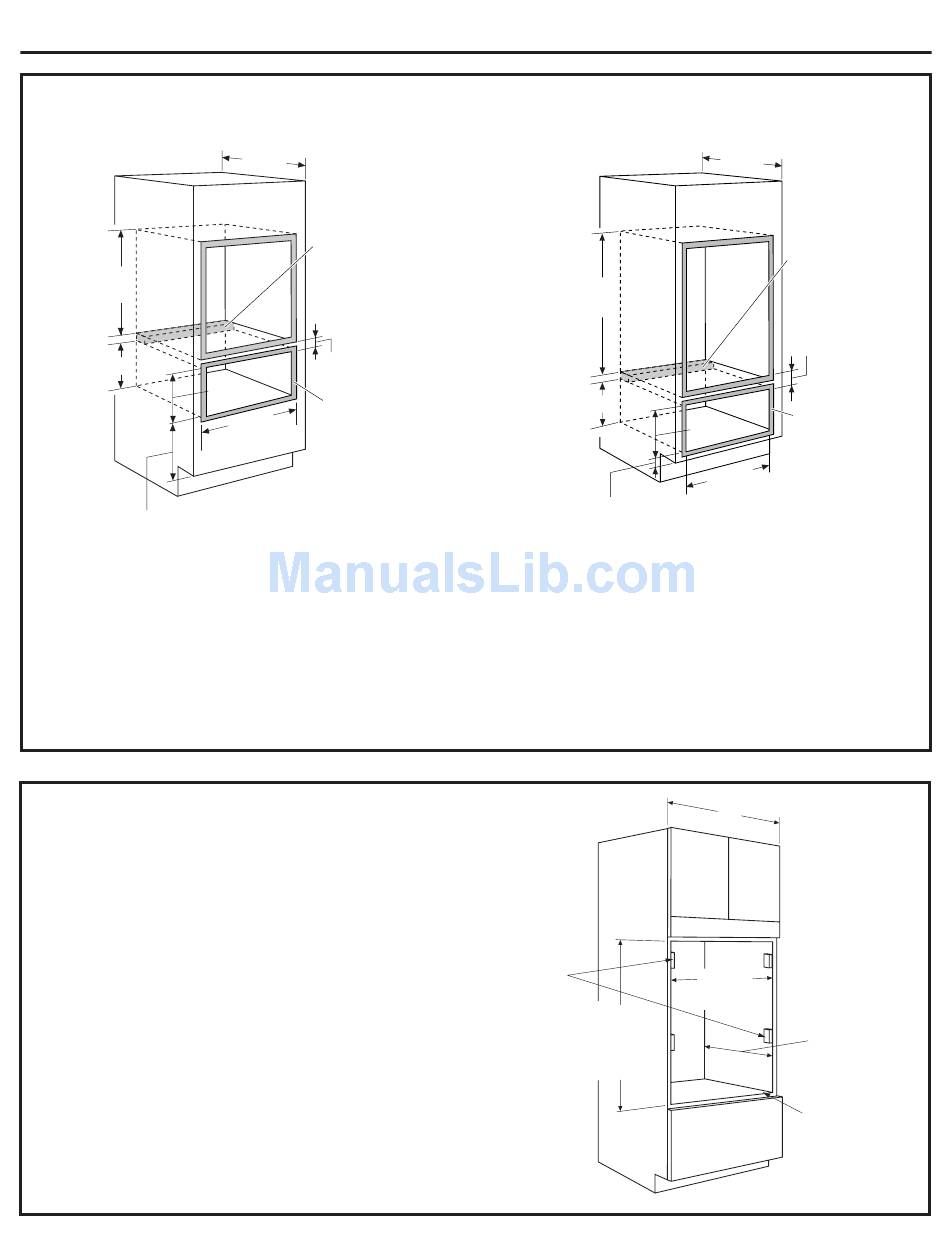

Installation Over a Monogram Warming Drawer
Single Oven
23"
Max.
9"
9-1/4"
1" Min. Above Toekick or Adjust
to Oven Installation Height
NOTE: Additional clearances between cutouts may
be required. Check to be sure the oven supports above
the Warming drawer location does not obstruct the
required interior 23-1/2" depth and 9-1/4" height.
• These Monogram Ovens require 3/4" overlap on both
sides. Allow 1" Min. for top overlap and clearance to
upper doors.

Frameless Cabinets

Whenever possible, order 30" frameless cabinet with
the cutout sided to fit the oven. If using stock cabinets,
additional finished filler pieces may be required to
cover the opening.
• A stock frameless cabinet cutout width may be up to
28-3/4". If necessary, add 1/2" cleats to the sides,
flush with the front edge of the side panels to accept
mounting screws.
Cabinetry
23-1/2" Min.
Inside
2x2 or 2x4
Anti-Tip Block
Against Rear
Wall, 9" From
Floor to
Bottom of
Block
2" Min.
Allow 5/8"
Overlap on
28-1/2"
All Sides
Double Oven
47-5/8" Min.
47-3/4" Max.
9"
Note: Install the
oven only with
specific models
listed on the label
1" Min. Above Toekick
located on top of
the oven.
• The Monogram Warming Drawers require 5/8"
overlap on all sides.
• When installing a Monogram Warming Drawer below
a single or double oven, a separate 120V, 60 Hz,
properly grounded receptacle must be installed.
Refer to installation instructions packed with the
warming drawer for specific installation require-
ments.
Install 1/2"
Cleats to
Hold Oven
Mounting
Double
Screws.
47-3/4" Max.
Single
23" Max.
5
23-1/2" Min.
Inside
2x2 or 2x4
Anti-Tip Block
Against Rear
Wall, 9" From
Floor to
Bottom of
Block
2" Min.
Allow 5/8"
9-1/4"
Overlap on
All Sides
28-1/2
30"
Cabinet Depth
23-1/2" Min.
From Inside
28" Min.
Back to Front
28-3/8" Max.
of Cabinet Frame
or Side Panel.
3/4" Min.
Thick Bottom
Shelf Cut Back
Flush with Front
of Side Panel.
