STEP 3 208V ELECTRICAL SUPPLY

WARNING
These ovens are pre-wired for connection to 240 volt,
60 HZ, supply. If connecting to a 208 volt supply,
modifications must be made.
AVERTISSEMENT
Ces fours sont câblés pour branchement sur une
alimentation en 240 V, 60 Hz. Il faut faire des modifica-
tions en cas de branchement sur une alimentation en
208 V.

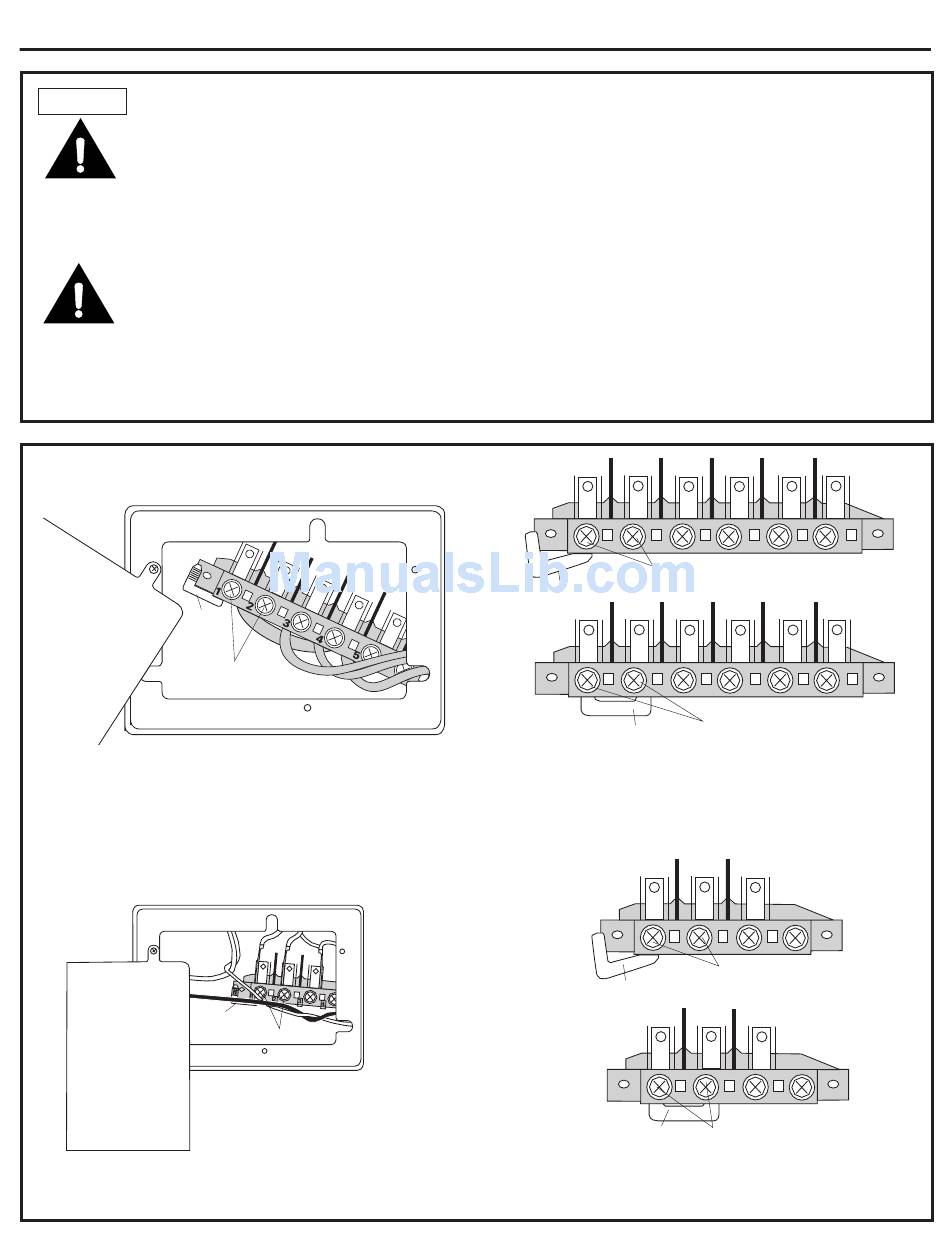

FOR SINGLE OVENS, UPPER OVEN ON DOUBLE OVENS
Jump
Loosen Screws
To connect to 208V circuit:
• Remove the access panel(s) located on the back of
the ovens.
• Loosen the first and second screws in the terminal
block as shown.
FOR LOWER OVEN ON DOUBLE OVENS
Jumper
• Loosen the first and second screws in the terminal
block as shown.
Installation Instructions
Loosen Screws
SKIP THIS STEP IF YOU ARE CONNECTING
TO 240 VOLT POWER SUPPLY.
If connecting to a 208 volt, 60 HZ supply, a jumper
must be used across two terminals.
• For double ovens, there are two jumpers, one for the
upper oven, one for the lower oven.
• For single ovens there is one jumper.
Jumper
Jumper
• Remove the jumper and place between the first and
second screws, tighten the screws to hold the
jumper.
• Replace the access panel(s).
Jumper
Jumper
• Remove the jumper and place between the first and
second screws, tighten the screws to hold the
jumper.
10
Loosen Screws
Tighten Screws
Loosen Screws
Tighten Screws
