GE ZET1 Installation Instructions Manual

30” built-in wall oven

Advertisement

Installation
Instructions
If you have questions, call 1.800.GE.CARES or visit our website at:
ge.com

Before You Begin

Read these instructions carefully and completely.
IMPORTANT
instructions for local inspector's use.
IMPORTANT
governing codes and ordinances.
• Note to Installer—Be sure to leave these
instructions with the consumer.
• Note to Consumer—Keep these
instructions for future reference.

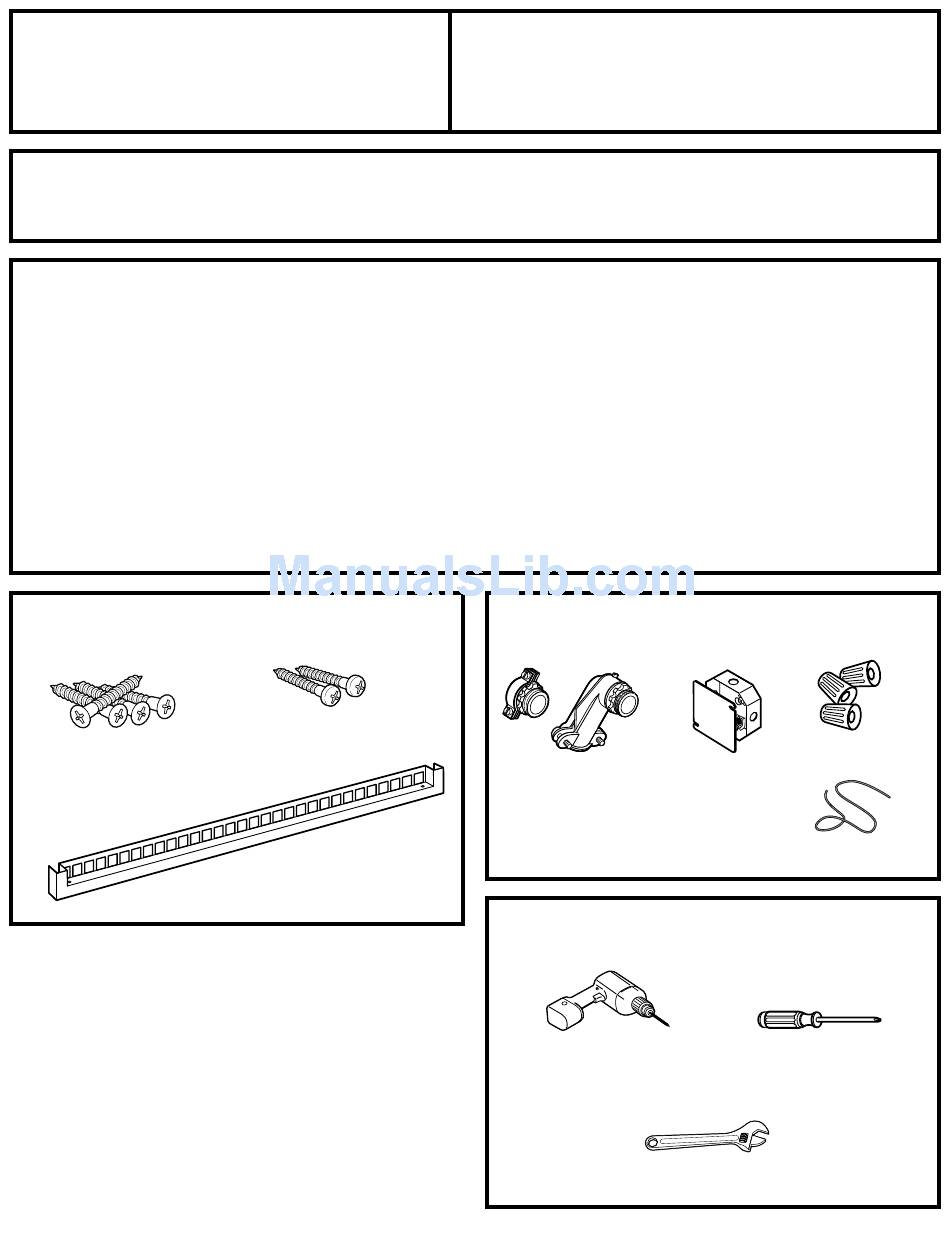

Parts Included

(4) 3/4"
Wood Screws
31-10633
12-05 JR
—Save these
—Observe all
(2) 5/8"
Wood Screws
Metal Bottom
Trim Assembly
30" Built-In Wall Oven
ZET1, ZET2
• Proper installation is the responsibility
of the installer and product failure due
to improper installation is NOT covered
under warranty.
• NOTE—This appliance must be properly
grounded.
ATTENTION INSTALLER
All electric wall ovens must be hard wired
(direct wired) into an approved junction
box. A plug and receptacle is NOT permitted
on these products.
Materials Needed
Strain Relief Clamp
for 1/2" conduit
Tools Needed
1/8" Drill Bit and
Electric or Hand Drill
Adjustable Wrench
1
Wire Nuts
Junction
Box
36" of String
Phillips
Screwdriver

Advertisement

Table of Contents
loading

Summary of Contents for GE ZET1

  • Page 1: Installation Instructions

    Installation Instructions If you have questions, call 1.800.GE.CARES or visit our website at: ge.com Before You Begin Read these instructions carefully and completely. IMPORTANT • —Save these instructions for local inspector’s use. IMPORTANT • —Observe all governing codes and ordinances.
  • Page 2: Important Safety Instructions

    Installation Instructions IMPORTANT SAFETY INSTRUCTIONS For Your Safety • Be sure your oven is installed properly by a qualified installer or service technician. • Be sure the oven is securely installed in a cabinet that is firmly attached to the house structure.
  • Page 3 Installation Instructions Pre-Installation Checklist ALL INSTALLATION INFORMATION ON THE FOLLOWING PAGES IS TO BE USED FOR SINGLE AND DOUBLE OVEN INSTALLATION! Remove packaging materials. Check behind hinges and under false bottom. Remove labels on the outside of the door, plastic on trims and panel, all tape around the oven, and any shipping screws securing the oven to the base pad.
  • Page 4: Pre-Installation Checklist

    Installation Instructions Pre-Installation Checklist To Remove the Door Door removal is not a requirement for installation of the product, but is an added convenience. To remove the door: Open the oven door as far as it will go. Push both hinge locks down toward Hinge the door frame,...
  • Page 5 Installation Instructions Cutout for Single Built-In Oven Cutout Width 28 1/2” Min. CUTOUT 28 5/8” Max. WIDTH (72.4 to 28 1/2" MIN. 72.7 cm) 28 5/8" MAX. ALLOW 11/16" FOR OVERLAP OF THE Allow 11/16” OVEN OVER SIDE Opening (1.75 cm) for EDGES OF CUTOUT Between overlap of oven...
  • Page 6 Installation Instructions Cutout for Double Built-In Oven Cutout Width 28 1/2” CUTOUT (72.4 cm) Min. WIDTH 28 5/8” 28 1/2" MIN. 28 5/8" MAX. (72.7 cm) Max. ALLOW 11/16" FOR OVERLAP Allow 11/16” OF THE OVEN Opening OVER SIDE EDGES (1.8 cm) for Between overlap of oven...
  • Page 7: Cutout For Single Built-In Oven Under Counter

    Installation Instructions Cutout for Single Built-In Oven Under Counter Gas or electric cooktops may be installed over this Gas or electric cooktops may oven. See cooktop installation be installed over this oven. See cooktop installation instructions for cutout size. instructions for cutout size. See label on top of oven for See label on top of oven for approved cooktop models.
  • Page 8: Frameless Cabinets

    Single Oven Cutout for Installation Over a Monogram Warming Drawer 23 1/2” (59.7 cm) Min. Inside 27 5/16” (69.2 cm) Max. 9” (22.9 cm) 9 1/4” Max. (23.5 cm). 28 1/2” (72.4 cm). 1” (2.5 cm) Min. Above Toekick or Adjust to Oven Installation Height NOTE: Additional clearances between cutouts may be required.
  • Page 9: Warming Drawer

    Single Oven Cutout for Installation Below a Monogram Advantium Oven 23 1/2” (59.7 cm) Min. Inside Per Advantium Requirement 27 5/16” (69.2 cm) 28 1/2” 45 1/4” Max. (72.4 cm) (114.9 cm) NOTE: The middle rail separating the two openings may need to be larger than the 2” (5.1 cm) minimum shown.
  • Page 10: Attention Installer

    Installation Instructions Electrical Connections ATTENTION INSTALLER All electric wall ovens must be hard wired (direct wired) into an approved junction box. A plug and receptacle is NOT permitted on these products. DO NOT shorten the flexible conduit. The conduit strain relief clamp must be securely attached to the junction box and the flexible conduit must be securely attached to the clamp.
  • Page 11 Installation Instructions Electrical Connections New Construction and Four-Conductor Branch Circuit Connection • When installing in new construction, or • When installing in a mobile home, or • When installing in a recreational vehicle, or • When local codes do not permit grounding through neutral: a.
  • Page 12 Installation Instructions Securing the Oven in the Opening Sliding the Oven Into the Opening a. Loop (do not tie) a 36” (91 cm) string around the conduit before the oven is slid into place. This will keep the conduit from falling behind the oven.
  • Page 13: Oven Racks

    Installation Instructions Installing the Oven Rack Supports and Oven Racks Oven Rack Supports Place the rack support with the slotted holes over the rear bolts and the round holes over the front bolts. Using an adjustable wrench, lightly secure with four nuts but do not overtighten or the enamel could be chipped.
  • Page 14: Replacing The Oven Door

    Installation Instructions Replacing the Oven Door NOTE: The oven door is heavy. You may need help lifting the door high enough to slide it into the hinge slots. Do not lift the door by the handle. Lift the oven door by placing one hand on each side.
  • Page 15: Operation Checklist

    Installation Instructions Pre-Test Checklist Remove all protective film, if present, and any stickers. Check to be sure that all wiring is secure and not pinched or in contact with moving parts. NOTE TO ELECTRICIAN: You must unplug the green wire (near where the long flexible conduit exits the unit) when conducting high-potential testing.
  • Page 16 Printed in U.S.A.
