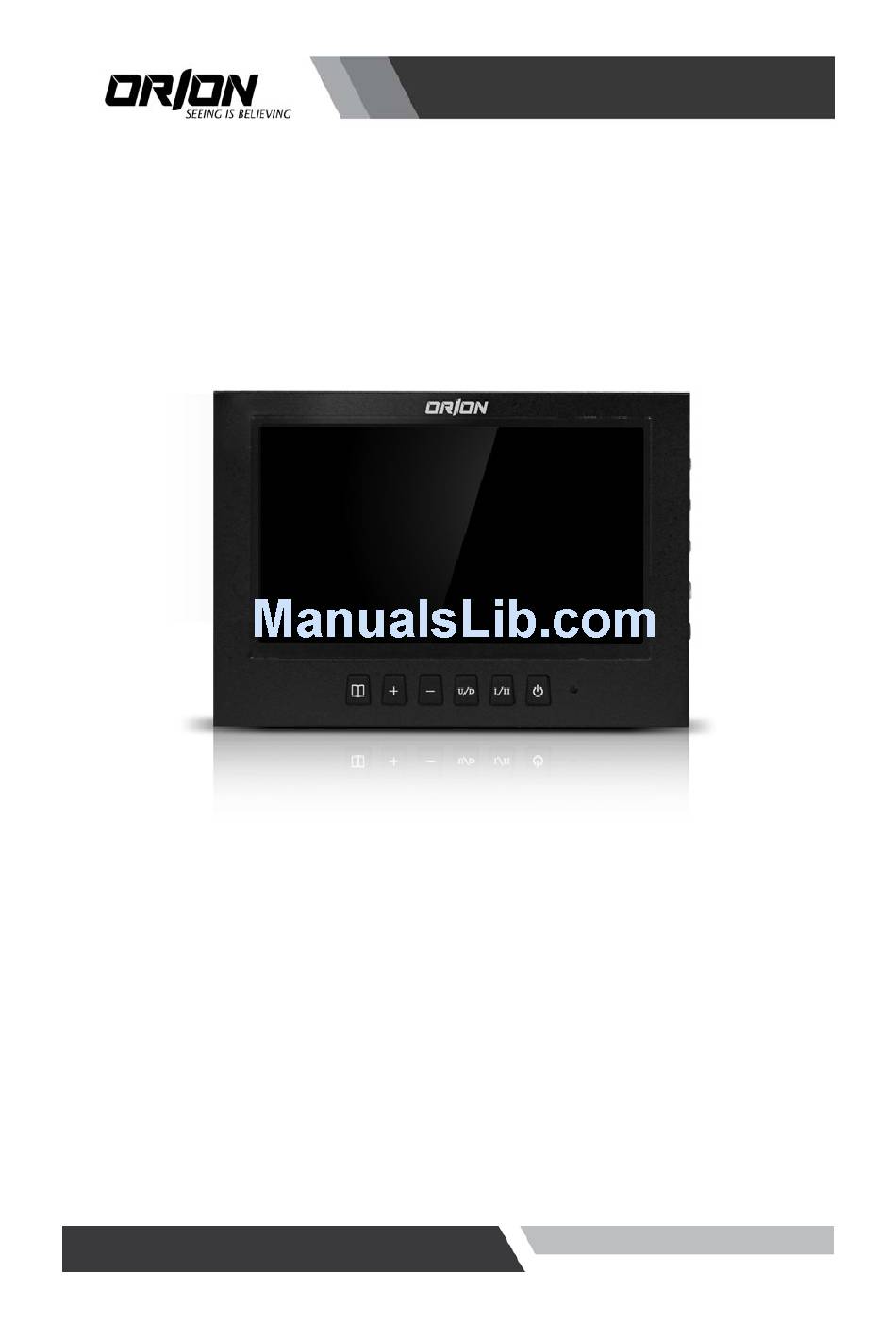

- Page 1 Installation and User’s Guide Installation and User’s Guide TEST MONITOR LCD SERIES (TM) 7” TFT-LCD MONITOR (SECURITY) http://www.orionimages.com All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein...
- Page 2 Installation and User’s Guide http://www.orionimages.com Warning Statements Follow this safety instruction to use the monitor properly and prevent the damages. * This safety instruction has “ Warning” and “ Caution” as below. WARNING: If the user does not follow this instruction, it may cause the serious damage to the user.
- Page 3 Installation and User’s Guide http://www.orionimages.com Warning Statements Do not install this monitor on the outside For cleaning do not use liquid cleaners. and near water. If may cause damage to Never touch the power plug with wet- the product, electric shock and fire. hands.
- Page 4 Installation and User’s Guide http://www.orionimages.com Cautions Install this monitor some distance Place this product on a stable place. From the wall and do not install unless If not, it may fall, causing serious Damages to the monitor and people. Proper ventilation is provided. The openings must not be blocked by When carrying this monitor, be careful curtain, rug or other similar surface.
-
Page 5: Table Of Contents
Installation and User’s Guide http://www.orionimages.com TABLE OF CONTENTS 1. INSTALLATION ......................... 1.1 Parts ……........................2. FEATURES …........................2.1 Display Mode …….……..........................................3. OSD SETTING 3.1 Connections & Controls ....................3.2 OSD Menu Control ...................... 3.3 Controls ........................3.4 Battery ........................... 4. -
Page 6: Installation
Installation and User’s Guide http://www.orionimages.com INSTALLATION 1.1 Parts 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310... -
Page 7: Features
Installation and User’s Guide http://www.orionimages.com FEATURES 2.2 Specifications VIDEO Screen Size 7” Pixel Type Active Matrix TFT Max. Resolution 1440 x 234 Pixel Pitch 0.107 x 0.370mm 500 cd/㎡ Brightness Contrast Ratio 300 : 1 Aspect Ratio Viewing Angle (H/V) 120 / 70 Active Area 154.08(W) x 86.58(H) mm... -
Page 8: Osd Setting
Installation and User’s Guide http://www.orionimages.com POWER OPERATING & CONNECTION 3.1 Connections and Controls ① Video 1 Input ⑦ OSD Menu ② Video 2 Input ⑧ “+” Increase (Default to Brightness) ③ Video Output ⑨ “-” Decrease (Default to Brightness) ④ Audio Input (optional) ⑩... -
Page 9: Controls
Installation and User’s Guide http://www.orionimages.com 3.3 Controls To switch the video input use “I / II” to select NTSC Video 1 or Video 2. To view the Rear Camera select “U/D” button to see the reverse image 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310... -
Page 10: Battery
Installation and User’s Guide http://www.orionimages.com 3.4 Battery Energy Saving Li-ion Rechargeable Battery To charge the battery press “On-Off” switch to “On” position then charge the battery at least 10 hours to fully charged. To avoid unnecessary power loss make sure switch to “Off”... -
Page 11: Information To The User
Installation and User’s Guide http://www.orionimages.com INFORMATION TO THE USER This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 12: Troubleshooting
Installation and User’s Guide http://www.orionimages.com TROUBLESHOOTING * When the following troubles are occurred, follow the trouble shooting. Before contacting a service center. Troubleshooting Troubleshooting Tip 1. Make sure if the power supply is connected property Turn on the power. The screen doesn’t show up 3. -
Page 13: Limited Lifetime Warranty
2Year Limited Warranty All Orion Images products carry a limited warranty from ship date against defects in materials and workmanship. Orion Images is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury.
