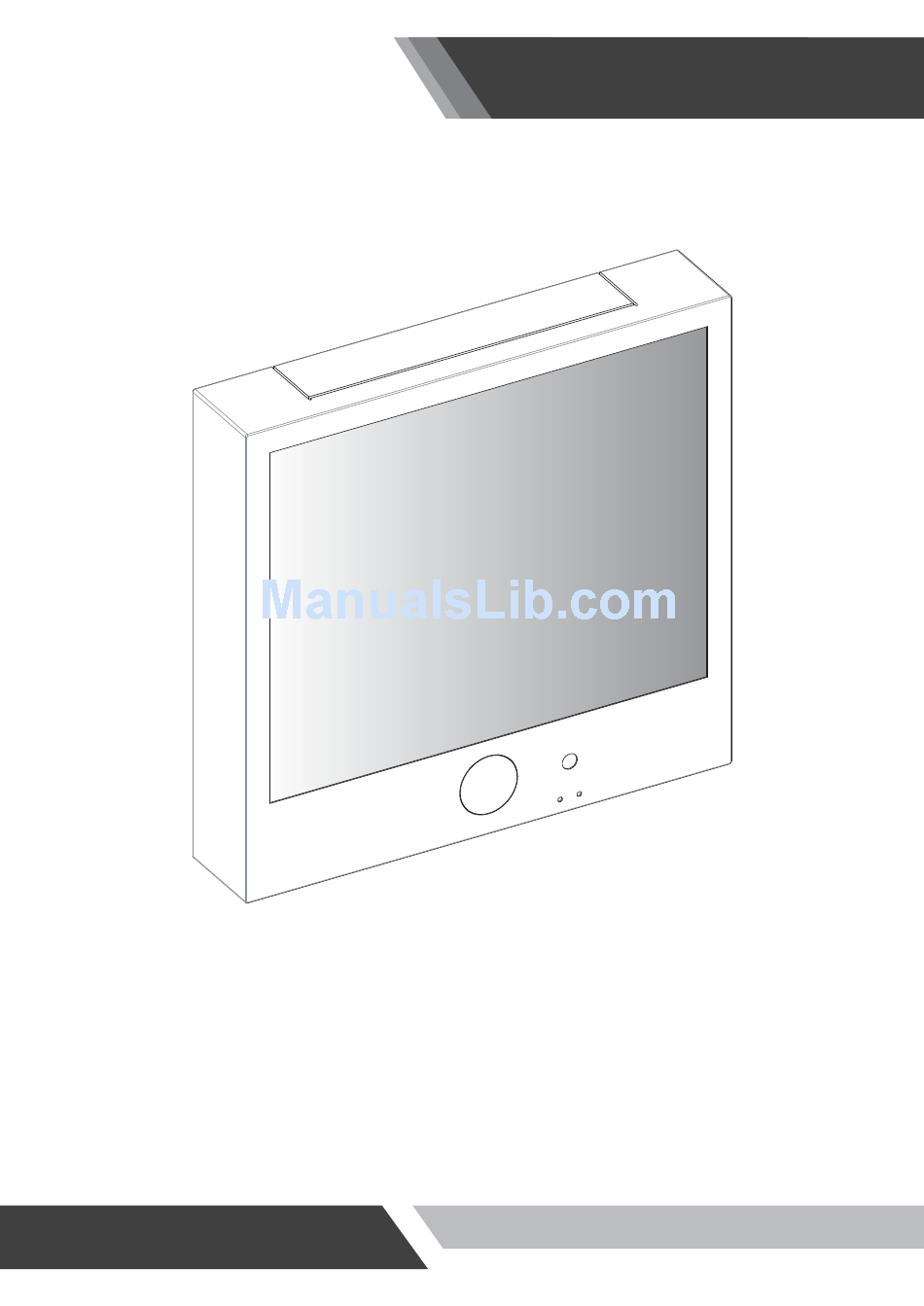

- Page 1 Installation and User's Guide PUBLIC VIEW MONITOR SERIES (10~32 inches)
-
Page 2: Safety Instruction
Installation and User's Guide 1. SAFETY INSTRUCTION Follow this safety instruction to use the monitor properly and prevent the damages. This safety instruction has “Warning” & “Caution” as below Warning - If the user does not follow this instruction, it may cause the serious damage to the user. Caution - If the user does not follow this instruction, it may cause the slight damage to the user or cause some damages to the monitor. - Page 3 Installation and User's Guide Warning Do not install this monitor on the outside For cleaning do not use liquid cleaners. and near water. If may cause damage to Never touch the power plug with wet-hands. the product, electric shock and fire. When lightning and thundering, unplug the Unplug this product from the wall outlet, when monitor from the wall outlet and never touch...
- Page 4 Installation and User's Guide Cautions Install this monitor some distance Place this product on a stable place. From the wall and do not install unless If not, it may fall, causing serious Proper ventilation is provided. Damages to the monitor and people. The openings must not be blocked by When carrying this monitor, be careful curtain, rug or other similar surface.
- Page 5 Installation and User's Guide Cautions Install this monitor about 50cm far from Do not press the LCD panel with hands or the eyes and an angle of 0~15 degrees the sharpened material hardly. below eyes. Too close installation may cause having weak sight. For cleaning, unplug the monitor from the Do not use the chemical liquid for cleaning.
-
Page 6: Fcc Rf Interference Statement
Installation and User's Guide 2. FCC RF INTERFERENCE STATEMENT NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 7 Installation and User's Guide TABLE OF CONTENTS 1. SAFETY INSTRUCTION 1-1 Warning 1-2 Caution 2. FCC STATEMENT 3. INSTALLATION 3-1 Parts 3-2 How to Install 4. OSD MENU SETTING 4-1 Mode Setting 4-2 Menu Setting (CAMERA, VIDEO Mode) 4-3 Menu Setting (VGA Mode) 4-4 Menu Setting (HDMI Mode) 4-5 Camera Setting 5.
-
Page 8: Installation
Installation and User's Guide 3. INSTALLATION 3-1 Parts LCD Monitor Adapter (10" only) VGA Cable Power Cable Battery Remote Controller User Manual... -
Page 9: 3-2 How To Install
Installation and User's Guide 3-2 How to Install KEY BUTTON SHORT KEY FUNCTION OSD Key Function Activates and exit the OSD Select input source, and select the OSD menu Move the OSD menu and auto adjustment of RGB source Decrease the level of volume and move the previous menu Increase the level of volume and select rhe OSD menu Turns the power ON or OFF. - Page 10 Installation and User's Guide CONNECTION 10 inches 19, 23 inches 20, 27, 32 inches AC POWER VIDEO IN / OUT AC100~240V input VIDEO signal input / looping out HDMI AUDIO (VIDEO) HDMI signal input Stereo audio input for VIDEO or S-VIDEO AUDIO (PC) VGA (PC RGB) signal input Stereo audio input for VGA...
-
Page 11: Mode Select Menu
Installation and User's Guide REMOTE CONTROLLER MODE SELECT MENU CAMERA VIDEO Select CAMERA mode Select VIDEO mode VGA (RGB) HDMI Select VGA mode Select HDMI mode POWER MUTE VIDEO AUTO COLOR TEMP CAMERA HDMI OSD CONTROL MENU S.SET SCAN MODE POWER MUTE Turn ON / OFF the monitor... -
Page 12: Osd Menu Setting
Installation and User's Guide 4. OSD MENU SETTING 4-1 Mode Setting INPUT Use SOURCE button and then button to move the source. CAMERA Press the button to select the source. VIDEO √ RGB PC Press the MENU/EXIT button to exit the INPUT menu. HDMI ▼/▲:MOVE ▶:ENTER Inputs can be set to CAMERA, VIDEO, RGB PC &... -
Page 13: 4-2 Menu Setting (Camera, Video Mode
Installation and User's Guide 4-2 Menu Setting (CAMERA, VIDEO Mode) PICTURE Press the MENU/EXIT key to access menu. PICTURE PICTURE Use the & arrow to highlight a selection. CONTRAST SCREEN BRIGHTNESS Press the /SELECT to choose an item. COLOR TINT 4. - Page 14 Installation and User's Guide COLOR TINT PICTURE PICTURE PICTURE PICTURE CONTRAST CONTRAST BRIGHTNESS BRIGHTNESS SCREEN SCREEN COLOR COLOR TINT TINT SHARPNESS SHARPNESS SETUP SETUP COLOR TEMP ◀ MEDIUM ▶ COLOR TEMP ◀ MEDIUM ▶ GREEN GREEN SETUP SETUP BLUE BLUE ▶...
-
Page 15: Scan Mode
Installation and User's Guide SCAN MODE PICTURE PICTURE CONTRAST BRIGHTNESS SCREEN COLOR TINT SHARPNESS SETUP COLOR TEMP ◀ MEDIUM ▶ GREEN SETUP BLUE ▶ SCAN MODE ◀ FULL CYCLE SETUP SETUP ▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.* Default setting is FULL, switch to UNDER and OVER scan... - Page 16 Installation and User's Guide SETUP Press the MENU/EXIT key to access menu. SETUP PICTURE Use the & arrow to highlight a selection. INPUT ◀ CAMERA ▶ ▶ SCREEN LANGUAGE ◀ ENGLISH ▶ Press the /SELECT to choose an item. SOUND MUTE ◀...
-
Page 17: Sound Mute
Installation and User's Guide SOUND MUTE BUTTON LOCK SETUP SETUP PICTURE PICTURE ▶ ▶ INPUT ◀ CAMERA INPUT ◀ CAMERA ▶ ▶ LANGUAGE ◀ ENGLISH LANGUAGE ◀ ENGLISH SCREEN SCREEN SOUND MUTE ◀ ▶ SOUND MUTE ◀ ▶ ◀ ▶ ◀... - Page 18 Installation and User's Guide DEFAULT SETUP PICTURE ▶ INPUT ◀ CAMERA ▶ LANGUAGE ◀ ENGLISH SCREEN SOUND MUTE ◀ ▶ ◀ ▶ BUTTON LOCK ▶ SETUP NOISE REDUCTION ◀ OSD TIME DEFAULT ▶ SETUP CYCLE SETUP SETUP ▼/▲ : MOVE ◀/▶...
- Page 19 Installation and User's Guide CYCLE SETUP Press the MENU/EXIT key to access menu. CYCLE SETUP PICTURE Use the & arrow to highlight a selection. CYCLE TIME ▶ SCREEN CYCLE ◀ Press the /SELECT to choose an item. ▶ CAMERA ◀ ▶...
- Page 20 Installation and User's Guide PVM SETUP Press the MENU/EXIT key to access menu. PVM SETUP PICTURE Use the & arrow to highlight a selection. MOTION MODE ◀ ▶ ▶ SCREEN MOTION INPUT ◀ CAMERA Press the /SELECT to choose an item. SETUP 4.
-
Page 21: 4-3 Menu Setting (Vga Mode
Installation and User's Guide 4-3 Menu Setting (VGA Mode) PICTURE Press the MENU/EXIT key to access menu. PICTURE PICTURE Use the & arrow to highlight a selection. CONTRAST SCREEN BRIGHTNESS Press the /SELECT to choose an item. COLOR TINT 4. Use the &... - Page 22 Installation and User's Guide COLOR TEMP PICTURE PICTURE CONTRAST BRIGHTNESS SCREEN COLOR TINT SHARPNESS SETUP ▶ COLOR TEMP ◀ MEDIUM GREEN SETUP BLUE ▶ SCAN MODE ◀ FULL CYCLE SETUP SETUP ▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.* Default setting is MEDIUM and switch to WARM, USER and...
- Page 23 Installation and User's Guide SCREEN PICTURE ▶ ◀ ▶ SCREEN PIP INPUT ◀ VIDEO ▶ PIP SIZE ◀ SMALL ▶ PIP R/T ◀ SETUP SETUP CYCLE SETUP SETUP ▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.* Default setting is OFF and switch to ON, DW1 and DW2 PIP/PBP mode options...
- Page 24 Installation and User's Guide RGB SETUP Press the MENU/EXIT key to access menu. RGB SETUP PICTURE Use the & arrow to highlight a selection. H-POSITION 100% SCREEN V-POSITION Press the /SELECT to choose an item. CLOCK PHASE AUTO ADJUST ▶ SETUP 4.
-
Page 25: Auto Adjust
Installation and User's Guide CLOCK PHASE RGB SETUP RGB SETUP PICTURE PICTURE H-POSITION H-POSITION 100% 100% V-POSITION V-POSITION SCREEN SCREEN CLOCK CLOCK PHASE PHASE AUTO ADJUST ▶ AUTO ADJUST ▶ SETUP SETUP ▶ ▶ POWER SAVING ◀ POWER SAVING ◀ AUTO REPEAT ▶... - Page 26 Installation and User's Guide CYCLE SETUP Press the MENU/EXIT key to access menu. CYCLE SETUP PICTURE Use the & arrow to highlight a selection. CYCLE TIME ▶ SCREEN CYCLE ◀ Press the /SELECT to choose an item. ▶ CAMERA ◀ ▶...
- Page 27 Installation and User's Guide MOTION MODE MOTION INPUT PVM SETUP PVM SETUP PICTURE PICTURE ▶ ▶ MOTION MODE ◀ MOTION MODE ◀ MOTION INPUT ◀ CAMERA ▶ MOTION INPUT ◀ CAMERA ▶ SCREEN SCREEN SETUP SETUP SETUP SETUP CYCLE CYCLE SETUP SETUP SETUP...
-
Page 28: 4-4 Menu Setting (Hdmi Mode
Installation and User's Guide 4-4 Menu Setting (HDMI Mode) PICTURE Press the MENU/EXIT key to access menu. PICTURE PICTURE Use the & arrow to highlight a selection. CONTRAST BRIGHTNESS SCREEN Press the /SELECT to choose an item. COLOR TINT 4. Use the &... - Page 29 Installation and User's Guide COLOR TINT PICTURE PICTURE PICTURE PICTURE CONTRAST CONTRAST BRIGHTNESS BRIGHTNESS SCREEN SCREEN COLOR COLOR TINT TINT SHARPNESS SHARPNESS SETUP SETUP COLOR TEMP ◀ MEDIUM ▶ COLOR TEMP ◀ MEDIUM ▶ GREEN GREEN SETUP SETUP BLUE BLUE ▶...
- Page 30 Installation and User's Guide SCREEN Press the MENU/EXIT key to access menu. SCREEN PICTURE Use the & arrow to highlight a selection. ▶ ◀ ▶ SCREEN PIP INPUT ◀ VIDEO ▶ PIP SIZE ◀ SMALL Press the /SELECT to choose an item. ▶...
- Page 31 Installation and User's Guide CYCLE SETUP Press the MENU/EXIT key to access menu. CYCLE SETUP PICTURE Use the & arrow to highlight a selection. CYCLE TIME ▶ SCREEN CYCLE ◀ Press the /SELECT to choose an item. ▶ CAMERA ◀ ▶...
-
Page 32: 4-5 Camera Setting
Installation and User's Guide 4-5 Camera Setting EXPOSURE ELC/ALC DAY / NIGHT DAY / NIGHT / EXTERN / CDS / AUTO WHITE BAL. ATW / PUSH / MANUAL GAMMA 0.45~0.65 CHROMA Adjustable MONITOR SHARPNESS Adjustable SHADING Adjustable PED. LV. Adjustable BACKLIGHT OFF / BLC / HLC CONTRAST... -
Page 33: Features
Installation and User's Guide 5. FEATURE 10 inches 19 inches 20 inches 23 inches 27 inches 32 inches Screen Size 9.7 inches 19.0 inches 20.1 inches 23.0 inches 27.0 inches 31.6 inches Resolution 1024*768 pixels 1280*1024 pixels 1600*1200 pixels 1920*1080 pixels Pixel Pitch 0.192*0.192 mm 0.294*0.294 mm... -
Page 34: Troubleshooting
Installation and User's Guide 6. TROUBLESHOOTING * When the following troubles are occurred, follow the trouble shooting. Before contacting a service center. Troubleshooting Troubleshooting Tip 1. Make sure if the power supply is connected property The screen doesn’t 2. Turn on the power. show up 3.
