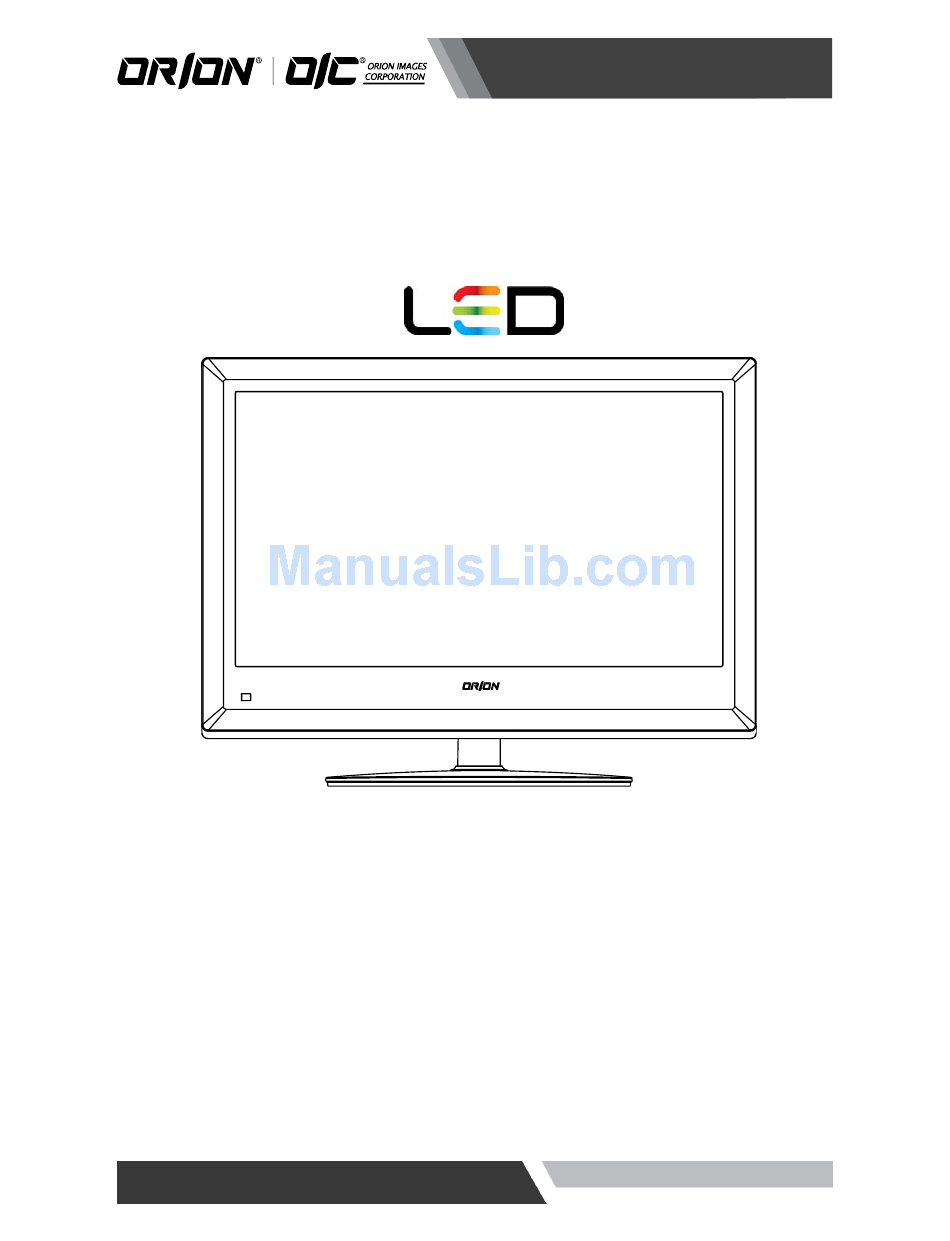

- Page 1 Installation and User’s Guide 18.5"/ 21.5"/ 23" BASIC LED DISPLAY MONITOR All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein...
-
Page 2: Warning Statements
Installation and User’s Guide Warning Statements Follow this safety instruction to use the monitor properly and prevent the damages. * This safety instruction has “ Warning” and “ Caution” as below. WARNING: If the user does not follow this instruction, it may cause the serious damage to the user. - Page 3 Installation and User’s Guide Warning Statements Do not install this monitor on the outside For cleaning do not use liquid cleaners. and near water. If may cause damage to Never touch the power plug with wet- the product, electric shock and fire. hands.
- Page 4 Installation and User’s Guide Cautions Install this monitor some distance Place this product on a stable place. From the wall and do not install unless If not, it may fall, causing serious Damages to the monitor and people. Proper ventilation is provided. The openings must not be blocked by When carrying this monitor, be careful curtain, rug or other similar surface.
-
Page 5: Table Of Contents
Installation and User’s Guide TABLE OF CONTENTS 1. INSTALLATION ......................... 1.1 Unpacking ……......................1.2 Part List ……......................1.3 Main Functional Button ……..................1.4 Connection ……......................2. OSD SETTING …......................9-11 3. FEATURES ......................3.1 Specifications …….……........................................4. APPENDIX 5. INFORMATION TO THE USER ...................................... -
Page 6: Installation
Installation and User’s Guide INSTALLATION 1.1 Unpacking Remove the package cover and place the product on a flat and secure surface or in the installation location. This equipment should be unpacked and handled with care. If an item appears to have been damaged in shipment, notify the shipper immediately. -
Page 7: Main Functional Button
Installation and User’s Guide INSTALLATION 1.3 Main Functional Button 1 RECALL Select to reset all setting to the factory default values. ASPECT 2 Turn on the monitor and set the monitor ratio to 4:3, wide.. AUTO 3 Adjust screen automatically. + 4 Move to the right (increase) on OSD. ‐ 5 Move to the left (decrease) on OSD. 6 MENU Activates and exits the OSD / POWER 7 ... -
Page 8: Connection
Installation and User’s Guide INSTALLATION 1.4 Connection VGB In (15 Pin D-SUB) 1 Connect the VGA signal cable. DVI-D In 2 Connect the DVI cable. Audio In 3 Connect the Audio cable. -
Page 9: Osd (On Screen Display) Setting
Installation and User’s Guide OSD (On Screen Display) SETTING 2-1 D-SUB Mode 2-2 DVI Mode... - Page 10 Installation and User’s Guide 2-3 Miscellaneous Menu Color control screen OSD control screen (VGA) OSD control screen (DVI) pg10...
- Page 11 Installation and User’s Guide 2-4 OSD Function pg11...
-
Page 12: Features
Installation and User’s Guide FEATURES 3.1 Specification VIDEO Screen Size 18.5” 21.5” 23” Pixel Type Active Matrix TFT Active Matrix TFT Active Matrix TFT Panel Resolution 1366 x 768 @60Hz 1920 x 1080 @60Hz 1920 x 1080 @60Hz Pixel Pitch 0.3mm x 0.3mm 0.248 x 0.248 mm 0.265 x 0.265 mm Brightness 250 cd/㎡ 250cd/m² 250cd/m² Contrast Ratio 1000 : 1 1000:1 1000:1 Aspect Ratio 16 : 9 16 : 9 16 : 9 Viewing Angle (H/V) ... -
Page 13: Appendix
Installation and User’s Guide APPENDIX 4.1 D-SUB Connector PIN Assignment PIN NO. PIN Name PIN NO. PIN Name RED VIDEO GREEN VIDEO SIGNAL CABLE DETECT BLUE VIDEO GROUND GROUND SDA (for DDC) GROUND H-SYNC RED GROUND V-SYNC GREEN GROUND SCL (for DDC) BLUE GROUND pg13... -
Page 14: Information To The User
Installation and User’s Guide INFORMATION TO THE USER This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 15: Troubleshooting
Installation and User’s Guide TROUBLESHOOTING * When the following troubles are occurred, follow the trouble shooting. Before contacting a service center. Troubleshooting Troubleshooting Tip 1. Make sure if the power supply is connected property Turn on the power. The screen doesn’t show up 3. -
Page 16: Limited Warranty
Installation and User’s Guide 2Year Limited Warranty All Orion Images products carry a limited warranty from ship date against defects in materials and workmanship. Orion Images is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury.
