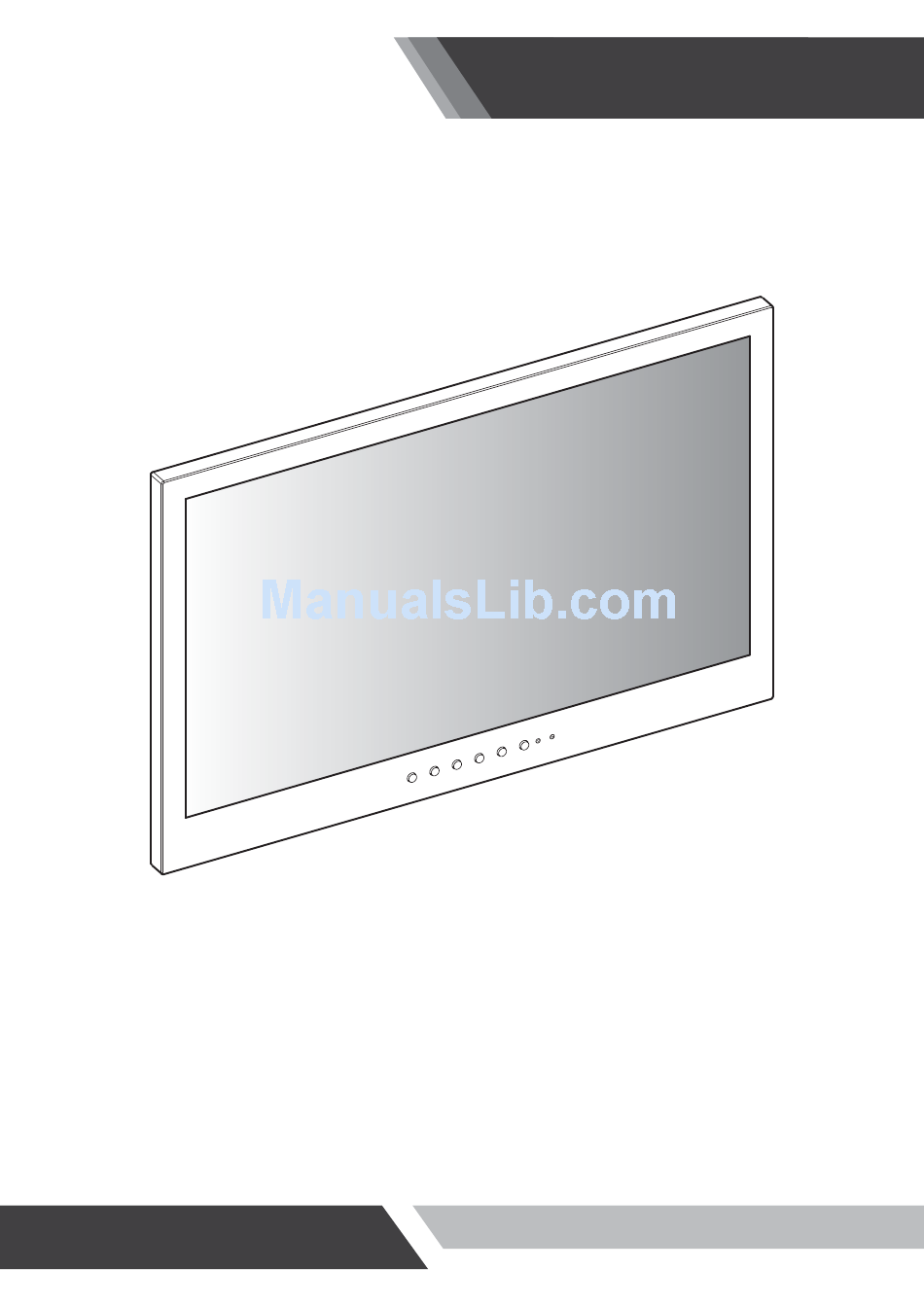

- Page 1 Installation and User's Guide BROADCAST/SURVEILLANCE APPLICATIONS (19~23 inches) All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein...
-
Page 2: Warning
Installation and User's Guide 1. SAFETY INSTRUCTION Follow this safety instruction to use the monitor properly and prevent the damages. This safety instruction has “Warning” & “Caution” as below Warning - If the user does not follow this instruction, it may cause the serious damage to the user. Caution - If the user does not follow this instruction, it may cause the slight damage to the user or cause some damages to the monitor. - Page 3 Installation and User's Guide Warning Do not install this monitor on the outside For cleaning do not use liquid cleaners. and near water. If may cause damage to Never touch the power plug with wet-hands. the product, electric shock and fire. When lightning and thundering, unplug the Unplug this product from the wall outlet, when monitor from the wall outlet and never touch...
- Page 4 Installation and User's Guide Cautions Install this monitor some distance Place this product on a stable place. From the wall and do not install unless If not, it may fall, causing serious Proper ventilation is provided. Damages to the monitor and people. The openings must not be blocked by When carrying this monitor, be careful curtain, rug or other similar surface.
- Page 5 Installation and User's Guide Cautions Install this monitor about 50cm far from Do not press the LCD panel with hands or the eyes and an angle of 0~15 degrees the sharpened material hardly. below eyes. Too close installation may cause having weak sight. For cleaning, unplug the monitor from the Do not use the chemical liquid for cleaning.
-
Page 6: Fcc Statement
Installation and User's Guide 2. FCC RF INTERFERENCE STATEMENT NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 7: Table Of Contents
Installation and User's Guide TABLE OF CONTENTS 1. SAFETY INSTRUCTION 1-1 Warning 1-2 Caution 2. FCC STATEMENT 3. INSTALLATION 3-1 Parts 3-2 How to Install 4. OSD MENU SETTING 4-1 Mode Setting 4-2 Menu Setting (VIDEO, S-VIDEO, COMPONENT Mode) 4-3 Menu Setting (VGA Mode) 4-4 Menu Setting (DVI, HDMI, SDI Mode) 5. -
Page 8: Installation
Installation and User's Guide 3. INSTALLATION 3-1 Parts LCD Monitor Adapter VGA Cable Trigger Cable Power Cable Battery Remote Controller User Manual... -
Page 9: How To Install
Installation and User's Guide 3-2 How to Install KEY BUTTON Activate and exit the OSD menu Move the OSD menu down and select input source Move the OSD menu up and auto adjustment of VGA source Decrease the volume or selected item, and return to the previous menu Increase the volume or selected item, and select items in the menu Turn the power ON and OFF. - Page 10 Installation and User's Guide CONNECTION Power Supply Adapter DC12V CVBS-1 IN / OUT DC adapter input CVBS-1 signal input / looping out AUDIO (PC) TRIGGER Stereo audio input for VGA TRIGGER signal input COMPONENT HDMI COMPONENT (Y/Pb/Pr) signal & stereo audio input HDMI signal 1 / 2 input AUDIO (CVBS-2) Stereo audio input for CVBS-2...
-
Page 11: Mode Select Menu
Installation and User's Guide REMOTE CONTROLLER MODE SELECT MENU CVBS1 CVBS2 Select CVBS1 mode Select CVBS2 mode S-VIDEO VGA (RGB) Select S-VIDEO mode Select VGA mode POWER MUTE HDMI1 CVBS1 CVBS2 S-VIDEO Select DVI mode Select HDMI1 mode AUTO COLOR TEMP COMPONENT HDMI2 HDMI1... -
Page 12: Osd Menu Setting
Installation and User's Guide 4. OSD MENU SETTING 4-1 Mode Setting INPUT Use SOURCE button and then button to move the source. CVBS1 Press the button to select the source. CVBS2 S-VIDEO Press the MENU/EXIT button to exit the INPUT menu. √... - Page 13 Installation and User's Guide 4-2 Menu Setting (CVBS, S-VIDEO, COMPONENT Mode) PICTURE Press the MENU/EXIT key to access menu. PICTURE PICTURE Use the & arrow to highlight a selection. CONTRAST SCREEN BRIGHTNESS Press the /SELECT to choose an item. COLOR TINT 4.
- Page 14 Installation and User's Guide COLOR TINT PICTURE PICTURE PICTURE PICTURE CONTRAST CONTRAST BRIGHTNESS BRIGHTNESS SCREEN SCREEN COLOR COLOR TINT TINT SHARPNESS SHARPNESS SETUP SETUP PEAKING CONTROL PEAKING CONTROL ▶ ▶ COLOR TEMP ◀ MEDIUM COLOR TEMP ◀ MEDIUM RED gain RED gain SETUP SETUP...
-
Page 15: Scan Mode
Installation and User's Guide SCREEN Press the MENU/EXIT key to access menu. SCREEN PICTURE Use the & arrow to highlight a selection. ▶ SCAN MODE ◀ FULL ◀ ▶ SCREEN Press the /SELECT to choose an item. ▶ PIP INPUT ◀... - Page 16 Installation and User's Guide SETUP Press the MENU/EXIT key to access menu. SETUP PICTURE Use the & arrow to highlight a selection. ▶ INPUT ◀ CVBS1 LANGUAGE ◀ ENGLISH ▶ SCREEN Press the /SELECT to choose an item. SOUND MUTE ▶...
-
Page 17: Sound Mute
Installation and User's Guide SOUND MUTE BUTTON LOCK SETUP SETUP PICTURE PICTURE ▶ ▶ INPUT ◀ CVBS1 INPUT ◀ CVBS1 LANGUAGE ◀ ENGLISH ▶ LANGUAGE ◀ ENGLISH ▶ SCREEN SCREEN SOUND MUTE ▶ SOUND MUTE ▶ ◀ ◀ ▶ ▶ BUTTON LOCK ◀... - Page 18 Installation and User's Guide DEFAULT LINE SHIFT SETUP SETUP PICTURE PICTURE ▶ ▶ INPUT ◀ CVBS1 INPUT ◀ CVBS1 LANGUAGE ◀ ENGLISH ▶ LANGUAGE ◀ ENGLISH ▶ SCREEN SCREEN SOUND MUTE ▶ SOUND MUTE ▶ ◀ ◀ ▶ ▶ BUTTON LOCK ◀...
- Page 19 Installation and User's Guide CYCLE SETUP Press the MENU/EXIT key to access menu. CYCLE SETUP PICTURE Use the & arrow to highlight a selection. CYCLE TIME ▶ SCREEN CYCLE ◀ Press the /SELECT to choose an item. ▶ CVBS1 ◀ ▶...
- Page 20 Installation and User's Guide TRIGGER Press the MENU/EXIT key to access menu. TRIGGER PICTURE Use the & arrow to highlight a selection. TRIGGER MODE ◀ ▶ ▶ SCREEN TRIGGER INPUT ◀ VIDEO1 Press the /SELECT to choose an item. TRIGGER DWELL 4.
-
Page 21: Menu Setting (Vga Mode)
Installation and User's Guide 4-3 Menu Setting (VGA Mode) PICTURE Press the MENU/EXIT key to access menu. PICTURE PICTURE Use the & arrow to highlight a selection. CONTRAST SCREEN BRIGHTNESS Press the /SELECT to choose an item. COLOR TINT 4. Use the &... - Page 22 Installation and User's Guide COLOR TEMP PICTURE PICTURE CONTRAST BRIGHTNESS SCREEN COLOR TINT SHARPNESS SETUP PEAKING CONTROL ▶ COLOR TEMP ◀ MEDIUM RED gain SETUP GREEN gain BLUE gain CYCLE RED bias SETUP GREEN bias BLUE bias TRIGGER ▼/▲ : MOVE ◀/▶...
- Page 23 Installation and User's Guide SCREEN PICTURE ▶ SCAN MODE ◀ FULL ◀ ▶ SCREEN ▶ PIP INPUT ◀ CVBS2 ▶ PIP SWAP ▶ PIP SIZE ◀ SMALL SETUP ▶ PIP R/T ◀ SETUP CYCLE SETUP TRIGGER ▼/▲ : MOVE ◀/▶ : ADJUST ▶...
- Page 24 Installation and User's Guide RGB SETUP Press the MENU/EXIT key to access menu. RGB SETUP PICTURE Use the & arrow to highlight a selection. H-POSITION 100% SCREEN V-POSITION Press the /SELECT to choose an item. CLOCK PHASE 4. Use the &...
-
Page 25: Auto Adjust
Installation and User's Guide CLOCK PHASE RGB SETUP RGB SETUP PICTURE PICTURE H-POSITION H-POSITION 100% 100% V-POSITION V-POSITION SCREEN SCREEN CLOCK CLOCK PHASE PHASE AUTO ADJUST ▶ AUTO ADJUST ▶ SETUP SETUP ▶ ▶ POWER SAVING ◀ POWER SAVING ◀ AUTO REPEAT ▶... - Page 26 Installation and User's Guide CYCLE SETUP Press the MENU/EXIT key to access menu. CYCLE SETUP PICTURE Use the & arrow to highlight a selection. CYCLE TIME ▶ SCREEN CYCLE ◀ Press the /SELECT to choose an item. ▶ CVBS1 ◀ ▶...
- Page 27 Installation and User's Guide VGA / DVI / HDMI / SDI Mode Tables MODE RESOLUTION VERTICA FREQUENCY (Hz) 720X400 640X480 60 / 72 / 75 SVGA 800X600 50 / 60 / 72 / 75 VGA / DVI 1024X768 50 / 60 / 75 MODE WXGA 1366X768...
-
Page 28: Menu Setting (Dvi, Hdmi, Sdi Mode)
Installation and User's Guide 4-4 Menu Setting (DVI, HDMI, SDI Mode) PICTURE Press the MENU/EXIT key to access menu. PICTURE PICTURE Use the & arrow to highlight a selection. CONTRAST SCREEN BRIGHTNESS Press the /SELECT to choose an item. COLOR TINT 4. - Page 29 Installation and User's Guide COLOR TINT PICTURE PICTURE PICTURE PICTURE CONTRAST CONTRAST BRIGHTNESS BRIGHTNESS SCREEN SCREEN COLOR COLOR TINT TINT SHARPNESS SHARPNESS SETUP SETUP PEAKING CONTROL PEAKING CONTROL ▶ ▶ COLOR TEMP ◀ MEDIUM COLOR TEMP ◀ MEDIUM RED gain RED gain SETUP SETUP...
- Page 30 Installation and User's Guide SCREEN Press the MENU/EXIT key to access menu. SCREEN PICTURE Use the & arrow to highlight a selection. ▶ SCAN MODE ◀ FULL ◀ ▶ SCREEN Press the /SELECT to choose an item. ▶ PIP INPUT ◀...
- Page 31 Installation and User's Guide CYCLE SETUP Press the MENU/EXIT key to access menu. CYCLE SETUP PICTURE Use the & arrow to highlight a selection. CYCLE TIME ▶ SCREEN CYCLE ◀ Press the /SELECT to choose an item. ▶ CVBS1 ◀ ▶...
-
Page 32: Features
Installation and User's Guide 5. FEATURE General Features 19 inches 23 inches Screen Size 18.5 inches 23.0 inches Resolution 1366*768 pixels 1920*1080 pixels Pixel Pitch 0.300*0.300 mm 0.265*0.265 mm Brightness 250 cd/m^2 250 cd/m^2 Contrast Ratio 1000:1 1000:1 Display Aspect Ratio 16:9 16:9 Viewing Angle (H/V) -
Page 33: Troubleshooting
Installation and User's Guide 6. TROUBLESHOOTING * When the following troubles are occurred, follow the trouble shooting. Before contacting a service center. Troubleshooting Troubleshooting Tip 1. Make sure if the power supply is connected property The screen doesn’t 2. Turn on the power. show up 3.
