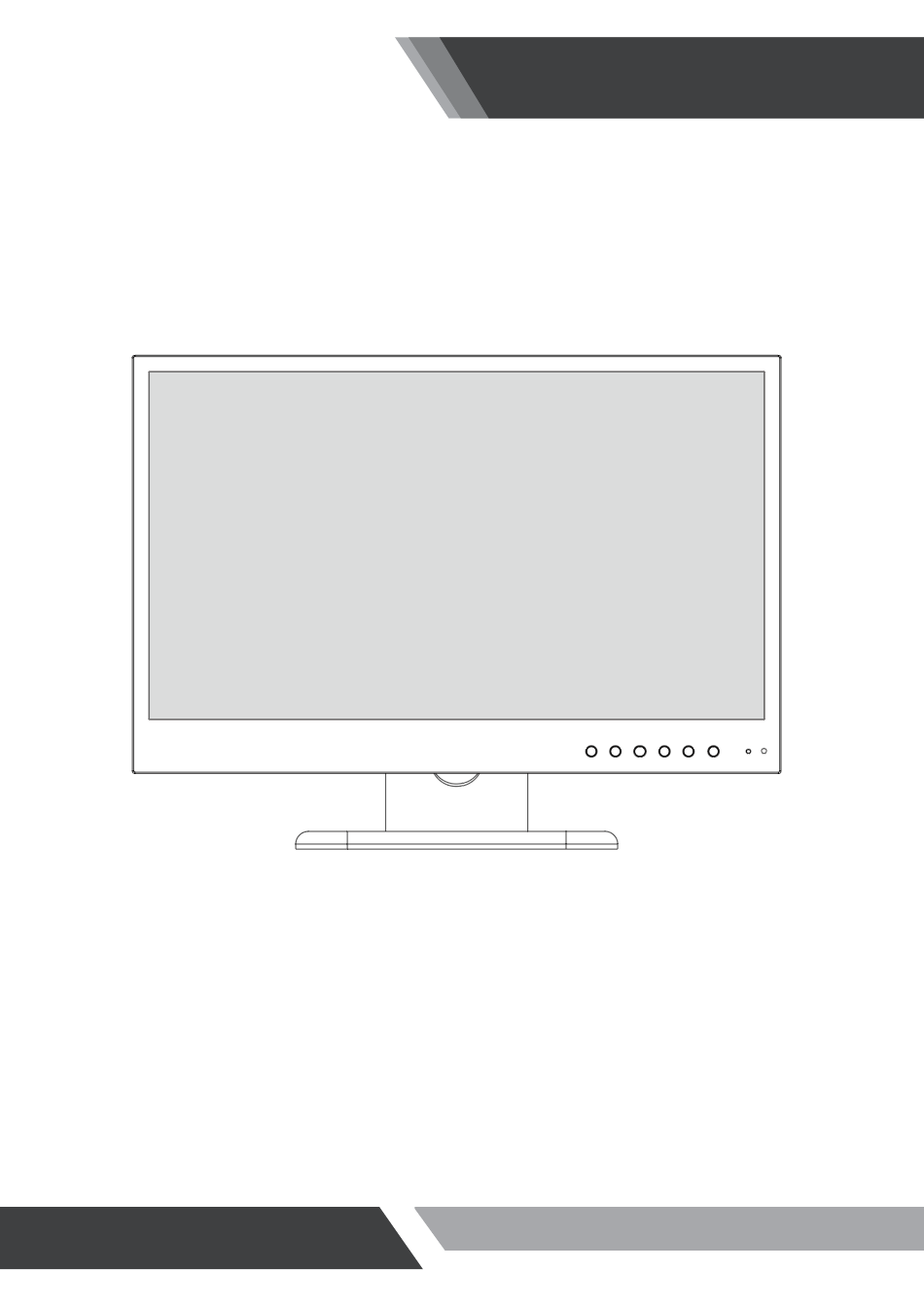

- Page 1 Installation and User's Guide IP OUTPUT KHIP MONITOR SERIES (21KHIP) All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein...
- Page 2 Warranty Orion Images Corporation (“OIC”) warrants to the first purchaser that its LCD Display monitors are free from defects in materials and workmanship under normal use. The warranty is two years beginning on the date of invoice, as further described in the following text.
-
Page 3: Table Of Contents
Installation and User's Guide TABLE OF CONTENTS ITEM Page SAFETY INSTRUCTION FCC STATEMENT INSTALLATION OSD MENU SETTING HOW TO CONNECT(QUICK) DETAILS OF ENCORDER FUNCTION SPECIFICATIONS APPENDIX TROUBLESHOOTING... -
Page 4: Safety Instruction
Installation and User's Guide 1.SAFETY INSTRUCTION * Follow this safety instruction to use the monitor properly and prevent the damage. This safety instruction has “Warning” & “Caution” as below Warning - If the user does not follow this instruction, it may cause the serious damage to the user. Caution - If the user does not follow this instruction, it may cause the slight damage to the user or cause some damages to the monitor. - Page 5 Installation and User's Guide Warning 1.SAFETY INSTRUCTIN Do not install this monitor on the For cleaning do not use liquid outside and near water. It may cause cleaners. Never touch the power plug damage to the product, electric shock with wet-hands. and fire.
- Page 6 Installation and User's Guide Cautions 1.SAFETY INSTRUCTIN Install this monitor some distance Place this product on a stable place. from the wall and do not install unless If not, it may fall, causing serious proper ventilation is provided. damages to the monitor and people. The openings must not be blocked by When carrying this monitor, be careful curtain, rug or other similar surface.
- Page 7 Installation and User's Guide Cautions 1.SAFETY INSTRUCTIN Install this monitor about 50cm far Do not press the LCD panel with from the eyes and an angle of 0~15 hands or the sharpened material degrees below eyes. Too close hardly. installation may cause having weak sight.
-
Page 8: Fcc Statement
Installation and User's Guide 2. FCC RF INTERFERENCE STATEMENT NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 9: Installation
Installation and User's Guide 3. INSTALLATION PARTS Power Cable Adapter LCD Monitor User Manual & Remote Controller Battery NVS Software... - Page 10 Installation and User's Guide HOW TO INSTALL 1) KEY BUTTON SHORT KEY FUNCTION OSD Key Function MENU Activate the menu function / Exit from the menu SOURCE / ▼ Input source menu / Source selection(move down from OSD menu) AUTO / ▲ Auto-fit screen with PC-RGB input / move up from OSD menu ◀(VOL) Decrease the level of volume and move the previous menu...
- Page 11 Installation and User's Guide 2) CONNECTION ② ① ③ ④ ⑤ ⑥ ① RESET Factory reset ② HDMI HDMI Signal input ③ ONVIF Output ONVIF IP Signal ④ USB Port For USB memory stick to record IP signal (Max 64 GB) ⑤...
- Page 12 Installation and User's Guide 2) REMOTE CONTROLLER POWER Power On or Off MUTE Turn on or off the speaker COLOR TEMP Select color temperature of screen HDMI Select HDMI signal VOL-/VOL+ Adjust volume / OSD control UP / DOWN OSD control MENU/EXIT Activate or exit of OSD menu KEYLOCK...
-
Page 13: Osd Menu Setting
Installation and User's Guide 4. OSD MENU SETTING 4-1. PICTURE 1. Press the EXIT/MENU & press deselect key 2. Use the ▲&▼ arrow to highlight a selection. 3. Press the ▶/SELECT to choose an item. 4. Use the ▲&▼ arrow to highlight a selection. 5. - Page 14 Installation and User's Guide COLOR TINT Default setting is 50% and adjustable from Default setting is 50% and adjustable from range of 0 to 100% range of 0 to 100% SHARPNESS PEAKING CONTROL Default setting is 50% and adjustable from Default setting is 50% and adjustable from range of 0 to 100% range of 0 to 100%...
- Page 15 Installation and User's Guide 4-2. SCREEN 1. Press the EXIT/MENU key to access menu 2. Use the ▲&▼ arrow to select screen 3. Press the ▶/SELECT to choose an item. 4-3. SETUP 1. Press the EXIT/MENU key to access menu 2.
-
Page 16: How To Connect(Quick)
Installation and User's Guide 5. HOW TO CONNECT 5-1. Wiring Diagram 21KHIP Default are: IP Address : 192.168.1.2 Resolution : 1920 x 1080 Frame Rate : 30P ID : khip2 Password : pass2oic Your PC IP address should be 192.168.1.x or change the IP address of 21KHIP monitor. Use the same network subnet to detect the monitor... - Page 17 Installation and User's Guide 5-2. How to Change IP Encoder Setup A. LOGIN NVT Open the Web Browser (Recommend Internet Explorer) Enter IP address (192.168.1.2) to display NVT menu as follow Enter default ID and Password ID: khip2 Password: pass2oic...
- Page 18 Installation and User's Guide B. DOWNLOAD ACTIVEX Be sure to display the screen (Picture B-1) Click “ActiveX Download” (On the top right corner) The pop-up window will show up (Picture B-2). Click “OK” The second pop-up window will display (Picture B-3). Click “Run” When NVSOCX 1.0 setup window appear (Picture B-4), follow next steps Close Inter Explorer but DO NOT CLOSE NVSOCX 1.0 Set up Window Click “Install”...
- Page 19 Installation and User's Guide <B-2> <B-3> <B-4>...
- Page 20 Installation and User's Guide C. SETTING If the image is not displayed, click “Setting” (Picture C-1) Then the status screen will be show up (Picture C-2) Menu bar is located on the left side <C-1>...
- Page 21 Installation and User's Guide <C-2>...
- Page 22 Installation and User's Guide D. INPUT VIDEO SOURCE SETTING Click “Report” on the menu bar (Picture D-1) Hold down “Shift” key from keyboard and click “Report” icon on the top (Picture D-1) You can see next screen (D-2) <D-1>...
- Page 23 Installation and User's Guide <D-2> Select “Interface” on the “Video Source” BT1120P for Progressive Mode (1080P, 720P) BT1120I for Interface Mode (1080I) Change Resolution 1920 x 1080 for 1080P and 1080I 1280 x 720 for 720P Change Framerate Click “OK” Click “Reboot”...
- Page 24 Installation and User's Guide E. OUTPUT VIDEO SOURCE SETTING Select “Video Profile” on the Menu Bar (Picture E-1) Change “Resolution” on the “Video Setting” Change “Frame Per Sec” on the “Video Setting” Click “OK” <E-1>...
- Page 25 Installation and User's Guide F. IP ADDRESS SETTING Select the “Network” on the Menu Bar Change “IP Address” on the Network Setting Change “Subnet Mask” on the Network Setting Change “Gateway” on the Network Setting Click “OK” <E-1>...
-
Page 26: Details Of Encorder Function
Installation and User's Guide 6. DETAIL OF ENCODER FUNCTION The Cellinx URH-103A Web Monitoring and setting manual is listed in the separate file. Please locate “URH-103A.pdf” file in the CD for detail encoder function. -
Page 27: Specifications
Installation and User's Guide 7. SPECIFICATIONS 7-1. Input Signal Resolution Support INPUT SIGNAL RESOLUTION SUPPORTV INPUT SIGNAL MODE RESOLUTION VERTICAL FREQUENCY (Hz) SDTV 480i 720 x 480 SDTV 576i 720 x 576 EDTV 480p 720 x 480 HDMI EDTV 576p 720 x 576 HDTV 720p 1280 x 720... - Page 28 Installation and User's Guide 7-2 HDMI TV Mode Table HDMI SIGNAL MODE HORIZONTAL FREQ (KHz) VERTICAL FREQ (Hz) ENCODER 525(480) / 60i 15.73 59.94 Support 525(480) / 60p 31.47 59.94 Support 625(575) / 50i 15.63 50.00 Support 625(576) / 50i 15.63 50.00 Support...
- Page 29 Installation and User's Guide 7-2. Specification General Features 21KHIP Screen Size 21.5 inches Resolution 1920*1080 pixel Pixel Pitch 0.24795*0.24795 mm Brightness 250 cd/㎡ Contrast Ratio 1000 : 1 Display Aspect Ratio 16 : 9 Viewing Angle (H/V) 170/160 degrees Display Color 16.7 million Response Time 5 ms...
-
Page 30: Appendix
Installation and User's Guide 8. APPENDIX 8-1. HDMI Type A PIN Assignment PIN No. PIN Name PIN No. PIN Name TMDS Data2+ TMDS Clock Shield TMDS Data2 Shield TMDS Clock- TMDS Data2- TMDS Data1+ Reserved (HDMI 1.0-1.3c), HEC Data - TMDS Data1 Shield SCL (PC serial Clock for DDC) TMDS Data1-... -
Page 31: Troubleshooting
Installation and User's Guide 9. TROUBLESHOOTING When the following troubles are occurred, follow the trouble shooting. Before contacting a service center. Troubleshooting Troubleshooting Tip 1. Make sure if the power supply is connected property The screen doesn’t 2. Turn on the power. show up 3.
