MaxLoader User's Guide
90

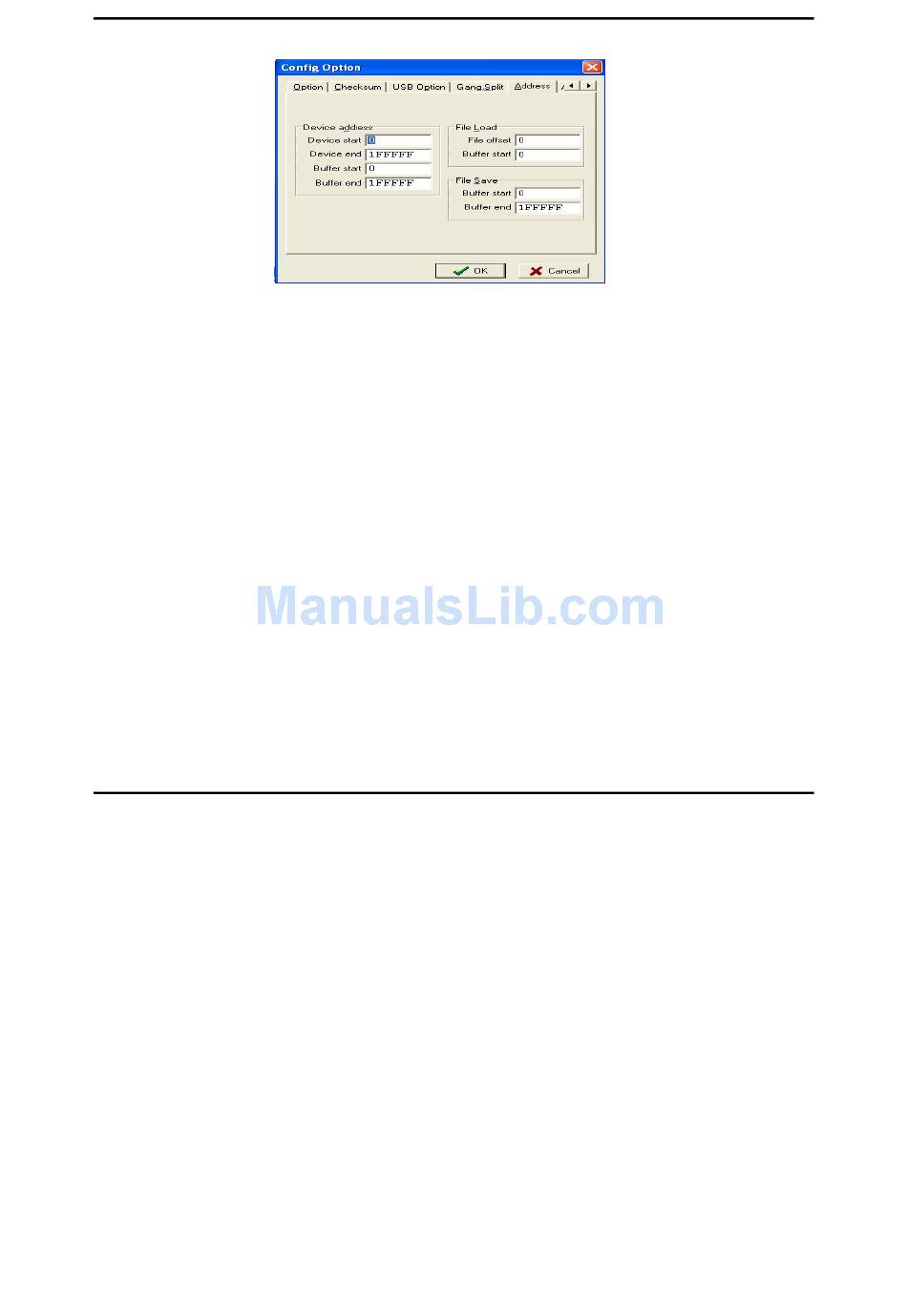

Device Address
These addresses will be applied for programming the buffer data.
-Chip Start: Device Starting address for the data to be programmed in buffer.
-Chip End:
Device Ending address for the data to be programmed in buffer.
-Buffer Start: Buffer Starting address for the data to be programmed.
-Buffer End: Buffer Ending address for the data to be programmed.
NOTE: Device size for different devices
Device
Device Address
2716
0 - 7FF
2732
0 - FFF
2764
0 - 1FFF
27128
0 - 3FFF
27256
0 - FFFF
27010/1024
0 - 1FFFF
27020/2048
0 - 3FFFF
27040/4096
0 – 7FFFF
File Load
These address will be applied for programming the buffer data.
